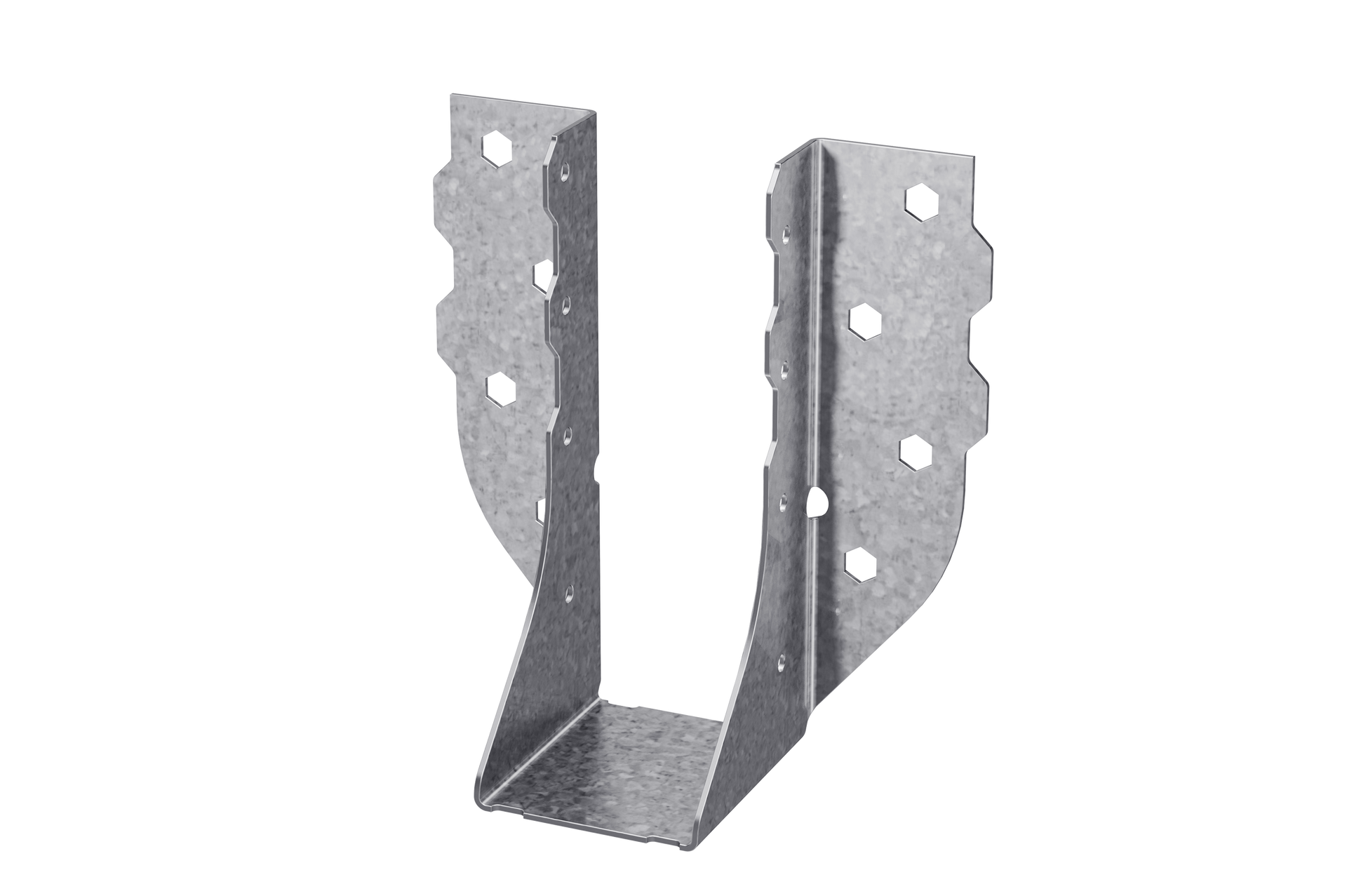

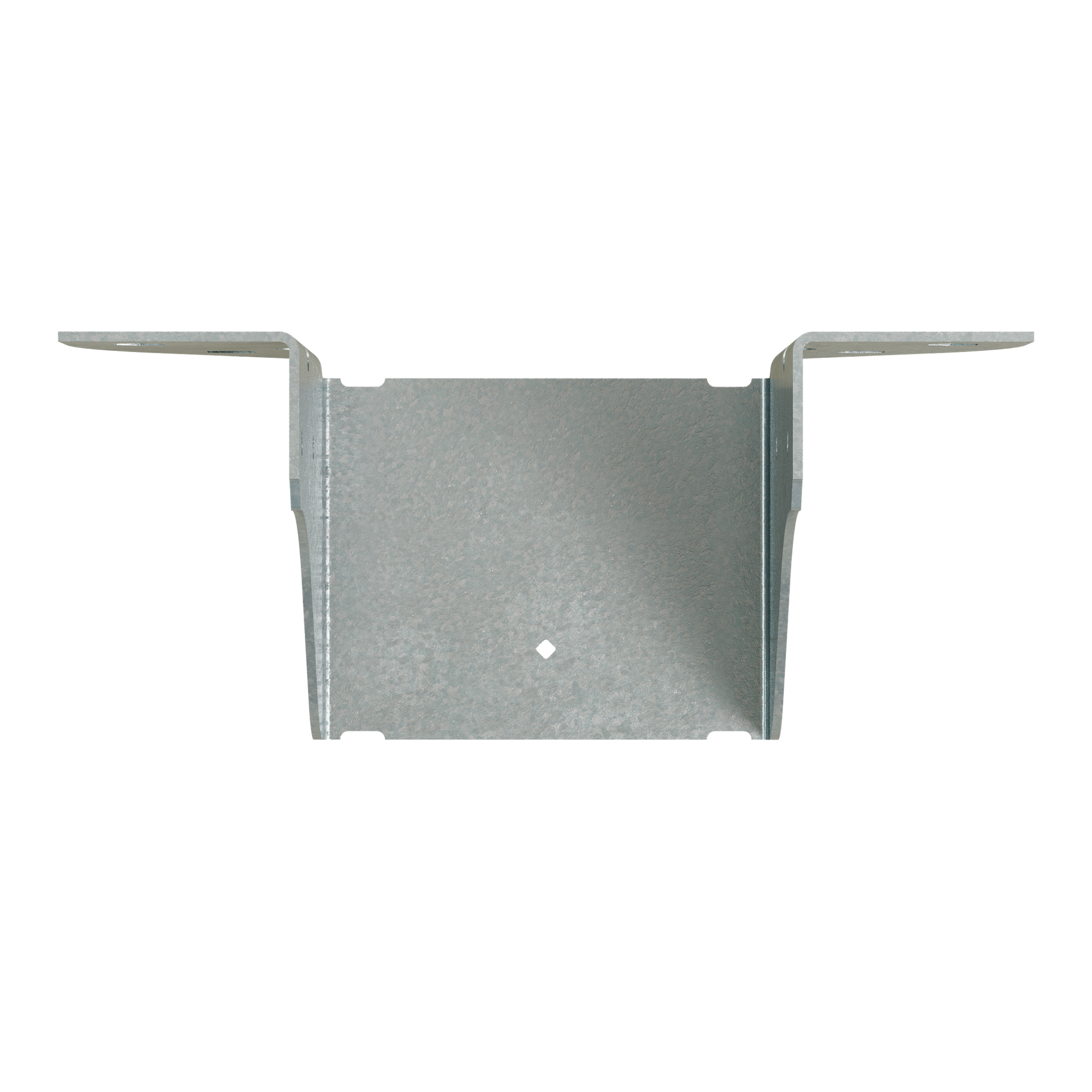

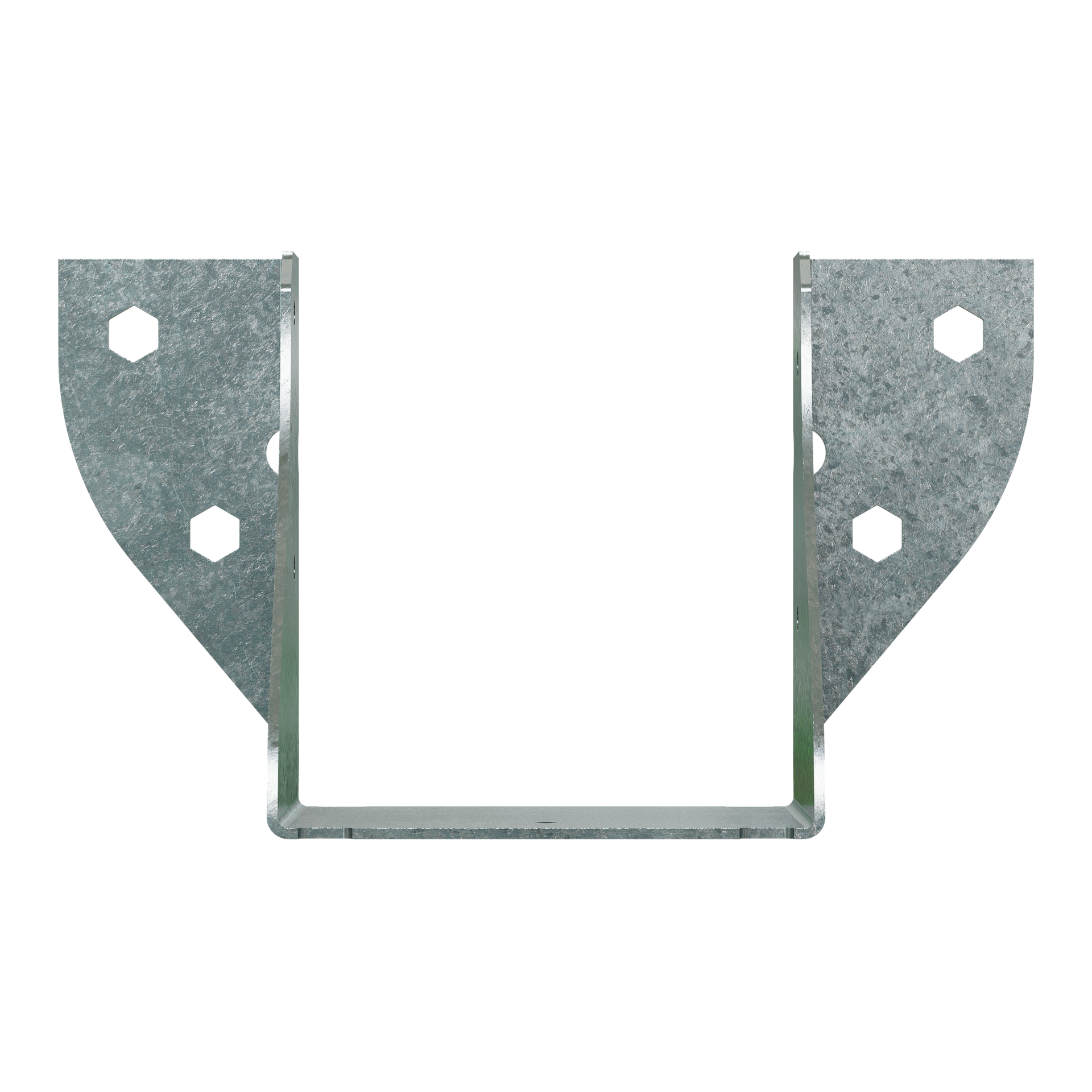

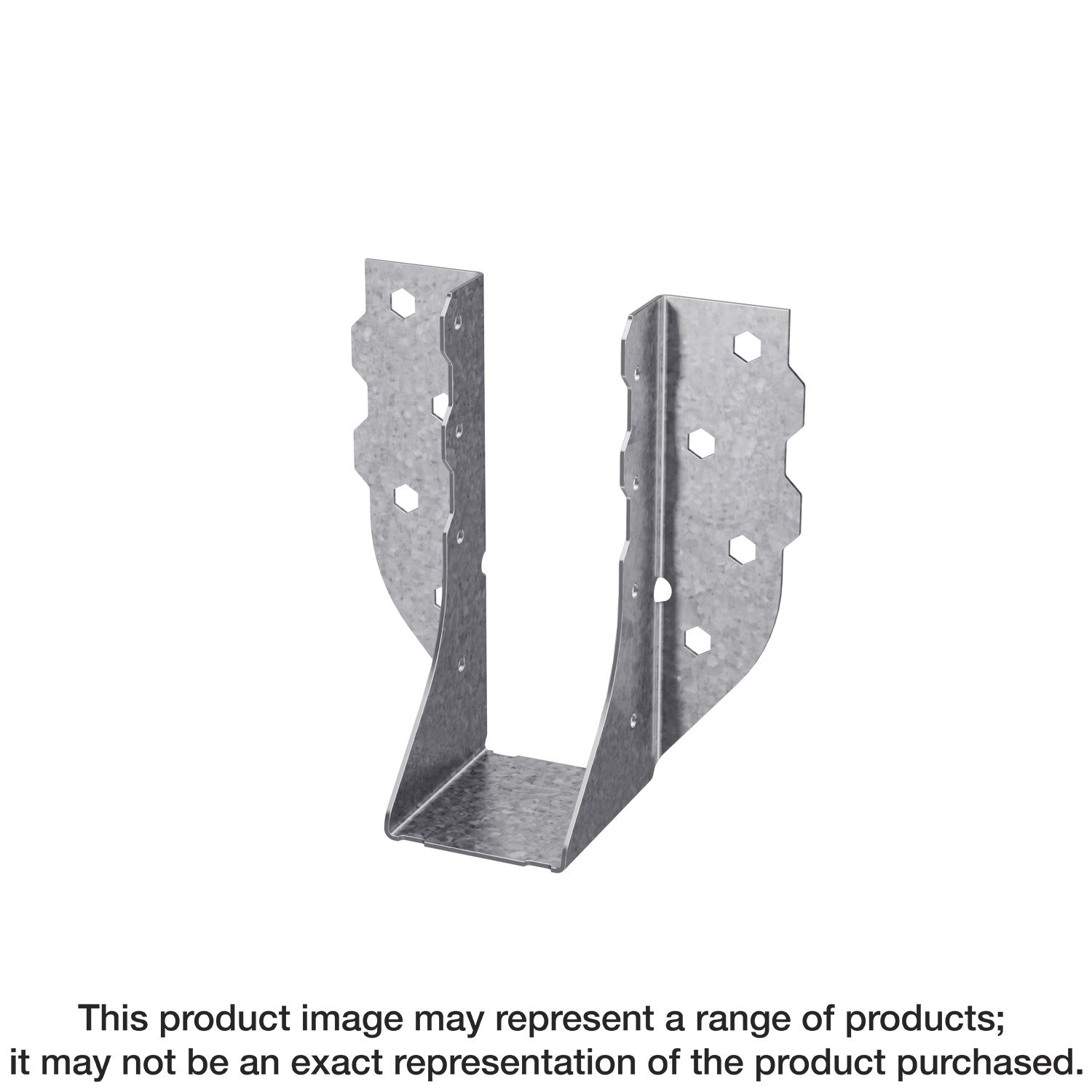

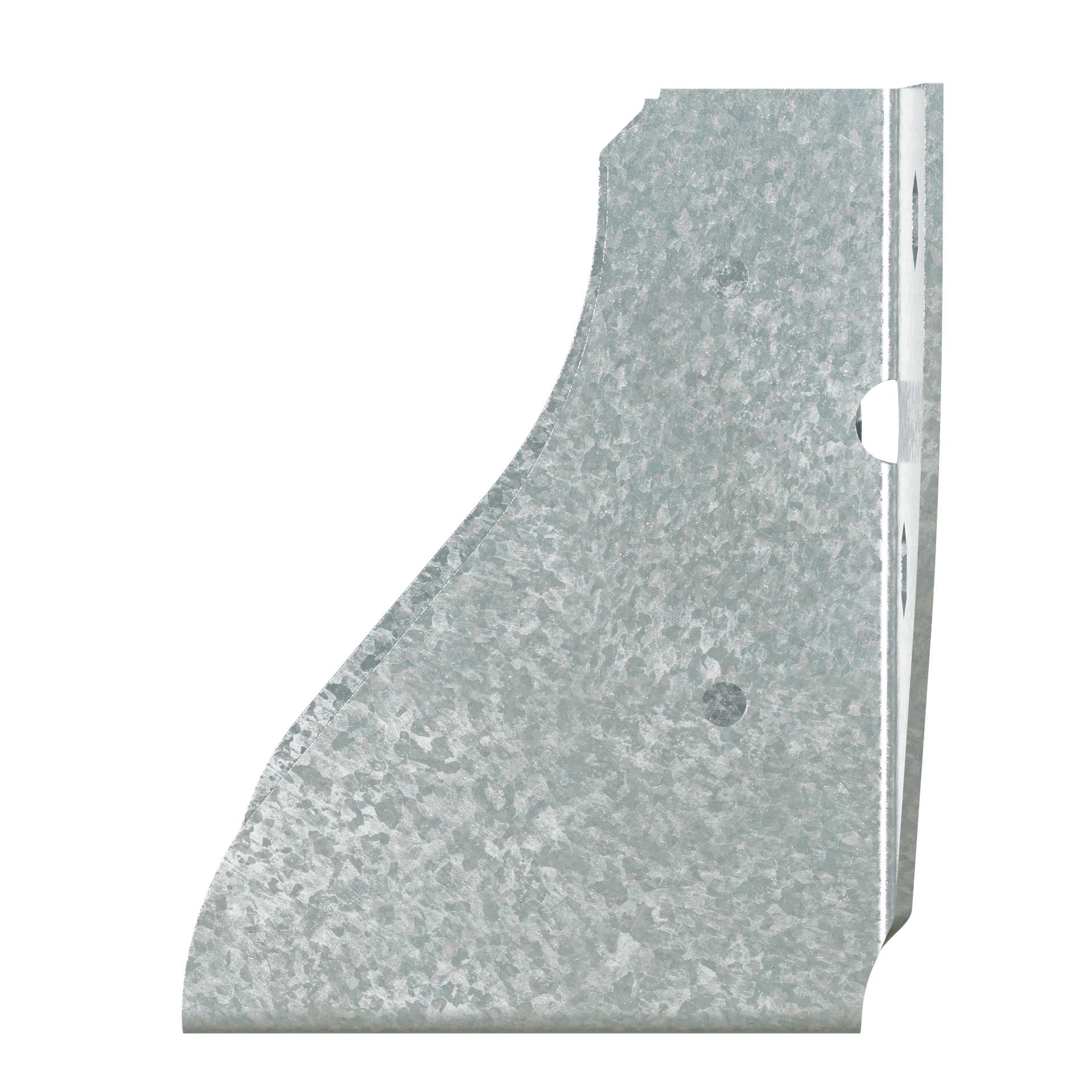

Simpson Strong-Tie LGUM26-3-SDS LGUM High-Capacity Girder Hanger for Masonry for Triple 2x6 with Screws/Anchors

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LGUM high-capacity beam or girder hangers are for concrete or masonry applications. Installation is made easier using Simpson Strong-Tie® Strong-Drive® SDS screws (provided) into the wood member and Titen HD® anchors (provided) into the masonry.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Attach hanger to a concrete or grouted CMU wall using Titen HD anchors
• Titen HD is not recommended for exposed exterior applications
• Provide moisture barrier between beam and wall per jurisdictional requirements
• Seat width: 4-15/16 in.
• Height: 5-1/2 in.
• Nominal joist size: Triple 2x6
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: LGUM26-3-SDS
• UPC: 707392150404
• GTIN: 707392150404
• Feature 01: Attach hanger to a concrete or grouted CMU wall using Titen HD anchors
• Feature 02: Titen HD is not recommended for exposed exterior applications
• Feature 03: Provide moisture barrier between beam and wall per jurisdictional requirements
• Feature 04: Seat width: 4-15/16 in.
• Feature 05: Height: 5-1/2 in.
• Feature 06: Nominal joist size: Triple 2x6
• Feature 07: Made from 12-gauge steel
• Feature 08: Galvanized (G90) for extra corrosion resistance
• Install With: Install with Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors (included)
• Assembled Depth - Imperial: 4.2865
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.56775
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 9.7605
• Assembled Width UOM - Imperial: in.
• Base Product ID: LGUM_Hanger
• Base Product Name: LGUM
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Masonry Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 268025169620979876044991428675520513327
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: Triple 2x6
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Product Includes: Includes Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 2.78
• Short Product Name: GIRDER HNGR MASONRY SDS 2-1/2 THD37400
• Strongtie.com URL: https://www.strongtie.com/facemountmasonryhangers_masonryhangers/lgum_hanger/p/lgum
• Subcategory: Wood Construction Connectors
• Subcategory 2: Masonry Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392150401
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
