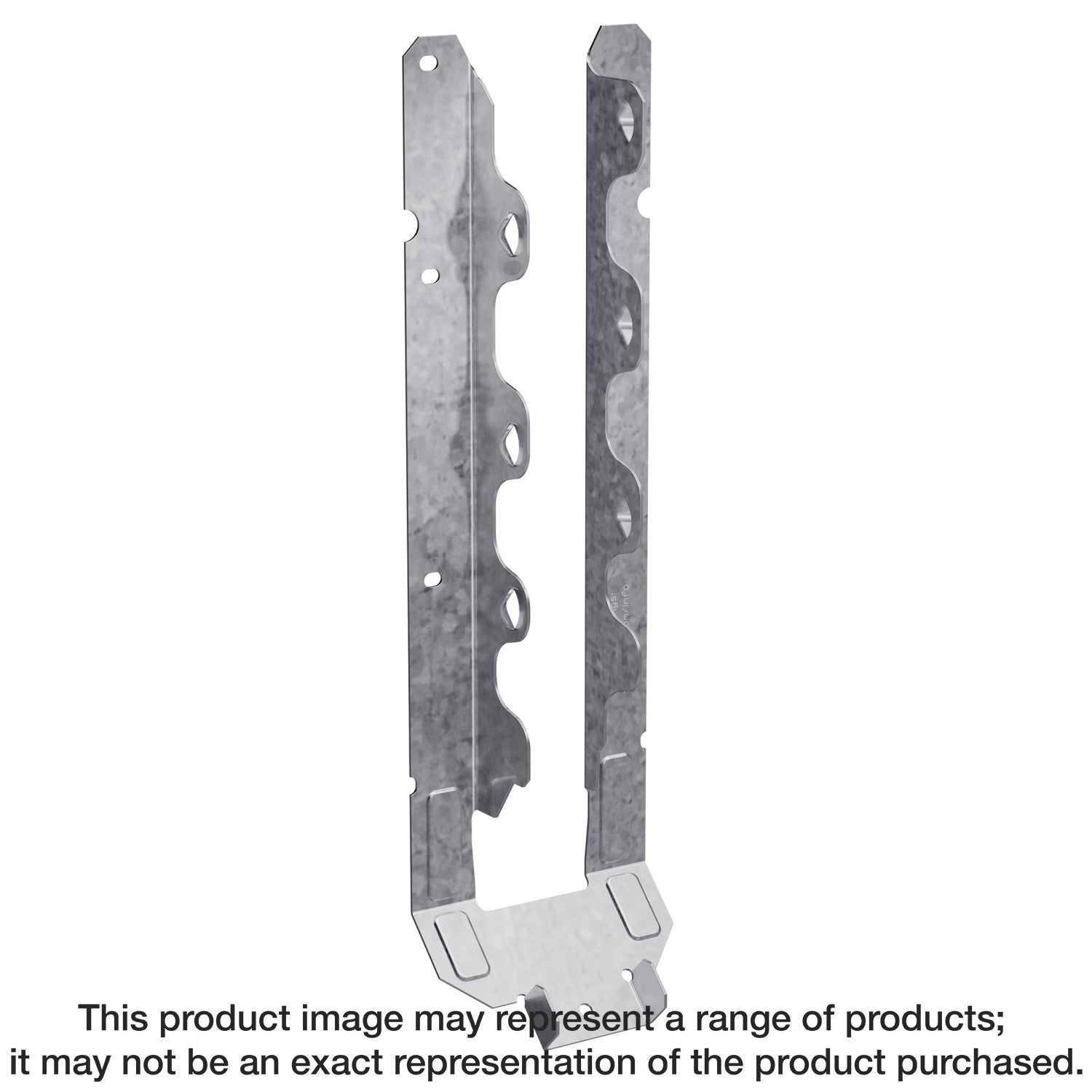

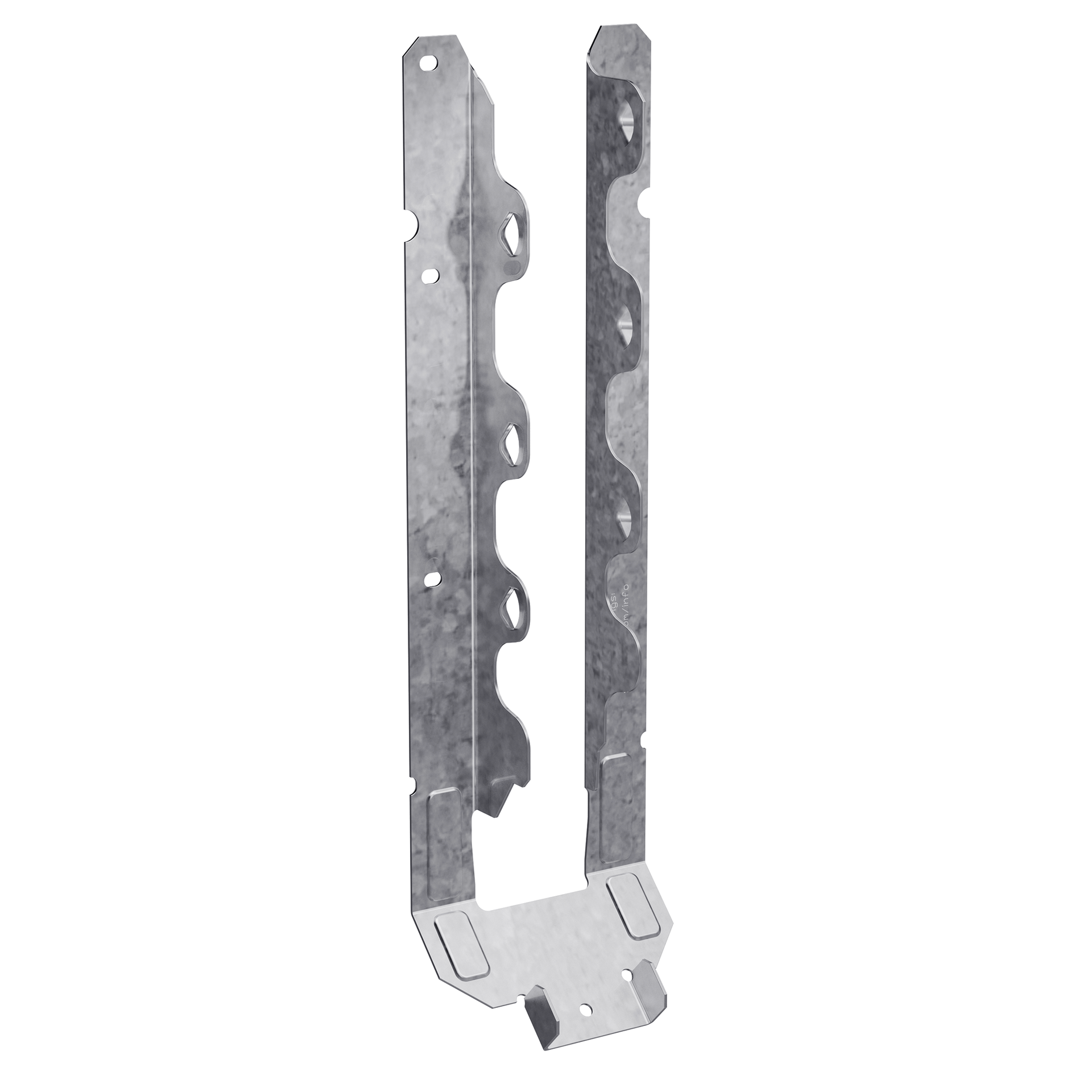

Simpson Strong-Tie LRU212Z LRUZ ZMAX® Galvanized Slopeable Light Rafter U Hanger for 2x12

The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ’s unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
• Accommodates roof pitches from 0:12 to 14:12
• Slopes up or down to 45° (12:12) — for slopes greater than 45° up to 49° (14:12), allowable loads are 0.85 of table loads
• For added versatility, the fasteners on the face of the hanger are placed high enabling the bottom of the rafter to hang below the ridge beam
• For rafter sizes: 2x10, 2x12
• Seat width: 1-9/16 in.
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: LRU212Z
• UPC: 707392202035
• GTIN: 707392202035
• Feature 01: The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
• Feature 02: Accommodates roof pitches from 0:12 to 14:12
• Feature 03: Slopes up or down to 45° (12:12) — for slopes greater than 45° up to 49° (14:12), allowable loads are 0.85 of table loads
• Feature 04: For added versatility, the fasteners on the face of the hanger are placed high enabling the bottom of the rafter to hang below the ridge beam
• Feature 05: For rafter sizes: 2x10, 2x12
• Feature 06: Seat width: 1-9/16 in.
• Feature 07: Made from 18-gauge steel
• Feature 08: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with 0.148 in. x 3 in. nails, 0.162 in. x 3-1/2 in. nails or #10 x 1-1/2 in. or 2-1/2 in. Strong-Drive® SD screws
• Assembled Depth - Imperial: 1.859961
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 12.238102
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: LRUZ_Hanger
• Base Product Name: LRUZ
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: ZMAX®
• Gauge: 18
• GUID: 324232982744307212804483009361143236644
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2x10, 2x12
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.55
• Short Product Name: LIGHT RAFTER U HANGER - SLOPEABLE 2X12
• Strongtie.com URL: https://www.strongtie.com/facemounthangersssl_solidsawnlumberconnector/lruz_hanger/p/lruz
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• US Patents: 10,370,842
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392202032
• PAL Reference: 50707392202030
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
