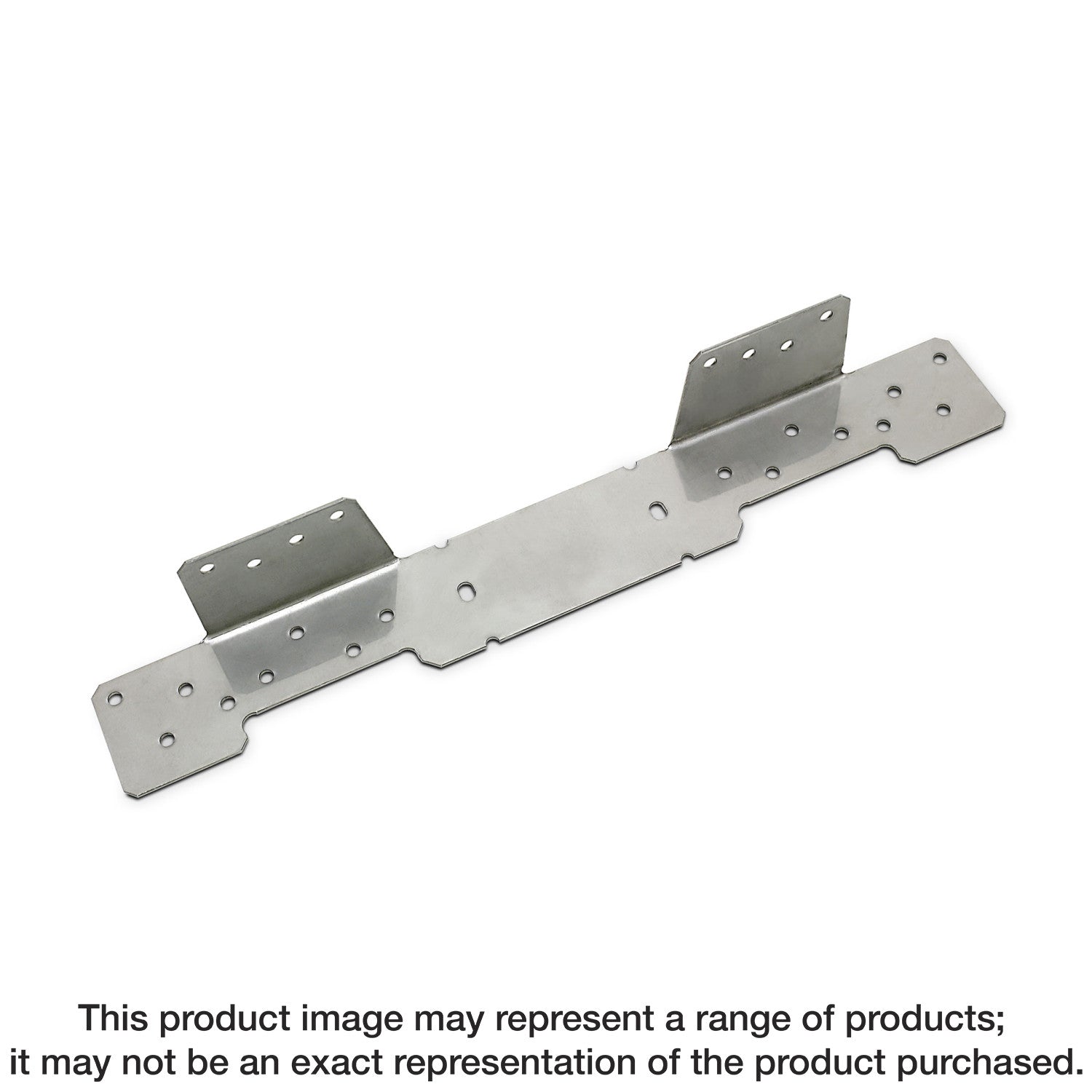

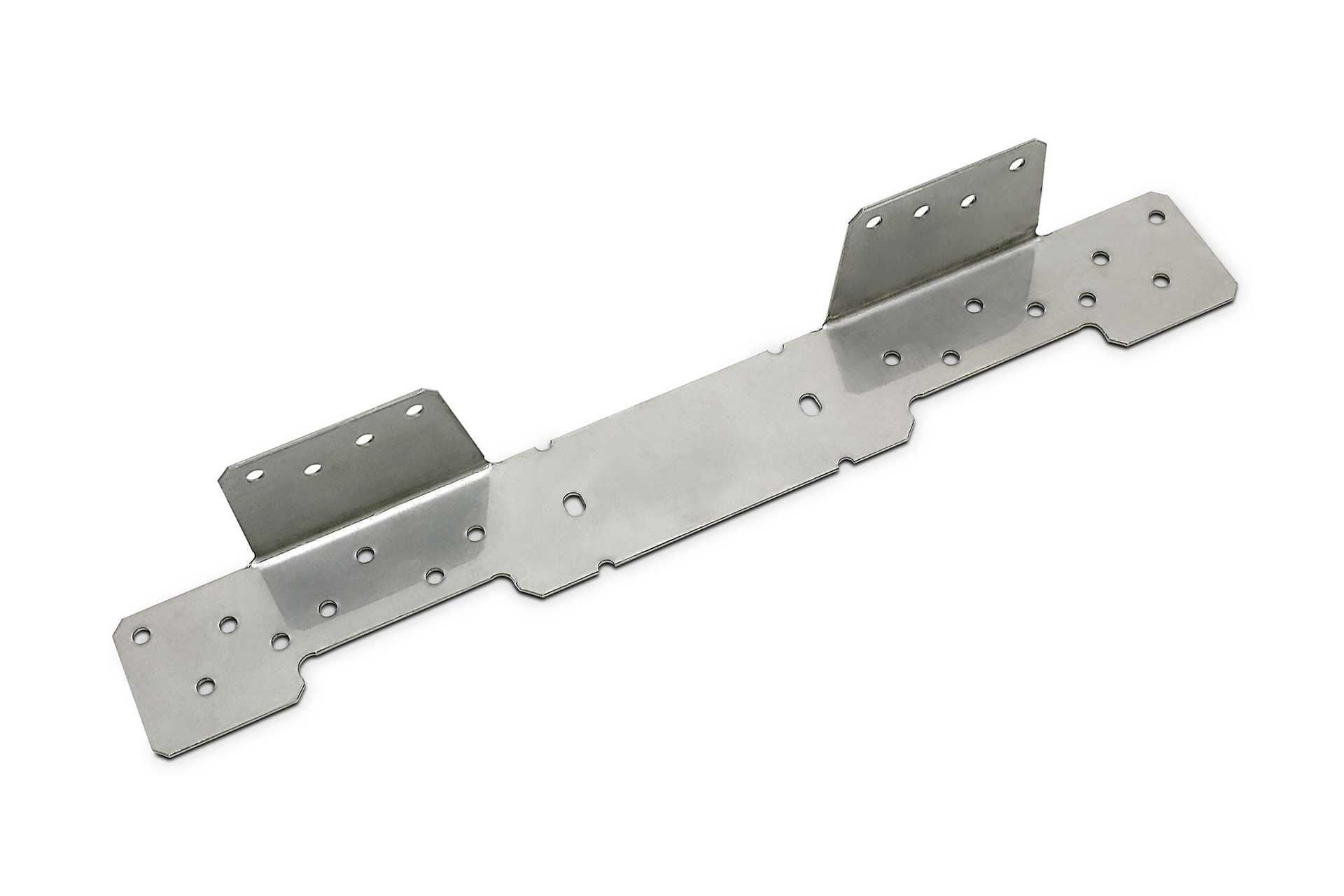

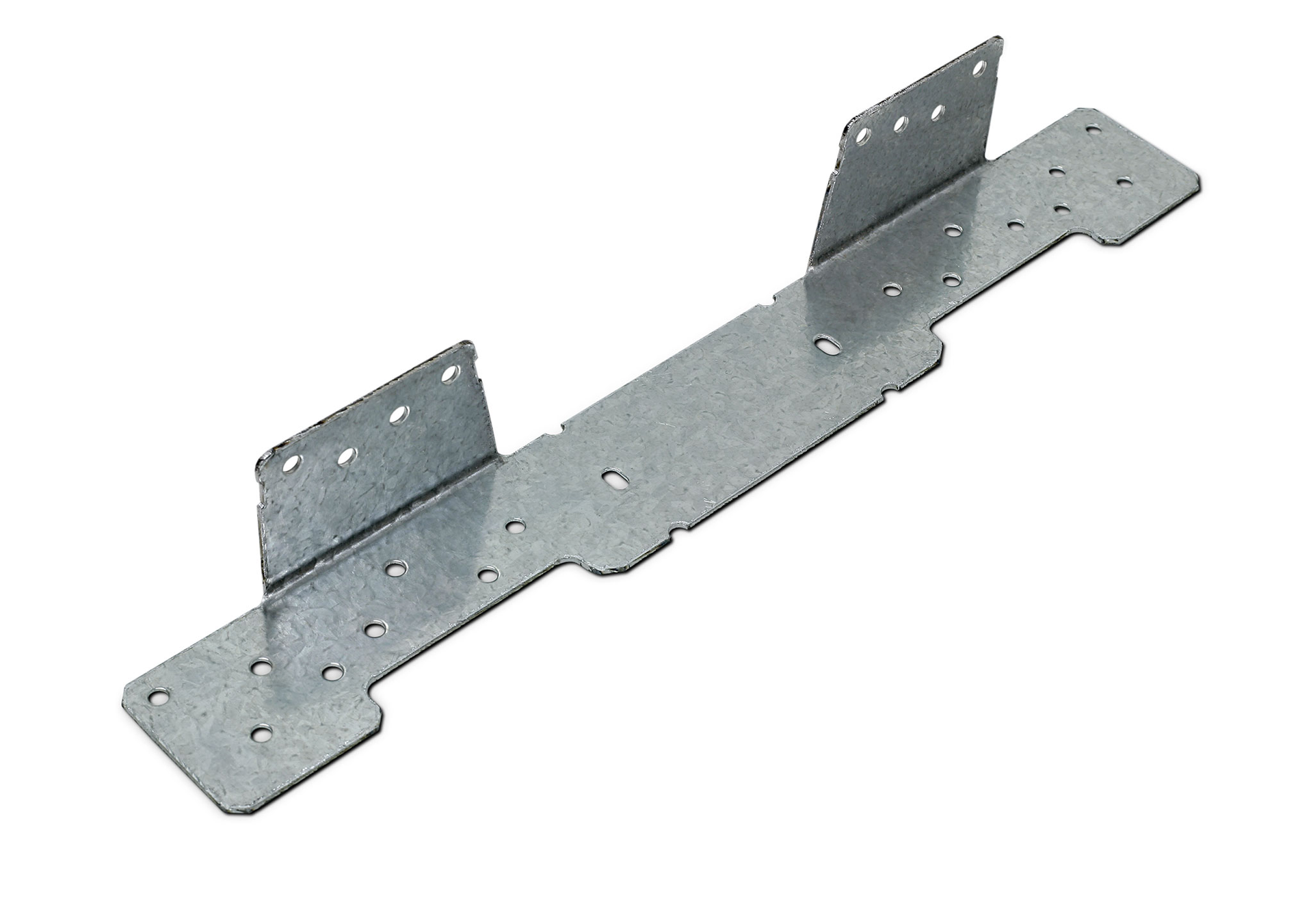

Simpson Strong-Tie LSCZ LSC 18-Gauge ZMAX® Galvanized Adjustable Stringer Connector (Pack of 25)

The Simpson Strong-Tie® LSC adjustable stair-stringer connector offers a versatile, concealed connection between the stair stringer and the carrying header or rim joist while replacing costly framing. Field slopeable to all common stair stringer pitches, the LSC connector is suitable for either solid or notched stringers. The LSC replaces additional framing and toe-nailing and is interchangeable for left or right applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Replaces additional framing and toe-nailing
• Suitable for most installations on nominal 2x10 or 2x12 header/rim board
• May be installed flush with the top of the carrying member or lower on the face
• Interchangeable for left or right applications
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance, suitable for interior and some exterior applications

Specifications

• ERP Part Number: LSCZ
• UPC: 10707392273100
• GTIN: 10707392273100
• Feature 01: Replaces additional framing and toe-nailing
• Feature 02: Suitable for most installations on nominal 2x10 or 2x12 header/rim board
• Feature 03: May be installed flush with the top of the carrying member or lower on the face
• Feature 04: Interchangeable for left or right applications
• Feature 05: Made from 18-gauge steel
• Feature 06: ZMAX galvanization offers extra corrosion resistance, suitable for interior and some exterior applications
• Assembled Depth - Imperial: 1.548
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11.0625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.548
• Assembled Width UOM - Imperial: in.
• Base Product ID: LSC_Connect
• Base Product Name: LSC
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Decking/Fencing Connectors > Stair-Stringer Connector
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: CAR
• EAN category: IC
• GUID: 207443277411729741140635615609037173817
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.375
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.5
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8
• Package Width UOM - Imperial: in.
• Product Class: Stair-Stringer Connector
• Prop 65 Warning: No
• Quantity: 25
• Shipping Weight: 7.5
• Short Product Name: ADJUSTABLE STAIR-STRINGER CONNECTOR ZMAX
• Strongtie.com URL: https://www.strongtie.com/decks_decksandfences/lsc_connect/p/lsc
• Subcategory: Wood Construction Connectors
• Subcategory 2: Decking/Fencing Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392273103
• PAL Reference: 20707392273107
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
