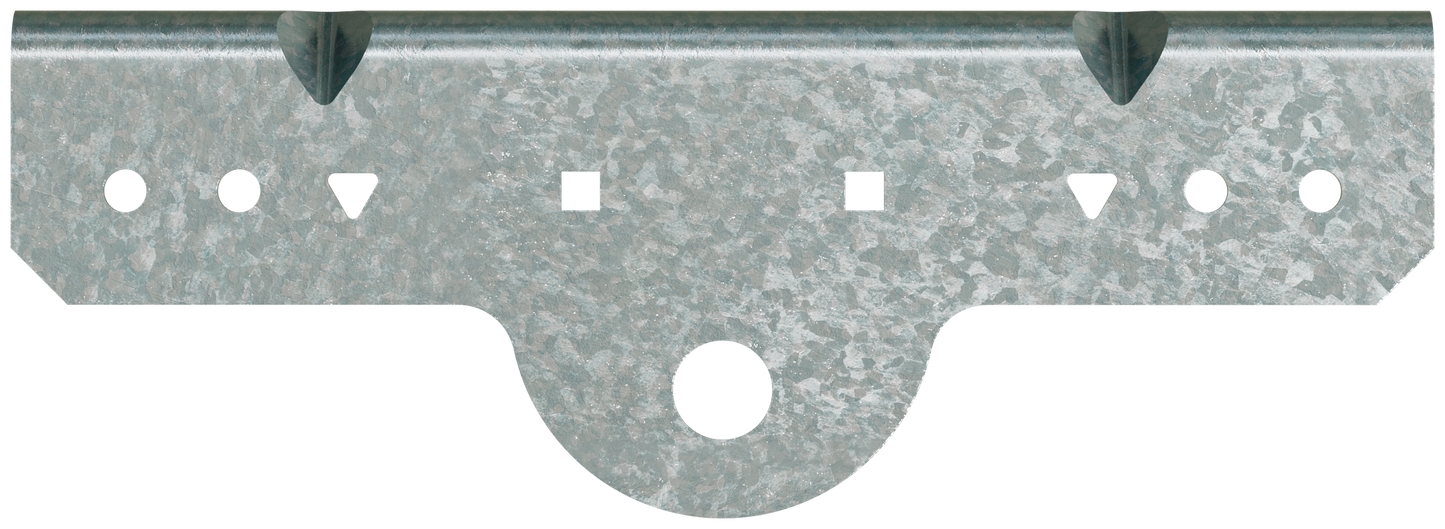

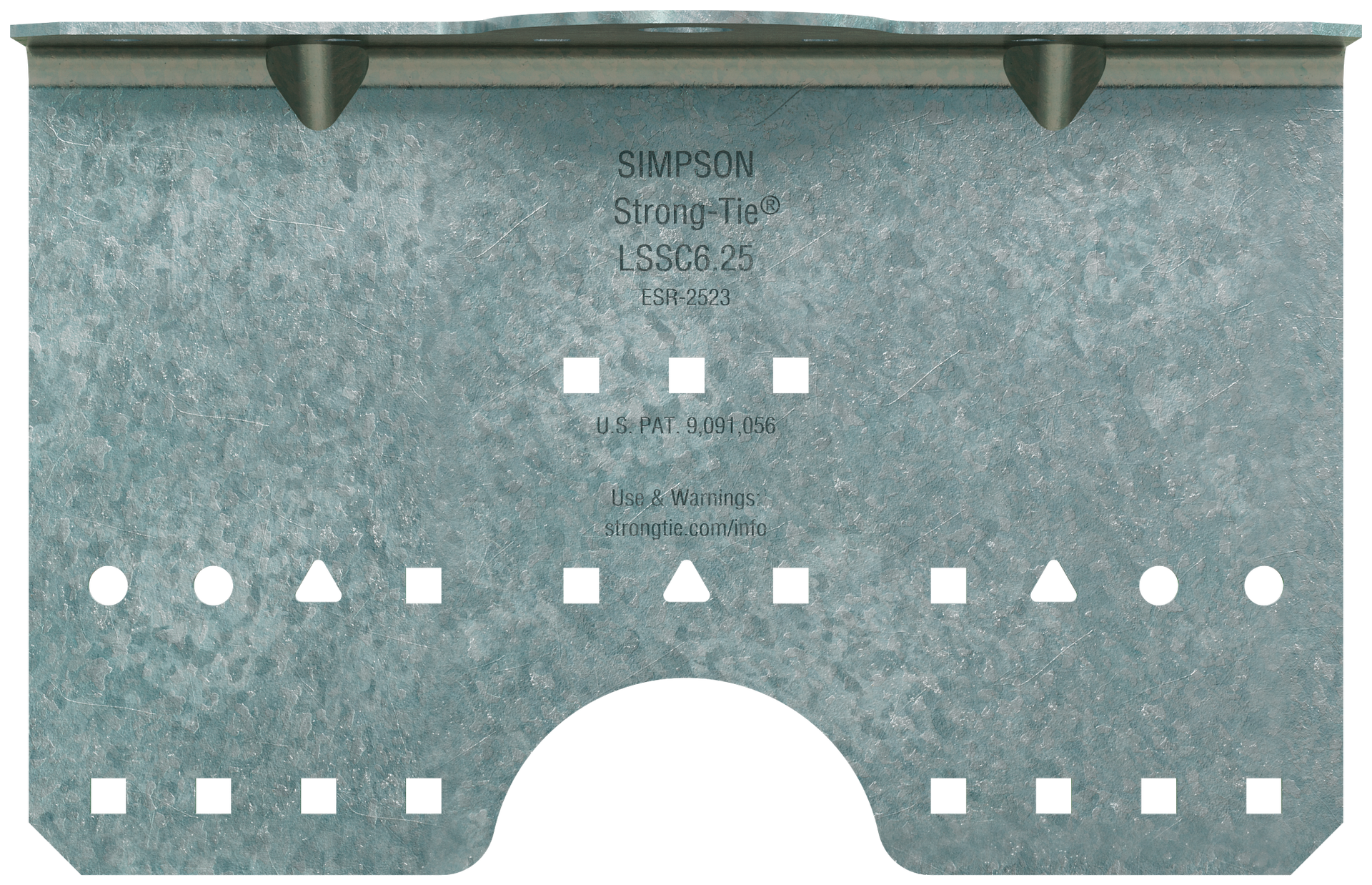

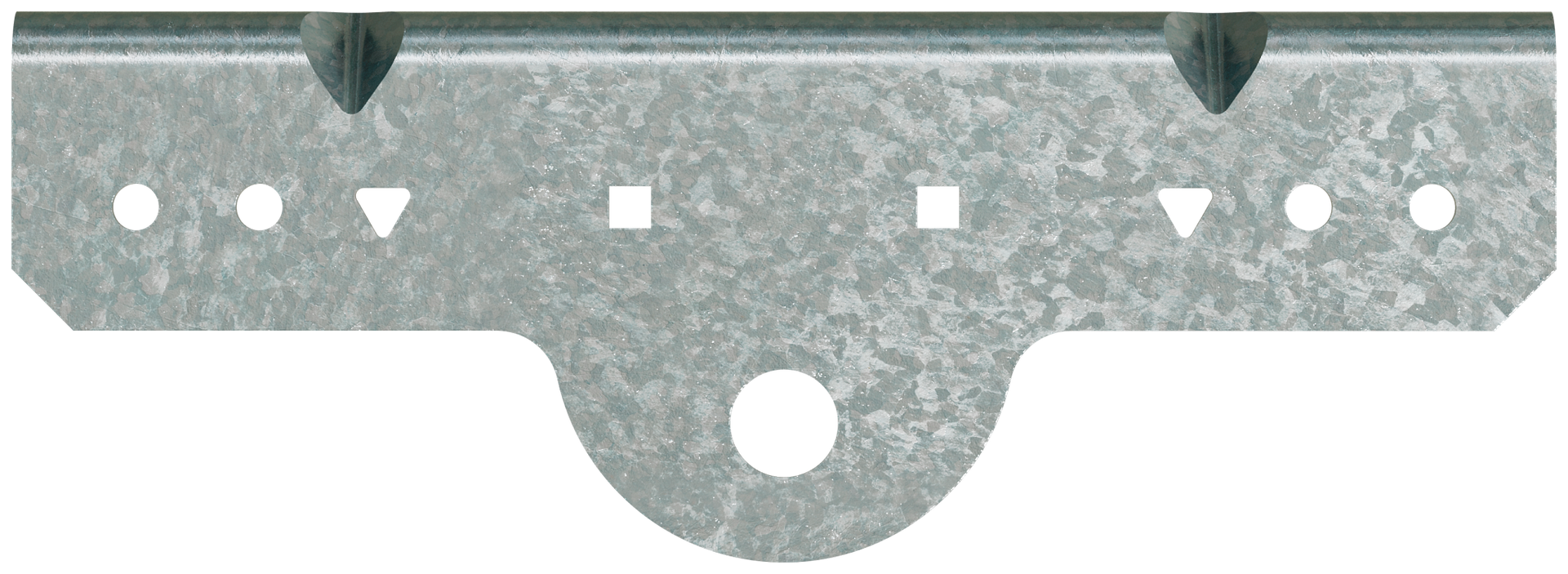

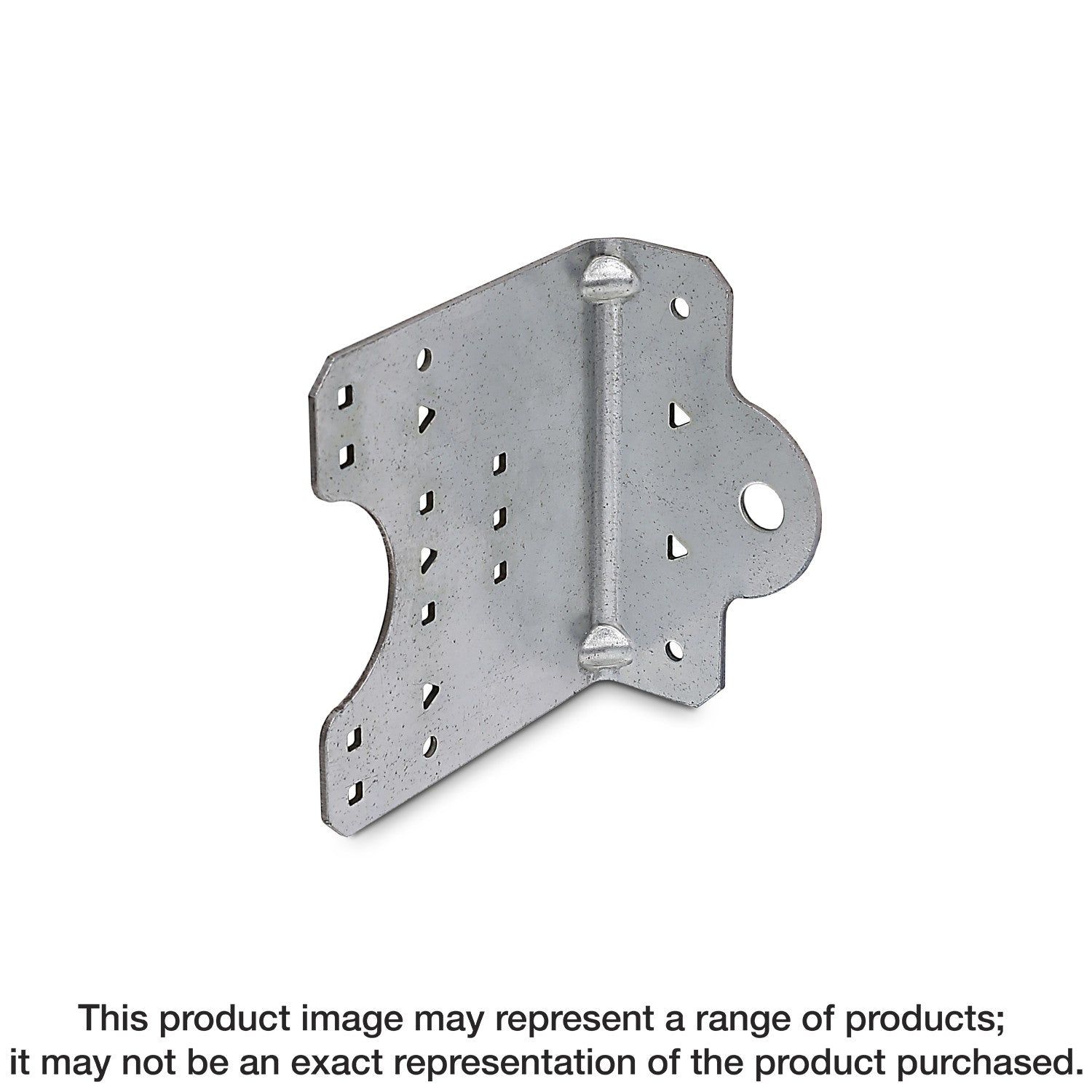

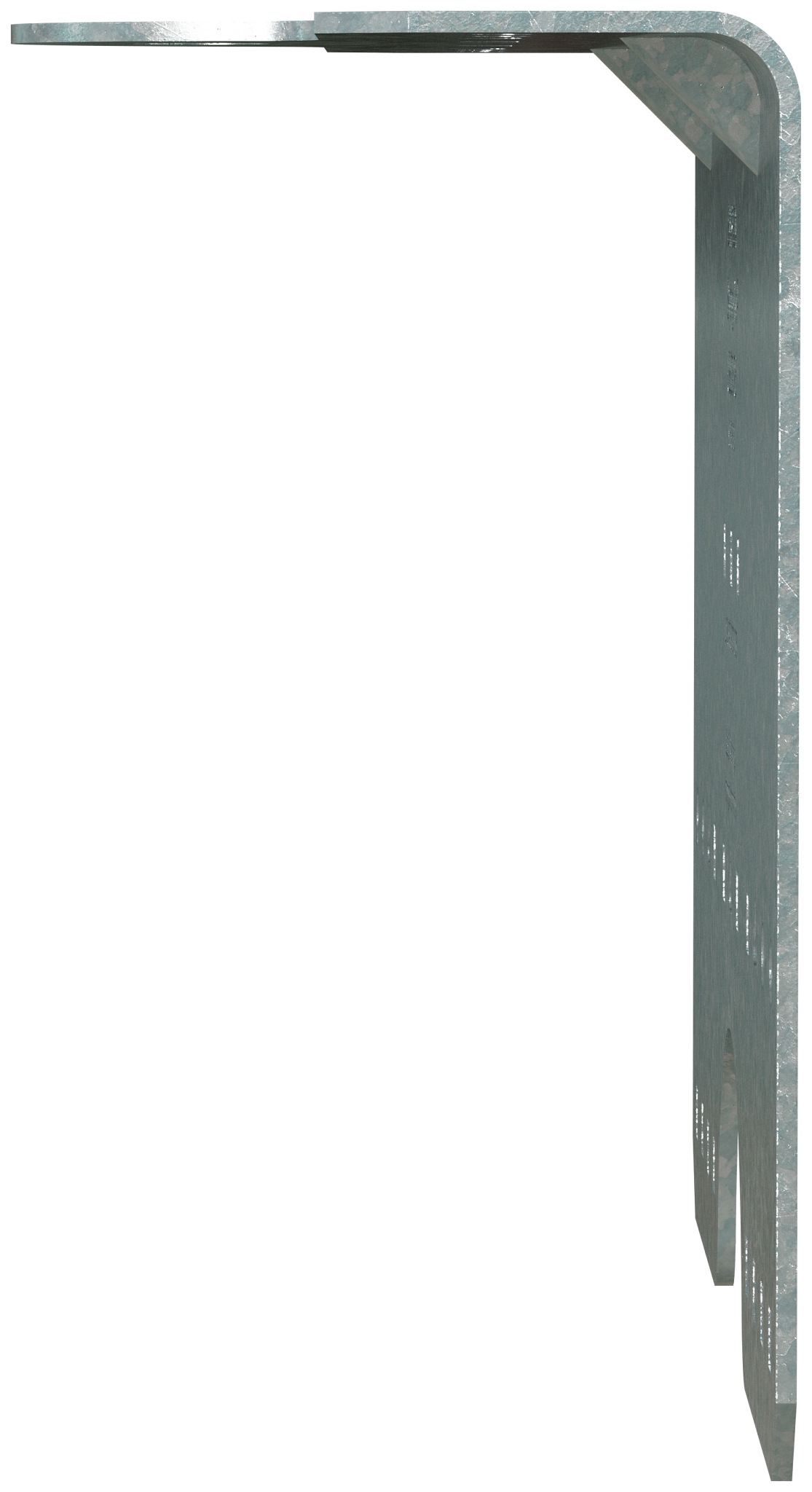

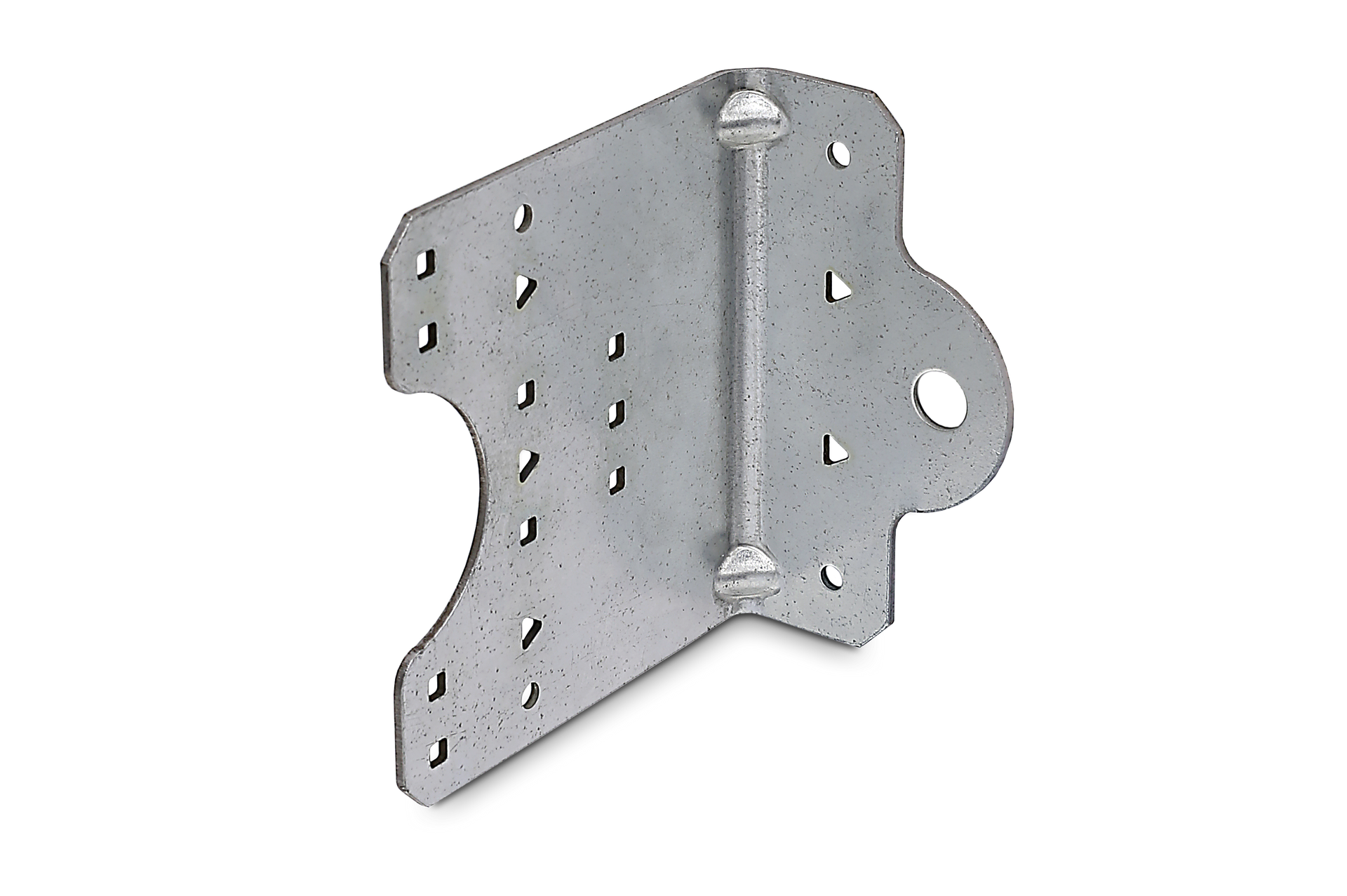

Simpson Strong-Tie LSSC6.25-R30 LSSC 6-1/4 in. 16-Gauge Galvanized Steel-Stud Clip (30-Qty)

LSSC connectors are versatile utility clips ideal for a variety of stud-to-stud and stud-to-structure applications in cold-formed steel construction. The clips have been designed to enable easy installation on the open side of studs or joists with flanges up to 3" long and return lips up to 3/4". A wide pattern of strategic fastener locations allows the LSSC to accommodate a variety of traditional and custom designs.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Prepunched holes reduce installation cost by eliminating predrilling
• Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
• Angle lengths accommodate either hard-side or soft-side attachment for studs and joists with return lips up to 3/4 in.
• 4 in. leg length enables soft-side connections for studs and joists with flanges up to 3 in.
• Also suitable for u-channel bridging
• Galvanized (G90) for extra corrosion resistance
• Made from 16-gauge (54 mil) steel
• Quantity: 30

Specifications

• ERP Part Number: LSSC6.25-R30
• UPC: 707392492139
• GTIN: 707392492139
• Feature 01: Prepunched holes reduce installation cost by eliminating predrilling
• Feature 02: Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
• Feature 03: Angle lengths accommodate either hard-side or soft-side attachment for studs and joists with return lips up to 3/4 in.
• Feature 04: 4 in. leg length enables soft-side connections for studs and joists with flanges up to 3 in.
• Feature 05: Also suitable for u-channel bridging
• Feature 06: Galvanized (G90) for extra corrosion resistance
• Feature 07: Made from 16-gauge (54 mil) steel
• Feature 08: Quantity: 30
• Install With: Installs with #10 screws
• Assembled Depth - Imperial: 4
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.25
• Assembled Width UOM - Imperial: in.
• Base Product ID: SSC_Connect
• Base Product Name: SSC
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Rigid Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 187189356598762261053510609278274831237
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.50
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 15.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 10.25
• Package Width UOM - Imperial: in.
• Packaging Quantity: 30
• Packaging Type: Pail
• Product Class: Clip
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 14.71
• Short Product Name: CFS CLIP 2.25 X 4 X 6.25 16GA 30PAK
• Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/ssc_connect/p/ssc
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Rigid Connectors
• US Patents: 9,091,056
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392492134
