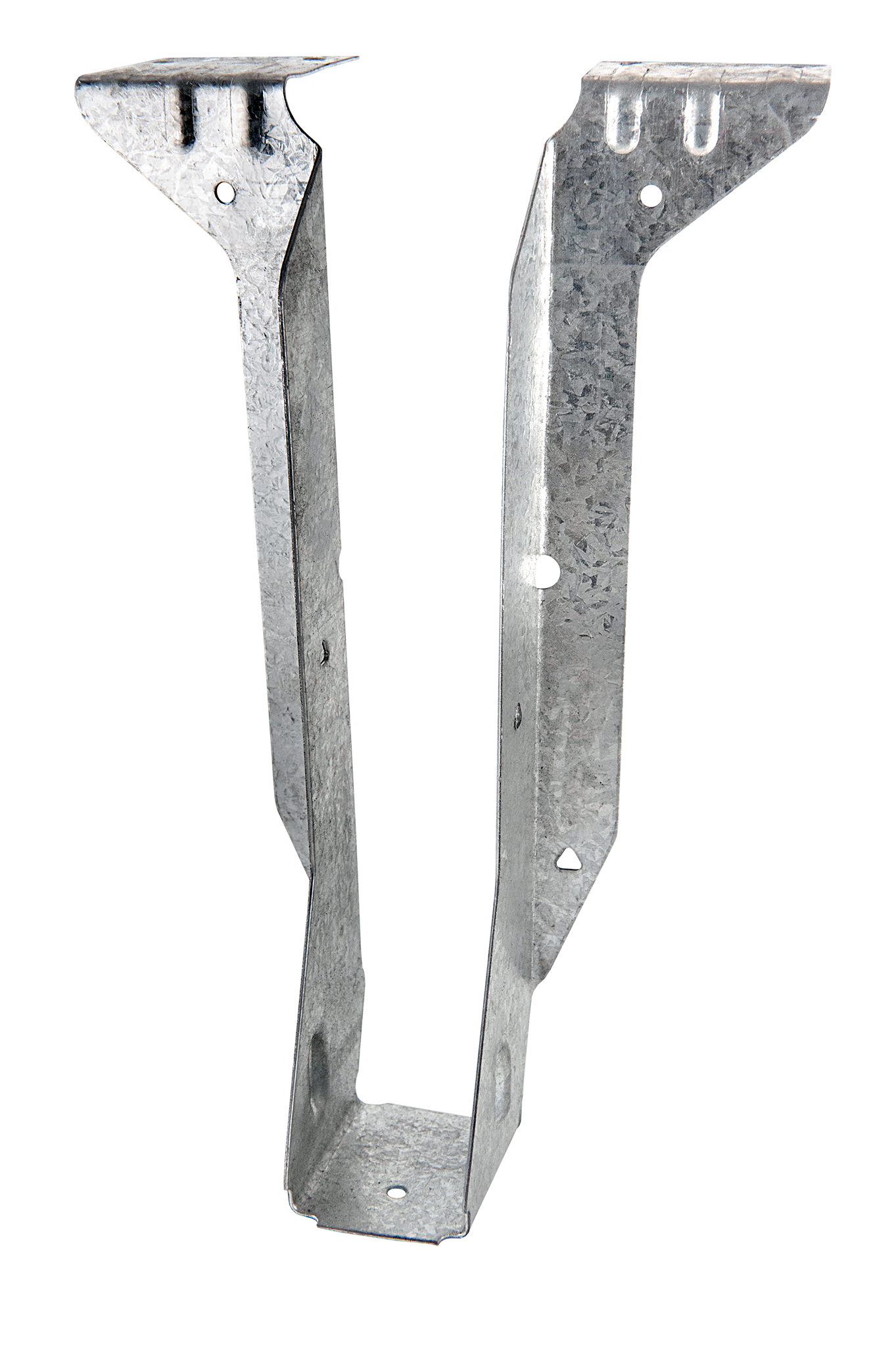

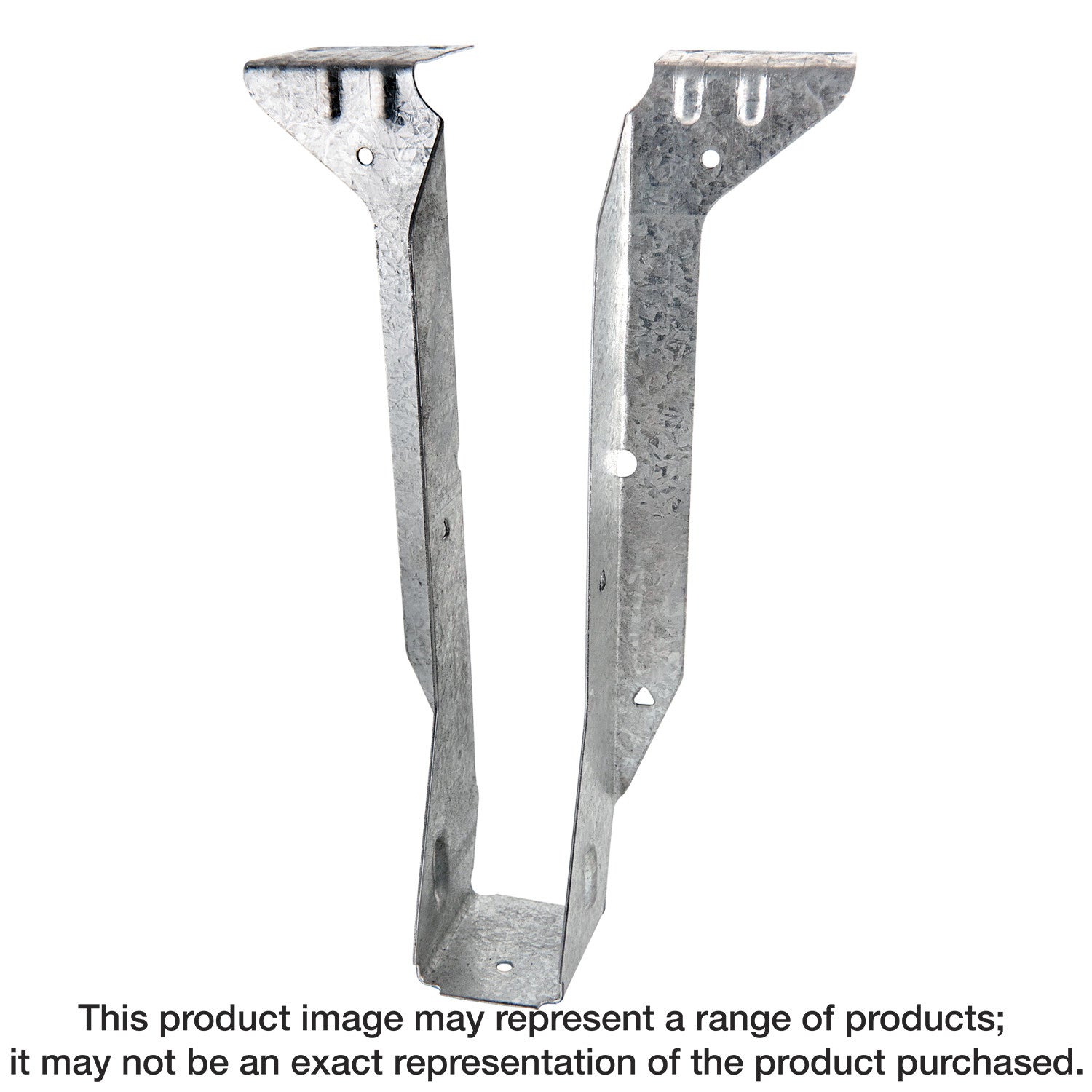

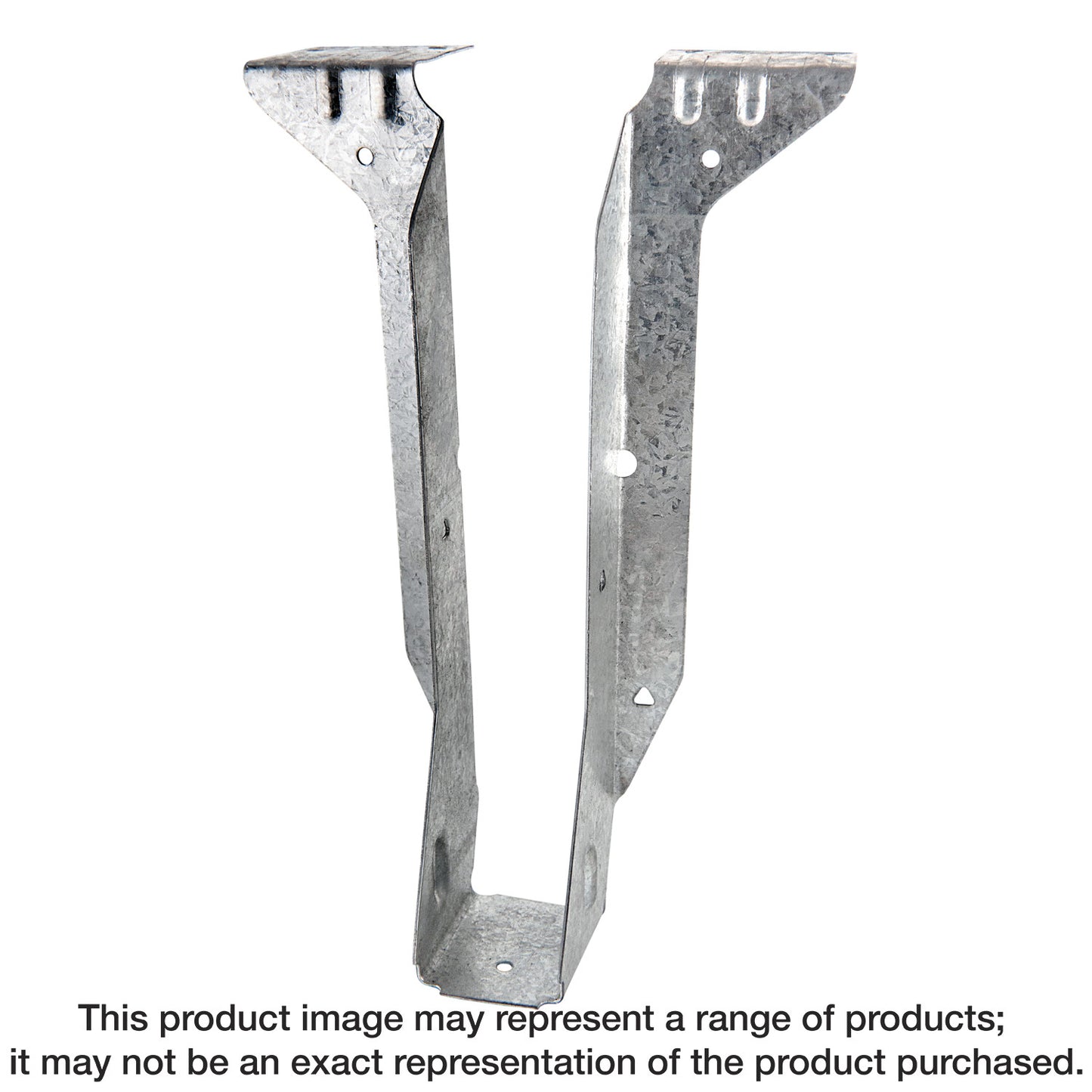

Simpson Strong-Tie LT251188 LT Top-Mount Joist Hanger for 2-1/2 in. x 11-7/8 in. Engineered Wood

The Simpson Strong-Tie® LT series of top-flange hangers is designed to offer superior performance for supporting I-joists. The hanger's top-flange design simplifies placement for quick and easy installation. The stirrup laterally supports the I-joist top flange, eliminating the need for web stiffeners.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Securing the carried I-joist is simple, requiring only one or two screws into the bottom flange through the seat of the hanger
• The optional triangle nail holes may be used for increased uplift
• These hangers cannot be modified but will accommodate a skew of up to 5°
• Seat width: 2-9/16 in.
• Height: 11-7/8 in.
• Actual joist size: 2-1/2 in. to 2-9/16 in. x 11-7/8 in.
• Made from 18-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: LT251188
• UPC: 707392942306
• GTIN: 707392942306
• Feature 01: Securing the carried I-joist is simple, requiring only one or two screws into the bottom flange through the seat of the hanger
• Feature 02: The optional triangle nail holes may be used for increased uplift
• Feature 03: These hangers cannot be modified but will accommodate a skew of up to 5°
• Feature 04: Seat width: 2-9/16 in.
• Feature 05: Height: 11-7/8 in.
• Feature 06: Actual joist size: 2-1/2 in. to 2-9/16 in. x 11-7/8 in.
• Feature 07: Made from 18-gauge steel
• Feature 08: Galvanized (G90) for corrosion resistance
• Install With: Install with (6) 10d nails in the header and (1) #8 x 1-1/4 in. wood screw in the joist
• Assembled Depth - Imperial: 4.03125
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11.99
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.0295
• Assembled Width UOM - Imperial: in.
• Base Product ID: LT_Hanger
• Base Product Name: LT
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: CA
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 179074798934809887498287286454995948408
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2 1/2 x 11 7/8
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.85
• Short Product Name: TOP MOUNT I-JOIST HANGER CANADA
• Strongtie.com URL: https://www.strongtie.com/topflangehangers_engineeredwoodconnectors/lt_hanger/p/lt
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392942303
• PAL Reference: 50707392942301
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
