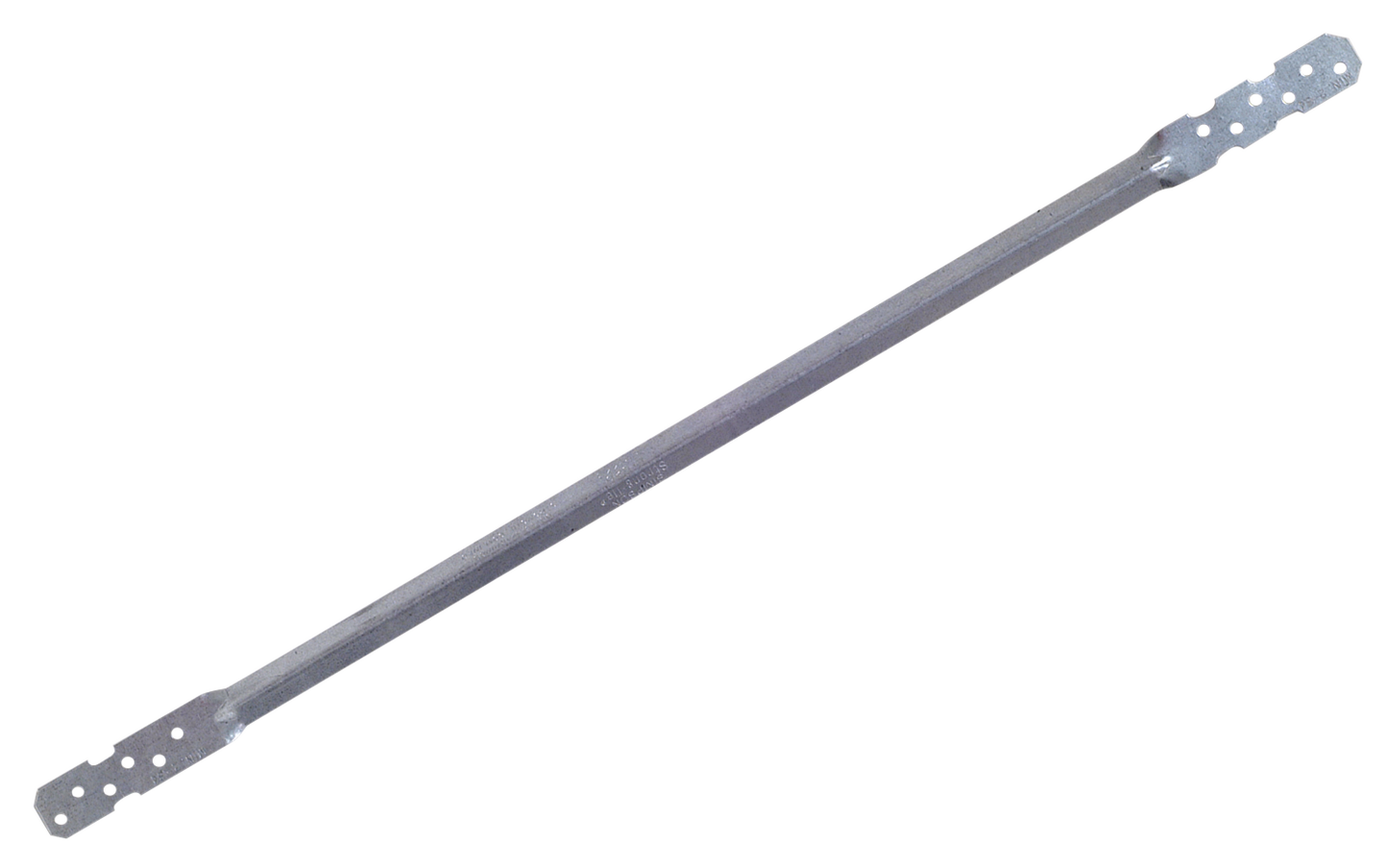

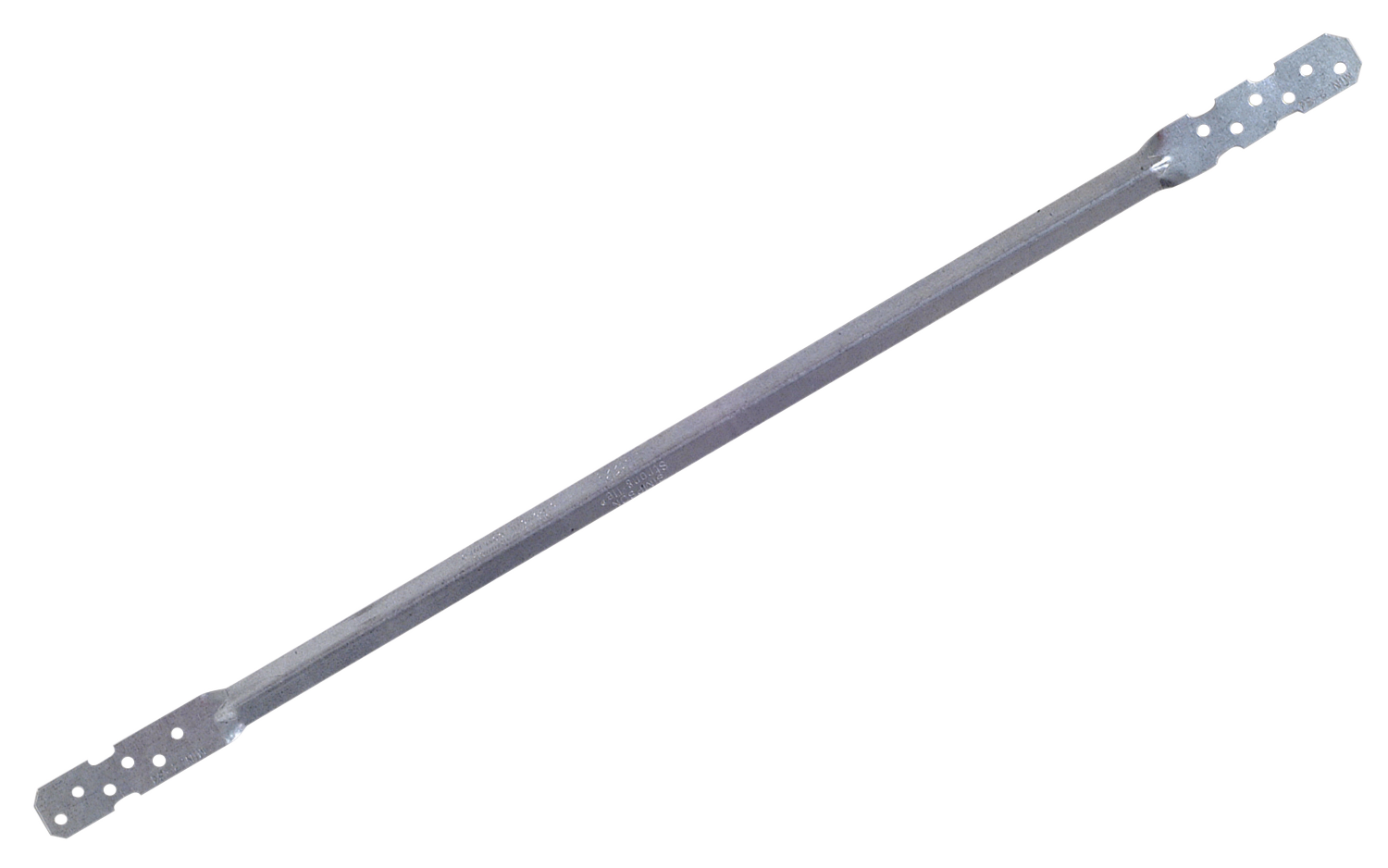

Simpson Strong-Tie LTB20-R LTB 19-1/2 in. 22-Gauge Galvanized Tension Bridging

The Simpson Strong-Tie® LTB provides bracing between floor joists as a critical contribution to the structural strength of a floor. Installed in pairs, this light tension-type bridging keeps joists in place and prevents them from rotating while distributing loads over more than one joist. The LTB features a staggered nail pattern to accommodate 2x8 and 2x10 joists and is designed for maximum nailing flexibility, with the option to use as few as two nail holes on each end, and as many as six.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Tension-type bridging with maximum nailing flexibility
• Staggered nail pattern accommodates 2x8 and 2x10 joists
• Keeps floor system continuity and prevents joist rotation
• LTB works only in tension, so must be used in cross pairs

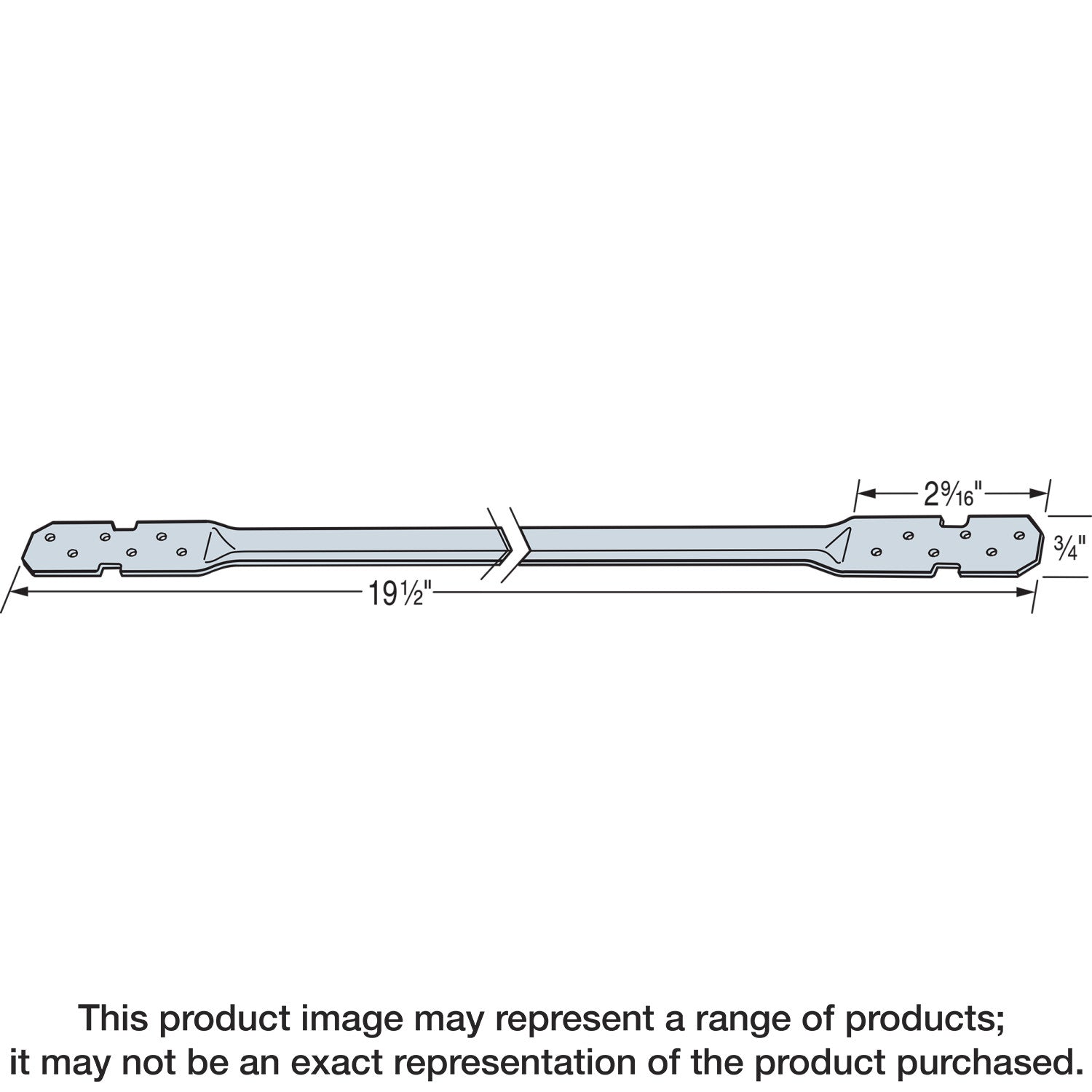

• Length: 19-1/2 in.
• Made from 22-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: LTB20-R
• UPC: 707392013907
• GTIN: 707392013907
• Feature 01: Tension-type bridging with maximum nailing flexibility
• Feature 02: Staggered nail pattern accommodates 2x8 and 2x10 joists
• Feature 03: Keeps floor system continuity and prevents joist rotation
• Feature 04: LTB works only in tension, so must be used in cross pairs
• Feature 05: Length: 19-1/2 in.
• Feature 06: Made from 22-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: (2) 0.113 in. x 2 in. nails per end
• Assembled Depth - Imperial: 0.25
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 0.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 19.50
• Assembled Width UOM - Imperial: in.
• Base Product ID: LTB_Bridging
• Base Product Name: LTB
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Bridging and Bracing Connectors > Bridging
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 22
• GUID: 120851492239079507244281534396097757357
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2x8, 2x10
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Bridging
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.13
• Short Product Name: TENSION BRIDGING
• Strongtie.com URL: https://www.strongtie.com/bridging_miscellaneousconnectors/ltb_bridging/p/ltb
• Subcategory: Wood Construction Connectors
• Subcategory 2: Bridging and Bracing Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392013904
• PAL Reference: 50707392013902
