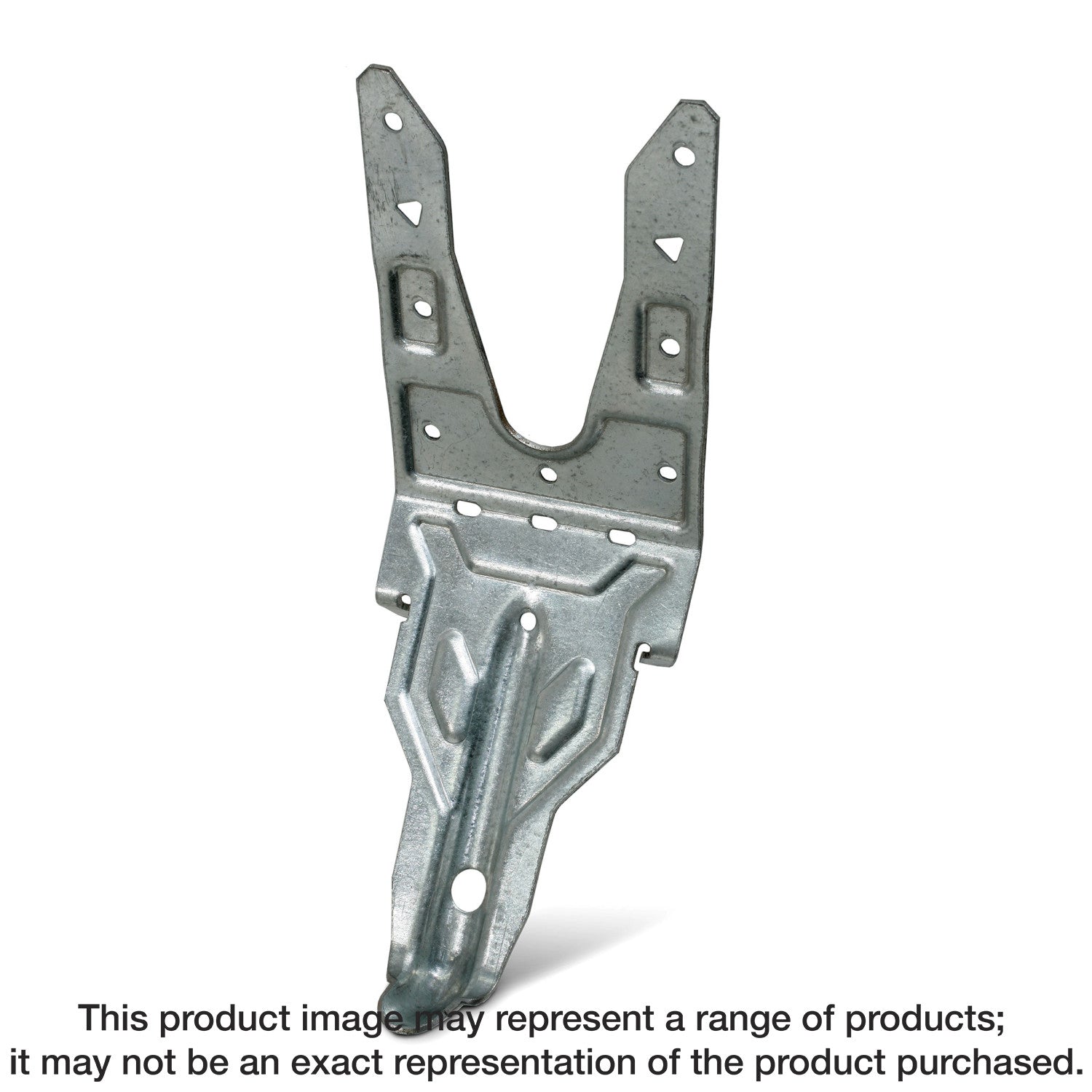

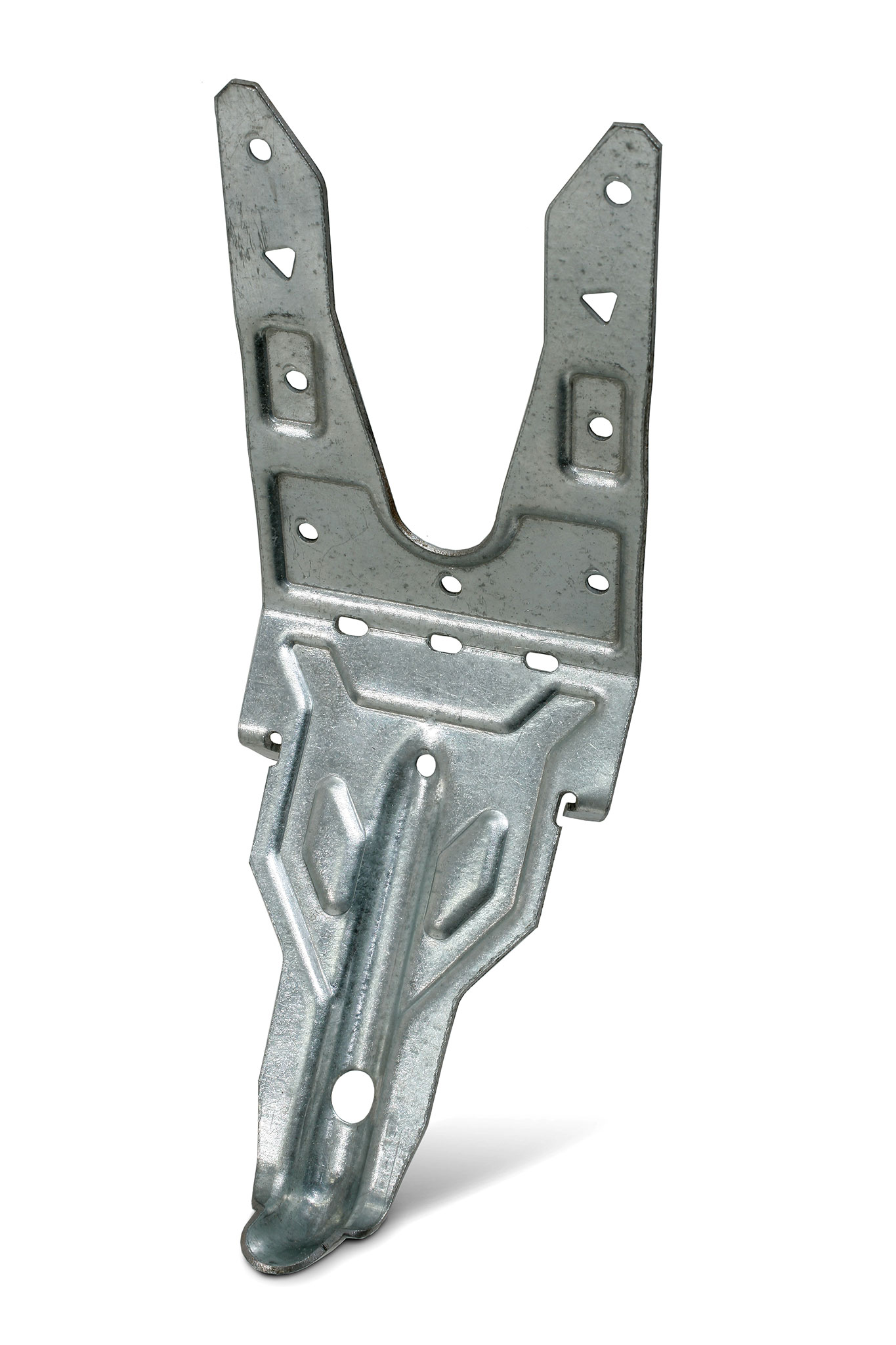

Simpson Strong-Tie MASAP MASAP™ 16-Gauge Galvanized Mudsill Anchor for Panelized Forms

Mudsill anchors have always been a time-saving alternative to anchor bolts, and the MASA anchor provides even greater load-carrying capacity alternative for 5/8-in. and 1/2-in. mudsill anchor bolts on 2x, double-2x and 3x mudsills. It also eliminates the need for 3-in. square plate washers for seismic design and, in some cases, has load capacities that meet or exceed the parallel and perpendicular to plate shear capacity of other cast-in-place anchors. Two versions of the MASA are available — the standard MASA for installation on standard forms and the MASAP for panelized forms.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Attaches easily to the concrete form for quick installation
• No labor costs involved in drilling plates and aligning holes
• Flat design eliminates chances of modification in prefabricated walls
• Eliminates the need to notch studs due the anchor bolts being placed where it will interfere
• Reduces the chance of having to retrofit anchors because of missing or misplaced anchor bolts
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: MASAP
• UPC: 707392996606
• GTIN: 707392996606
• Feature 01: Attaches easily to the concrete form for quick installation
• Feature 02: No labor costs involved in drilling plates and aligning holes
• Feature 03: Flat design eliminates chances of modification in prefabricated walls
• Feature 04: Eliminates the need to notch studs due the anchor bolts being placed where it will interfere
• Feature 05: Reduces the chance of having to retrofit anchors because of missing or misplaced anchor bolts
• Feature 06: Made from 16-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 0.148 in. x 1-1/2 in. nails
