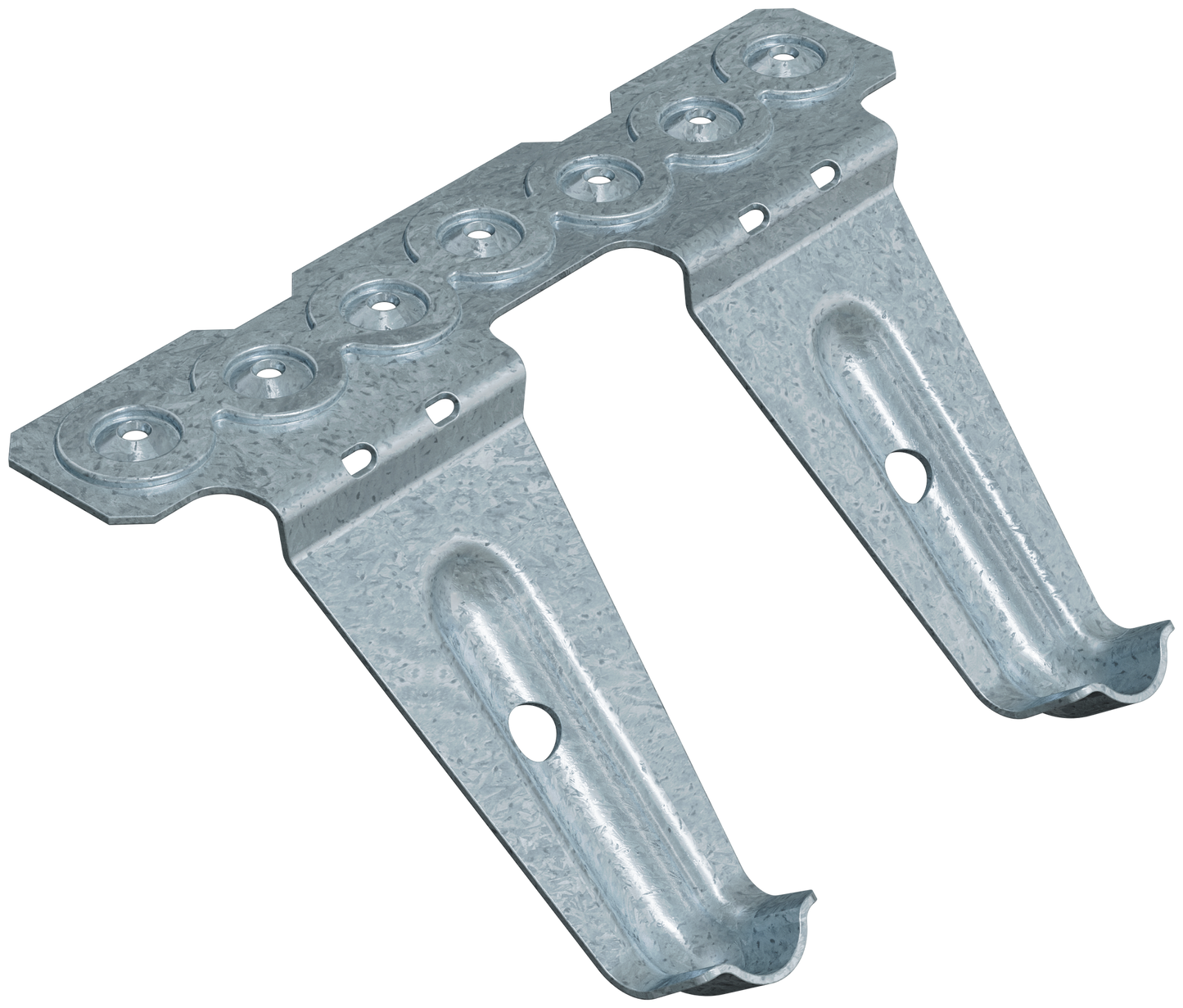

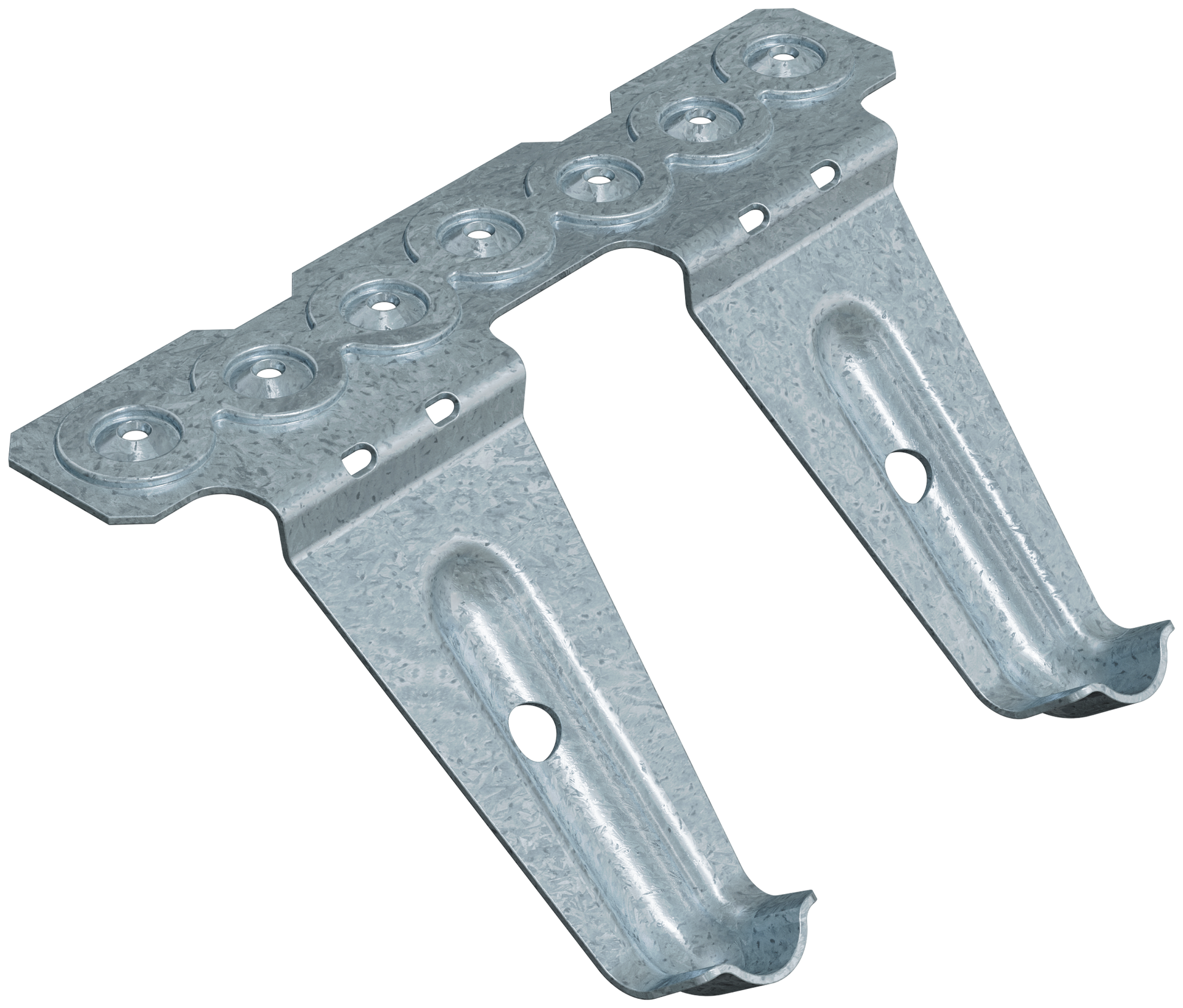

Simpson Strong-Tie MASOZ-R25 MASOZ™ 16-Gauge ZMAX® Galvanized Mudsill Anchor (25-Qty) (Pack of 144)

The Simpson Strong-Tie® MASOZ™ mudsill anchor is an ideal anchor for factory-built, sheathed wall panels. The advantages of the MASOZ are similar to those of the popular Simpson Strong-Tie MASA™ connector, except that with the MASOZ there’s no need for additional field-installed blocking to complete the installation for sheathed walls. After the MASOZ is installed and the concrete is cured, sheathed wall panels are craned into place without the hassle of trying to align sill plate bolt holes with cast-in-place anchor bolts. In addition, the MASOZ saves labor over post-installed anchors by eliminating the need for a separate crew to drill and set anchors. The MASOZ comes standard with ZMAX® coating, is designed to work with standard form boards, and is code listed by ICC-ES under the IBC and IRC.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Attaches easily to the concrete form for quick installation
• Strategic nail hole placement and bend-line locations work with sheathing flush or overhanging at foundation edge
• Eliminates the labor costs of drilling sill plates and aligning holes for anchor bolts
• Raised embossments surrounding the nail holes facilitate speedy nail installation with a power framing nailer
• Made from 16-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Patent pending
• Quantity: 25 per package

Specifications

• ERP Part Number: MASOZ-R25
• UPC: 50707392027985
• GTIN: 50707392027985
• Feature 01: Attaches easily to the concrete form for quick installation
• Feature 02: Strategic nail hole placement and bend-line locations work with sheathing flush or overhanging at foundation edge
• Feature 03: Eliminates the labor costs of drilling sill plates and aligning holes for anchor bolts
• Feature 04: Raised embossments surrounding the nail holes facilitate speedy nail installation with a power framing nailer
• Feature 05: Made from 16-gauge steel
• Feature 06: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Feature 07: Patent pending
• Feature 08: Quantity: 25 per package
• Assembled Depth - Imperial: 3.03475
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.78125
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.25
• Assembled Width UOM - Imperial: in.
• Base Product ID: MASOZ_Anchor
• Base Product Name: MASOZ™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mudsill Anchors > Mudsill Anchor
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 26519714601782940831724865069653622491
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Mudsill Anchor
• Prop 65 Warning: No
• Quantity: 144
• Shipping Weight: 1440
• Short Product Name: Mudsill Anchor for Std. Forms 25 pk
• Strongtie.com URL: https://www.strongtie.com/mudsillanchors_concreteconnectorsandanchors/masoz_anchor/p/masoz
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mudsill Anchors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392027980
