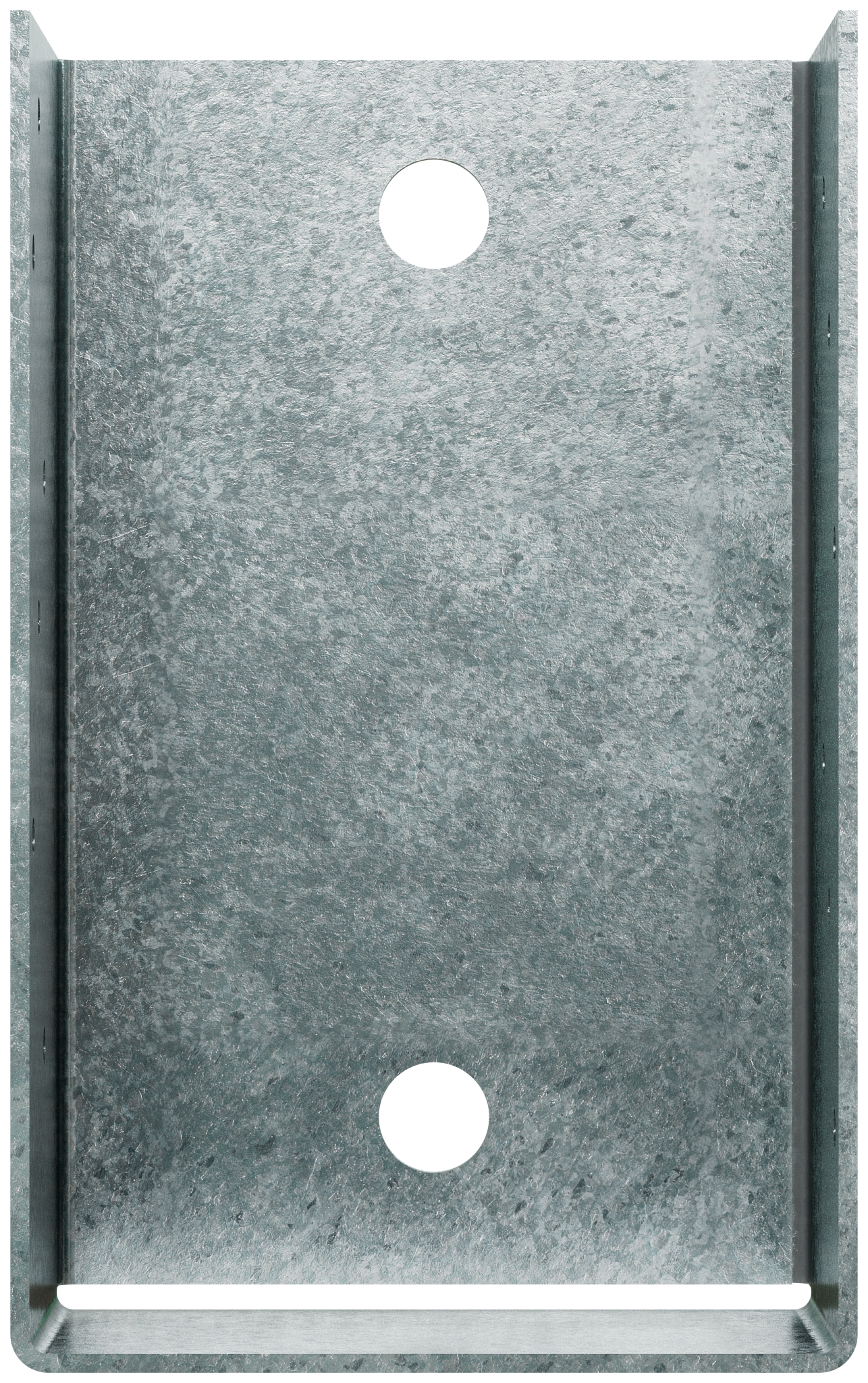

Simpson Strong-Tie MBHU5.50/9.25KT MBHU 5-1/2-in. x 9-1/4-in. Galvanized Masonry Beam Hanger with Screws/Anchors

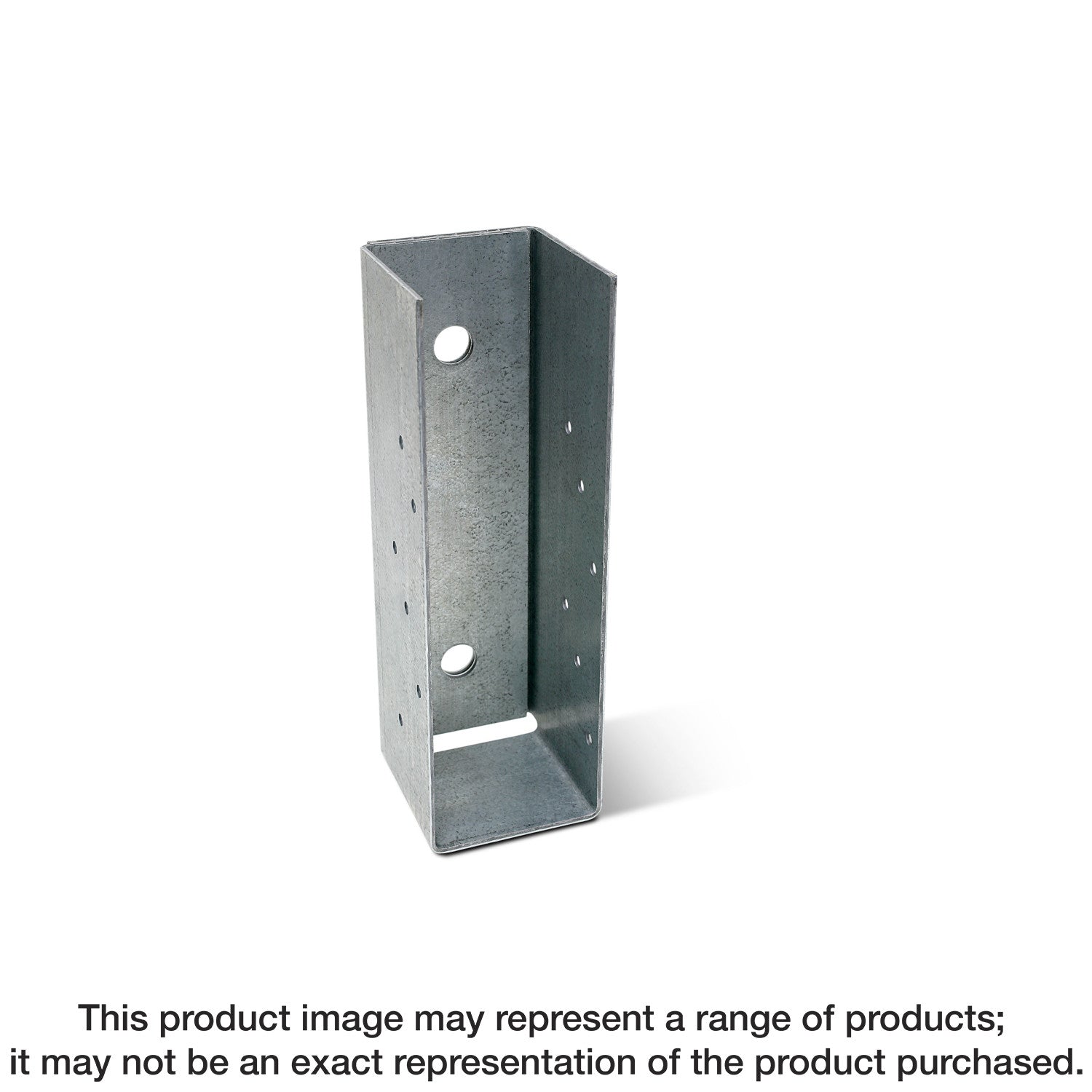

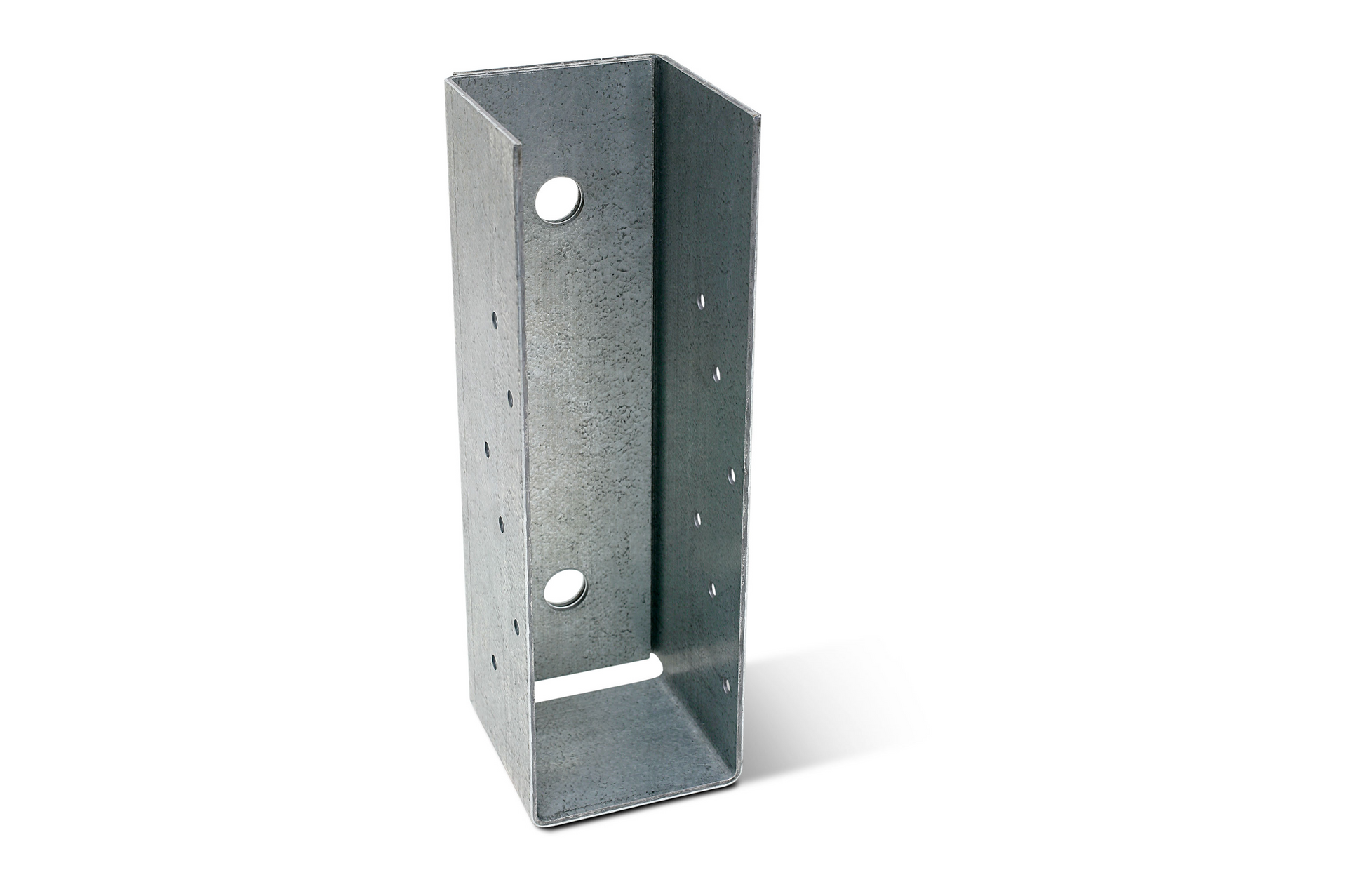

The Simpson Strong-Tie® MBHU beam hanger provides a face-mounted solution for connecting beams to masonry or concrete walls. A non-welded, one-piece connector, the MBHU is suitable for solid sawn and engineered wood beams as well as trusses. Installation is simplified because the Titen HD® screw anchor and Strong-Drive® SDS Heavy-Duty Connector screws are included with the hanger. Since the Titen HD anchor is installed after the wall is built, locating the anchor in the right spot is easier than with cast-in-place bolts.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Carbon-steel Titen HD is not recommended for exposed exterior applications
• Provide moisture barrier between beam and wall per jurisdictional requirements
• Seat width: 5-1/2 inches
• Seat height: 9-1/4 inches
• Made from 10-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: MBHU5.50/9.25KT
• UPC: 707392769309
• GTIN: 707392769309
• Feature 01: Carbon-steel Titen HD is not recommended for exposed exterior applications
• Feature 02: Provide moisture barrier between beam and wall per jurisdictional requirements
• Feature 03: Seat width: 5-1/2 inches
• Feature 04: Seat height: 9-1/4 inches
• Feature 05: Made from 10-gauge steel
• Feature 06: Galvanized (G90) for corrosion resistance
• Install With: Install with Titen HD screw anchors and Strong-Drive SDS Heavy-Duty Connector screws (included)
• Assembled Depth - Imperial: 4.129
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 9.254
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.758
• Assembled Width UOM - Imperial: in.
• Base Product ID: MBHU_Hanger
• Base Product Name: MBHU
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Masonry Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 10
• GUID: 180858445104798430495832906945671727094
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 5-1/2 in. x 9-1/4 in.
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Product Includes: Includes (2) 3/4-in. x 5-in. Titen HD anchors and (12) 1/4-in. x 2-1/2-in. Strong-Drive SDS Heavy-Duty Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 9.07
• Short Product Name: 5-1/2 X 9-1/4 MASONRY HANGER
• Strongtie.com URL: https://www.strongtie.com/facemountmasonryhangers_masonryhangers/mbhu_hanger/p/mbhu
• Subcategory: Wood Construction Connectors
• Subcategory 2: Masonry Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
