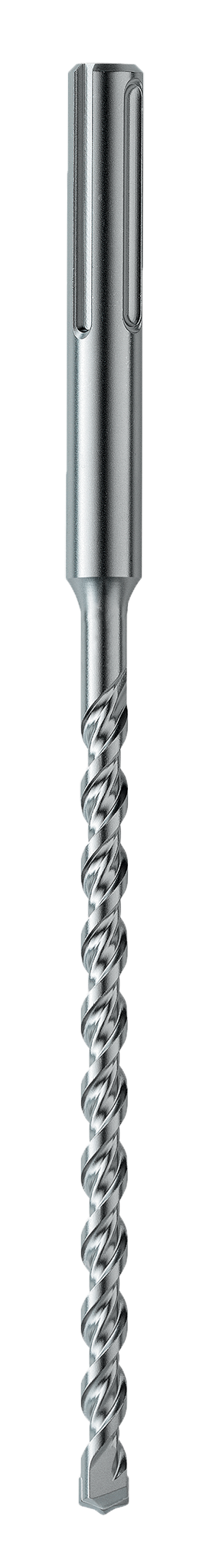

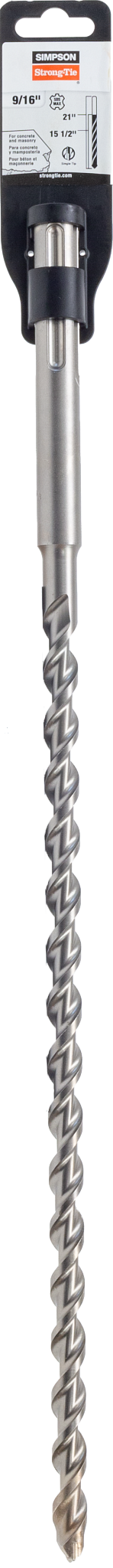

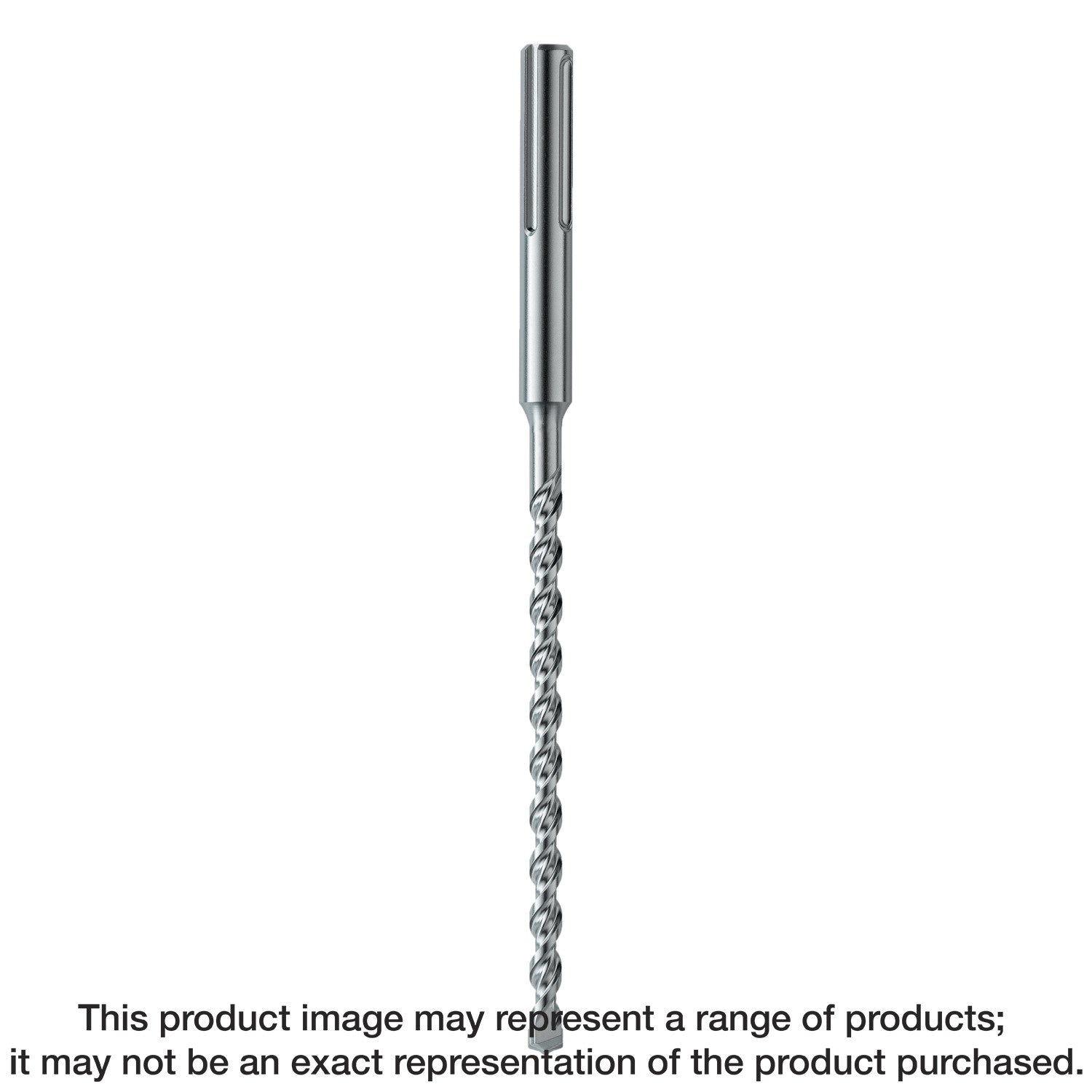

Simpson Strong-Tie MDMX05621 9/16 in. x 21 in. SDS-max® Shank Drill Bit

Simpson Strong-Tie offers a complete line of premium-quality drill bits, core bits and chisels to handle any drilling and demolition need. SDS-max shank bits have a chisel-shaped drill bit head which penetrates the material and directs concrete dust into the multi-flute spiral. The proprietary flute geometry reduces vibration and optimizes impact energy transfers from the rotary hammer into the drill bit tip which enhances drilling speed and durability and reduces noise, stress and vibration on the operator. All the features of single-cutter bits are designed to improve durability and drilling speed.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Uniformly brazed carbide inserts resulting in longer bit life
• Self-centering tips for accurate hole placement
• Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
• Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduces drill bit wear and improves resistance to bending forces
• Drill bit conforms to ANSI Standard B212.15
• High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
• 4 x 90° head geometry crushes through rebar and prevents sticking in reinforced concrete
• 2-cutter head
• Diameter: 9/16 in.
• Drilling depth: 15-1/2 in.

Specifications

• ERP Part Number: MDMX05621
• UPC: 707392476207
• GTIN: 707392476207
• Feature 01: Uniformly brazed carbide inserts resulting in longer bit life
• Feature 02: Self-centering tips for accurate hole placement
• Feature 03: Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
• Feature 04: Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduces drill bit wear and improves resistance to bending forces
• Feature 05: Drill bit conforms to ANSI Standard B212.15
• Feature 06: High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
• Feature 07: 4 x 90° head geometry crushes through rebar and prevents sticking in reinforced concrete
• Feature 08: 2-cutter head
• Feature 09: Diameter: 9/16 in.
• Feature 10: Drilling depth: 15-1/2 in.
• Assembled Depth - Imperial: 0.5625
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 21
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.5625
• Assembled Width UOM - Imperial: in.
• Base Product ID: MDMX_DrillBits
• Base Product Name: SDS-max® Drill Bits
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Carbide Drill Bits for Concrete and Masonry > > Drill Bit
• Country of Origin: DE
• Customer Unit: Yes
• Diameter (in.): 9/16
• Display Unit/Measure: EA
• Drilling Depth (in.): 15 1/2
• EAN category: UC
• GUID: 275619091391251460291040047309612368987
• Head Type: 2-Cutter Head
• Length (in.): 21
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Hardened Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 1
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 24.5
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 2
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Hang Tab
• Product Class: Drill Bit
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Type: SDS-max® Shank
• Shipping Weight: 1.1
• Short Product Name: SDS MAX SINGLE TIP BIT 9/16X21
• Strongtie.com URL: https://www.strongtie.com/carbidedrillbits_anchoringsystems/mdmx_drillbits/p/sds-max-drill-bits
• Subcategory: Carbide Drill Bits for Concrete and Masonry
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392476204
