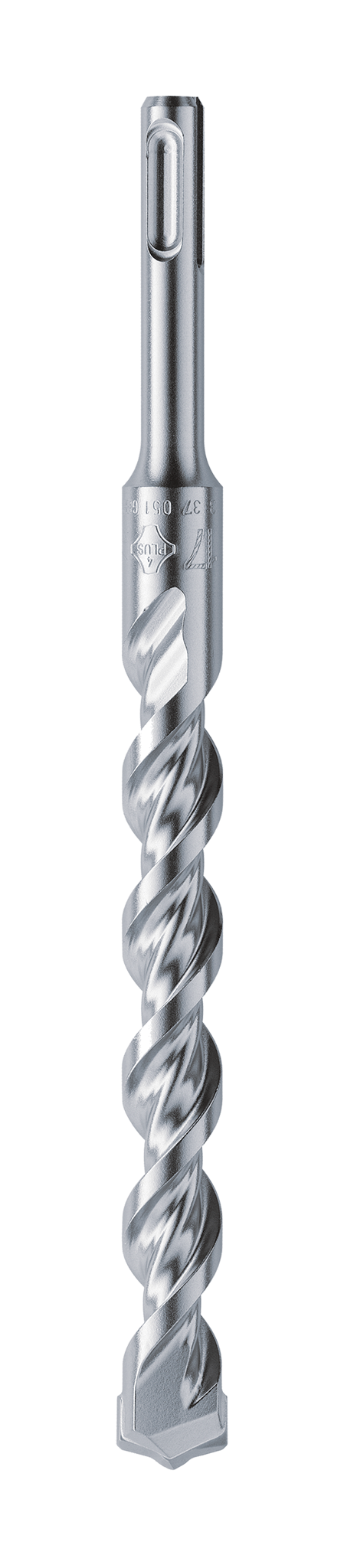

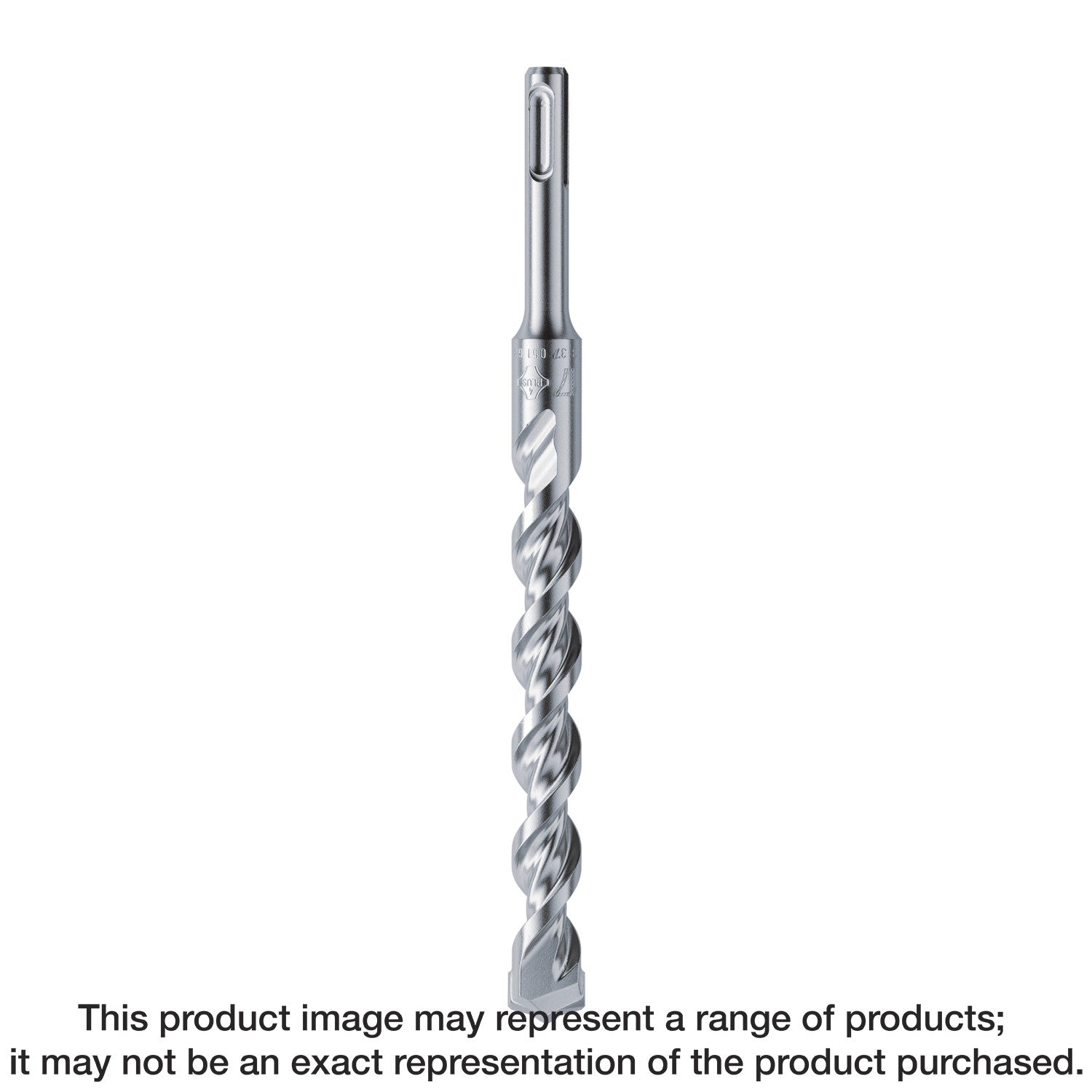

Simpson Strong-Tie MDPL01507H 5/32 in. x 7 in. SDS-plus® Shank Titen Turbo™ Screw Drill Bit/Driver (Pack of 200)

Simpson Strong-Tie offers a complete line of premium-quality drill bits, core bits and chisels to handle any drilling and demolition need. These carbide-tipped drill bits are premium quality, professional-grade tools manufactured in Germany to the highest industry standards for Simpson Strong-Tie. They are designed to meet precise tolerance requirements and incorporate proprietary features that enhance durability and drilling speed, while improving ease of use. Regular and Quad Head bit tip, solid-tipped and Titen Turbo™ screw hex-bit configurations are available.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Uniformly brazed carbide inserts result in longer bit life
• Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
• Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduces drill bit wear and improves resistance to bending forces
• Drill bits conform to ANSI Standard B212.15
• Chisel-shaped drill-bit head penetrates the material and directs concrete dust into the multi-flute spiral
• High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
• 2-cutter head
• 5/32 in. diameter SDS-plus shank drill bit/driver with hex head is suitable for 3/16 in. diameter Titen Turbo screw
• Drilling depth: 4-1/8 in.

Specifications

• ERP Part Number: MDPL01507H
• UPC: 10707392428906
• GTIN: 10707392428906
• Feature 01: Uniformly brazed carbide inserts result in longer bit life
• Feature 02: Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
• Feature 03: Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduces drill bit wear and improves resistance to bending forces
• Feature 04: Drill bits conform to ANSI Standard B212.15
• Feature 05: Chisel-shaped drill-bit head penetrates the material and directs concrete dust into the multi-flute spiral
• Feature 06: High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
• Feature 07: 2-cutter head
• Feature 08: 5/32 in. diameter SDS-plus shank drill bit/driver with hex head is suitable for 3/16 in. diameter Titen Turbo screw
• Feature 09: Drilling depth: 4-1/8 in.
• Assembled Depth - Imperial: 0.15625
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.15625
• Assembled Width UOM - Imperial: in.
• Base Product ID: MDPL_DrillBits
• Base Product Name: SDS-plus® Drill Bits
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Carbide Drill Bits for Concrete and Masonry > > Drill Bit/Driver
• Country of Origin: DE
• Customer Unit: No
• Display Unit/Measure: CAR
• EAN category: IC
• GUID: 101668915882631357071864732056500055240
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Drill Bit/Driver
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 200
• Shipping Weight: 22
• Short Product Name: SDS PLUS TITEN HEX BIT 5/32X7
• Strongtie.com URL: https://www.strongtie.com/carbidedrillbits_anchoringsystems/mdpl_drillbits/p/sds-plus-drill-bits
• Subcategory: Carbide Drill Bits for Concrete and Masonry
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392428909
