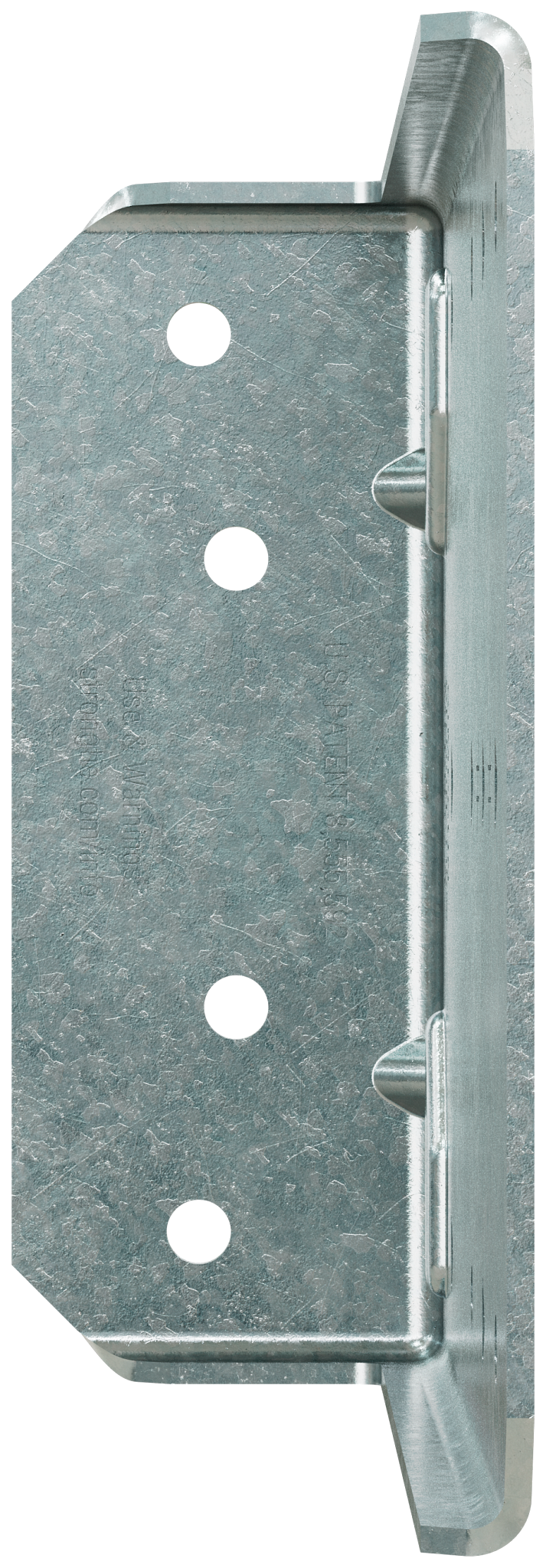

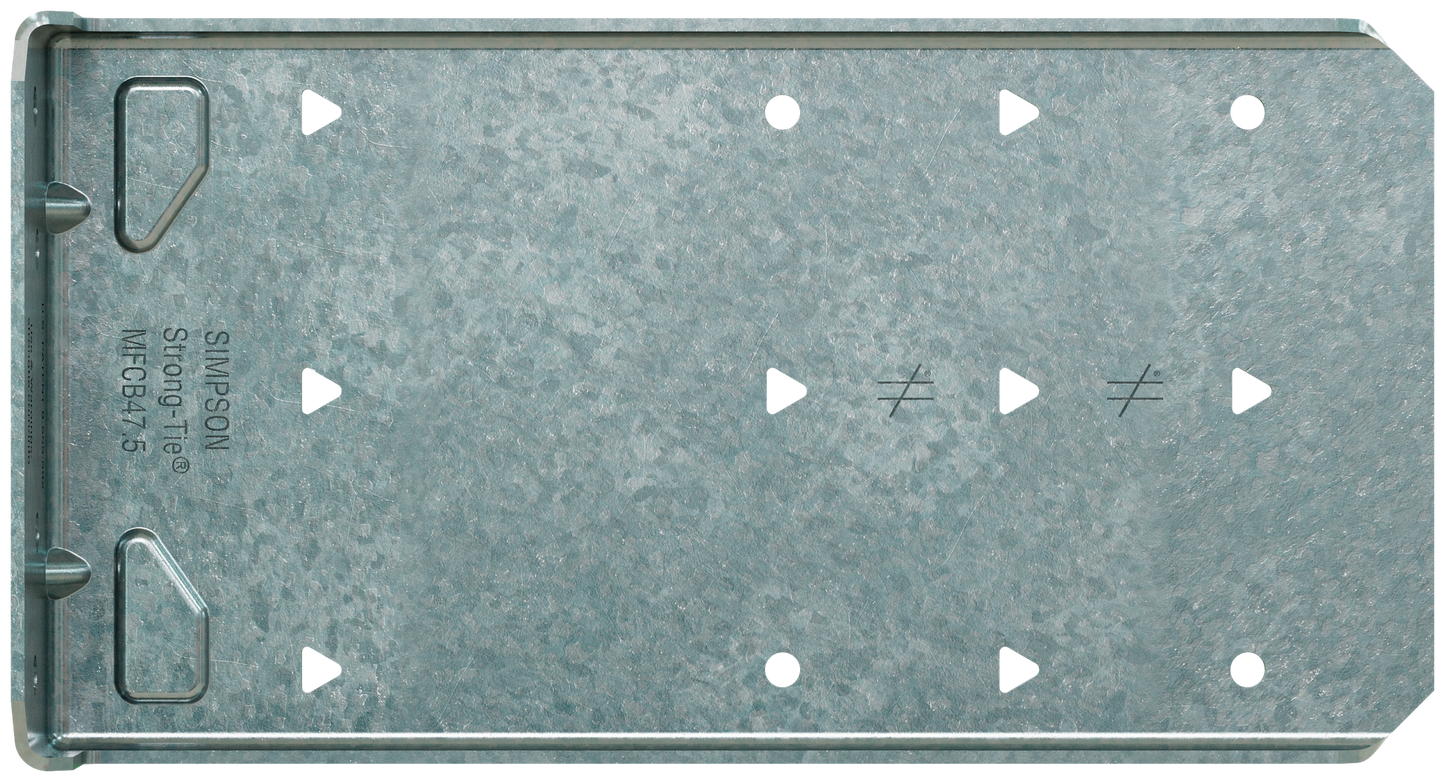

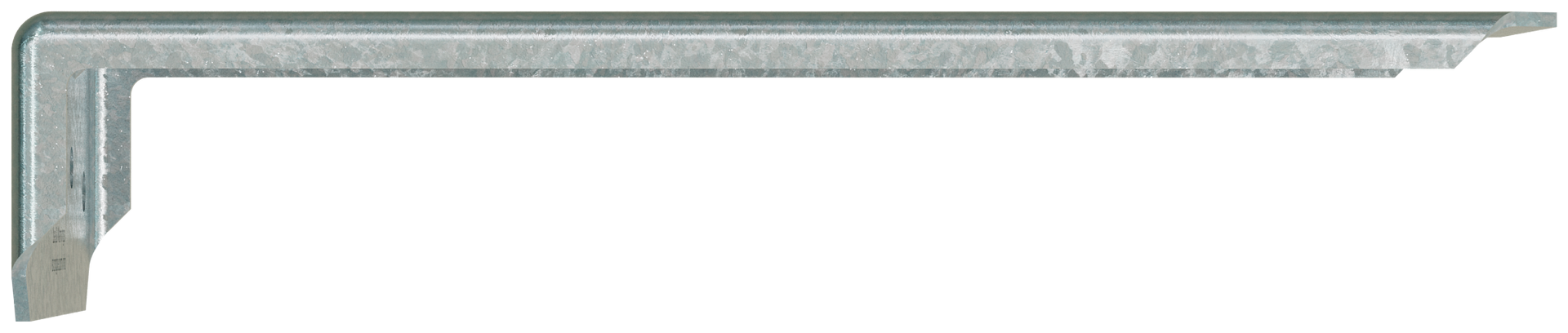

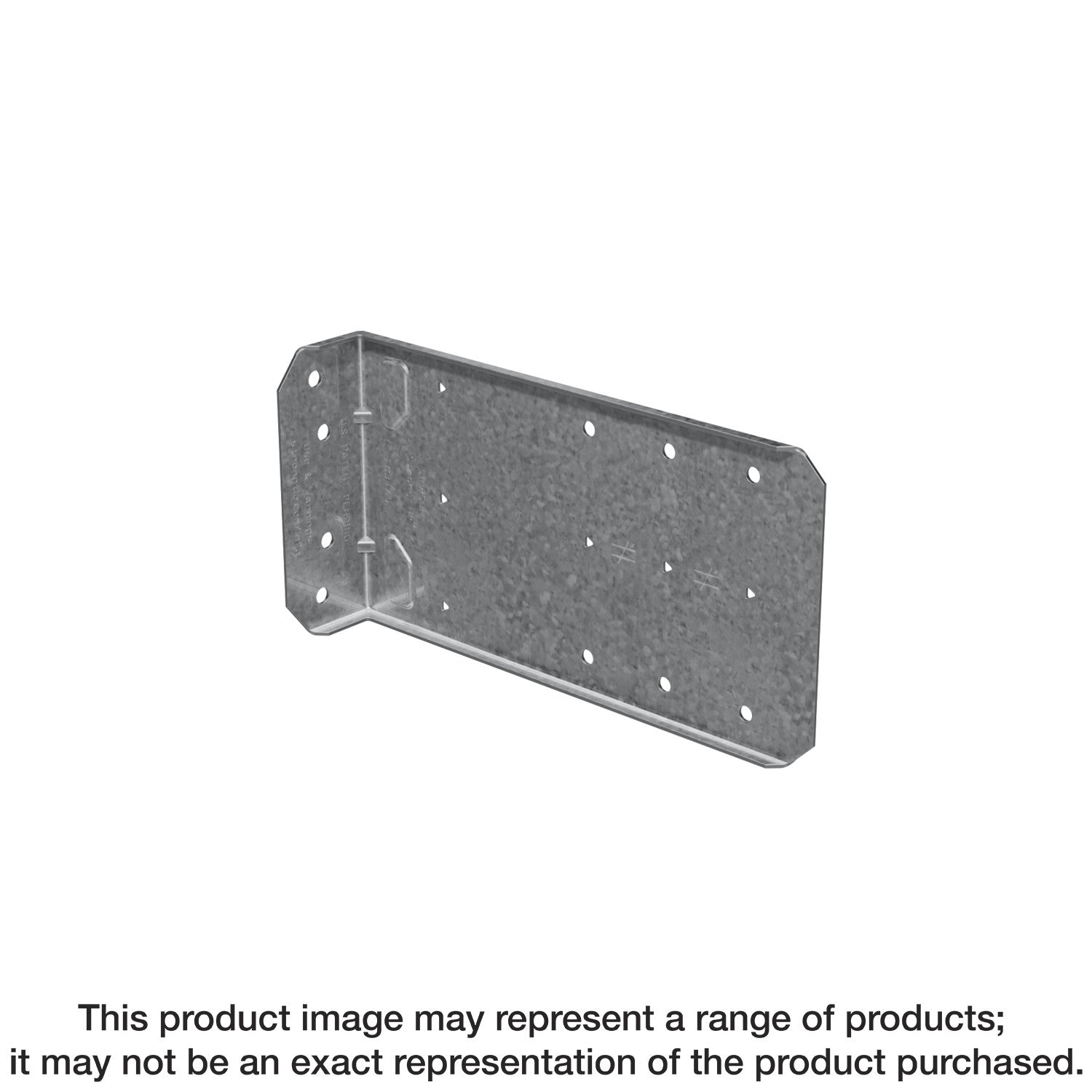

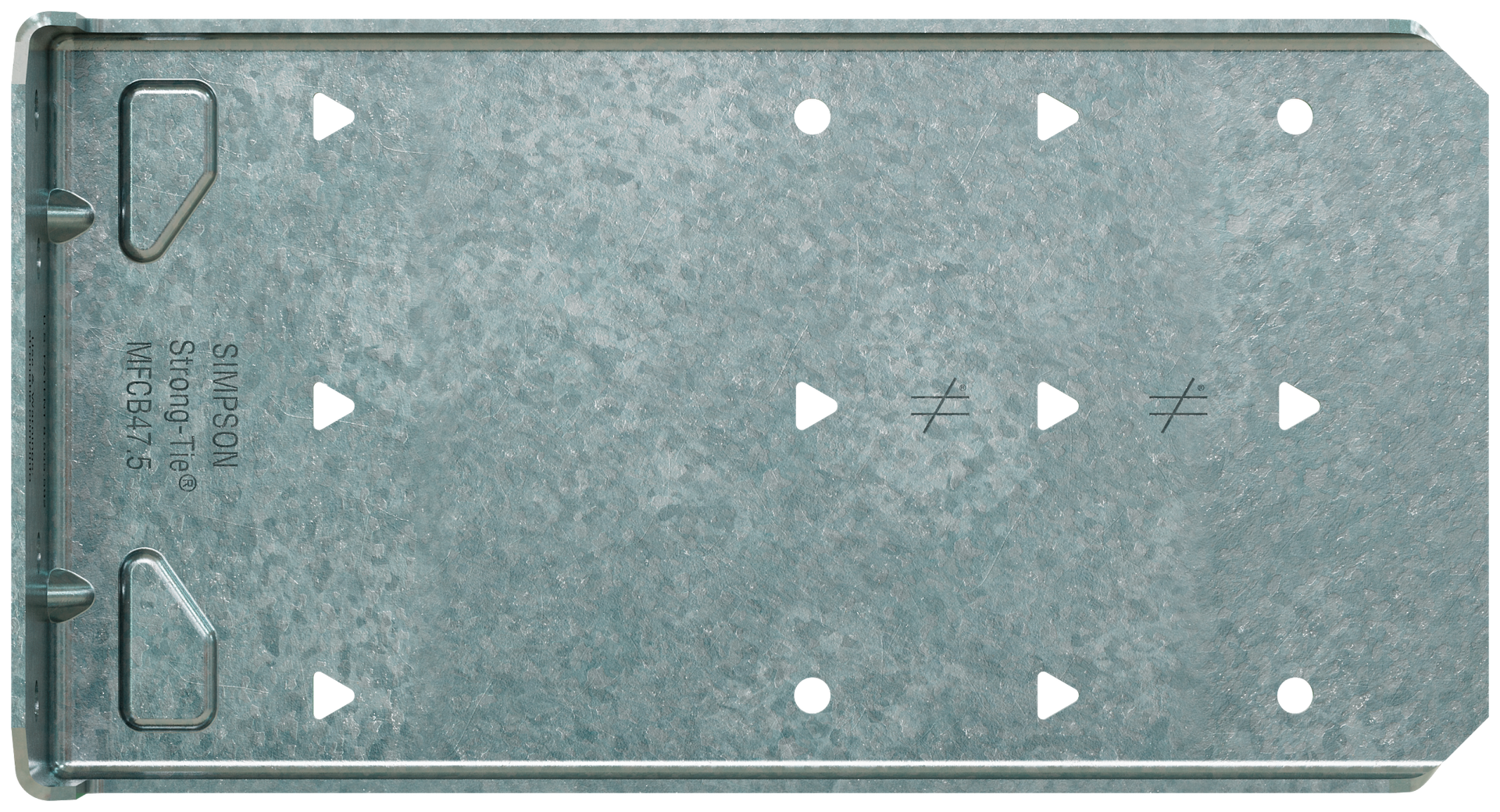

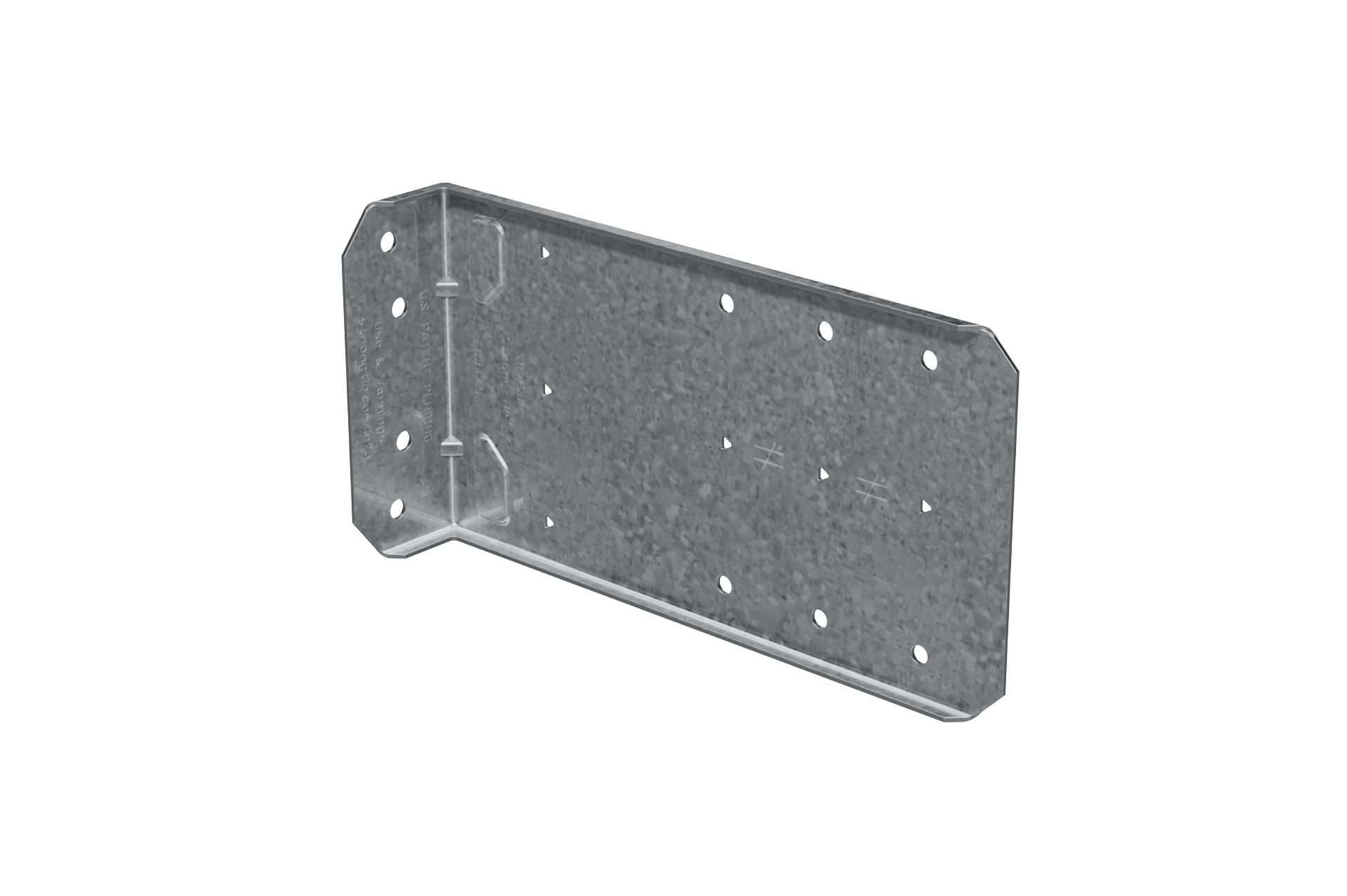

Simpson Strong-Tie MFCB47.5-R25 MFCB 7-1/2 in. Bypass Framing Fixed-Clip Connector (25-Qty) (Pack of 120)

With more than 50 years of experience in product design, testing and manufacturing, Simpson Strong-Tie provides comprehensive structural solutions for cold-formed steel construction. From steel-to-steel connections to full-scale lateral solutions and curtain wall connectors, we remain committed to developing new technology that helps to advance the cold-formed steel industry. The MFCB connector is made of 68 mil (14 ga.) steel thickness that provides a higher capacity for the use of cold-formed steel (CFS) curtain wall framings and other variety applications. It is rated for tension, compression and shear loads and offers the designer the flexibility of specifying different screw and anchorage patterns that conform to desired load levels.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Rated for tension, compression, shear and in-plane loads
• Provides design flexibility with varying screw and anchorage patterns that achieve different load levels
• Strategically placed stiffeners, embossments and anchor holes maximize connector performance
• Length: 7-1/2 in.
• Made from 14-gauge (68 mil) steel
• Galvanized (G90) for extra corrosion resistance
• Quantity: 25

Specifications

• ERP Part Number: MFCB47.5-R25
• UPC: 50707392016675
• GTIN: 50707392016675
• Feature 01: Rated for tension, compression, shear and in-plane loads
• Feature 02: Provides design flexibility with varying screw and anchorage patterns that achieve different load levels
• Feature 03: Strategically placed stiffeners, embossments and anchor holes maximize connector performance
• Feature 04: Length: 7-1/2 in.
• Feature 05: Made from 14-gauge (68 mil) steel
• Feature 06: Galvanized (G90) for extra corrosion resistance
• Feature 07: Quantity: 25
• Assembled Depth - Imperial: 1.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.50
• Assembled Width UOM - Imperial: in.
• Base Product ID: FCB_Clip
• Base Product Name: FCB/MFCB
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Rigid Connectors > Clip
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 310528122350427674447791340116121717170
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Clip
• Prop 65 Warning: No
• Quantity: 120
• Shipping Weight: 2280
• Short Product Name: MED. DUTY FIXED CLIP 4" X 7.5"
• Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/fcb_clip/p/fcb.mfcb
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Rigid Connectors
• US Patents: 8,555,592
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392016677
• EA Reference: 707392016670
