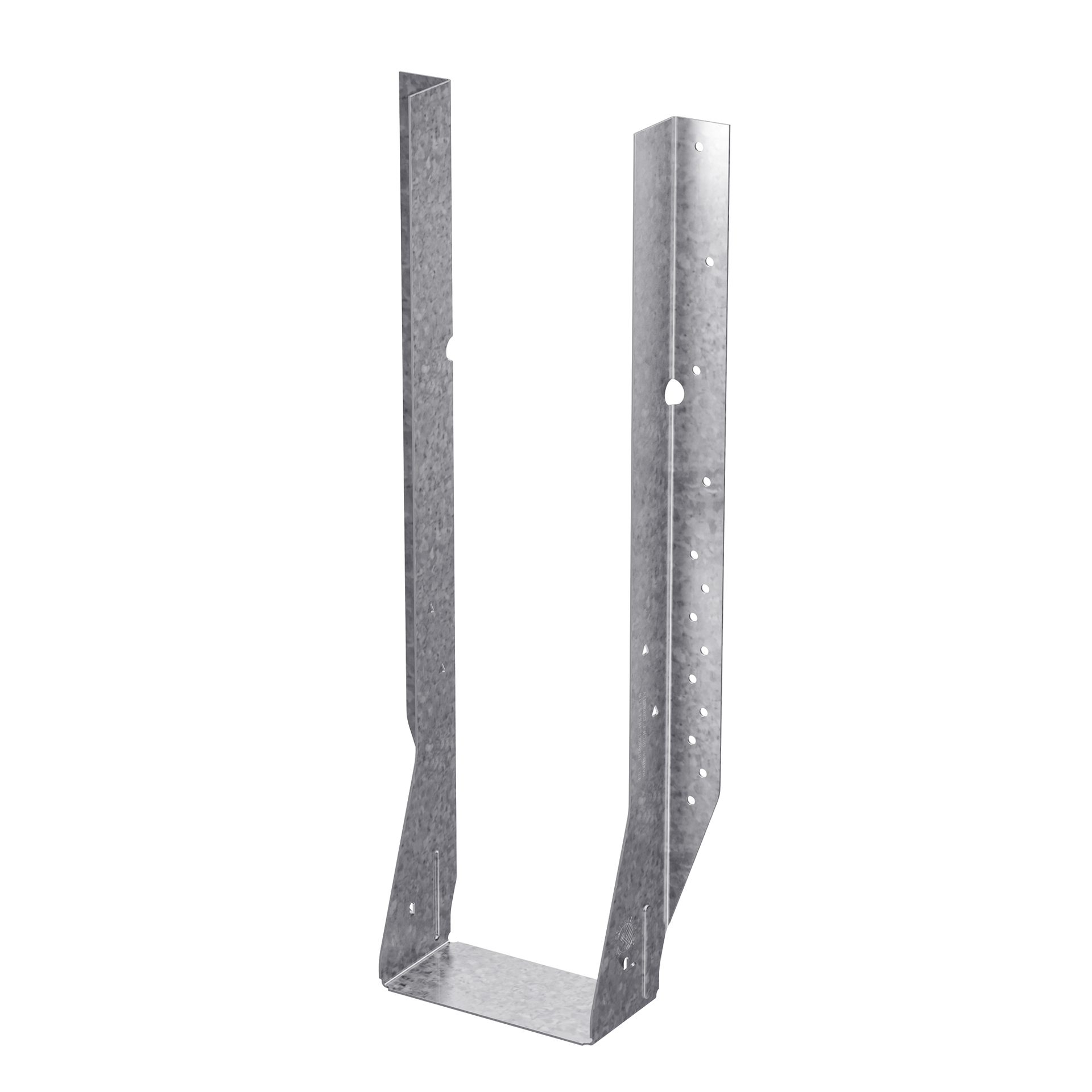

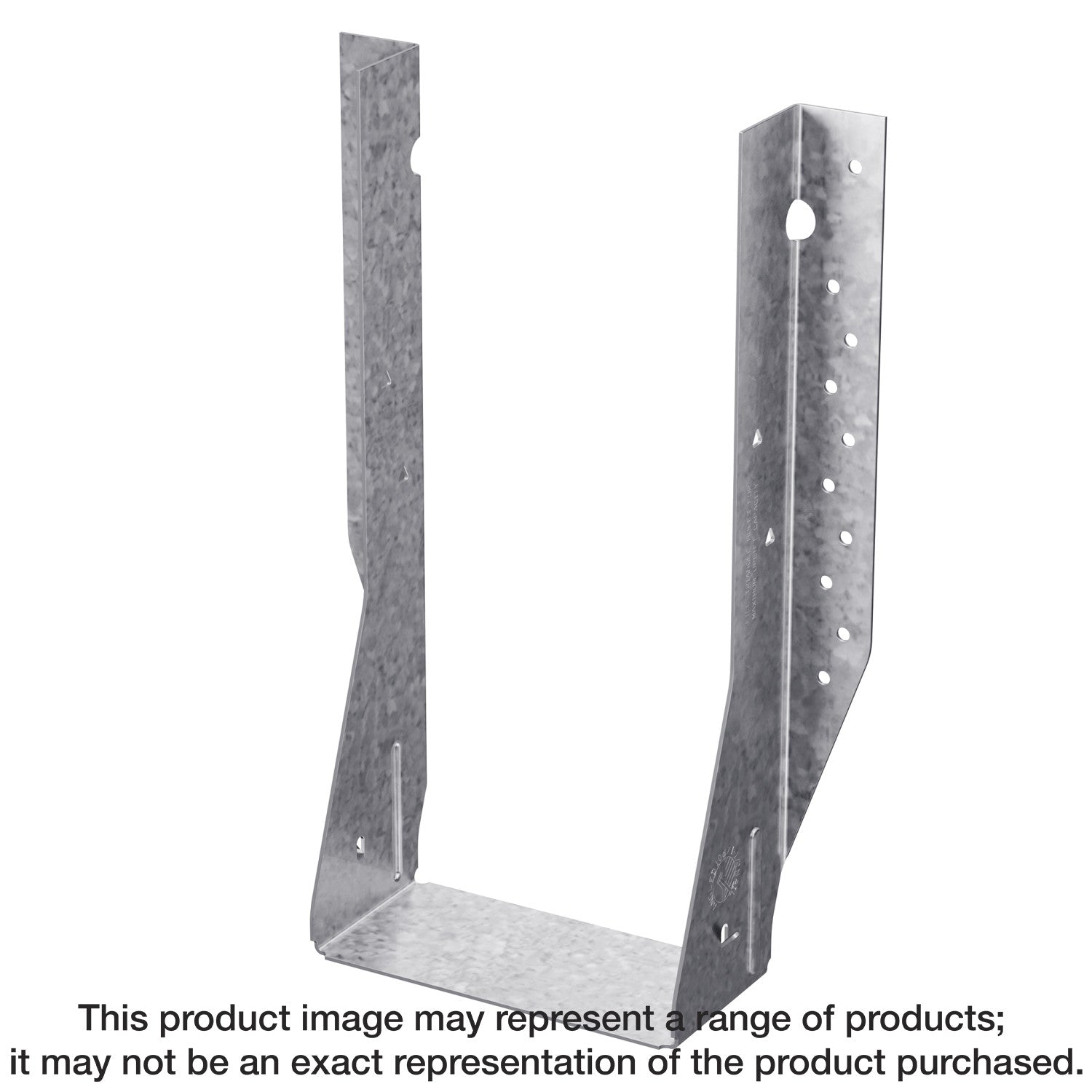

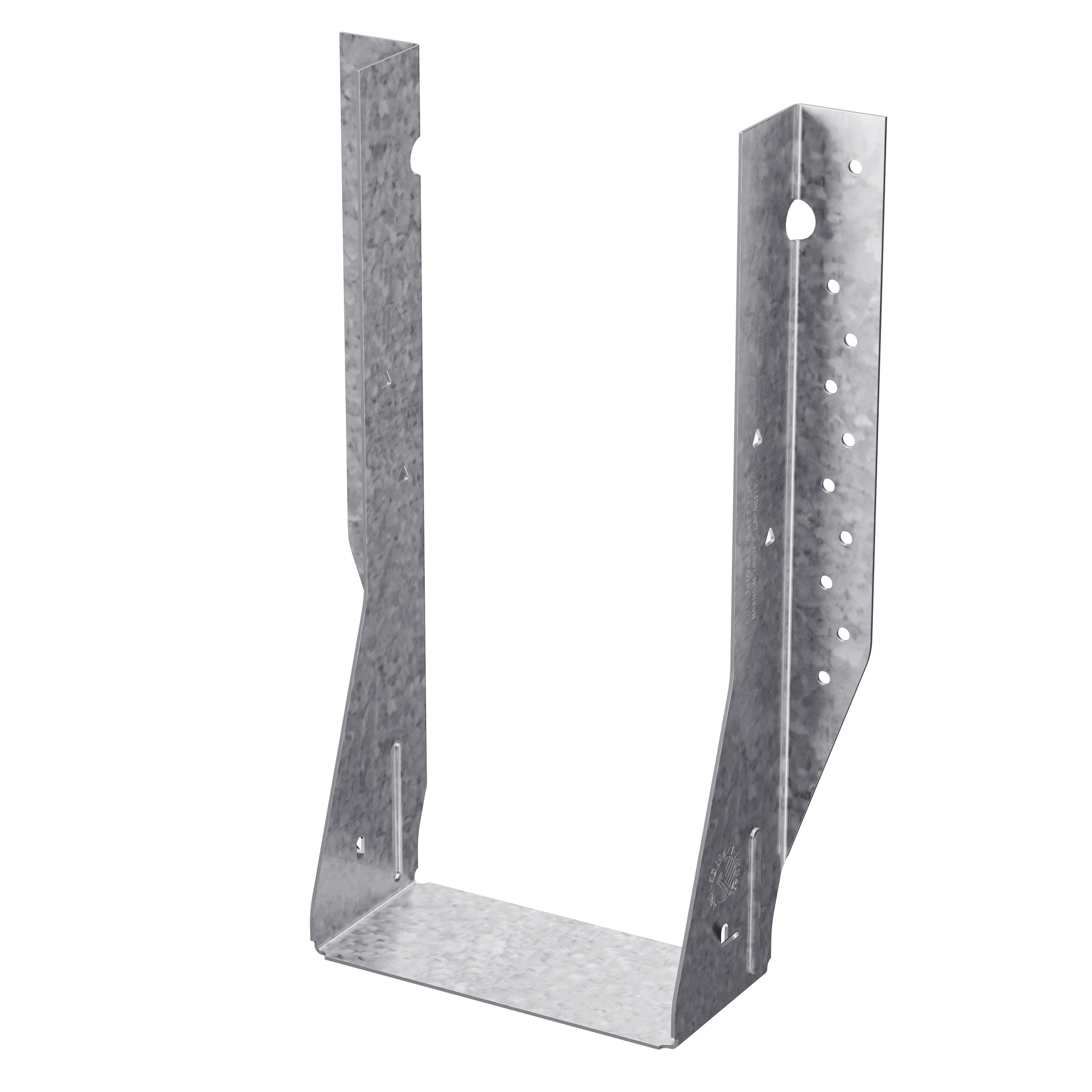

Simpson Strong-Tie MIU4.75/18 MIU Galvanized Face-Mount Joist Hanger for 4-5/8 in. x 18 in. Engineered Wood

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The MIU series hangers are designed for commercial and high-load I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN), which minimizes splitting of the flanges while permitting time-saving nailing from a better angle.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Positive-angle nailing minimizes splitting of the flanges while permitting time-saving nailing from a better angle
• These hangers cannot be modified
• Actual joist size: 4-5/8 in. x 18 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: MIU4.75/18
• UPC: 44315793509
• GTIN: 44315793509
• Feature 01: Positive-angle nailing minimizes splitting of the flanges while permitting time-saving nailing from a better angle
• Feature 02: These hangers cannot be modified
• Feature 03: Actual joist size: 4-5/8 in. x 18 in.
• Feature 04: Made from 16-gauge steel
• Feature 05: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 0.162 in. x 3-1/2 in. nails and 0.148 in. x 1-1/2 in. nails
• Assembled Depth - Imperial: 2.8125
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 17.59375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.125
• Assembled Width UOM - Imperial: in.
• Base Product ID: MIU_Hanger
• Base Product Name: MIU
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 122419687110063463743464698105116779929
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 4-5/8 in. x 18 in.
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.69
• Short Product Name: 4-5/8 X 18 FACE MOUNT I-JOIST HANGER
• Strongtie.com URL: https://www.strongtie.com/facemounthangers_engineeredwoodconnectors/miu_hanger/p/miu
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
