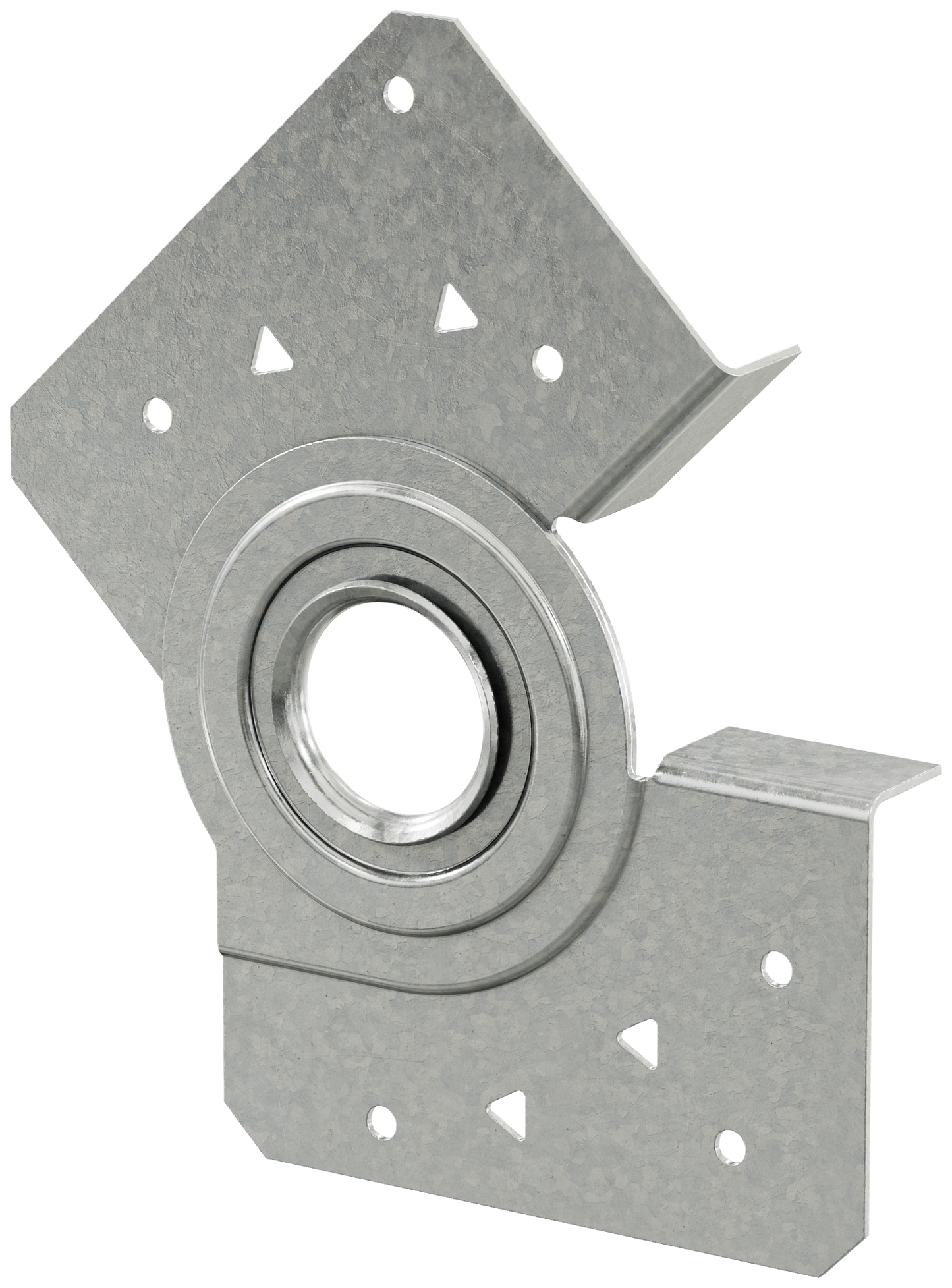

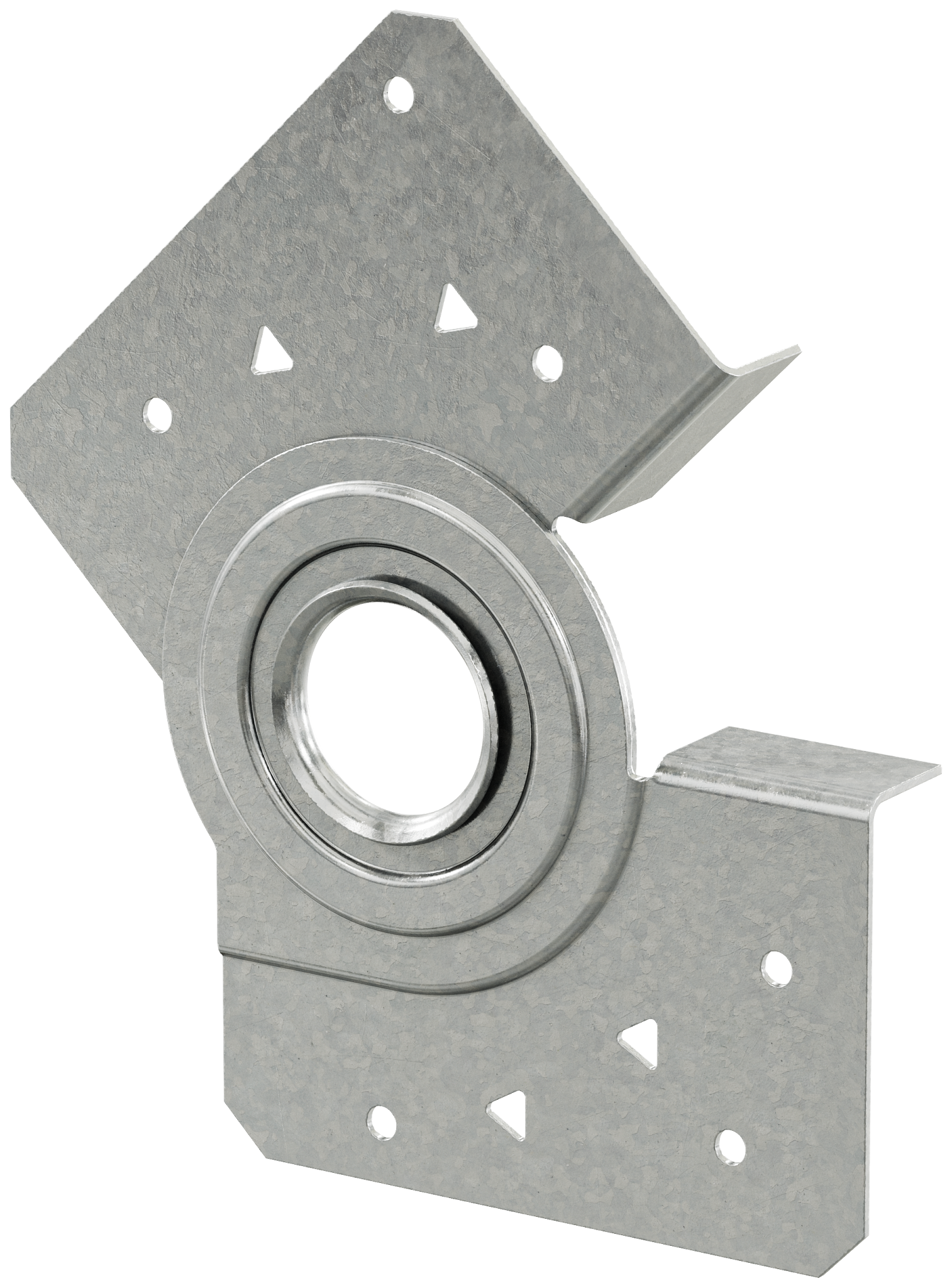

Simpson Strong-Tie MMHC23-R60 MMHC® Hinged Roof Connector for 2x3 Knee Walls (60-Qty)

The innovative Simpson Strong-Tie® MMHC® hinged roof connector makes it easy to build a stick-frame roof in the factory that can fold flat during shipping. This connector has been tested and load rated in multiple directions. It can be installed on one or both sides of the roof rafter assembly. The MMHC23 model is a hinge for a 2x3 minimum attic truss knee wall. It has been specifically designed to complement our ATHC™ attic truss hinge connector.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Specifically designed for 2x3 attic truss knee walls
• Innovative hinge rotates easily from open position to folded
• The offset nail pattern allows for installation on both sides
• Connector tabs make it intuitive to position before nailing
• No measuring or predrilling saves installers time
• Minimum 2x3 knee wall stud
• Made from 18-gauge steel
• Galvanized (G90) for corrosion resistance
• Quantity: 60 per package

Specifications

• ERP Part Number: MMHC23-R60
• UPC: 707392031666
• GTIN: 707392031666
• Feature 01: Specifically designed for 2x3 attic truss knee walls
• Feature 02: Innovative hinge rotates easily from open position to folded
• Feature 03: The offset nail pattern allows for installation on both sides
• Feature 04: Connector tabs make it intuitive to position before nailing
• Feature 05: No measuring or predrilling saves installers time
• Feature 06: Minimum 2x3 knee wall stud
• Feature 07: Made from 18-gauge steel
• Feature 08: Galvanized (G90) for corrosion resistance
• Feature 09: Quantity: 60 per package
• Install With: Install with 0.148 in. x 1-1/2 in. nails
• Assembled Depth - Imperial: 0.8125
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4
• Assembled Width UOM - Imperial: in.
• Base Product ID: MMHC_Connect
• Base Product Name: MMHC®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Hinge Connectors > Rafter Tie
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 168109058098981810441071890563775952105
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: Minimum 2x3 knee wall stud
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 20.81
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.37
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 7.81
• Package Width UOM - Imperial: in.
• Packaging Quantity: 60
• Packaging Type: Box
• Product Class: Rafter Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 19.7
• Short Product Name: 2X3 MODULAR MFR. HINGE 60-PAK
• Strongtie.com URL: https://www.strongtie.com/rafterties_factorybuiltstructures/mmhc_connect/p/mmhc
• Subcategory: Wood Construction Connectors
• Subcategory 2: Hinge Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392031661
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
