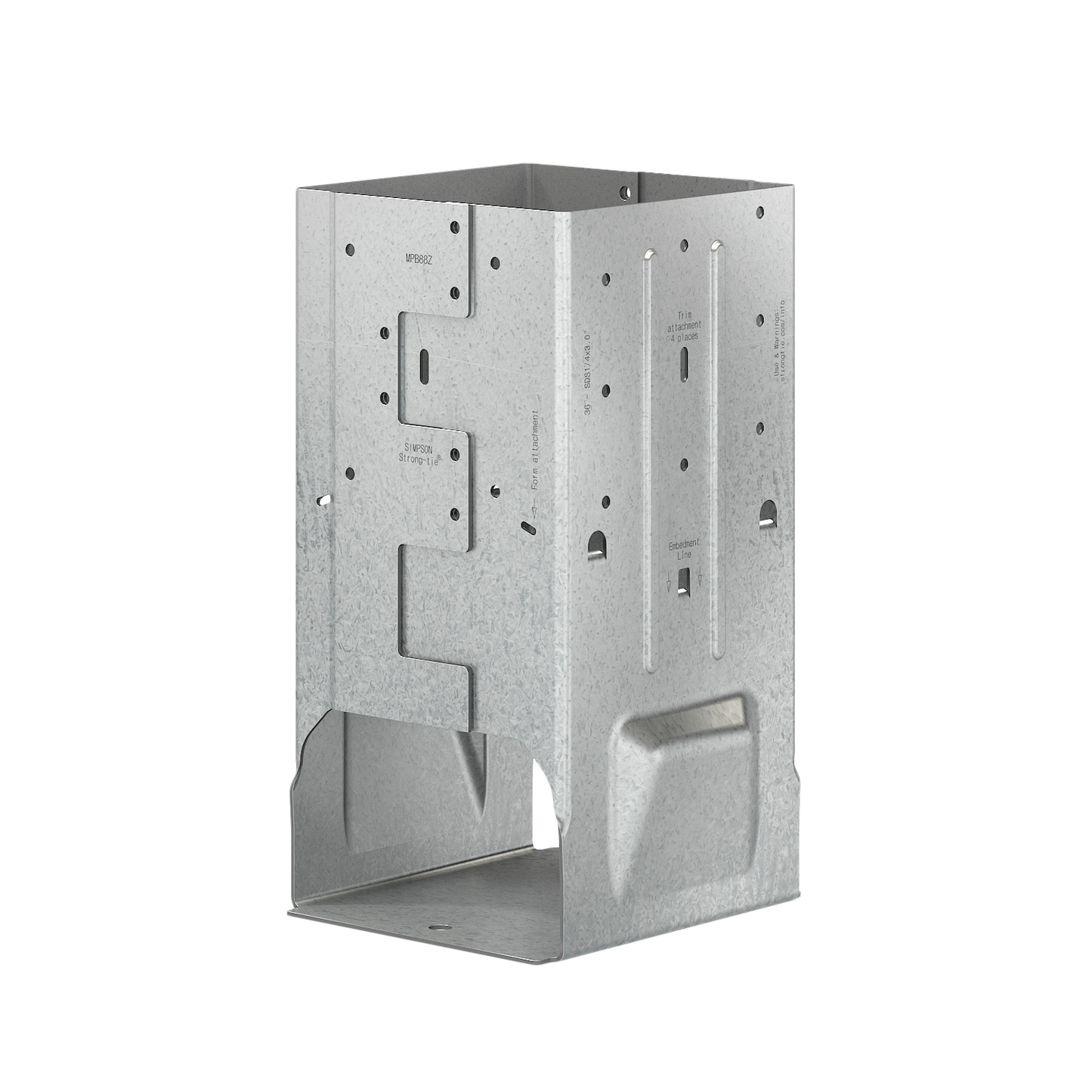

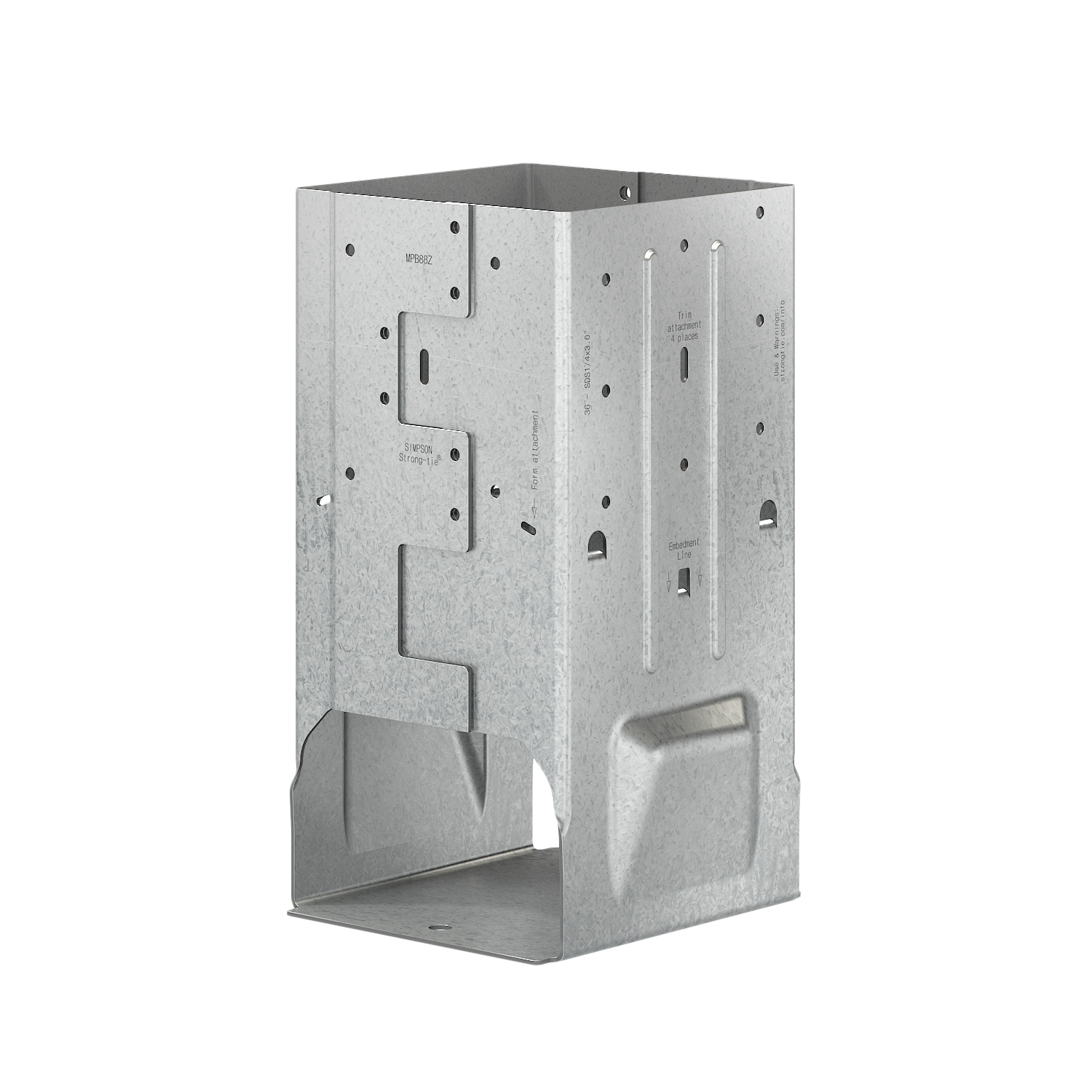

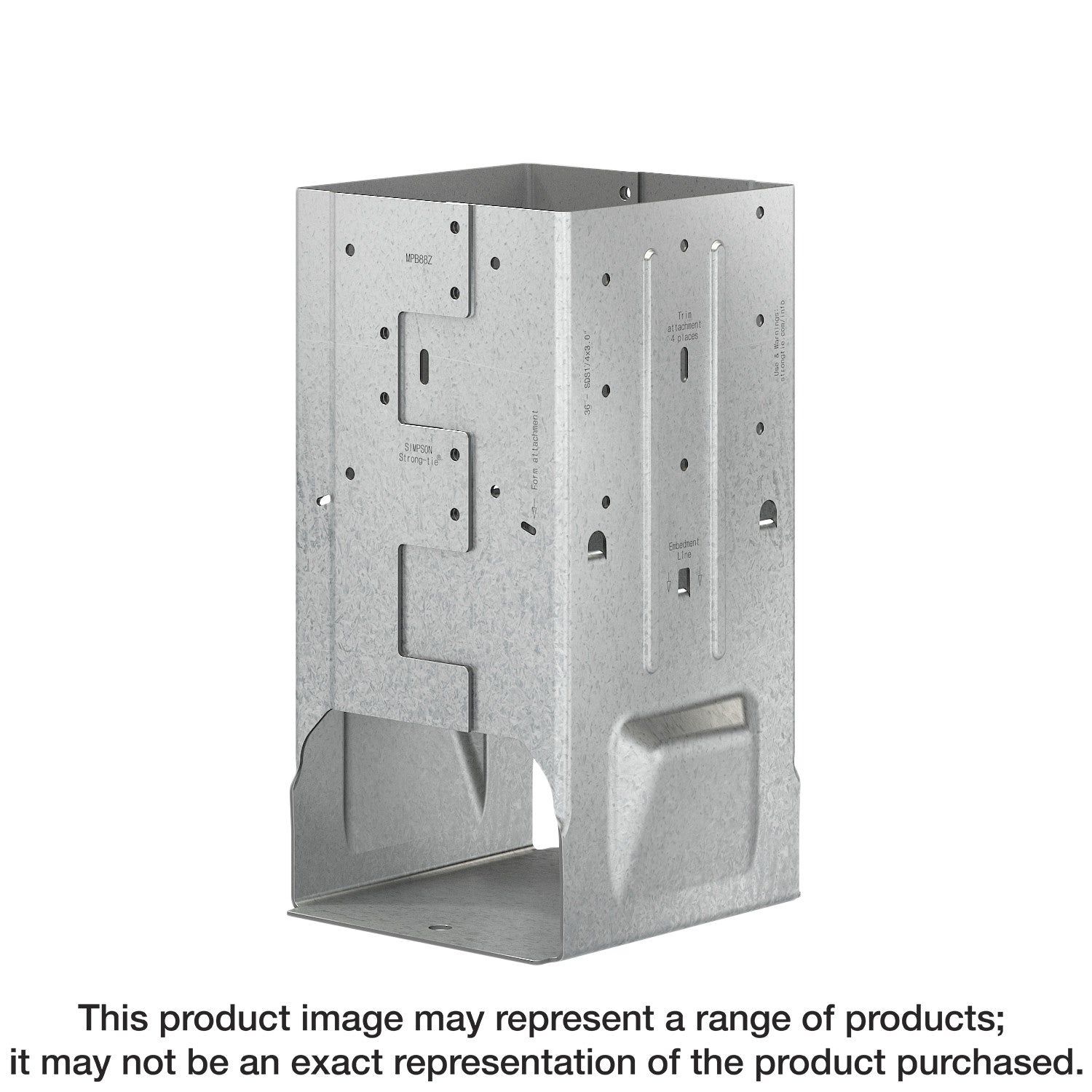

Simpson Strong-Tie MPB88Z MPBZ® ZMAX® Galvanized Moment Post Base for 8x8 w/ SDS Screws

The MPBZ® is specifically designed to provide moment resistance for wood columns and posts. With its innovative sleeve design, the MPBZ encapsulates the post and keeps it from rotating at its base when lateral loads are applied at the top. This provides both the specifier and the contractor with greater design options and the opportunity to reduce the need for bracing, creating more unobstructed views. This innovative off-the-shelf solution has been engineered and tested to save specifiers and contractors the time and expense involved in designing, calculating and ordering custom-fabricated parts. Also available for 4x4 and 6x6 posts.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Tabs inside the MPBZ provide the code-required 1 in. post standoff to help prevent rot from standing water and ground moisture
• Stamped indicators and internal tabs identify the required concrete embedment depth
• Strategically placed holes simplify installation to allow template attachment
• Optional obround holes have been added for attaching trim material
• Additional holes at the embedment line allow standing water to exit and a point of visual inspection
• One-piece design simplifies installation
• Post size: 8x8
• Made from 12-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: MPB88Z
• UPC: 707392509981
• GTIN: 707392509981
• Feature 01: Tabs inside the MPBZ provide the code-required 1 in. post standoff to help prevent rot from standing water and ground moisture
• Feature 02: Stamped indicators and internal tabs identify the required concrete embedment depth
• Feature 03: Strategically placed holes simplify installation to allow template attachment
• Feature 04: Optional obround holes have been added for attaching trim material
• Feature 05: Additional holes at the embedment line allow standing water to exit and a point of visual inspection
• Feature 06: One-piece design simplifies installation
• Feature 07: Post size: 8x8
• Feature 08: Made from 12-gauge steel
• Feature 09: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with 1/4 in. x 3 in. Strong-Drive® SDS Heavy-Duty Connector screws (included)
• Assembled Depth - Imperial: 9.033
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 15.485
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 8.750
• Assembled Width UOM - Imperial: in.
• Base Product ID: MPB_Base
• Base Product Name: MPBZ®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Bases > Post Base
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: Yes
• Finish: ZMAX®
• Gauge: 12
• GUID: 162178832653779513822126518122818906878
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 8x8
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Post Base
• Product Includes: 1/4 in. x 3 in. Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 14.9
• Short Product Name: 8X8 MOMENT POST BASE W/SDS ZMAX
• Strongtie.com URL: https://www.strongtie.com/standoffpostbases_castinplacepostbases/mpb_base/p/mpbz
• Subcategory: Wood Construction Connectors
• Subcategory 2: Bases
• US Patents: 11,072,940
