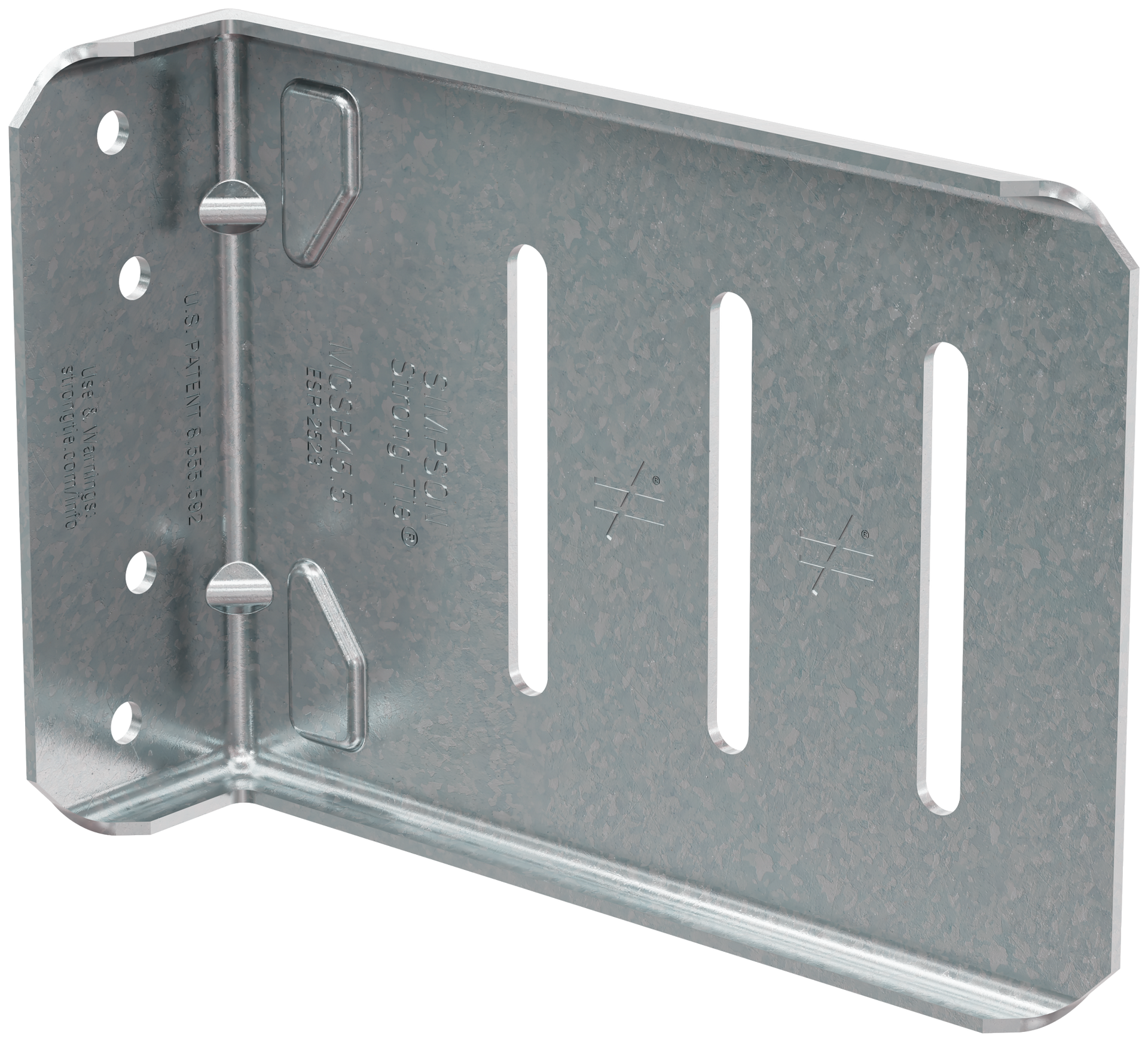

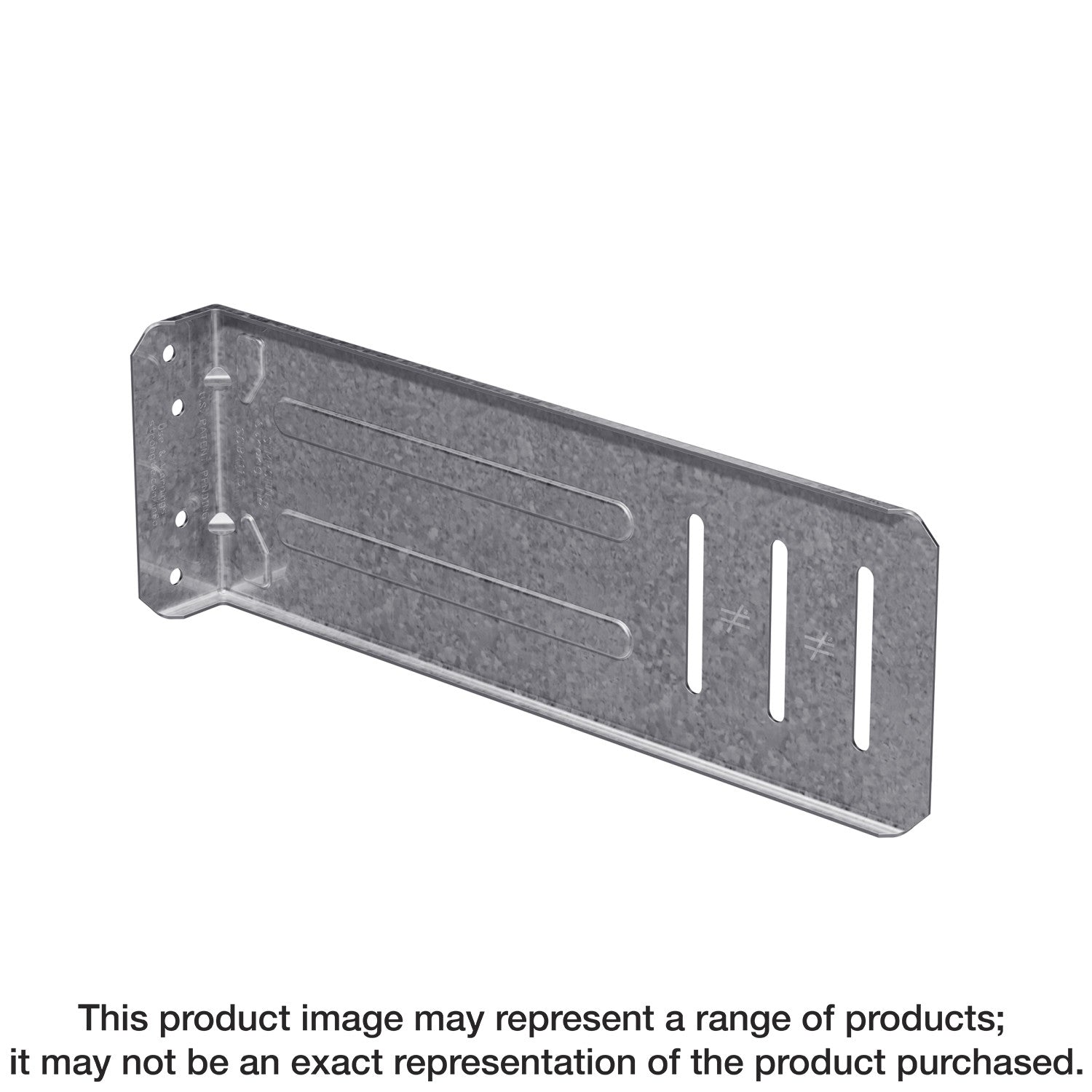

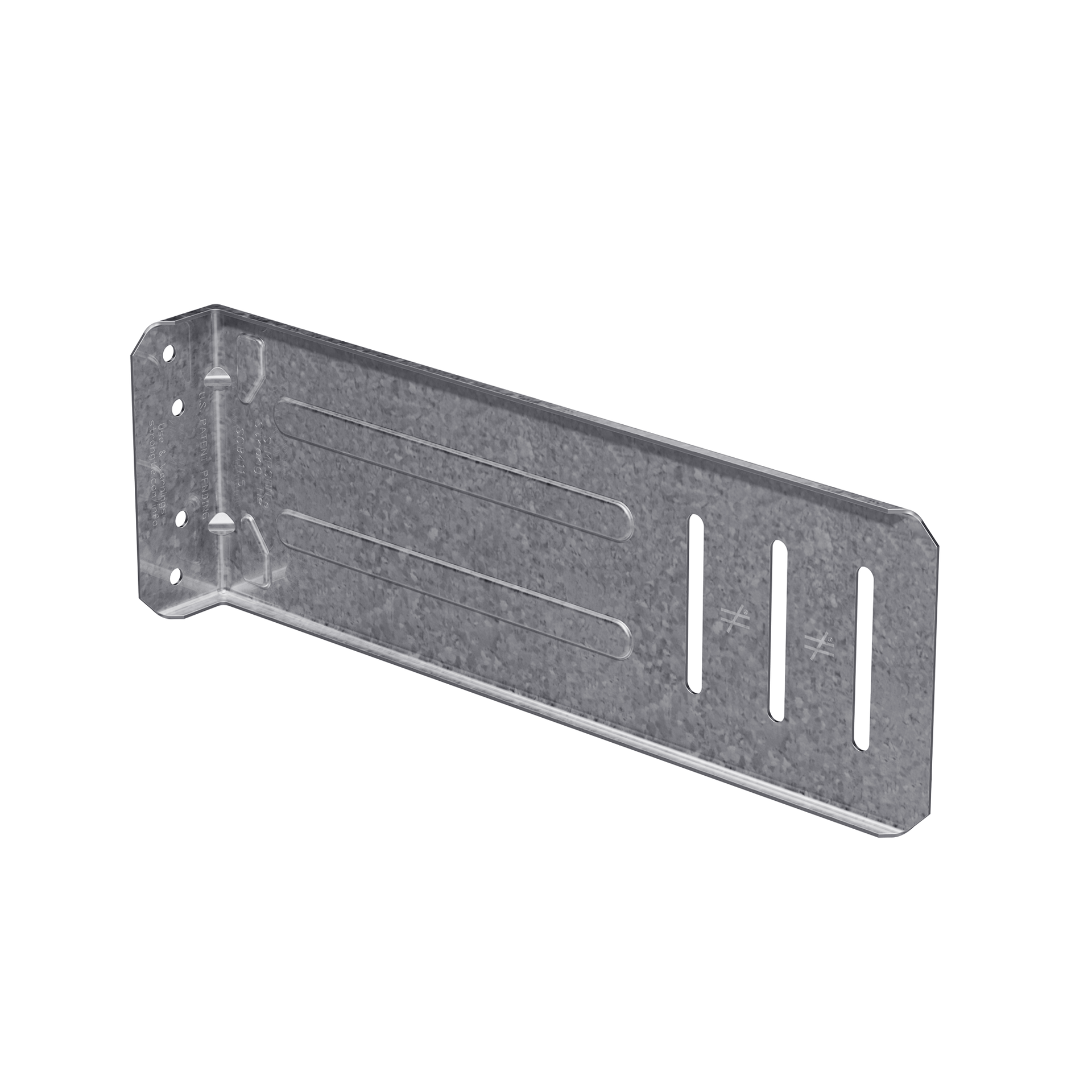

Simpson Strong-Tie MSCB45.5-KT MSCB™ 5-1/2 in. 14 ga. Bypass Framing Slide-Clip Connector w/ Screws (25-Qty)

The Simpson Strong-Tie® MSCB slide-clip connector is a time-saving, high-performance slide-clip connector for bypass framing applications that simplifies design and detailing for the designer and reduces field labor and material costs. Providing allowable anchorage loads for these connectors — with powder-actuated pins, screws, welds or Simpson Strong-Tie Titen Turbo™ concrete screws — eliminates the need to design this anchorage. For designs that have typically required two parts to accommodate large stand-offs, the MSCB can take their place, thereby reducing field labor. The connector is manufactured in different lengths to accommodate a variety of stand-off conditions and steel stud sizes.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Provides a full 1 in. of both upward and downward movement
• The precision-manufactured shouldered screws provided with the MSCB connector are designed to prevent overdriving and to ensure the clip functions properly
• Strategically placed stiffeners, embossments and anchor holes maximize connector performance
• Simpson Strong-Tie No-Equal® stamps mark the center of the slots to help ensure correct shouldered-screw placement
• Length: 5-1/2 in.
• Made from 68 mil (14 ga.) steel
• Galvanized (G90) for corrosion resistance
• Quantity: 25 clips per package

Application

• Bypass
• Curtain-Wall Construction
• Deflection
• Cold-Formed Steel
• Seismic (New Construction)

Specifications

• ERP Part Number: MSCB45.5-KT
• UPC: 707392386230
• GTIN: 707392386230
• Feature 01: Provides a full 1 in. of both upward and downward movement
• Feature 02: The precision-manufactured shouldered screws provided with the MSCB connector are designed to prevent overdriving and to ensure the clip functions properly
• Feature 03: Strategically placed stiffeners, embossments and anchor holes maximize connector performance
• Feature 04: Simpson Strong-Tie No-Equal® stamps mark the center of the slots to help ensure correct shouldered-screw placement
• Feature 05: Length: 5-1/2 in.
• Feature 06: Made from 68 mil (14 ga.) steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Feature 08: Quantity: 25 clips per package
• Install With: Use the specified number of XLSH34B1414 #14 shouldered screws (included)
• Applications List: Bypass
• Applications List.1: Curtain-Wall Construction
• Applications List.2: Deflection
• Applications List.3: Cold-Formed Steel
• Applications List.4: Seismic (New Construction)
• Assembled Depth - Imperial: 1.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.50
• Assembled Width UOM - Imperial: in.
• Base Product ID: SCB_Clip
• Base Product Name: SCB™/MSCB™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Deflection Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: CAR
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 246601796152602080255041637200954910559
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.31
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.38
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 7.81
• Package Width UOM - Imperial: in.
• Packaging Quantity: 25
• Packaging Type: Box
• Product Class: Clip
• Product Includes: (25) connectors; (83) XLSH78B1414 #14 shouldered screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 15.85
• Short Product Name: MED.DUTY SLIDE CLIP 4X5.5 W/SCREWS 25PAK
• Strongtie.com URL: https://www.strongtie.com/deflectionconnectors_coldformedsteelconstruction/scb_clip/p/scb.mscb
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Deflection Connectors
• US Patents: 8,555,592
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392386235
