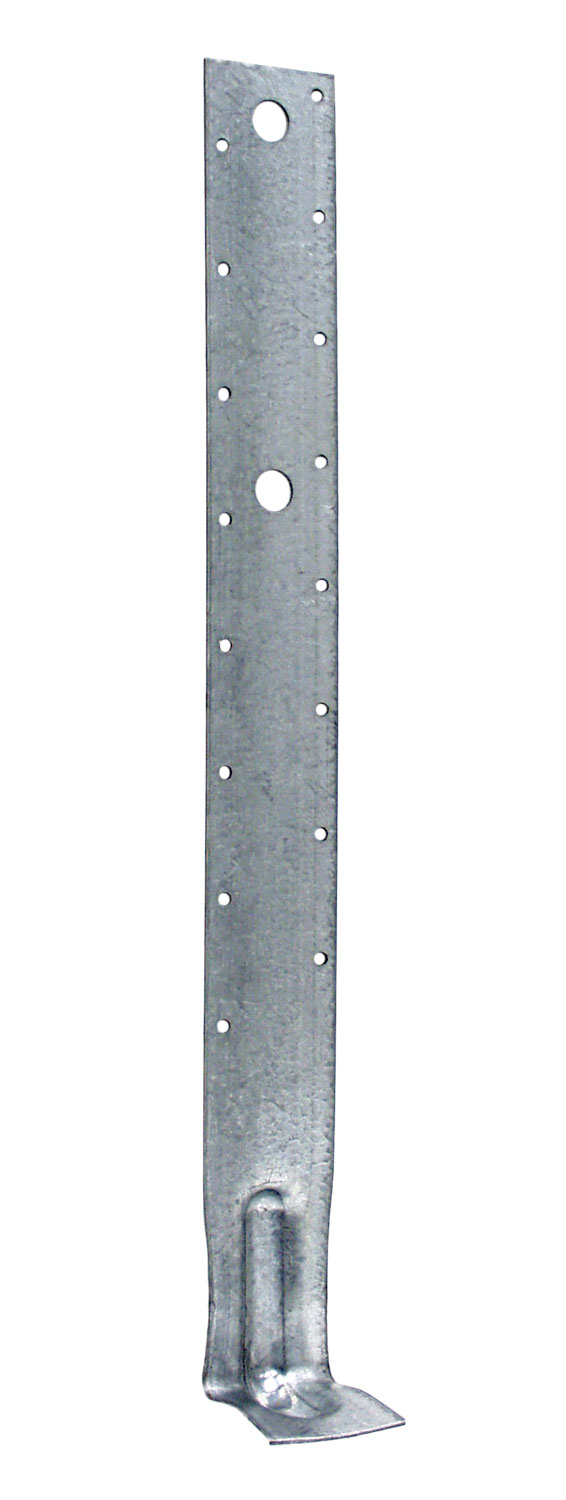

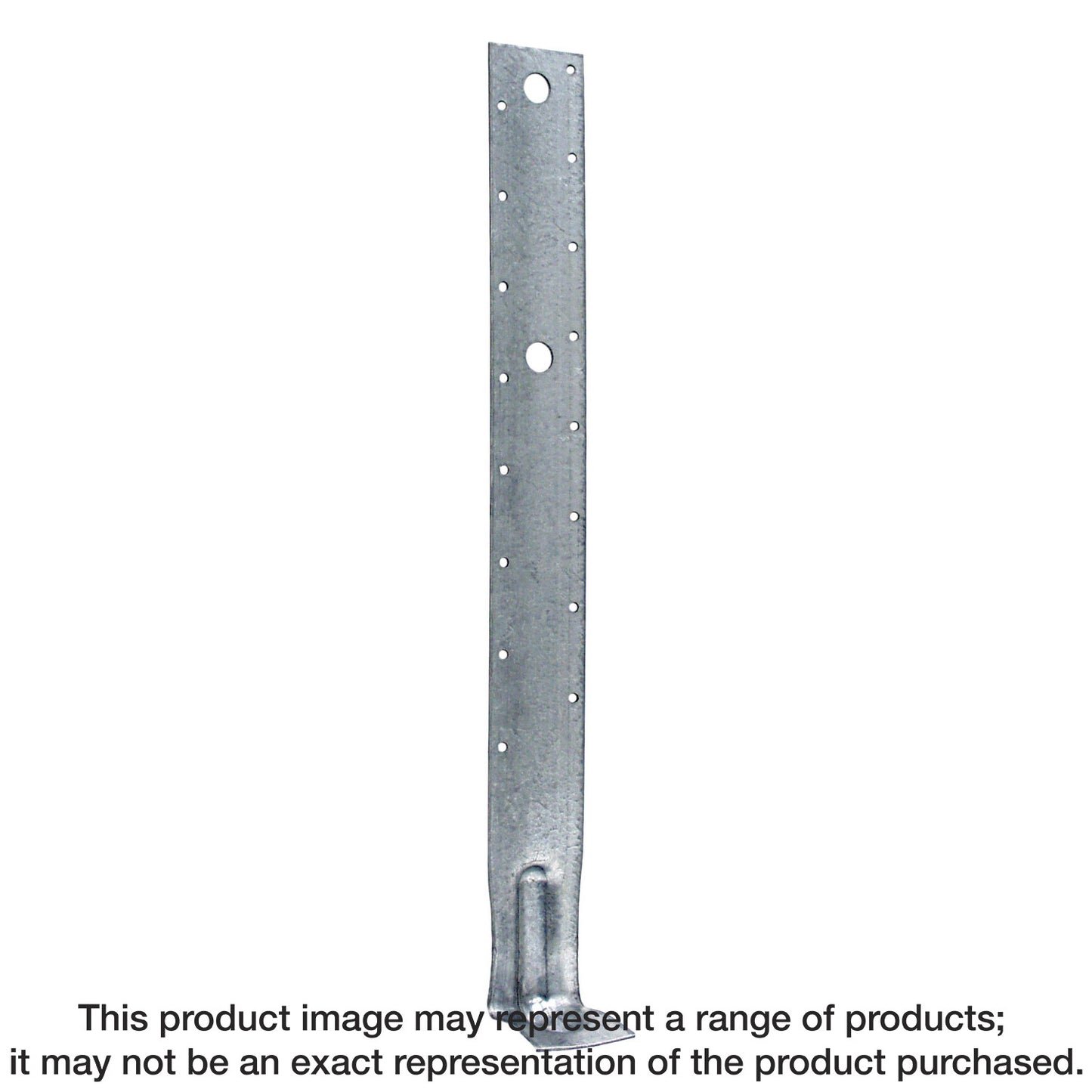

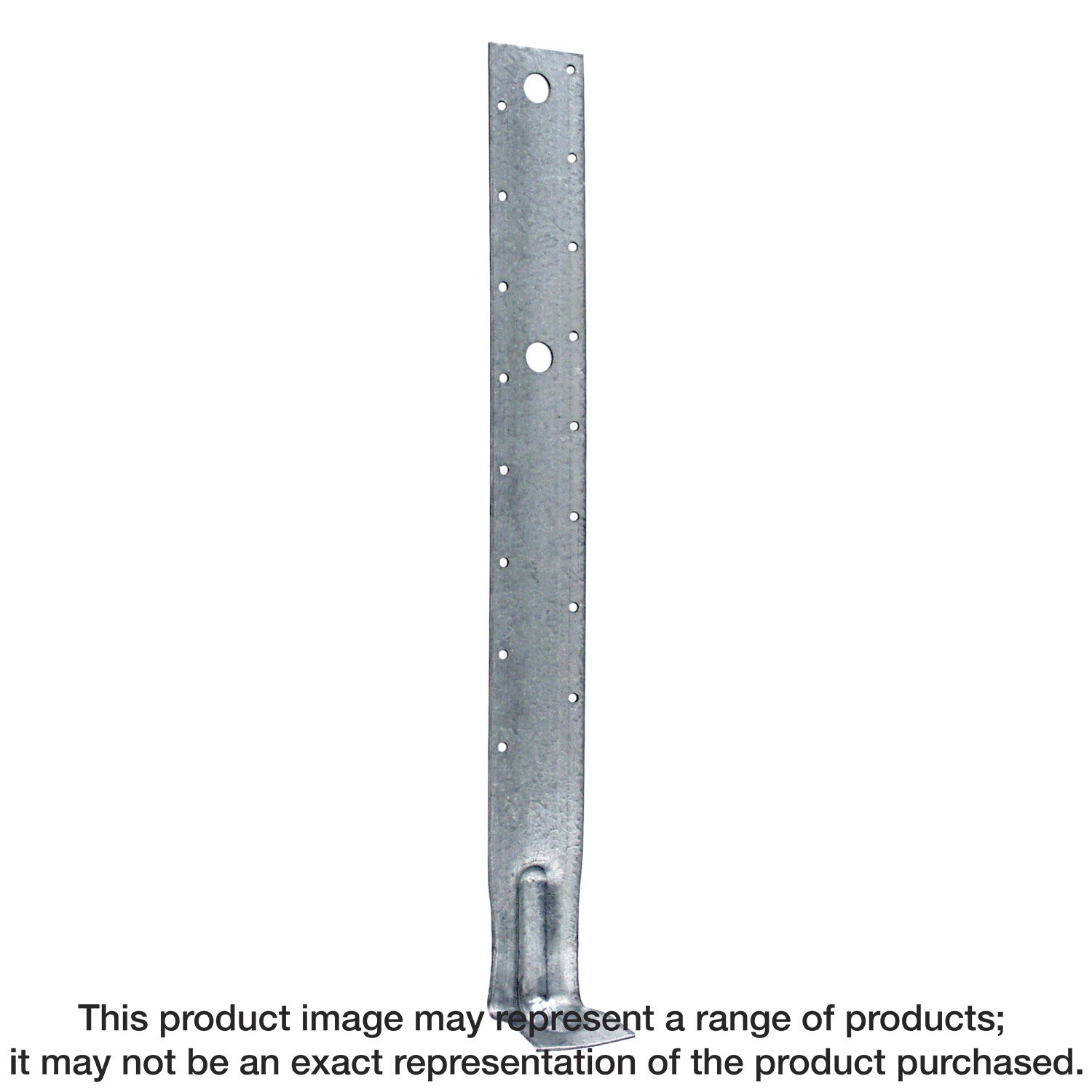

Simpson Strong-Tie PA68Z PA 70 in. 12-Gauge ZMAX® Galvanized Purlin Anchor

Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. PA/HPA purlin anchors offer solutions for wood to concrete and concrete block connections which satisfy code requirements. The PA's dual embedment line allows installation in concrete or concrete block.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Minimum concrete edge distance is 5 in.
• Minimum concrete block left-to-right edge distance is 20 in.
• Length: 70 in.
• For additional length, an MST strap can be attached using 1/2-in. bolts through existing holes
• Made from 12-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: PA68Z
• UPC: 44315761003
• GTIN: 44315761003
• Feature 01: Minimum concrete edge distance is 5 in.
• Feature 02: Minimum concrete block left-to-right edge distance is 20 in.
• Feature 03: Length: 70 in.
• Feature 04: For additional length, an MST strap can be attached using 1/2-in. bolts through existing holes
• Feature 05: Made from 12-gauge steel
• Feature 06: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with 0.148 in. x 3 in. nails
• Assembled Depth - Imperial: 2.476
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 70.476
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.0625
• Assembled Width UOM - Imperial: in.
• Base Product ID: PA_Anchor
• Base Product Name: PA
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Purlin Anchor
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: ZMAX®
• Gauge: 12
• GUID: 45437523526412205038058239934406632174
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Purlin Anchor
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 4.3
• Short Product Name: 70IN STRAP TIE HOLDOWN ZMAX
• Strongtie.com URL: https://www.strongtie.com/purlinanchors_holdownsandtensionties/pa_anchor/p/pa
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315761000
• PAL Reference: 50044315761008
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
