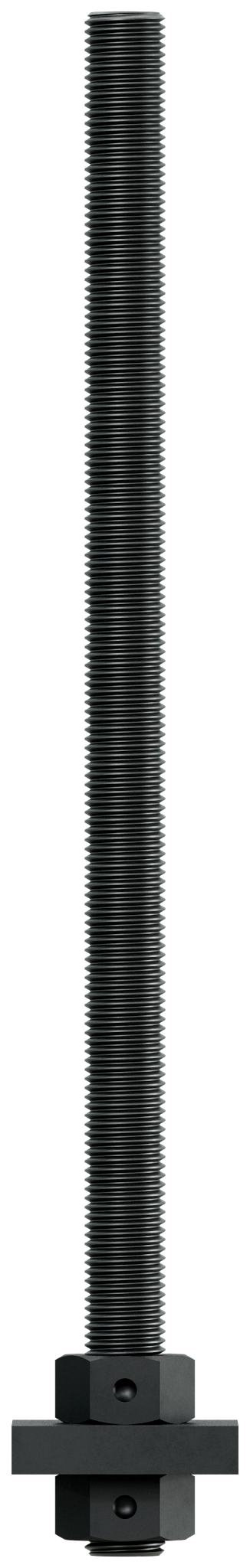

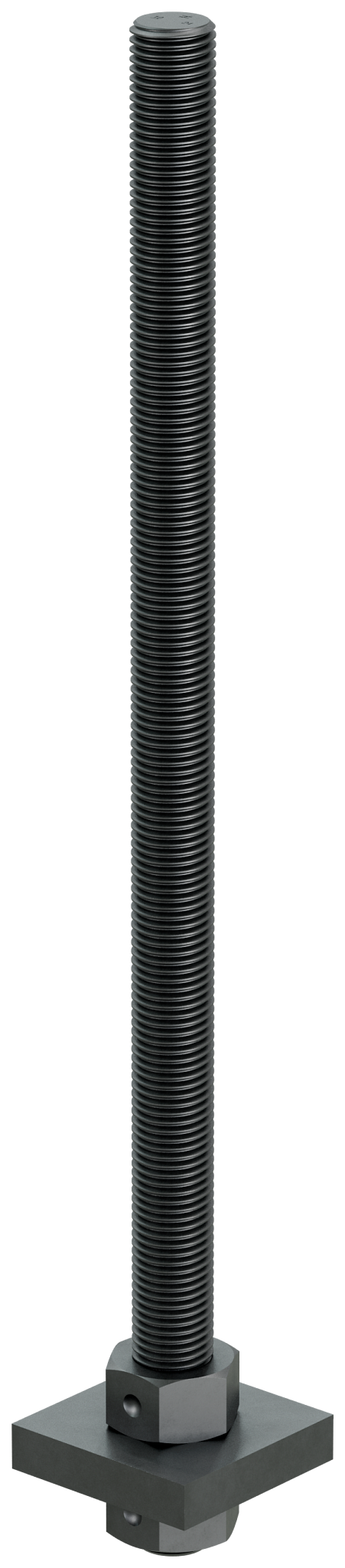

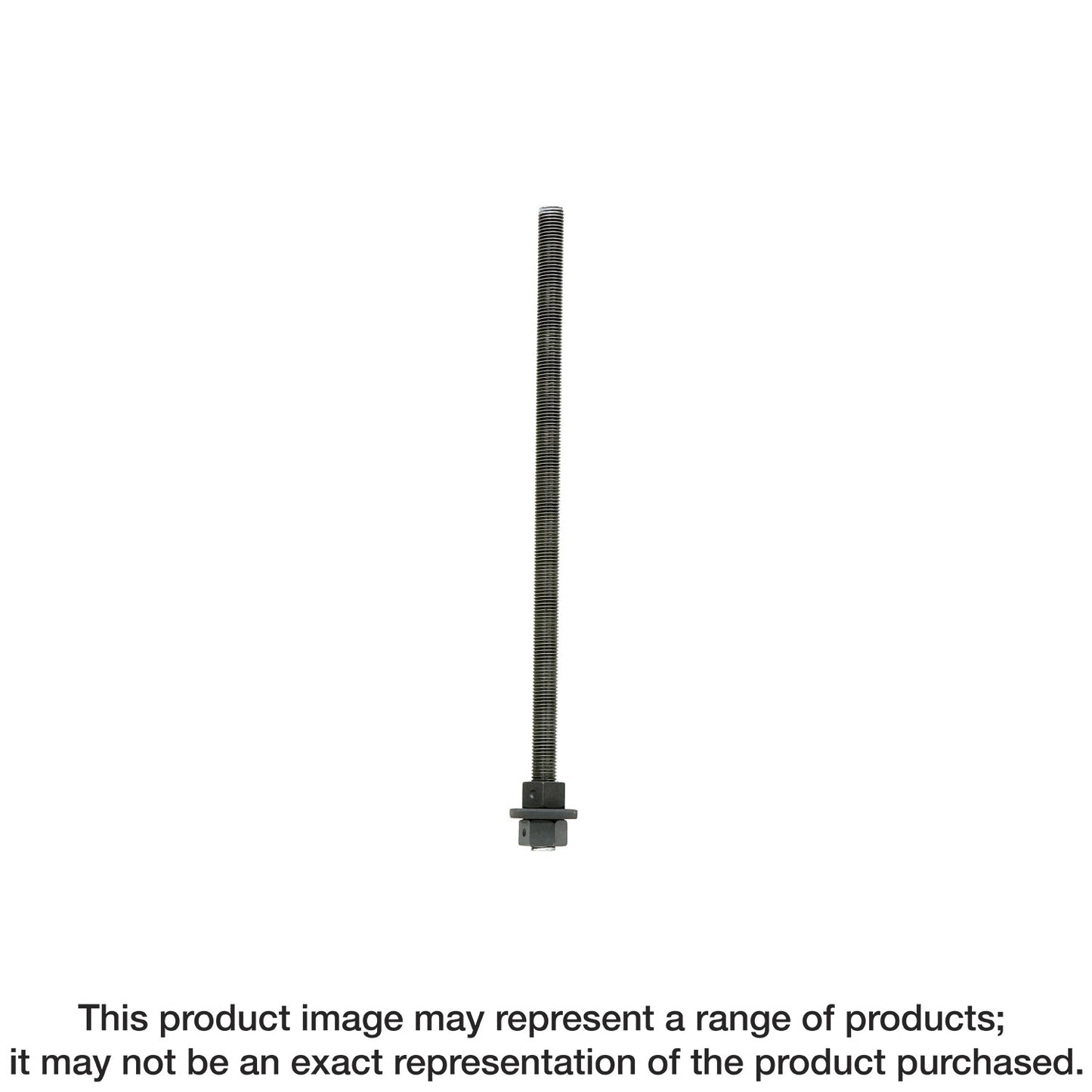

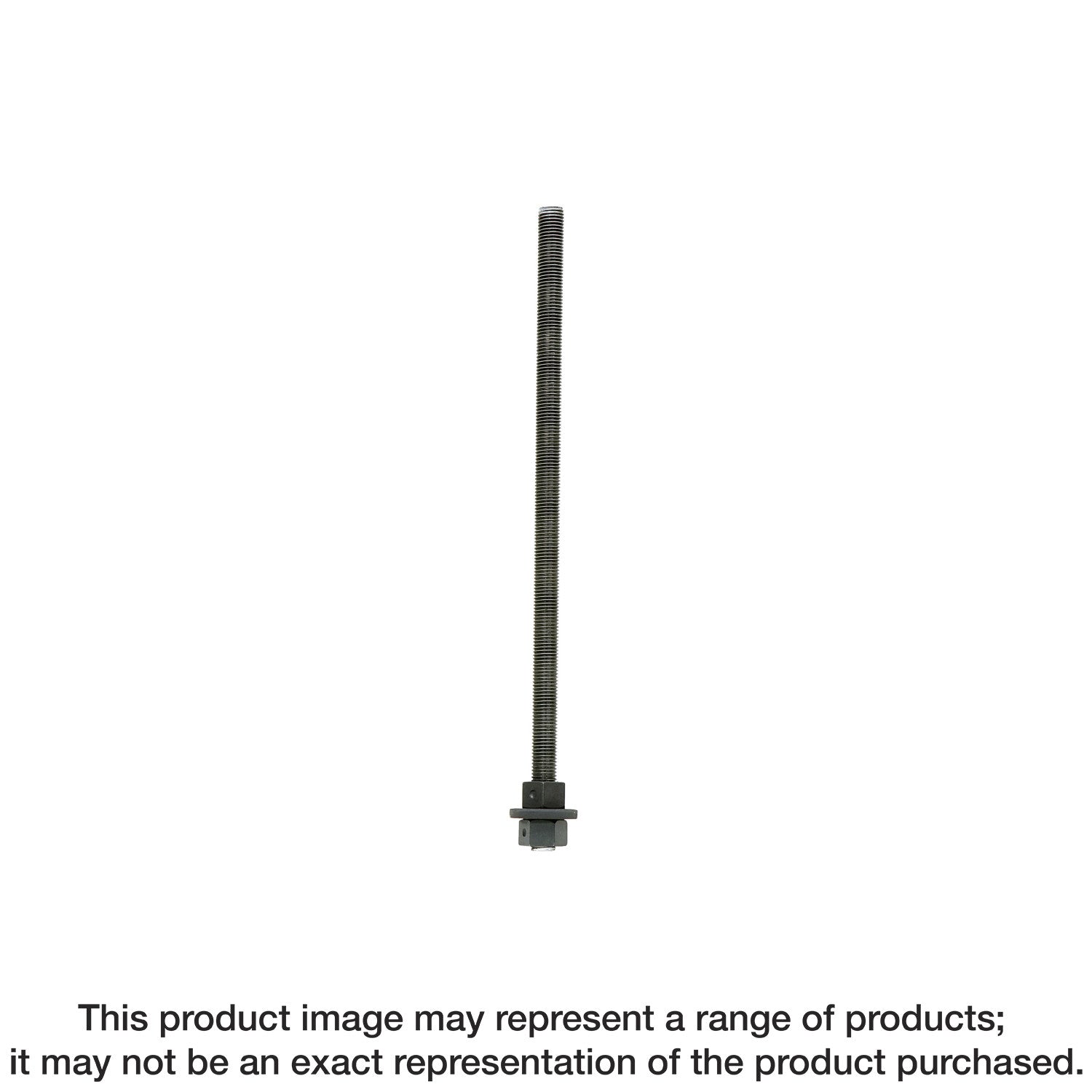

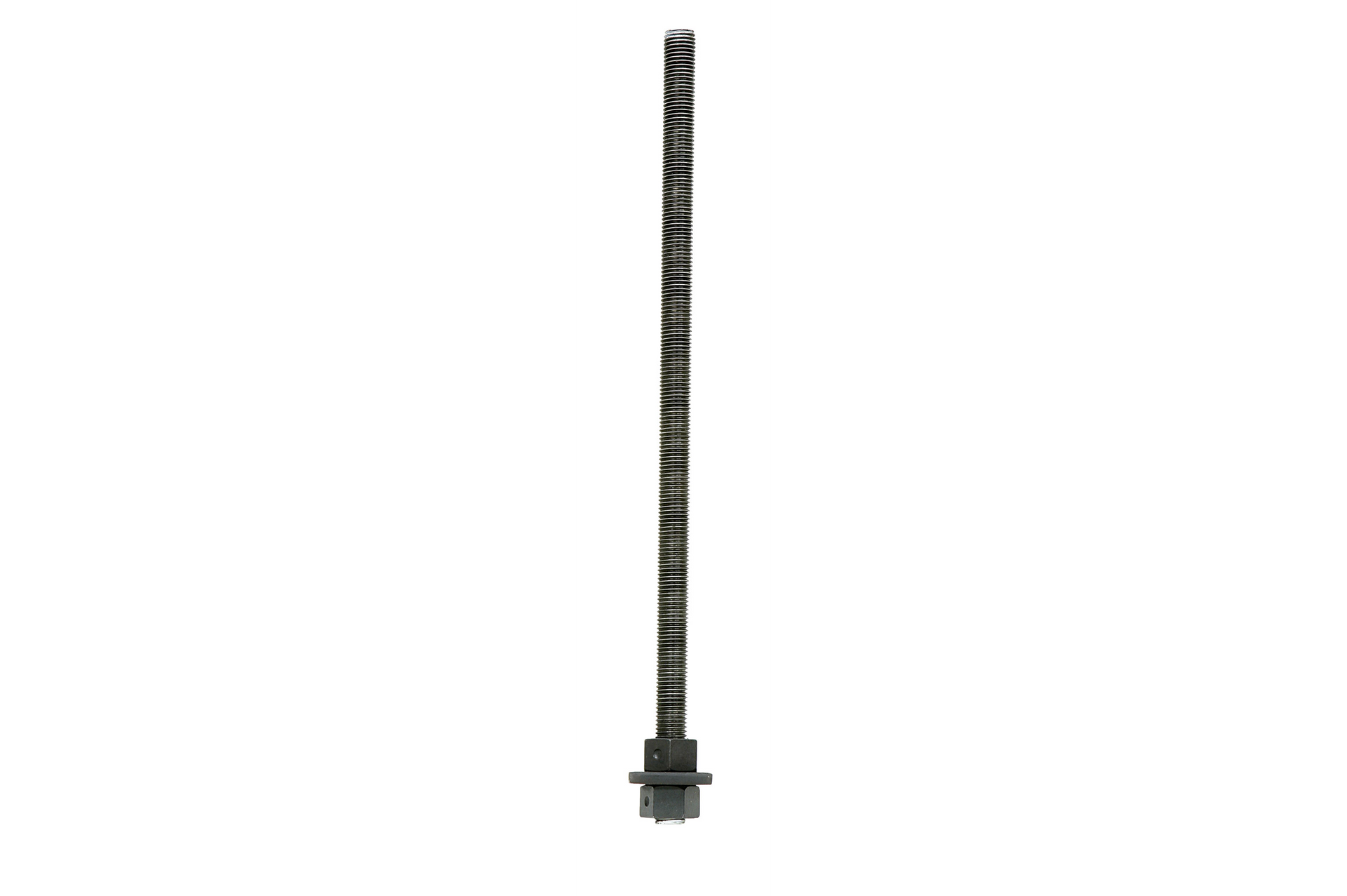

Simpson Strong-Tie PAB10-24 PAB™ 1-1/4 in. x 24 in. Pre-Assembled Anchor Bolt w/ Washer

The Simpson Strong-Tie® PAB™ anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
• Head stamp contains the Simpson Strong-Tie No Equal® sign and diameter designation
• Rod diameter: 1-1/4 in.
• Rod length: 24 in.
• Material: Steel — ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi

Specifications

• ERP Part Number: PAB10-24
• UPC: 707392268109
• GTIN: 707392268109
• Feature 01: Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
• Feature 02: Head stamp contains the Simpson Strong-Tie No Equal® sign and diameter designation
• Feature 03: Rod diameter: 1-1/4 in.
• Feature 04: Rod length: 24 in.
• Feature 05: Material: Steel — ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi
• Assembled Depth - Imperial: 3.5
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 24
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: PAB_Bolt
• Base Product Name: PAB™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Anchor Bolts > Anchor Bolt
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Uncoated Steel
• GUID: 237937154458412829752324700960296630395
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Uncoated Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Anchor Bolt
• Product Includes: Includes (1) anchor bolt, (1) plate washer and (2) hex nuts
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 9.91
• Short Product Name: 1-1/4X24IN ATR W/3-1/2x3-1/2x3/4IN WASH
