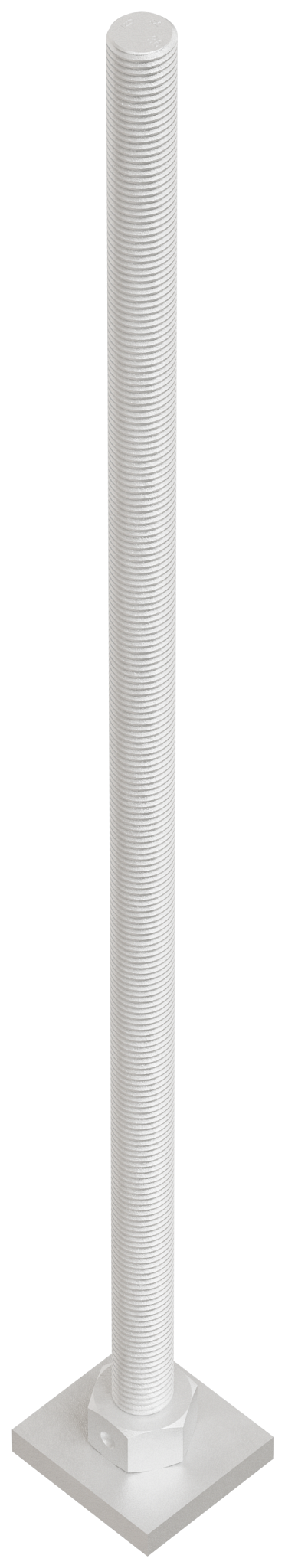

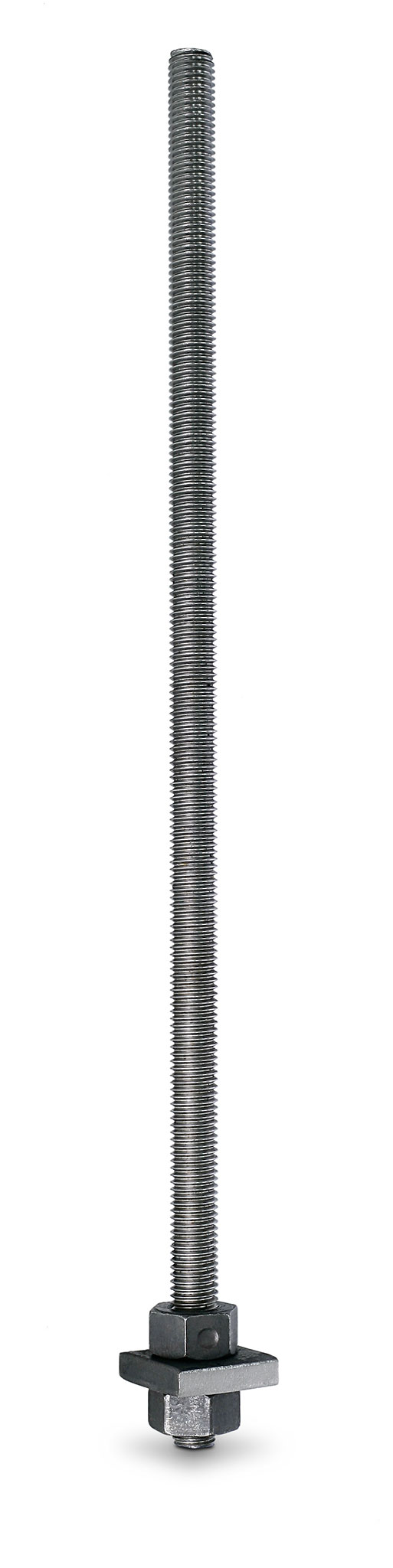

Simpson Strong-Tie PAB9-36-HDG PAB™ 1-1/8 in. x 36 in. HDG Pre-Assembled Anchor Bolt w/ Washer

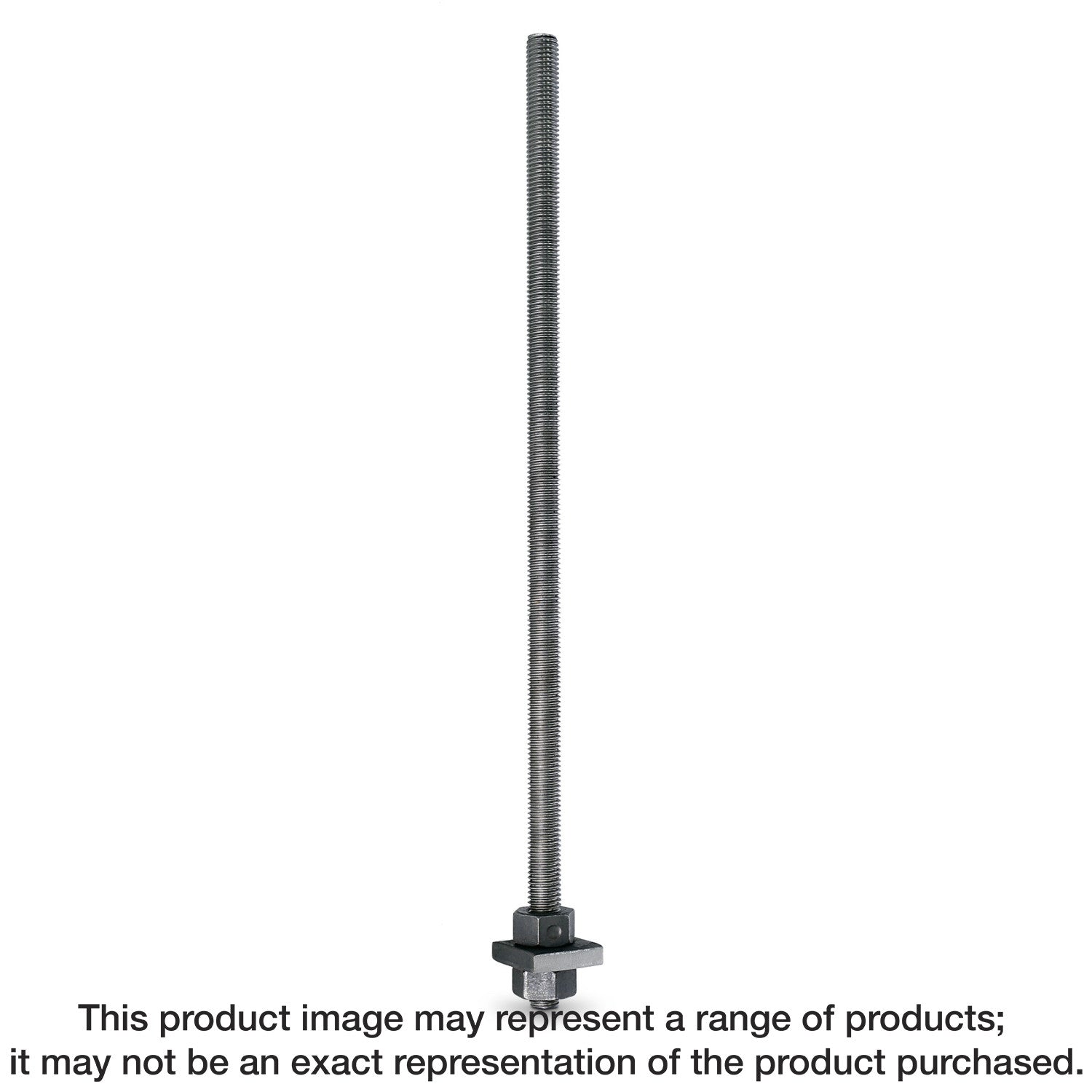

The Simpson Strong-Tie® PAB™ anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
• Head stamp contains the Simpson Strong-Tie No Equal® sign and diameter designation
• Rod diameter: 1-1/8 in.
• Rod length: 36 in.
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: PAB9-36-HDG
• UPC: 707392020066
• GTIN: 707392020066
• Feature 01: Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
• Feature 02: Head stamp contains the Simpson Strong-Tie No Equal® sign and diameter designation
• Feature 03: Rod diameter: 1-1/8 in.
• Feature 04: Rod length: 36 in.
• Feature 05: Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
• Assembled Depth - Imperial: 3.25
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 36
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: PAB_Bolt
• Base Product Name: PAB™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Anchor Bolts > Anchor Bolt
• Coating: Hot-Dip Galvanized
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Hot-Dip Galvanized
• GUID: 140918377116898050126820436597724081512
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Anchor Bolt
• Product Includes: Includes (1) anchor bolt, (1) plate washer and (2) hex nuts
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 10.71
• Short Product Name: 1-1/8 X 36IN PAB HOT DIP GALV
• Strongtie.com URL: https://www.strongtie.com/bolts_anchorbolts/pab_bolt/p/pab
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Anchor Bolts
