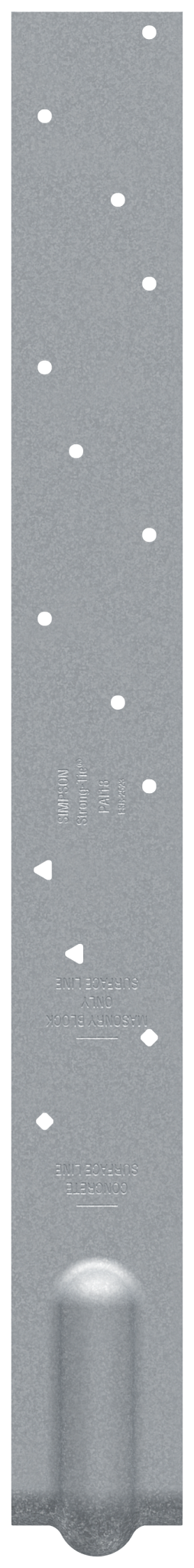

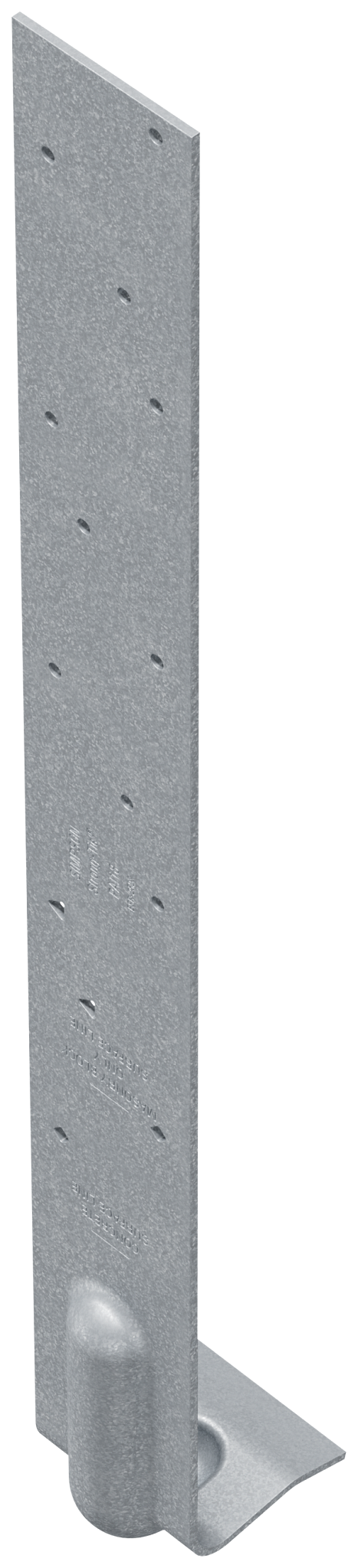

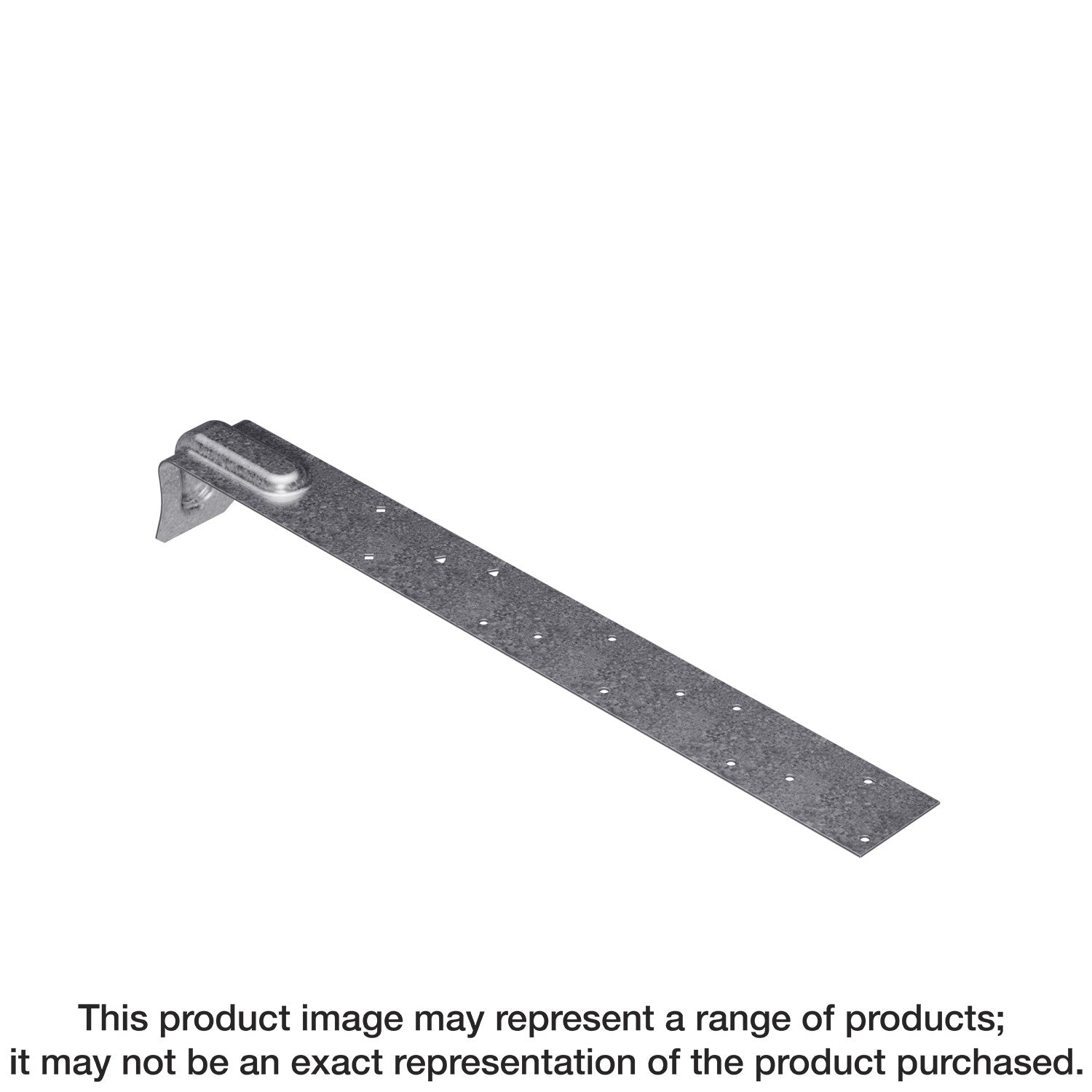

Simpson Strong-Tie PAI18 PAI 18-1/2 in. Purlin Anchor for I-Joist

Simpson Strong-Tie® connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. The PAI is a solution for wood-to-concrete and wood-to-masonry connections which satisfies code requirements. This purlin anchor is specifically designed for I-joist connections to concrete or masonry walls. The PAI features a dual-embedment line for ease of installation.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Minimum embedment line indicators for both concrete and masonry installations
• Nailing pattern optimized for I-joist wood member
• Low design profile minimizes visibility
• Code listed and meets IRC® and IBC® code requirements
• Length: 18-1/2 in.
• Made from 12-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: PAI18
• UPC: 44315776502
• GTIN: 44315776502
• Feature 01: Minimum embedment line indicators for both concrete and masonry installations
• Feature 02: Nailing pattern optimized for I-joist wood member
• Feature 03: Low design profile minimizes visibility
• Feature 04: Code listed and meets IRC® and IBC® code requirements
• Feature 05: Length: 18-1/2 in.
• Feature 06: Made from 12-gauge steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Install With: Installs with 0.148 in. x 1-1/2 in. nails
• Assembled Depth - Imperial: 2.474
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 18.474
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.0625
• Assembled Width UOM - Imperial: in.
• Base Product ID: PAI_Anchor
• Base Product Name: PAI
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Anchor
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 163091493307678253738401372348387921555
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Anchor
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.19
• Short Product Name: 18IN PURLIN ANCHOR
• Strongtie.com URL: https://www.strongtie.com/purlinanchors_holdownsandtensionties/pai_anchor/p/pai
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50044315776507
