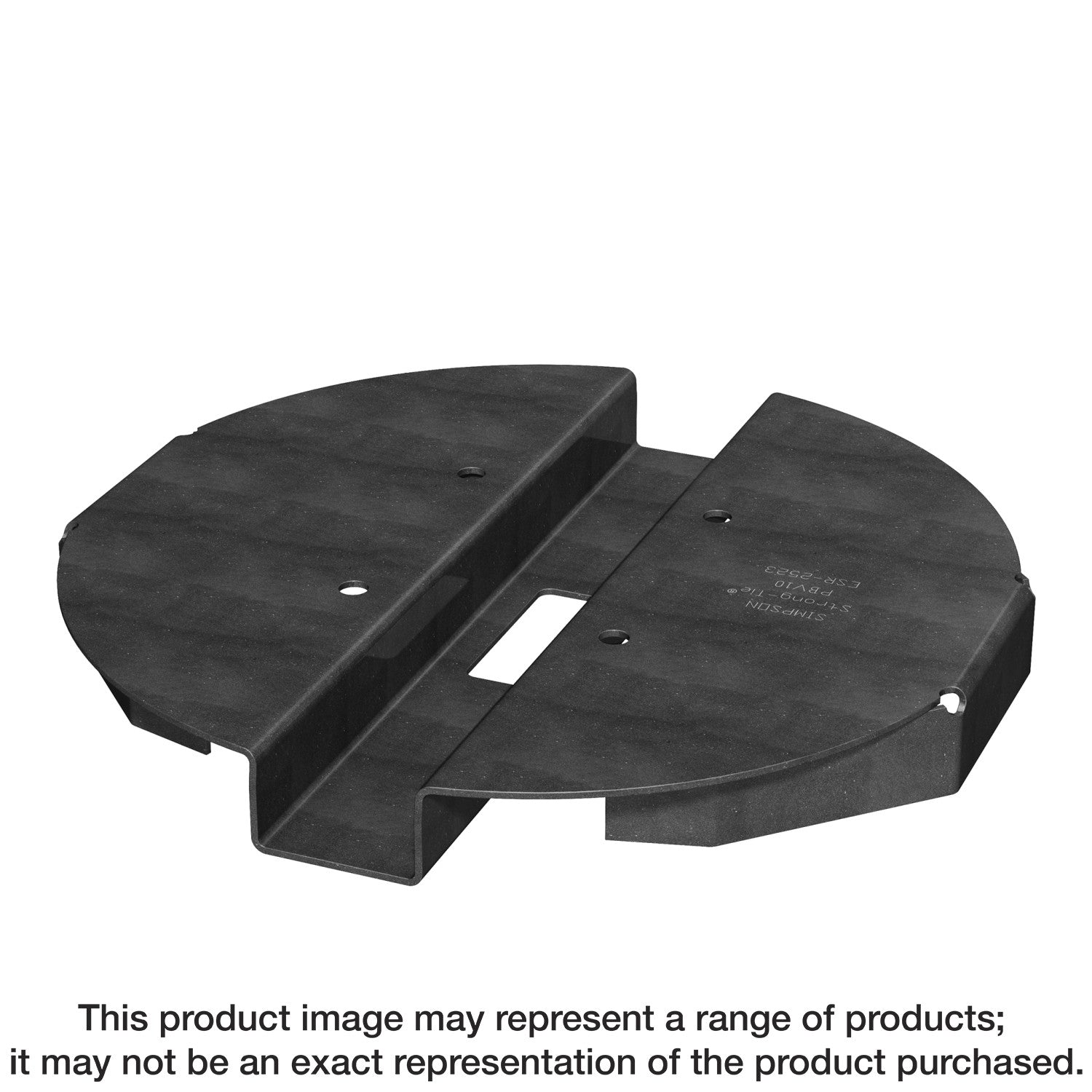

Simpson Strong-Tie PBV10 PBV 10-in. Hidden Standoff Post Base for Viga Post

The Simpson Strong-Tie® Decorative Hardware line consists of aesthetically pleasing, pre-finished connectors and innovative concealed joist ties designed for exposed wood applications. These connectors provide structural performance and add a unique appearance feature to a project. Pre-engineered and tested, these load rated products are verified to perform to design loads, unlike custom designed and fabricated connectors. The PBV is designed to make a hidden connection between viga posts and concrete. This circular, hidden standoff post base attaches to concrete with threaded rod and epoxy to the bottom of the viga post with Strong-Drive® SDS Heavy-Duty Connector screws for a secure connection.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Round shape to match viga-style posts
• 1-in. standoff to help prevent rot at the end of the post
• Made from 14-gauge steel
• 10-in. diameter
• Galvanized for corrosion resistance

Specifications

• ERP Part Number: PBV10
• UPC: 44315935602
• GTIN: 44315935602
• Feature 01: Round shape to match viga-style posts
• Feature 02: 1-in. standoff to help prevent rot at the end of the post
• Feature 03: Made from 14-gauge steel
• Feature 04: 10-in. diameter
• Feature 05: Galvanized for corrosion resistance
• Install With: (4) 1/4 in. x 3 in. Strong-Drive® SDS Heavy-Duty Connector screws and (1) 5/8 in. diameter anchor bolt
• Assembled Depth - Imperial: 9.1875
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 9.21875
• Assembled Width UOM - Imperial: in.
• Base Product ID: PBV_Base
• Base Product Name: PBV
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Bases > Post Base
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 141017974728030096592064232657671110482
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 10" diameter
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Post Base
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.23
• Short Product Name: 10IN HIDDEN STANDOFF POST BASE
