Simpson Strong-Tie PDPA-50K PDPA .157 in. x 1/2 in. Powder-Actuated Knurled Drive Pin (100-Qty)

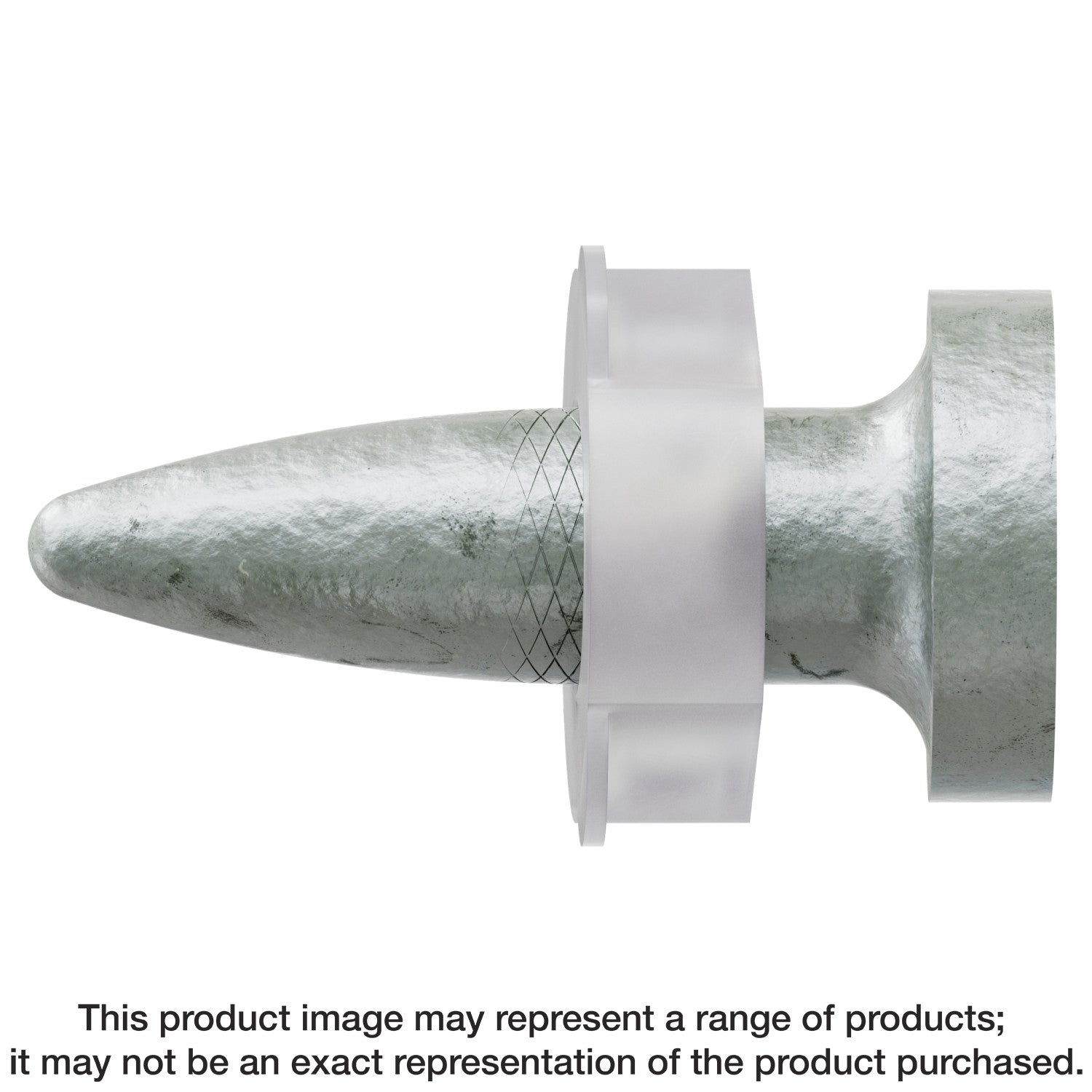

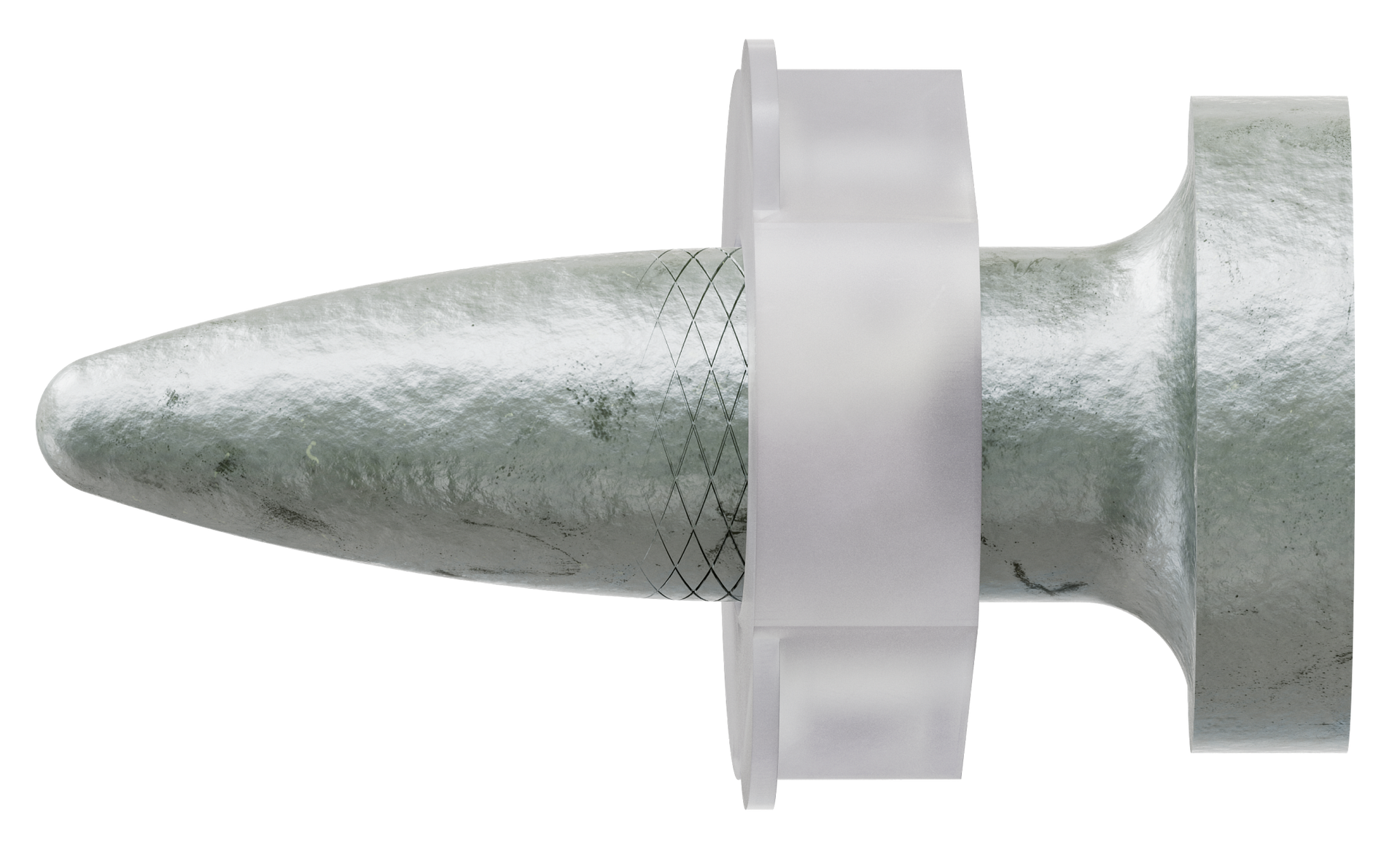

The PDPA is a hardened-steel, powder-actuated fastener designed to fasten building components to concrete, steel and CMU. The PDPA consists of a fastener with a 0.300-in. diameter head and a 0.157-in. diameter shank. The PDPA provides maximum jobsite productivity with fast installation.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• Designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools
• 0.300-in. head diameter / 0.157-in. shank diameter
• Knurled shank
• For A36 and A572 Grade 50 structural steel
• Length: 1/2 in.
• Quantity: 100

Specifications

• ERP Part Number: PDPA-50K
• UPC: 707392249016
• GTIN: 707392249016
• Feature 01: The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Feature 02: Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• Feature 03: Designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools
• Feature 04: 0.300-in. head diameter / 0.157-in. shank diameter
• Feature 05: Knurled shank
• Feature 06: For A36 and A572 Grade 50 structural steel
• Feature 07: Length: 1/2 in.
• Feature 08: Quantity: 100
• Assembled Depth - Imperial: 0.300
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 0.569
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.300
• Assembled Width UOM - Imperial: in.
• Base Product ID: PDPA_Pin
• Base Product Name: PDPA
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Direct Fastening > Powder-Actuated Fasteners > Pin
• Coating: Mechanically Galvanized
• Country of Origin: CN
• Customer Unit: Yes
• Display Unit/Measure: PAC
• EAN category: UC
• Finish: Mechanically Galvanized
• GUID: 121045490469335090167027794545305291807
• Head Diameter (in.): 0.300
• Length (in.): 1/2 knurled
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 2.625
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 1.625
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.25
• Package Width UOM - Imperial: in.
• Packaging Quantity: 100
• Packaging Type: Box
• Product Class: Pin
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.157
• Shipping Weight: 0.5
• Short Product Name: 1/2in LV knurled .157 dia pin
• Strongtie.com URL: https://www.strongtie.com/patfasteners_powderactuatedfasteningsystems/pdpa_pin/p/pdpa
• Subcategory: Direct Fastening
• Subcategory 2: Powder-Actuated Fasteners
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392249006
• CV Reference: 707392249023
• PAL Reference: 50707392249004
