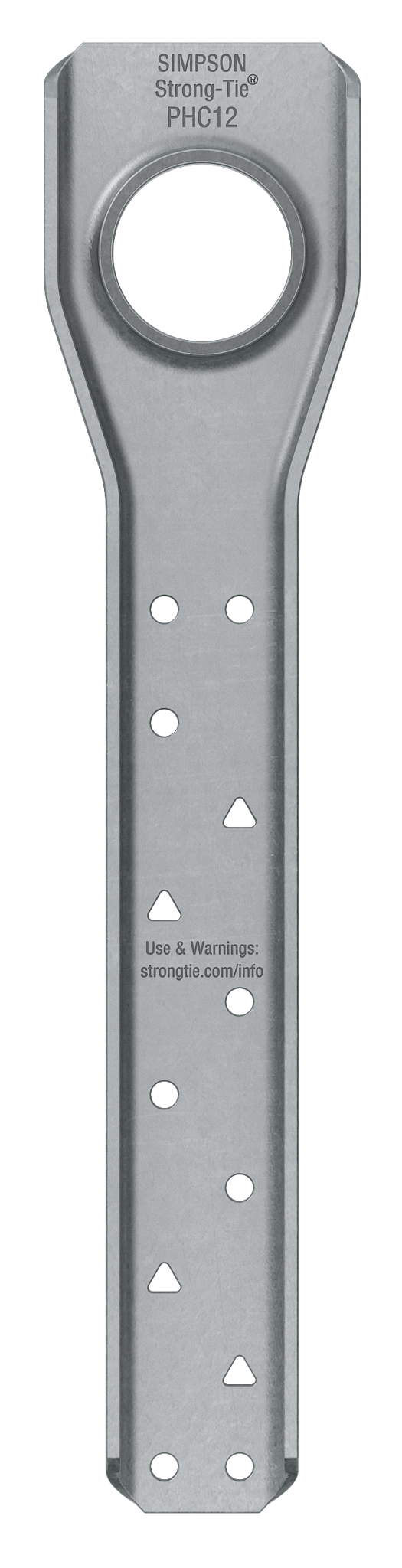

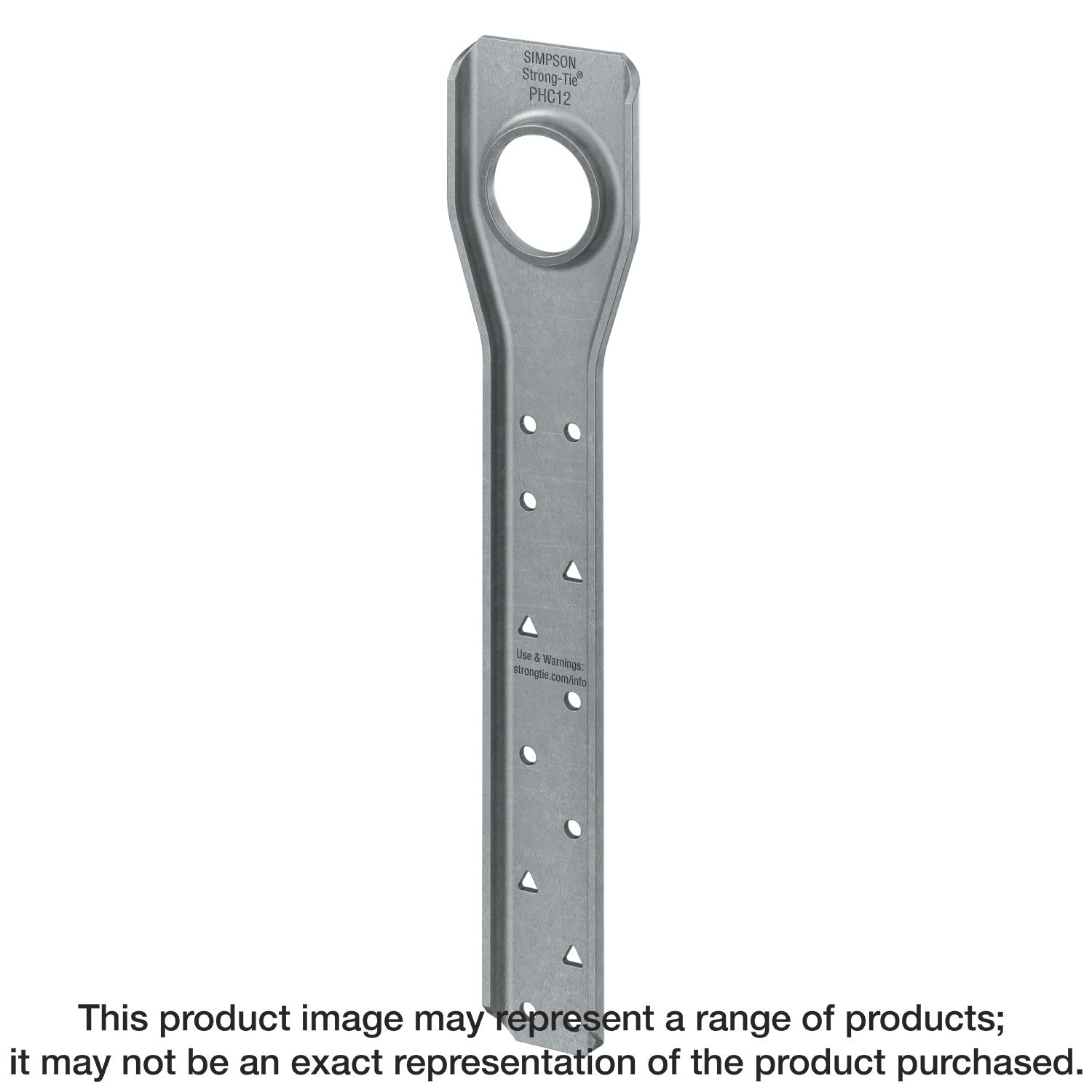

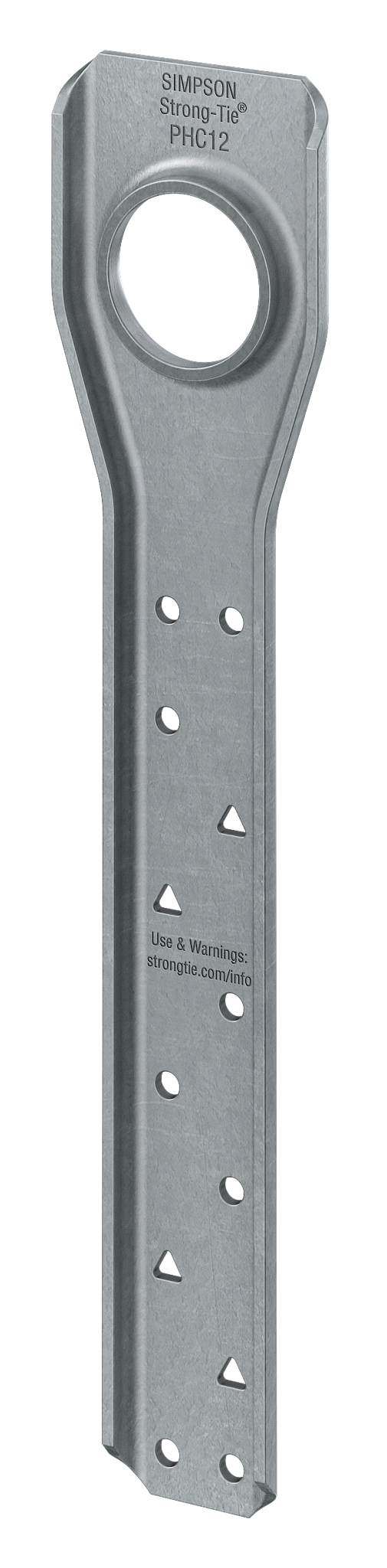

Simpson Strong-Tie PHC12 PHC™ 10-3/8 in. 12-Gauge Panel Hoist Clip (50-Qty)

The Simpson Strong-Tie® PHC panel hoist clip allows easier installation and lifting of wall panels on the job and at assembly sites. The PHC clip features a small profile design to fit inside holes as small as 1.5 in. Contractors can either drill holes in the track onsite or have the track manufactured with holes for easier installation of the clip through the top track. The rolled edges and rolled hoist-edge-hole provide greater strength and give the capacity needed for heavy panel projects. Maximum and minimum screw patterns give you options for heavier or lighter load needs. The PHC hoist clip has been assembly tested for tension and panel pickup, providing an increased level of safety for panelizers, installers and engineers.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

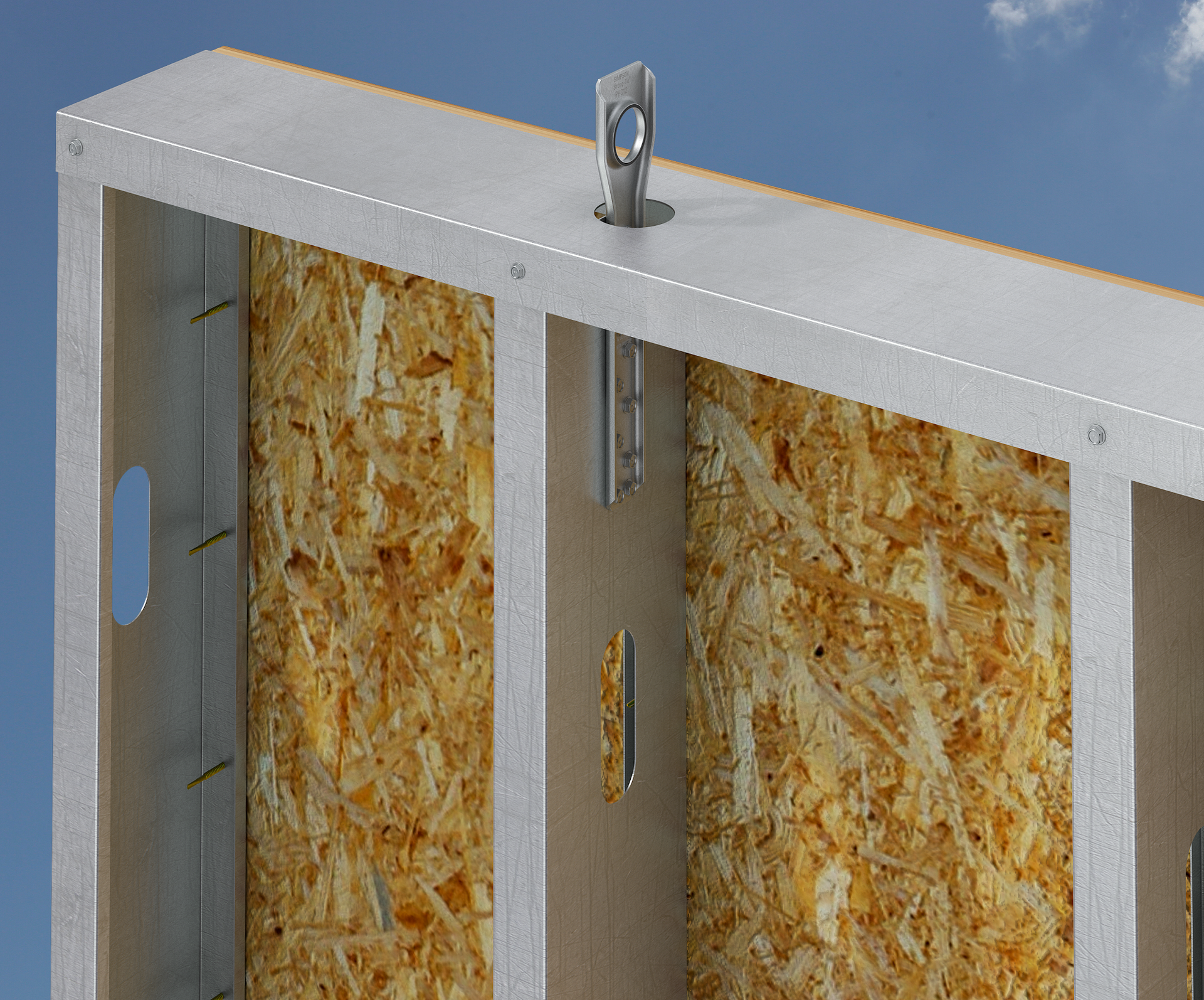

• Small profile to allow for easy installation through the top track
• Greater top track strength with reduced opening size required for hoist clip to fit through top track
• Rolled stiffener for increased strength across the entire length of clip
• Rolled hoist-edge-hole for increased strength and smooth mounting edge
• Screw pattern options allow for varying load needs; fill round holes for minimum loads, or fill round holes and triangular holes for maximum loads
• Chamfered top corners and minimized distance of material above hoist hole allow for the lifting device to slide freely without getting stuck
• Assembly tested for tension and panel pick up at different angles for attachment to stud web
• Optional panel hoist clip cover (PHC-C) available to cover track hole and create a tight connector fit for the concrete pour when embedding the installed hoist in concrete or other hole cover needs
• Made from 12-ga. steel, galvanized (G90) for extra corrosion resistance
• Quantity: 50

Specifications

• ERP Part Number: PHC12
• UPC: 707392019459
• GTIN: 707392019459
• Feature 01: Small profile to allow for easy installation through the top track
• Feature 02: Greater top track strength with reduced opening size required for hoist clip to fit through top track
• Feature 03: Rolled stiffener for increased strength across the entire length of clip
• Feature 04: Rolled hoist-edge-hole for increased strength and smooth mounting edge
• Feature 05: Screw pattern options allow for varying load needs; fill round holes for minimum loads, or fill round holes and triangular holes for maximum loads
• Feature 06: Chamfered top corners and minimized distance of material above hoist hole allow for the lifting device to slide freely without getting stuck
• Feature 07: Assembly tested for tension and panel pick up at different angles for attachment to stud web
• Feature 08: Optional panel hoist clip cover (PHC-C) available to cover track hole and create a tight connector fit for the concrete pour when embedding the installed hoist in concrete or other hole cover needs
• Feature 09: Made from 12-ga. steel, galvanized (G90) for extra corrosion resistance
• Feature 10: Quantity: 50
• Install With: Install with 8 (min.) or 12 (max.) #10 screws to framing
• Assembled Depth - Imperial: 0.375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 10.375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.25
• Assembled Width UOM - Imperial: in.
• Base Product ID: PHC_Clip
• Base Product Name: PHC™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Rigid Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: PAC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 68918183426500136336098836559727645519
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 50
• Packaging Type: Box
• Product Class: Clip
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 26.7
• Short Product Name: Panel Hoist Clip 97 mil 50/Pac
• Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/phc_clip/p/phc
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Rigid Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392019454
