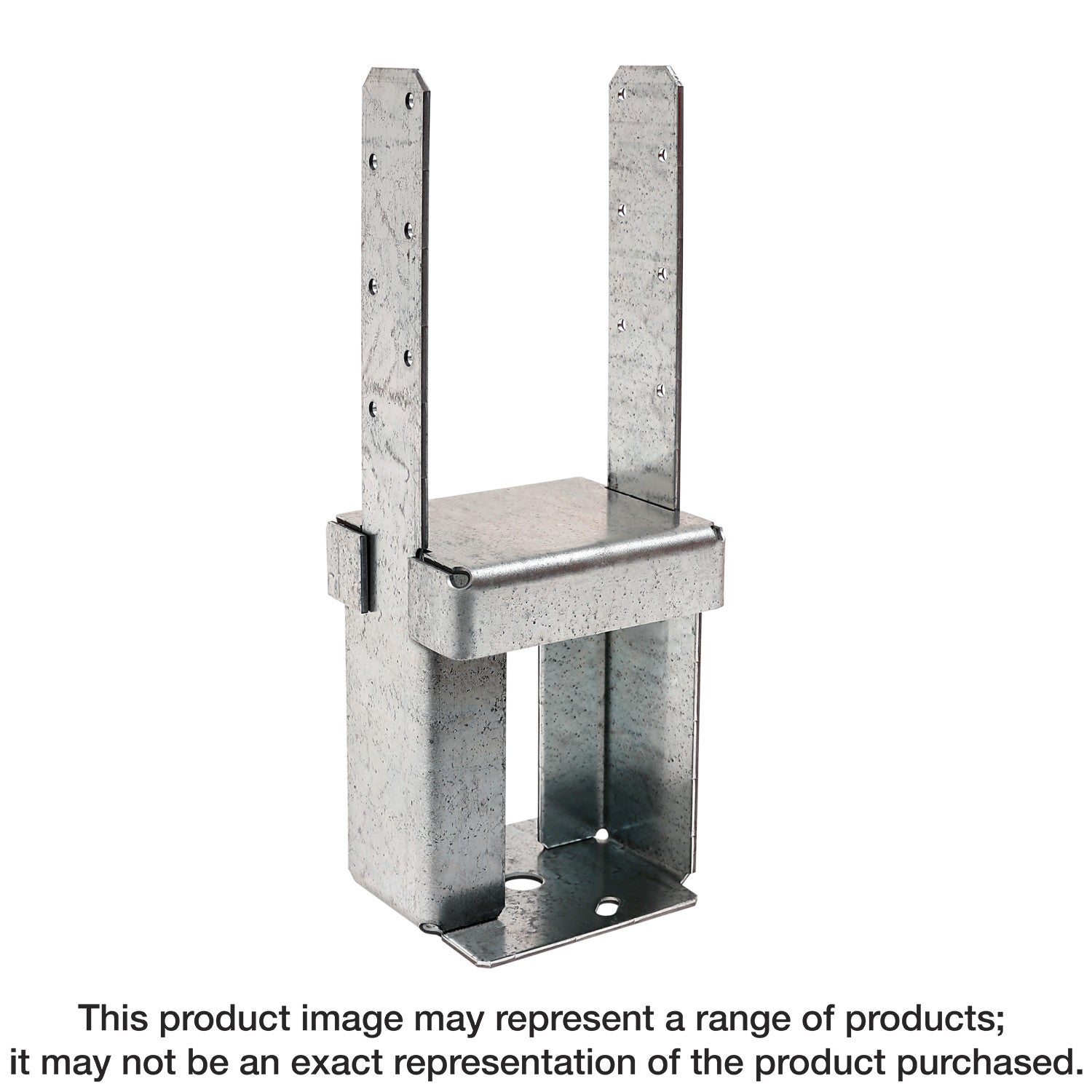

Simpson Strong-Tie PPB44-6Z PPBZ™ Porch Post Base for 4x4 Post and 6 in. Slab

The Simpson Strong-Tie® PPBZ porch post base offers a simplified, one-time installation designed to support permanent porch framing throughout all stages of construction. This design eliminates the need for temporary vertical support and streamlines the subcontractor scheduling process while still providing adequate safety to enable full access for installers/inspectors. The porch post base is fastened to the footing with two Simpson Strong-Tie Titen Turbo™ masonry screws when framing the porch roof. Then, when the time is right, the concrete contractor is able to complete the last phase of the porch slab without the interference of temporary vertical support and without the framer having to return to the jobsite after the slab has hardened. Designed to withstand vertical construction loads prior to embedment in concrete, the PPBZ will support the weight of most framed porches and overhangs.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Stiffened embedded side stirrups provide temporary vertical download support without being embedded into concrete
• 1 in. standoff reduces the potential for decay at post or column ends
• Pre-pour installation eliminates temporary support
• No disruption in scheduling
• Eliminates additional move-ins by trades and certain inspection call backs
• Sized to fit a nominal 4x4 post and 6 in. slab thickness
• Made from 12-gauge steel
• ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: PPB44-6Z
• UPC: 707392723370
• GTIN: 707392723370
• Feature 01: Stiffened embedded side stirrups provide temporary vertical download support without being embedded into concrete
• Feature 02: 1 in. standoff reduces the potential for decay at post or column ends
• Feature 03: Pre-pour installation eliminates temporary support
• Feature 04: No disruption in scheduling
• Feature 05: Eliminates additional move-ins by trades and certain inspection call backs
• Feature 06: Sized to fit a nominal 4x4 post and 6 in. slab thickness
• Feature 07: Made from 12-gauge steel
• Feature 08: ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: (12) 0.148 in. x 3 in. Strong-Drive® SCN Smooth-Shank Connector nails and (2) 1/4 in. x 1-1/4 in. Titen Turbo concrete screws (Models: 10DHDG, TNT25114H
• Assembled Depth - Imperial: 4.0145
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 12.726
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.50
• Assembled Width UOM - Imperial: in.
• Base Product ID: PPBZ_Base
• Base Product Name: PPBZ™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Bases > Post Base
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: ZMAX®
• Gauge: 12
• GUID: 97277166672946998012832439885368072548
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 4x4
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Post Base
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.75
• Short Product Name: 4X4 PORCH POST BASE 6IN ZMAX
• Strongtie.com URL: https://www.strongtie.com/nonstandoffpostbases_postbases/ppbz_base/p/ppbz
• Subcategory: Wood Construction Connectors
• Subcategory 2: Bases
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392723377
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
