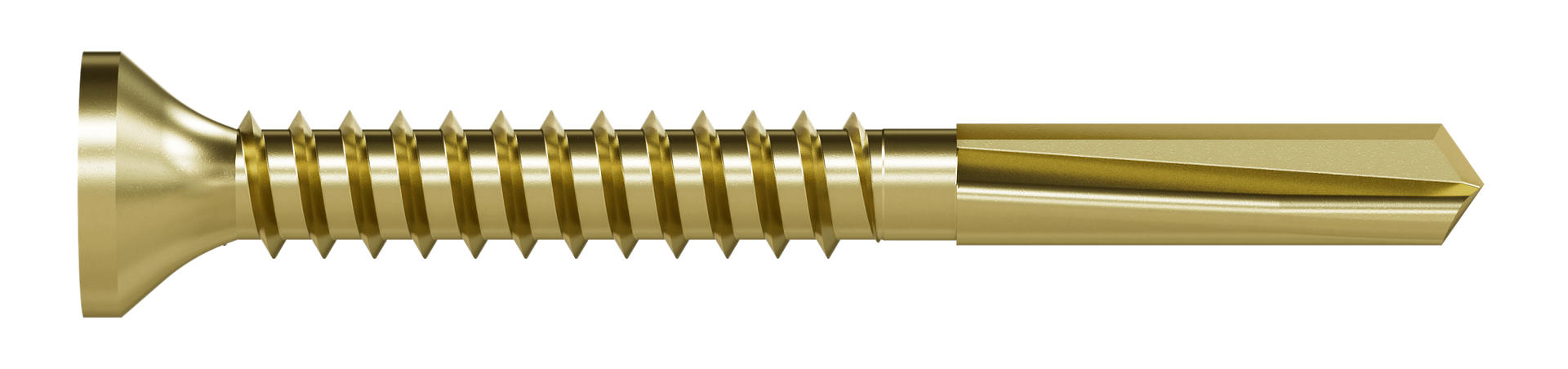

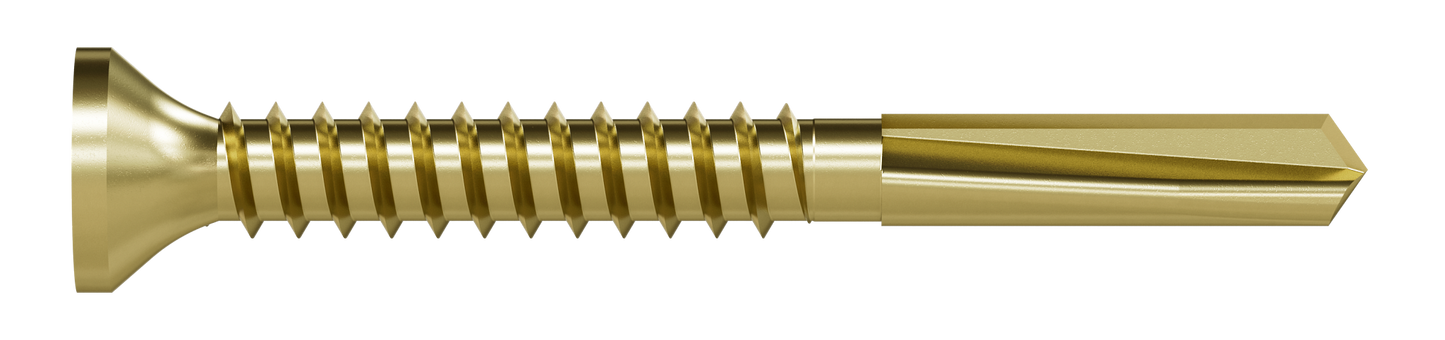

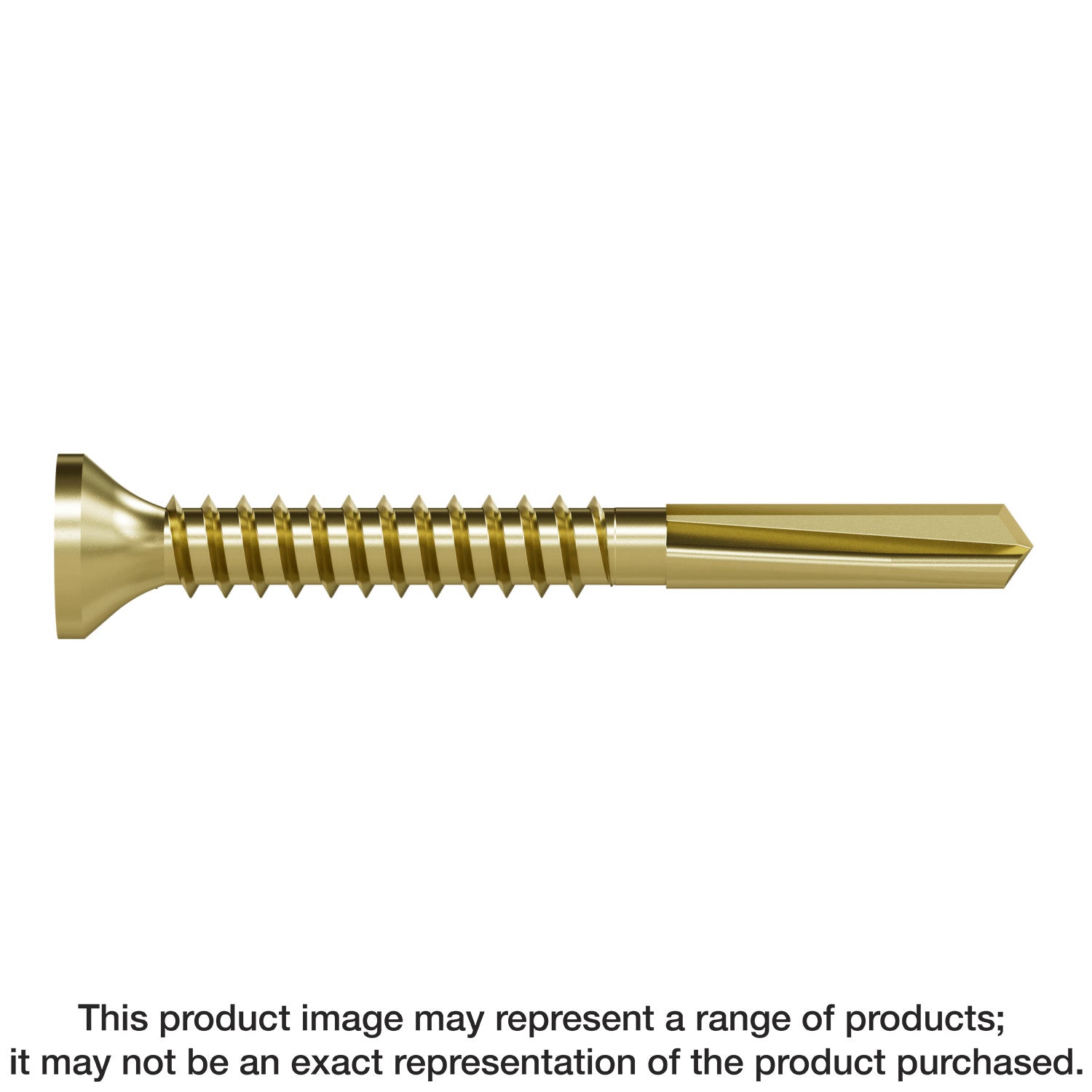

Simpson Strong-Tie PPHD134S1016 Strong-Drive® PPHD SHEATHING-TO-CFS Screw (Collated) — #10 x 1-3/4 in. T25, Yellow Zinc (2000-Qty) (Pack of 100)

Simpson Strong-Tie® metal screws are designed to provide strength and superior performance in steel and other metal applications. With a variety of features, these fasteners meet the requirements for residential, agricultural and commercial projects. The Strong-Drive PPHD Sheathing-to-CFS screw is designed to drive through sheathing materials and into cold-formed steel (CFS) using its long #5 drill point. The Strong-Drive PPHD Sheathing-to-CFS screw comes collated for use in Quik Drive auto-feed screw driving systems and in bulk for hand drive applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Larger #5 pilot point with longer flute
• Fine threads
• 6-lobe recess for a more secure drive
• Compatible with Quik Drive PRO300SG2, PRO250G2 and PRO200SG2 auto-feed screw driving systems
• PPHD screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISA S240 and AISI S400
• (2) T25 6-lobe driver bits included (replacement bit model QRTX25-1.5)
• Designed for use in dry service, low-corrosion environments and some fire-rated sheathing
• Length: 1-3/4 in.
• Yellow-zinc coating
• Quantity: 2,000

Specifications

• ERP Part Number: PPHD134S1016
• UPC: 50707392017924
• GTIN: 50707392017924
• Feature 01: Larger #5 pilot point with longer flute
• Feature 02: Fine threads
• Feature 03: 6-lobe recess for a more secure drive
• Feature 04: Compatible with Quik Drive PRO300SG2, PRO250G2 and PRO200SG2 auto-feed screw driving systems
• Feature 05: PPHD screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISA S240 and AISI S400
• Feature 06: (2) T25 6-lobe driver bits included (replacement bit model QRTX25-1.5)
• Feature 07: Designed for use in dry service, low-corrosion environments and some fire-rated sheathing
• Feature 08: Length: 1-3/4 in.
• Feature 09: Yellow-zinc coating
• Feature 10: Quantity: 2,000
• Assembled Depth - Imperial: 0.323
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.323
• Assembled Width UOM - Imperial: in.
• Base Product ID: PPHD_CScrew
• Base Product Name: Strong-Drive® PPHD SHEATHING-TO-CFS Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Metal Screws > Collated Screw
• Country of Origin: TW
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 199533985086150012339288565470193232510
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Collated Screw
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 100
• Shipping Weight: 1950
• Short Product Name: #10 X 1-3/4IN T25 PILOT PT 2000/BX
• Strongtie.com URL: https://www.strongtie.com/strongdrive_collatedmetalscrews/pphd_cscrew/p/strong-drive-pphd-sheathing-to-cfs-screw
• Subcategory: Fasteners
• Subcategory 2: Metal Screws
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392017929
