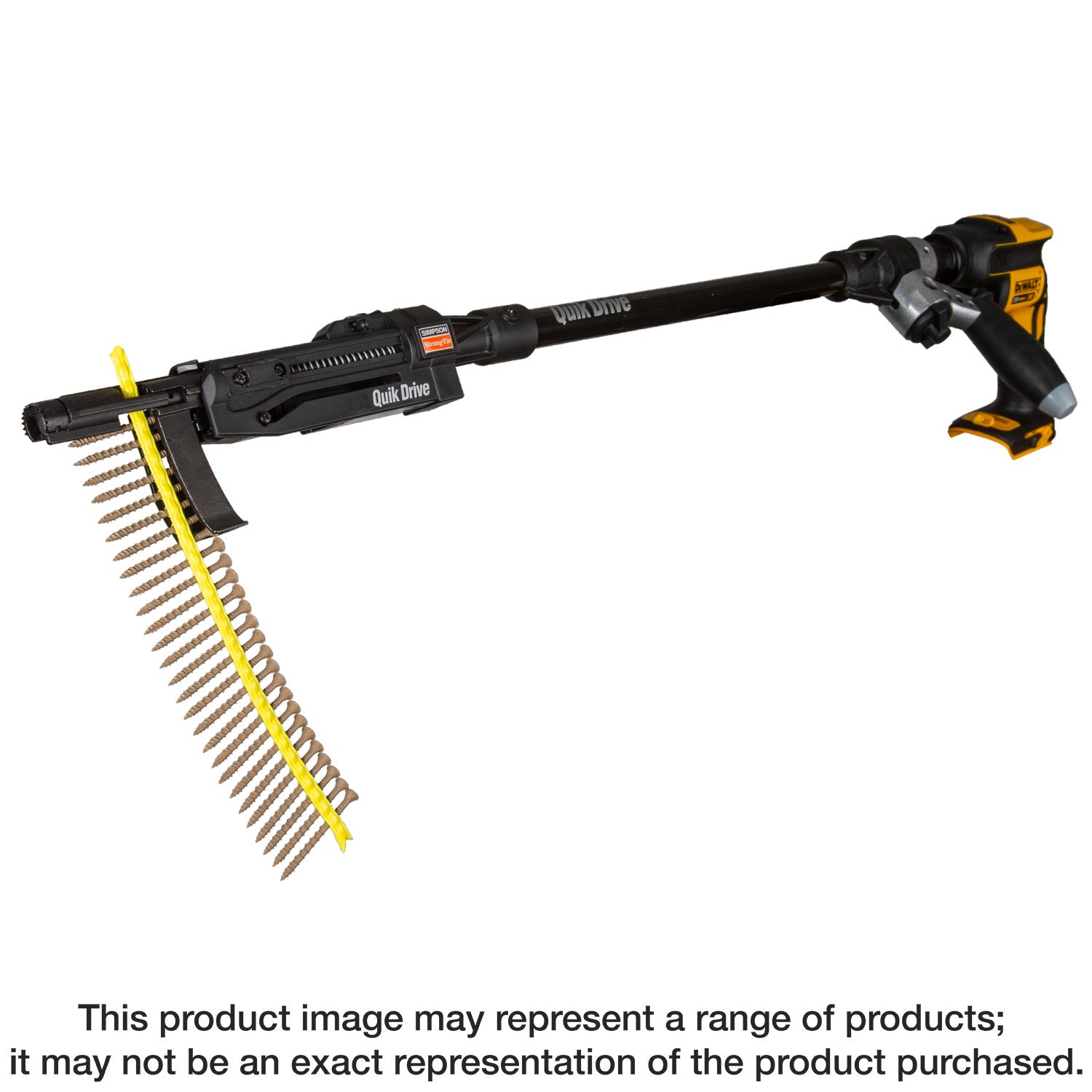

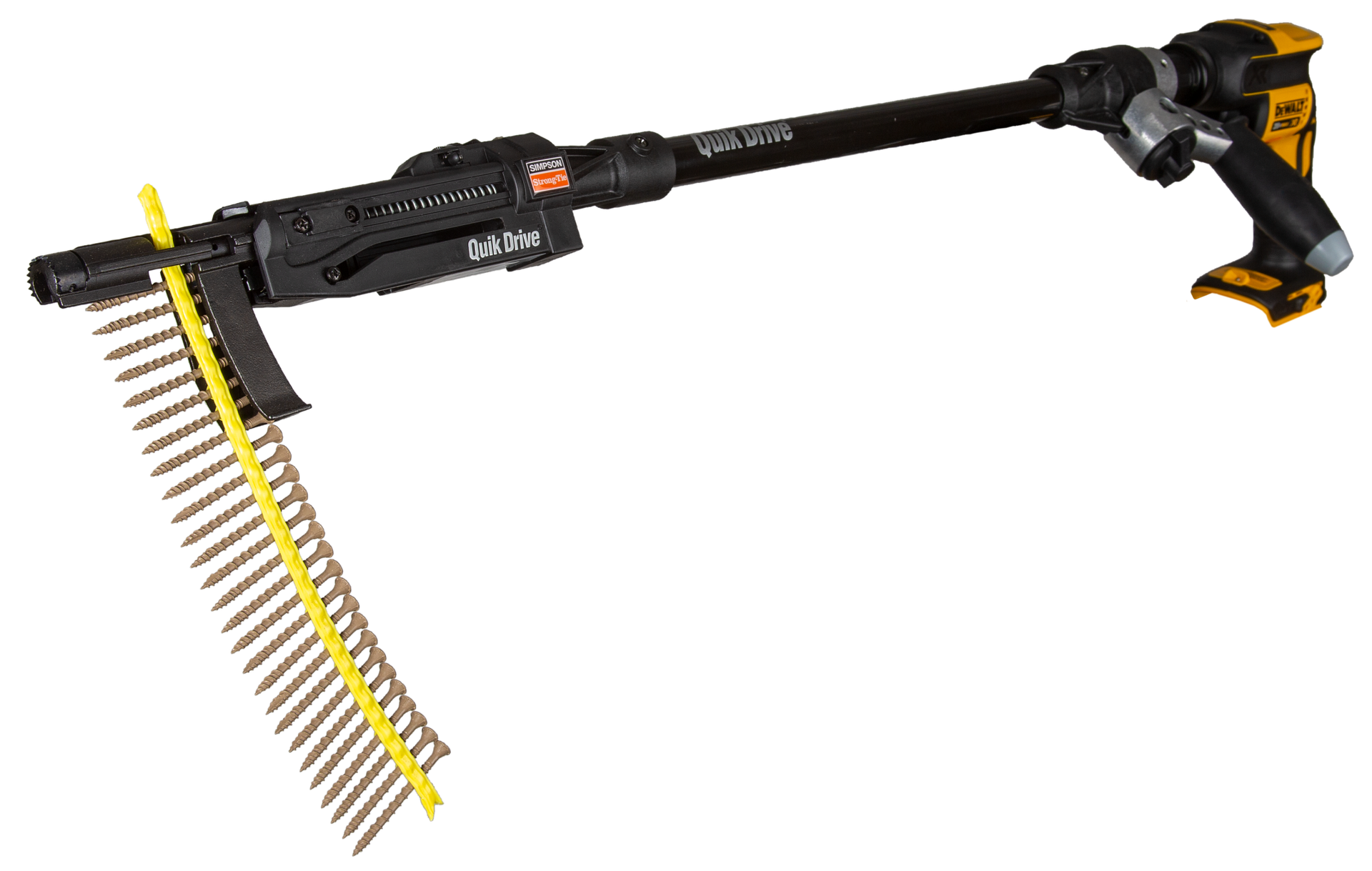

Simpson Strong-Tie PRO300SG2DCXB2K Quik Drive® Cordless PRO300SG2 Decking System w/ DeWalt® 2000 RPM Motor (Tool Only)

Simpson Strong-Tie® Quik Drive® cordless auto-feed screw driving systems are equipped with powerful DeWalt cordless 2,000 rpm brushless driver motors and a lightweight extension for efficient and ergonomic stand-up driving. No cords. No trips. No errors. Combined with Simpson Strong-Tie low-torque fasteners, these cordless Quik Drive systems deliver more screws — faster — per battery charge. Now available at a great value without the charger and batteries you already own.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Reversible and replaceable non-skid teeth
• Lightweight G3 extension for better ergonomics; Quik Drive cordless PRO300SG2 can be used without the lightweight extension arm as well
• Powerful DeWalt cordless driver motor
• Precise, self-locking depth adjustment for consistent fastener drive depth
• The decking noseclip positions the screw on the deck board in alignment with the joist for easy installation from a standing position
• The patented curved collation strips hold the screws up and away from the work surface, making moving and positioning the tool easier; the collated strips are also pointed on the inserted end to simplify loading

Application

• Fastening Wood-to-Wood
• Decks — Deck Boards Composite
• Fastening Subfloor to Wood
• Dock and Boardwalk
• Decks — Deck Boards Wood
• Truss-Ply Fastening

Specifications

• ERP Part Number: PRO300SG2DCXB2K
• UPC: 707392024521
• GTIN: 707392024521
• Feature 01: Reversible and replaceable non-skid teeth
• Feature 02: Lightweight G3 extension for better ergonomics; Quik Drive cordless PRO300SG2 can be used without the lightweight extension arm as well
• Feature 03: Powerful DeWalt cordless driver motor
• Feature 04: Precise, self-locking depth adjustment for consistent fastener drive depth
• Feature 05: The decking noseclip positions the screw on the deck board in alignment with the joist for easy installation from a standing position
• Feature 06: The patented curved collation strips hold the screws up and away from the work surface, making moving and positioning the tool easier; the collated strips are also pointed on the inserted end to simplify loading
• Install With: Drives 1-3/4 in. to 3 in. Simpson-Strong-Tie collated DSV, DWP, DHPD, DCSD, CBSDQ, WSV, DCU, Trim-Head: Type-17 Point, Trim-Head: Sharp Point and Bugle-Head Wood screws
• Applications List: Fastening Wood-to-Wood
• Applications List.1: Decks — Deck Boards Composite
• Applications List.2: Fastening Subfloor to Wood
• Applications List.3: Dock and Boardwalk
• Applications List.4: Decks — Deck Boards Wood
• Applications List.5: Truss-Ply Fastening
• Assembled Depth - Imperial: 8.25
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 39
• Assembled Width UOM - Imperial: in.
• Base Product ID: PRO300SCXB_QDSystem
• Base Product Name: Quik Drive® Cordless PRO300SG2 Decking System (Tool Only)
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fastening Tools > Power Tools (Cordless) > Fastening Tool System
• Color: Combination
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• GUID: 313494177515825675852247997944583842195
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Combination
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 3.75
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 10.5
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 24
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Box
• Product Class: Fastening Tool System

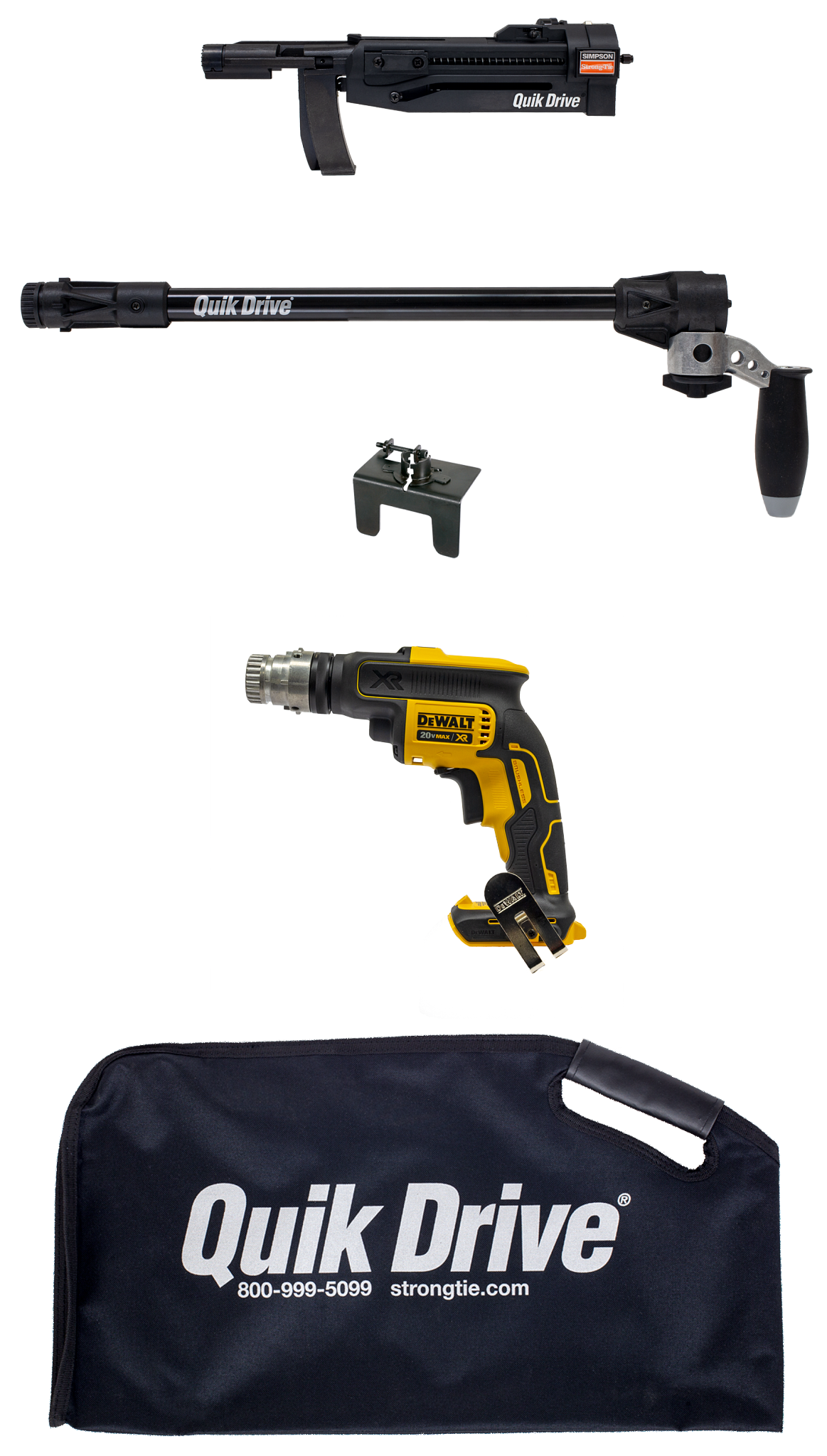

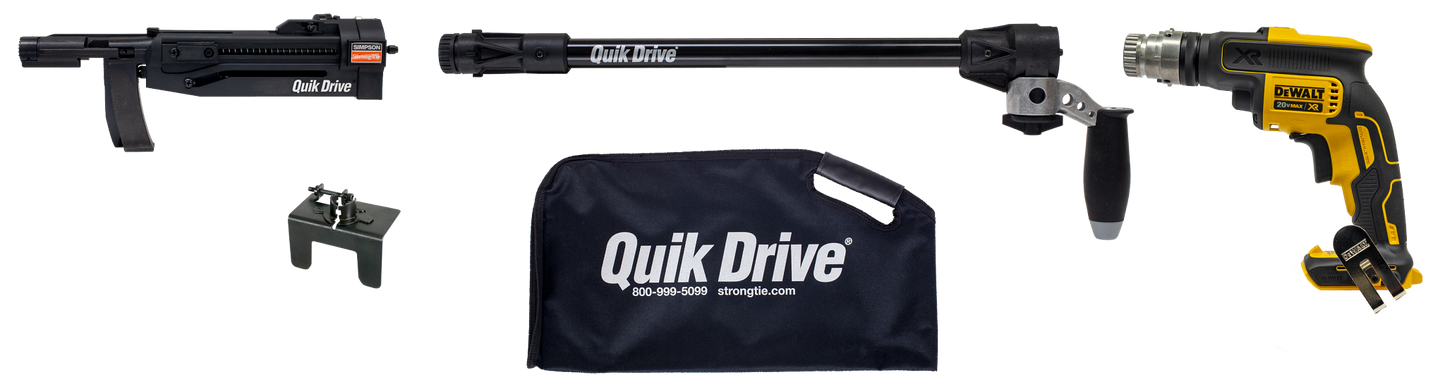

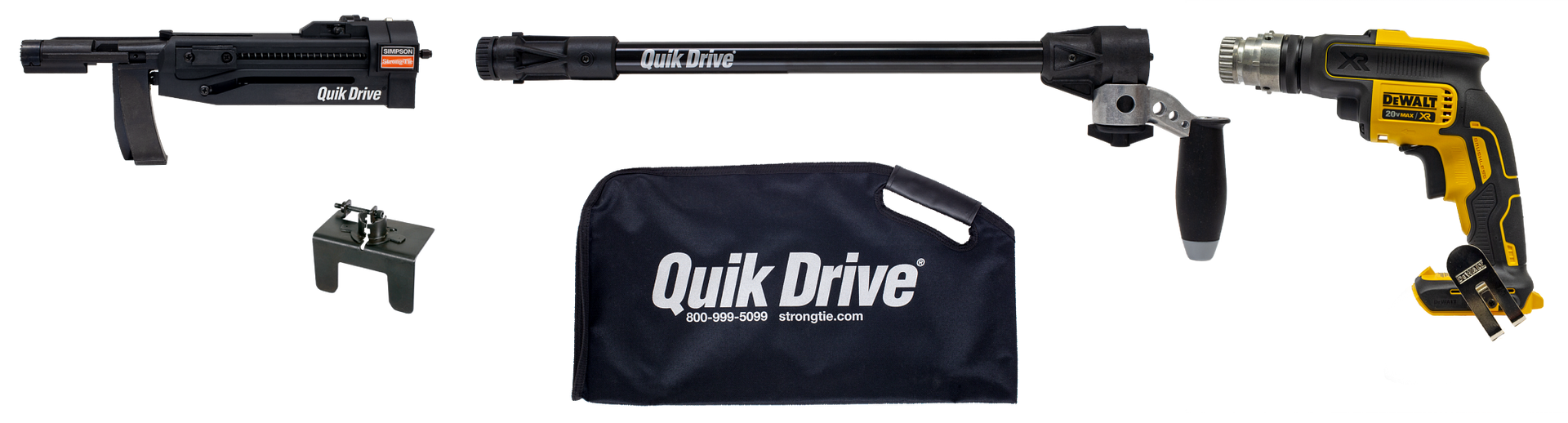

• Product Includes: Includes PRO300SG2 decking attachment, G3 extension, Quik Drive decking noseclip, DeWalt 2,000 rpm 20V cordless driver motor, and soft case
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 8.81
• Short Product Name: CORDLESS no batt. DW 300SG2 1 3/4" - 3"
• Strongtie.com URL: https://www.strongtie.com/quikdrivesystems_quikdrivesystems/pro300scxb_qdsystem/p/quik-drive-cordless-pro300sg2-decking-system-tool-only
• Subcategory: Fastening Tools
• Subcategory 2: Power Tools (Cordless)
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392024526
