Simpson Strong-Tie RR RR Galvanized Ridge Rafter Connector for 2x6

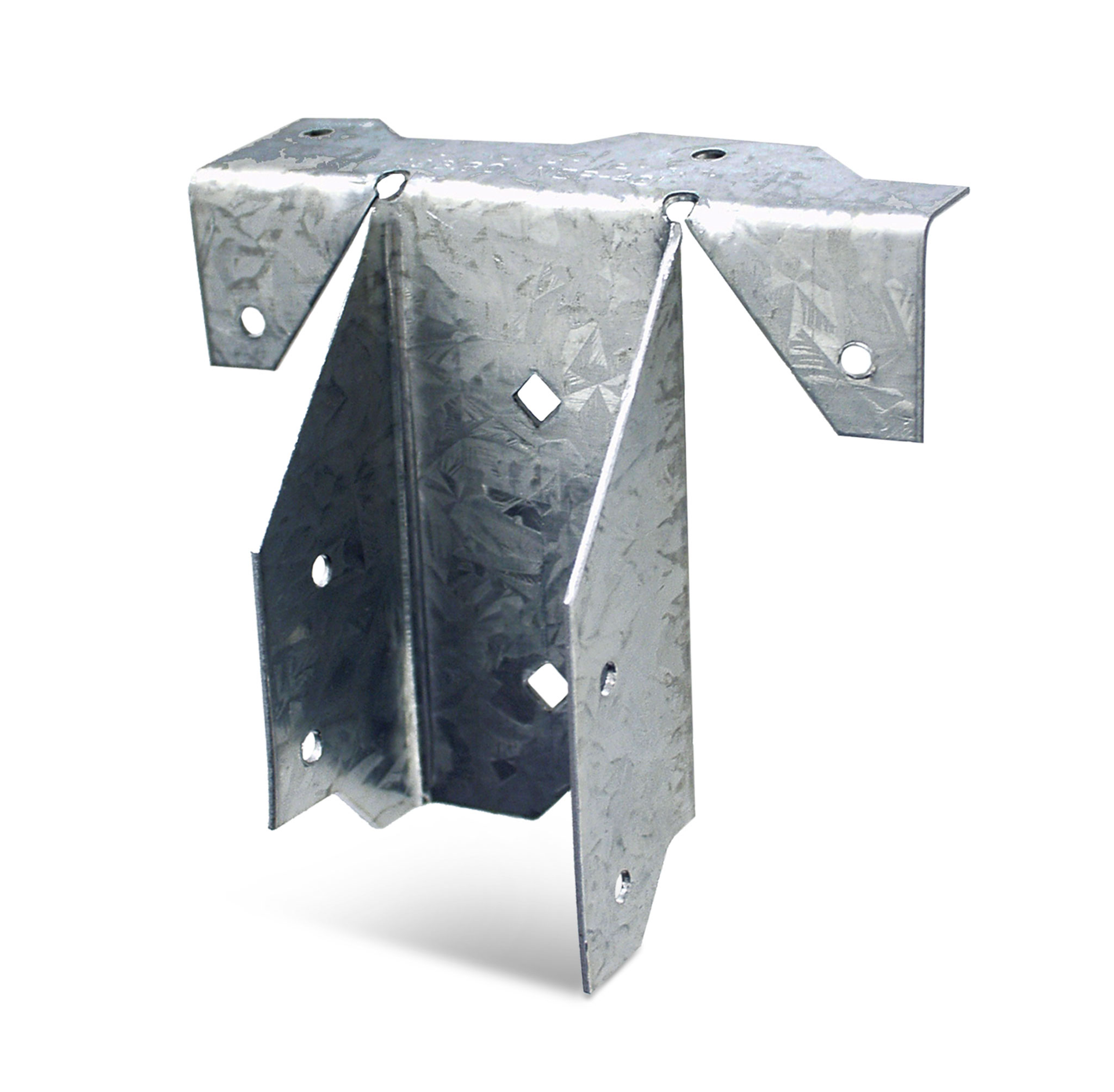

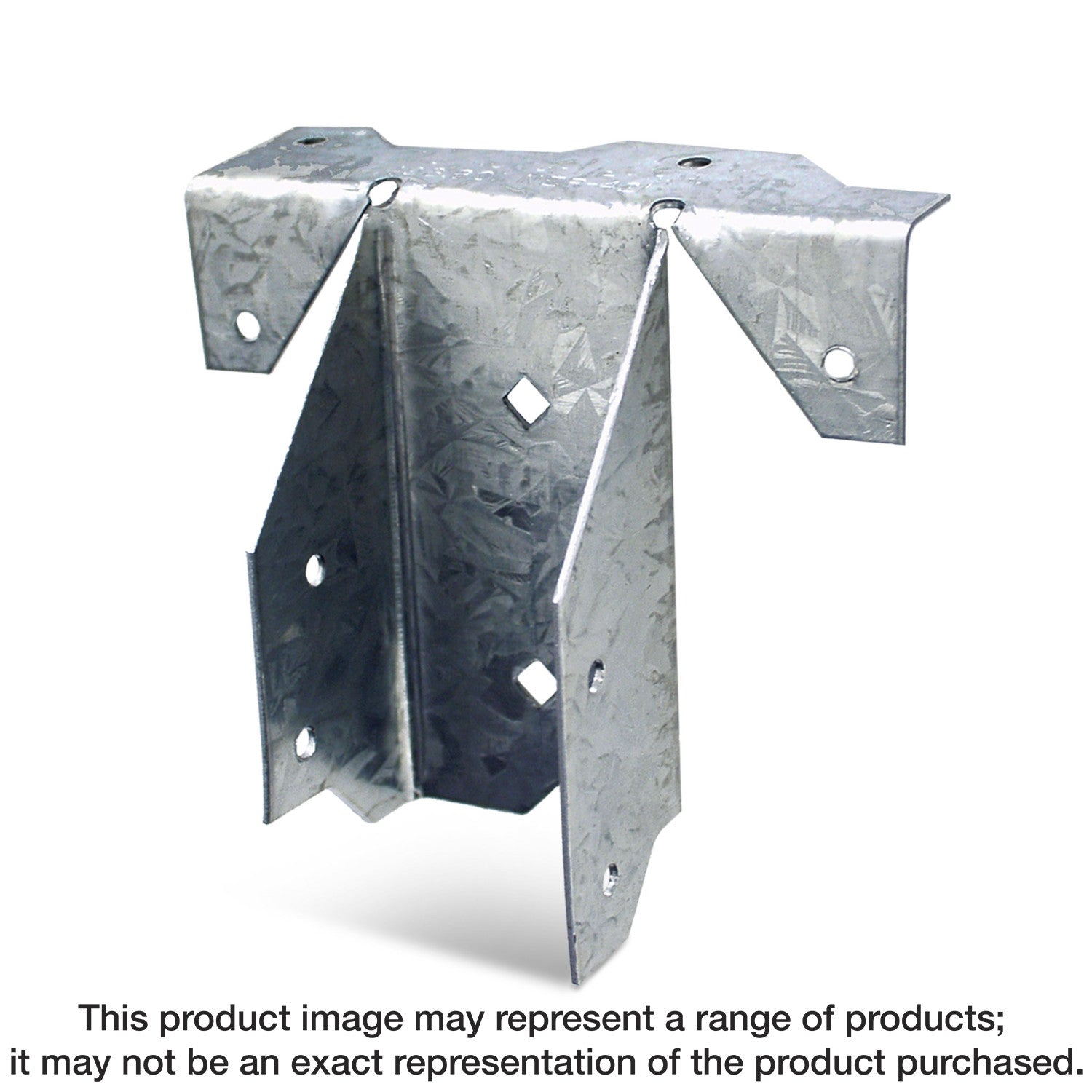

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The RR ridge rafter connector provides a connection between a rafter and the ridge of a roof.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Easier and stronger than toenailing or screw fastening
• Top flange designed to interlock when used in pairs so that rafters maintain correct alignment
• Use with rafter slopes up to 30°
• Min. rafter size: 2x6
• For a rafter-to-face connector, flatten the top flange into the face plane
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: RR
• UPC: 44315795008
• GTIN: 44315795008
• Feature 01: Easier and stronger than toenailing or screw fastening
• Feature 02: Top flange designed to interlock when used in pairs so that rafters maintain correct alignment
• Feature 03: Use with rafter slopes up to 30°
• Feature 04: Min. rafter size: 2x6
• Feature 05: For a rafter-to-face connector, flatten the top flange into the face plane
• Feature 06: Made from 18-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive® SD screws
• Assembled Depth - Imperial: 2.296
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.296
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4
• Assembled Width UOM - Imperial: in.
• Base Product ID: RR_Connect
• Base Product Name: RR
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 18
