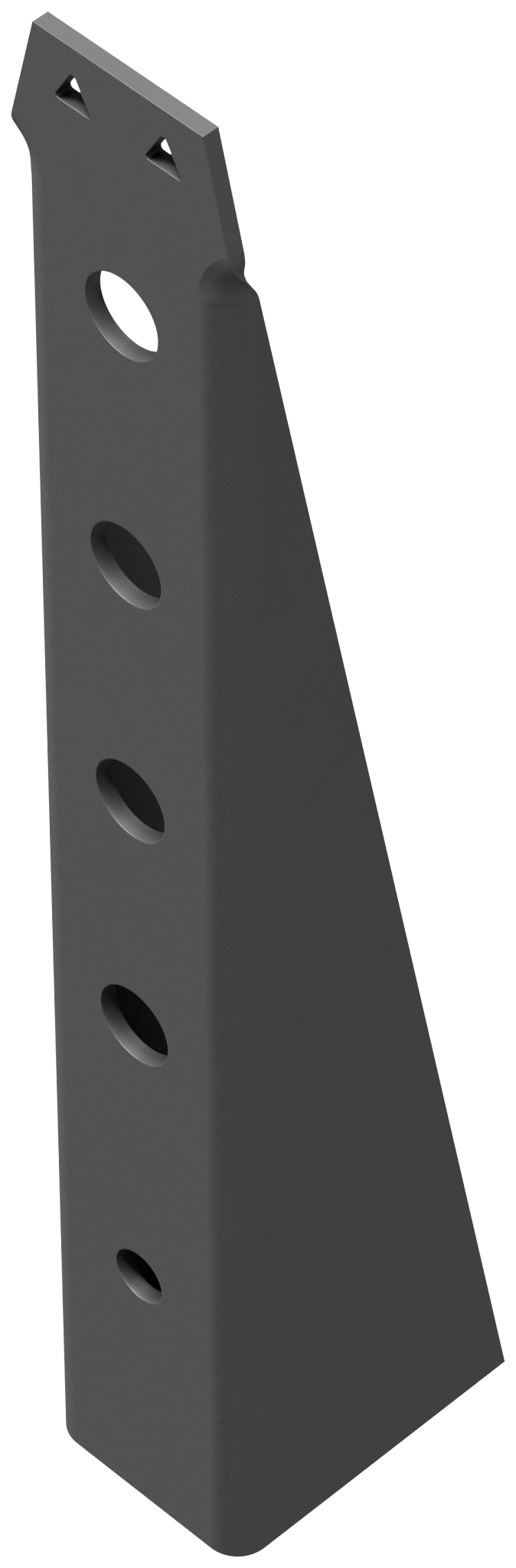

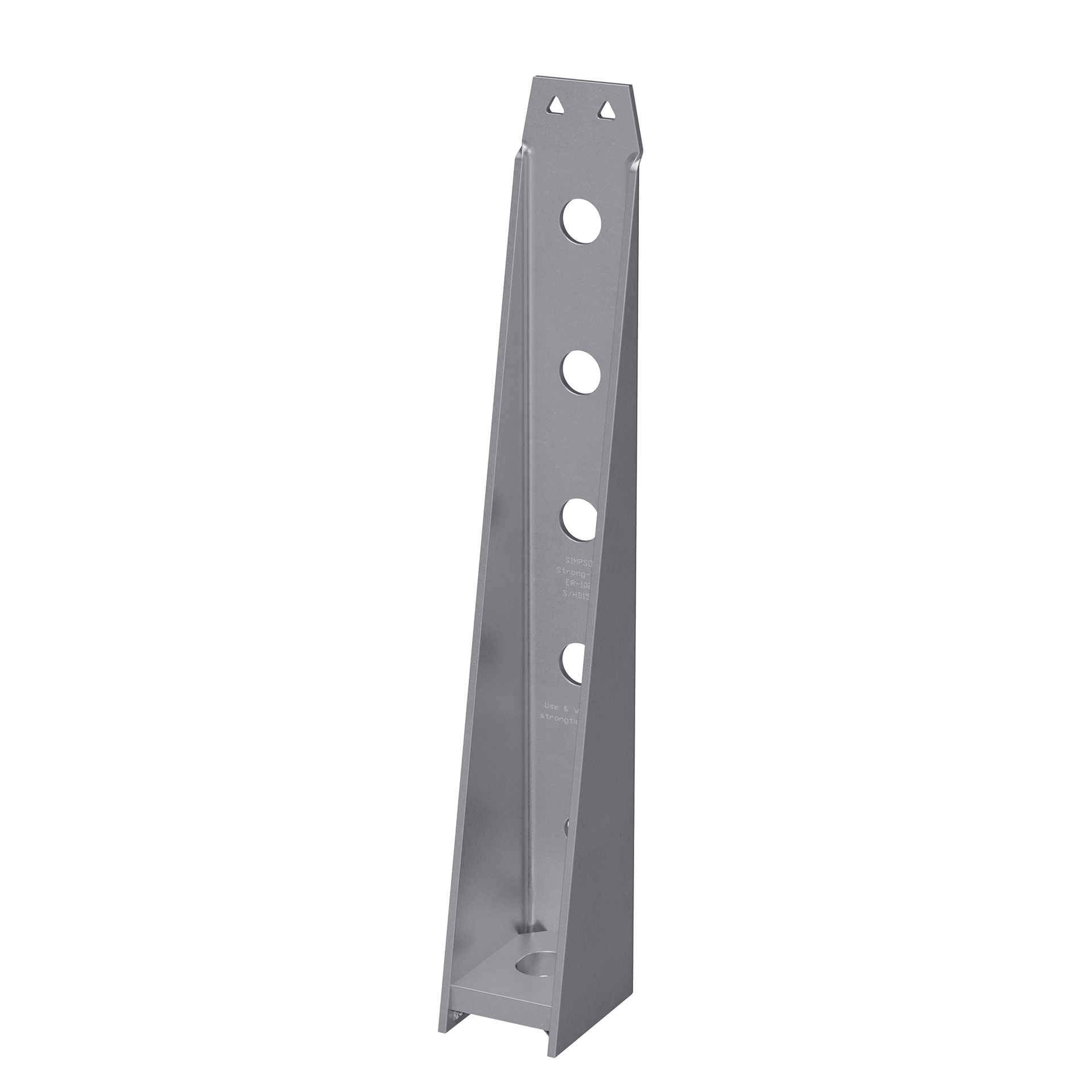

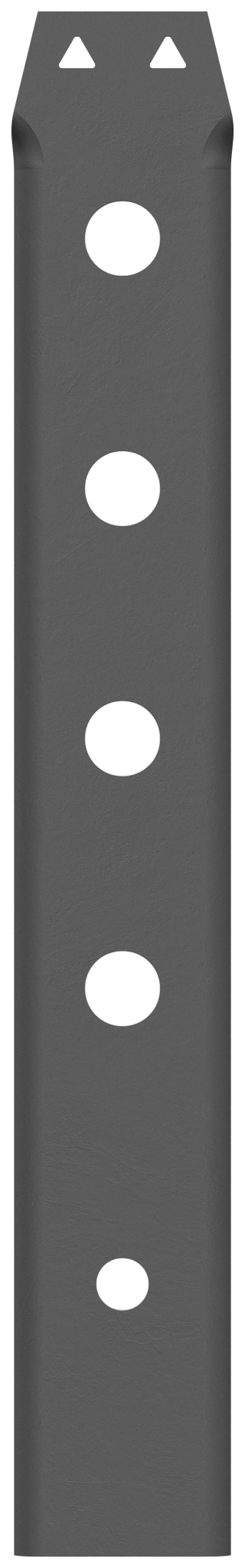

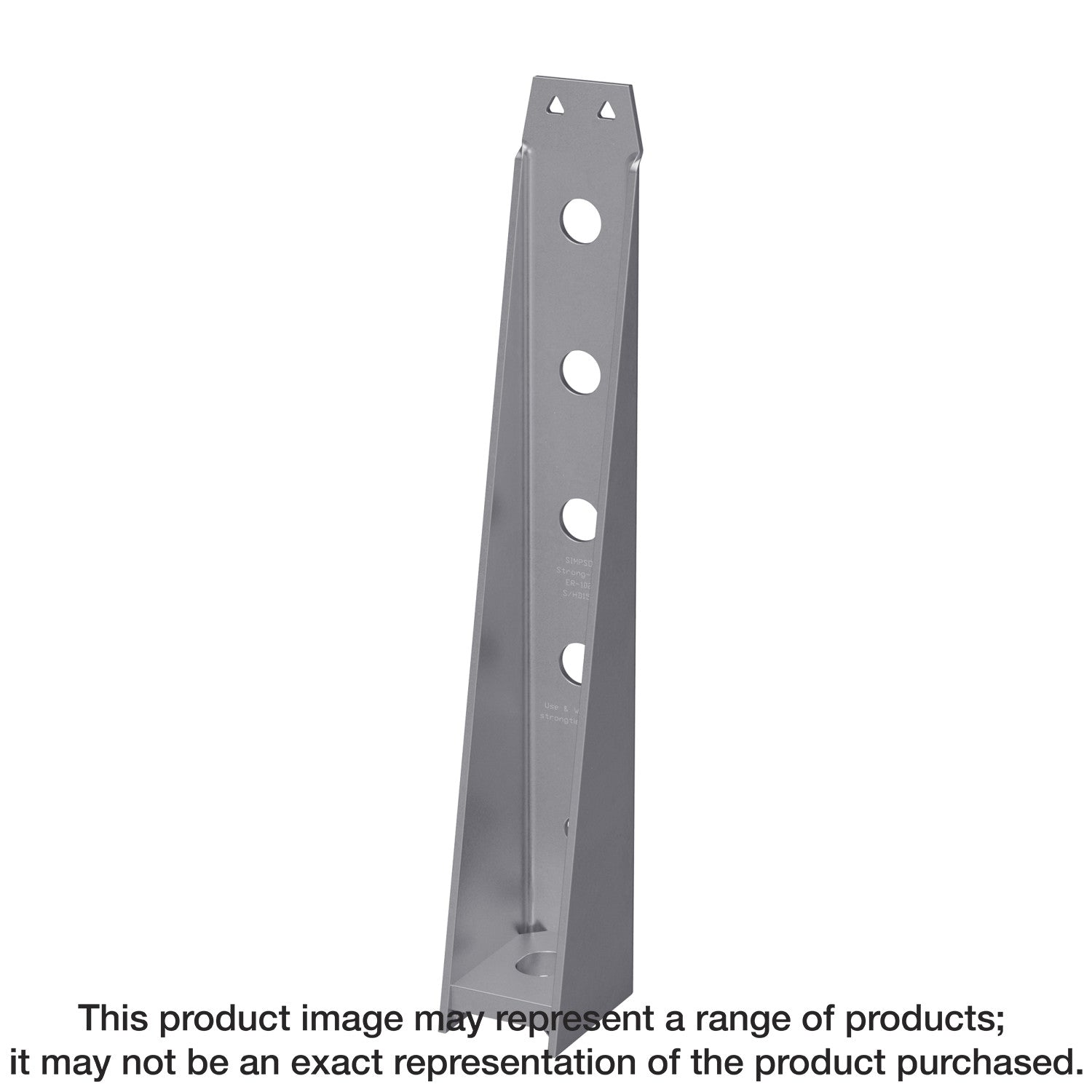

Simpson Strong-Tie S/HD15B S/HDB 17 in. Light Steel Bolted Holdown

The Simpson Strong-Tie® S/HDB is designed to provide loads for high-load shearwalls, braced-wall panels and lateral applications and is ideal for bolt-on applications where the cold-formed steel stud manufacturer can prepunch the bolt holes. The holdown features a unique seat that greatly minimizes deflection under load. Designed for installation with bolts into the studs or column.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Can be installed directly on the bottom track or raised above it and is suitable for back-to-back applications where eccentricity is a concern
• Features a unique seat design that greatly minimizes deflection under load
• The S/HDB series is designed for installation with bolts; refer to the S/HDS series for attachment to post/column with screws
• Holdown dimensions: 17 in. high x 2-5/16 in. wide
• Made from 171 mil (7 ga.) steel
• Simpson Strong‑Tie gray paint finish

Specifications

• ERP Part Number: S/HD15B
• UPC: 707392271703
• GTIN: 707392271703
• Feature 01: Can be installed directly on the bottom track or raised above it and is suitable for back-to-back applications where eccentricity is a concern
• Feature 02: Features a unique seat design that greatly minimizes deflection under load
• Feature 03: The S/HDB series is designed for installation with bolts; refer to the S/HDS series for attachment to post/column with screws
• Feature 04: Holdown dimensions: 17 in. high x 2-5/16 in. wide
• Feature 05: Made from 171 mil (7 ga.) steel
• Feature 06: Simpson Strong‑Tie gray paint finish
• Install With: Install with (4) 3/4 in. diameter bolts to stud and (1) 1 in. diameter anchor bolt to structure
• Assembled Depth - Imperial: 3.375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 17
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.4375
• Assembled Width UOM - Imperial: in.
• Base Product ID: S/HDB_Holdown
• Base Product Name: S/HDB
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Holdowns and Tension Ties > Holdown
• Coating: Simpson Strong-Tie Gray Paint
• Color: Gray
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Simpson Strong-Tie Gray Paint
• Gauge: 7
• GUID: 139545129785142969016140258306418955241
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Holdown
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 5
• Short Product Name: CFS HOLDOWN BOLTED
• Strongtie.com URL: https://www.strongtie.com/holdownsandtensionties_coldformedsteelconstruction/s.hdb_holdown/p/s.hdb
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
