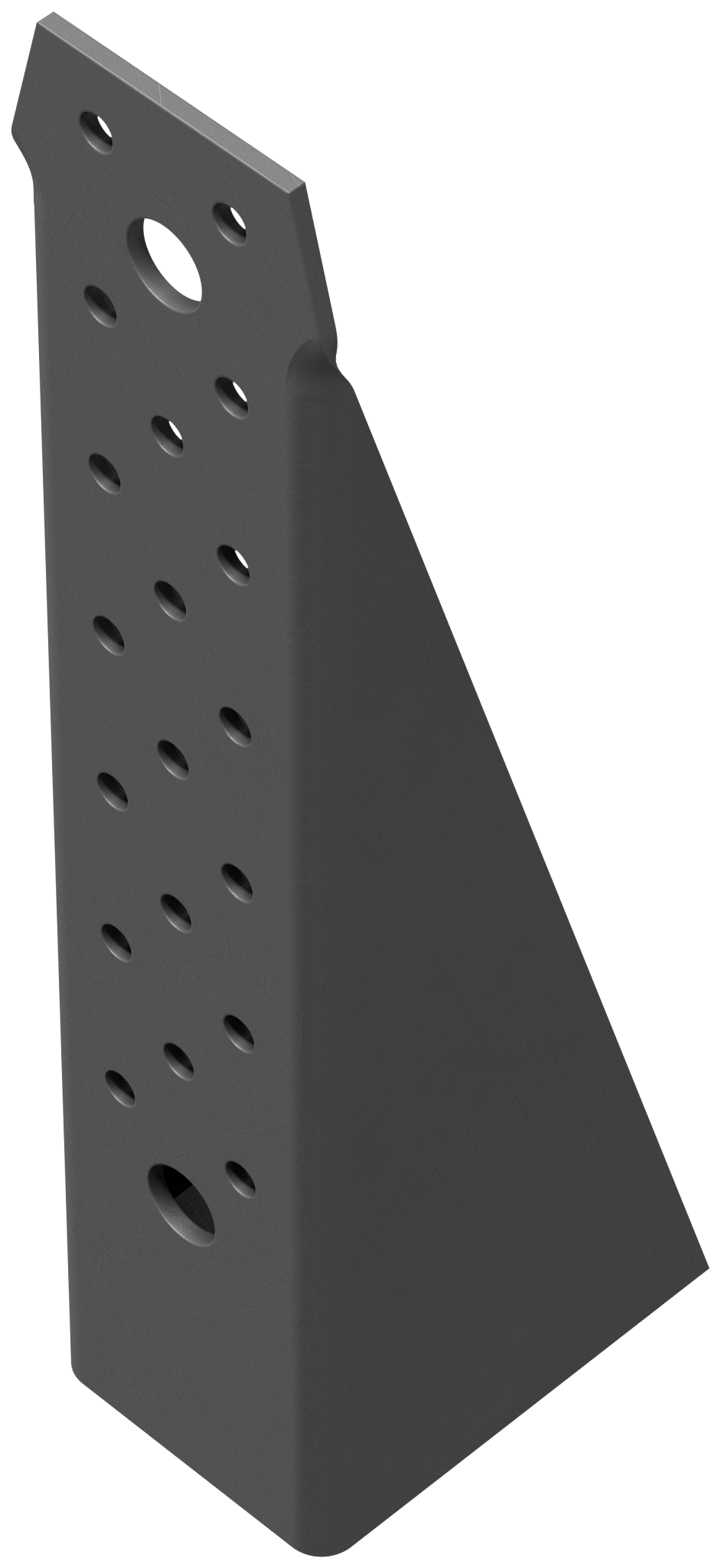

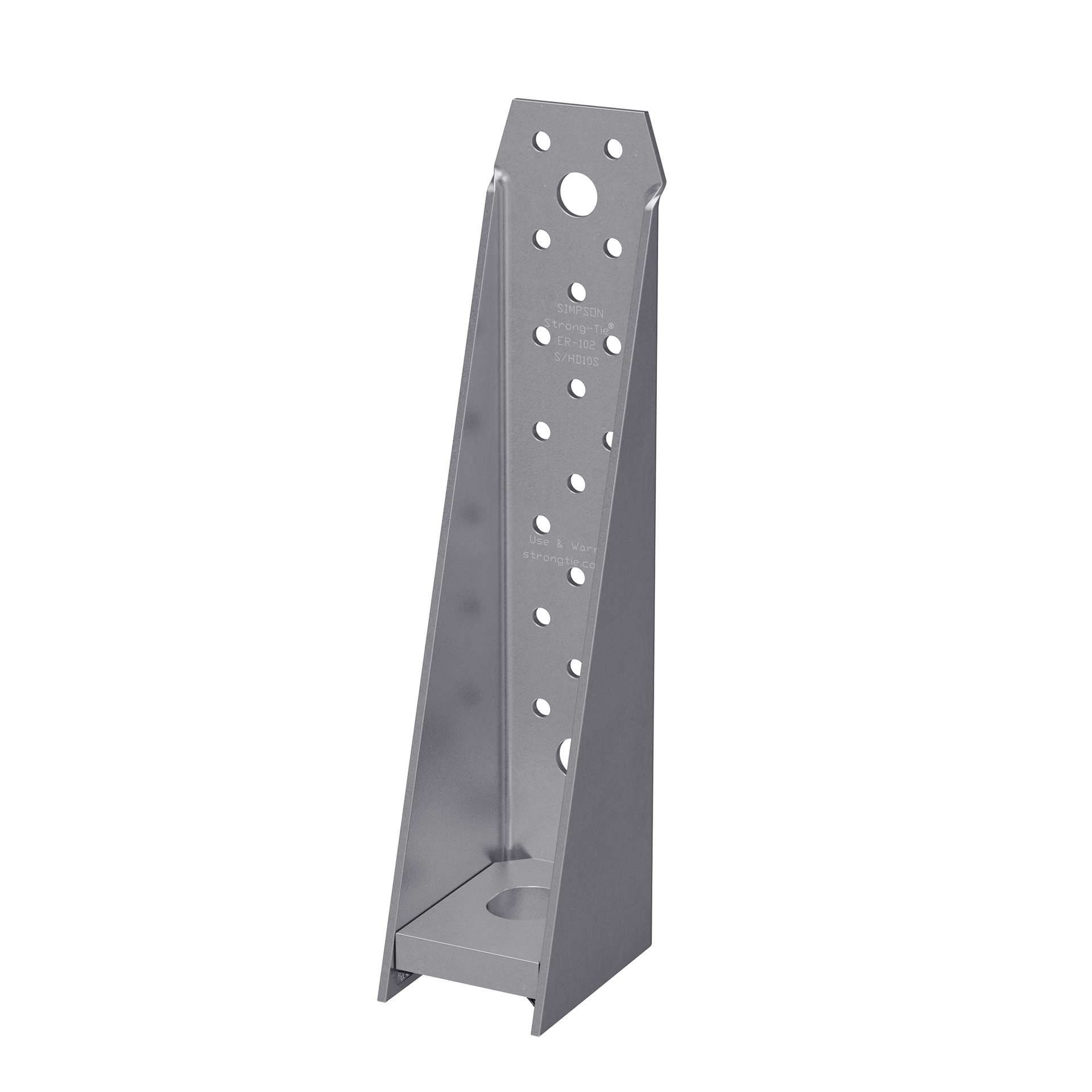

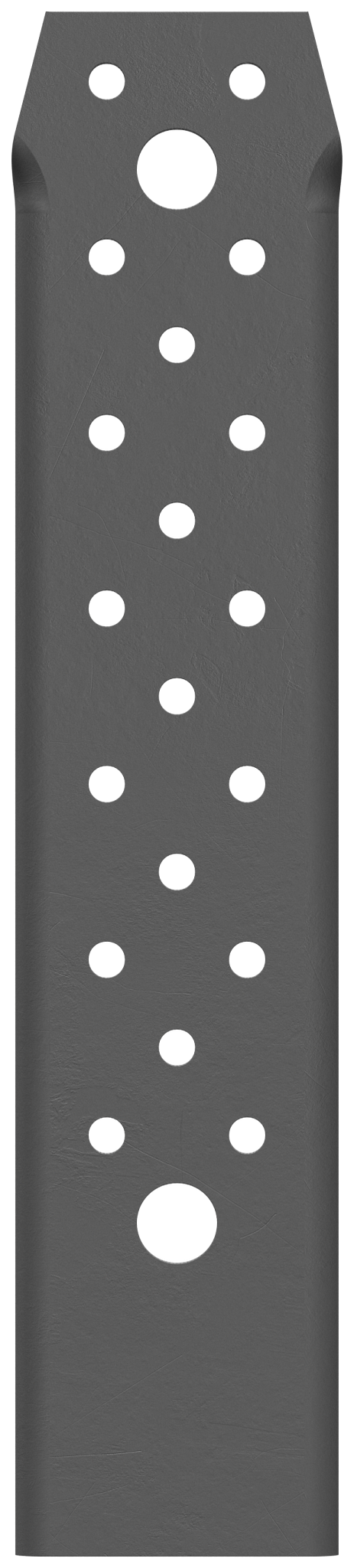

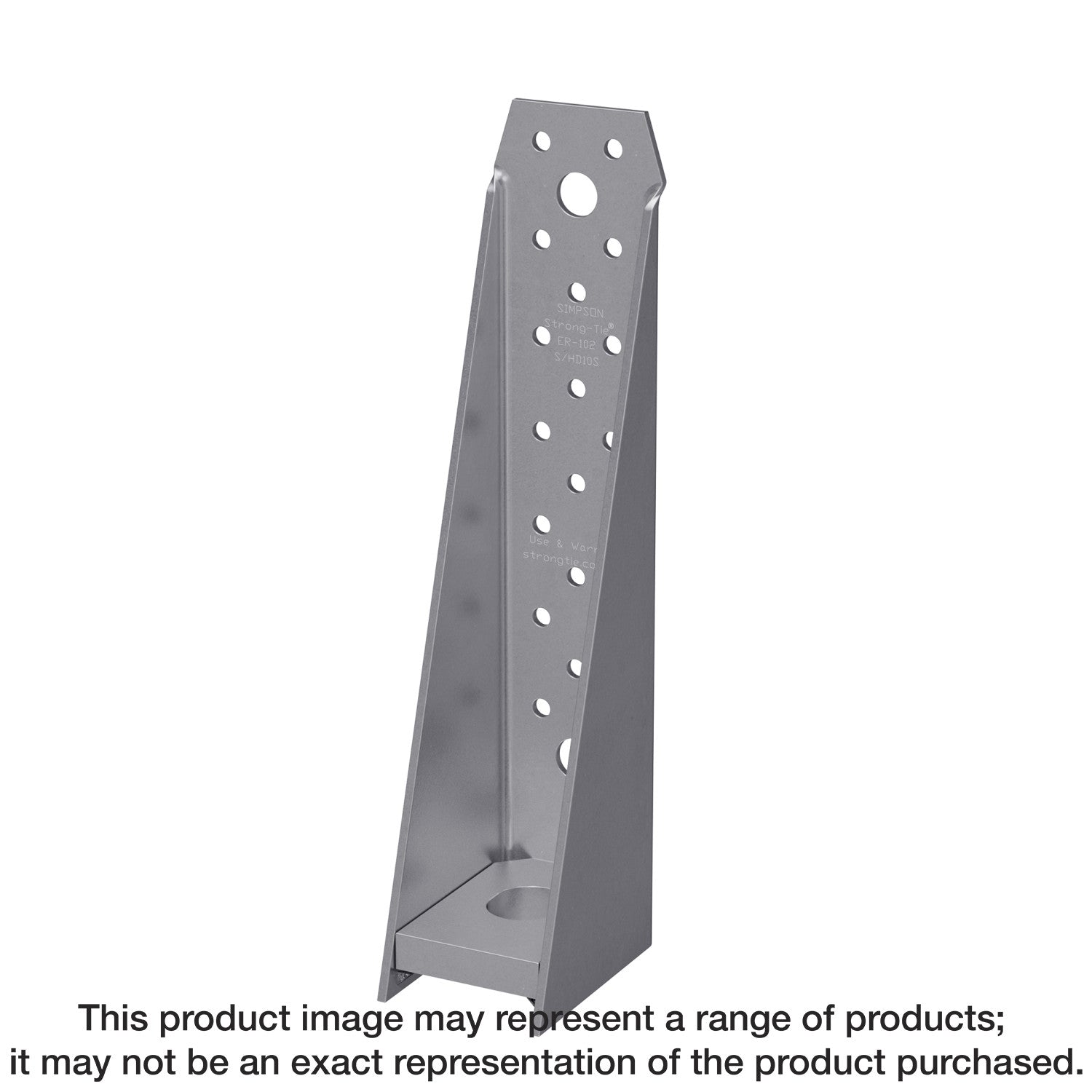

Simpson Strong-Tie S/HD8S S/HDS 11 in. Light Gauge Steel Holdown

The S/HDS is designed to provide loads for high-load shearwalls, braced-wall panels and lateral applications. The holdown features a unique seat that greatly minimizes deflection under load. The S/HDS has been designed to utilize fewer fasteners and reduce installation time.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Can be installed directly on the base track or raised above it and is suitable for back-to-back applications where eccentricity is a concern.
• Features a unique seat that greatly minimizes deflection under load.
• The S/HDS model is designed for installation with screws. Refer to S/HDB for attachment to post/column with bolts.
• Height 11 in.
• Width: 2-5/16 in.
• Made from 118 mil (10 ga.) steel
• Simpson Strong-Tie gray paint finish

Specifications

• ERP Part Number: S/HD8S
• UPC: 707392727309
• GTIN: 707392727309
• Feature 01: Can be installed directly on the base track or raised above it and is suitable for back-to-back applications where eccentricity is a concern.
• Feature 02: Features a unique seat that greatly minimizes deflection under load.
• Feature 03: The S/HDS model is designed for installation with screws. Refer to S/HDB for attachment to post/column with bolts.
• Feature 04: Height 11 in.
• Feature 05: Width: 2-5/16 in.
• Feature 06: Made from 118 mil (10 ga.) steel
• Feature 07: Simpson Strong-Tie gray paint finish
• Install With: Installs with #14 screws and has been designed to utilize fewer fasteners to reduce installation time
• Assembled Depth - Imperial: 3.375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.3125
• Assembled Width UOM - Imperial: in.
• Base Product ID: S/HDS_Holdown
• Base Product Name: S/HDS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Holdowns and Tension Ties > Holdown
• Coating: Simpson Strong-Tie Gray Paint
• Color: Gray
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Simpson Strong-Tie Gray Paint
• Gauge: 10
• GUID: 95316865833130061406597515846765606518
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Holdown
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.8
• Short Product Name: CFS HOLDOWN
• Strongtie.com URL: https://www.strongtie.com/holdownsandtensionties_coldformedsteelconstruction/s.hds_holdown/p/s.hds
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
