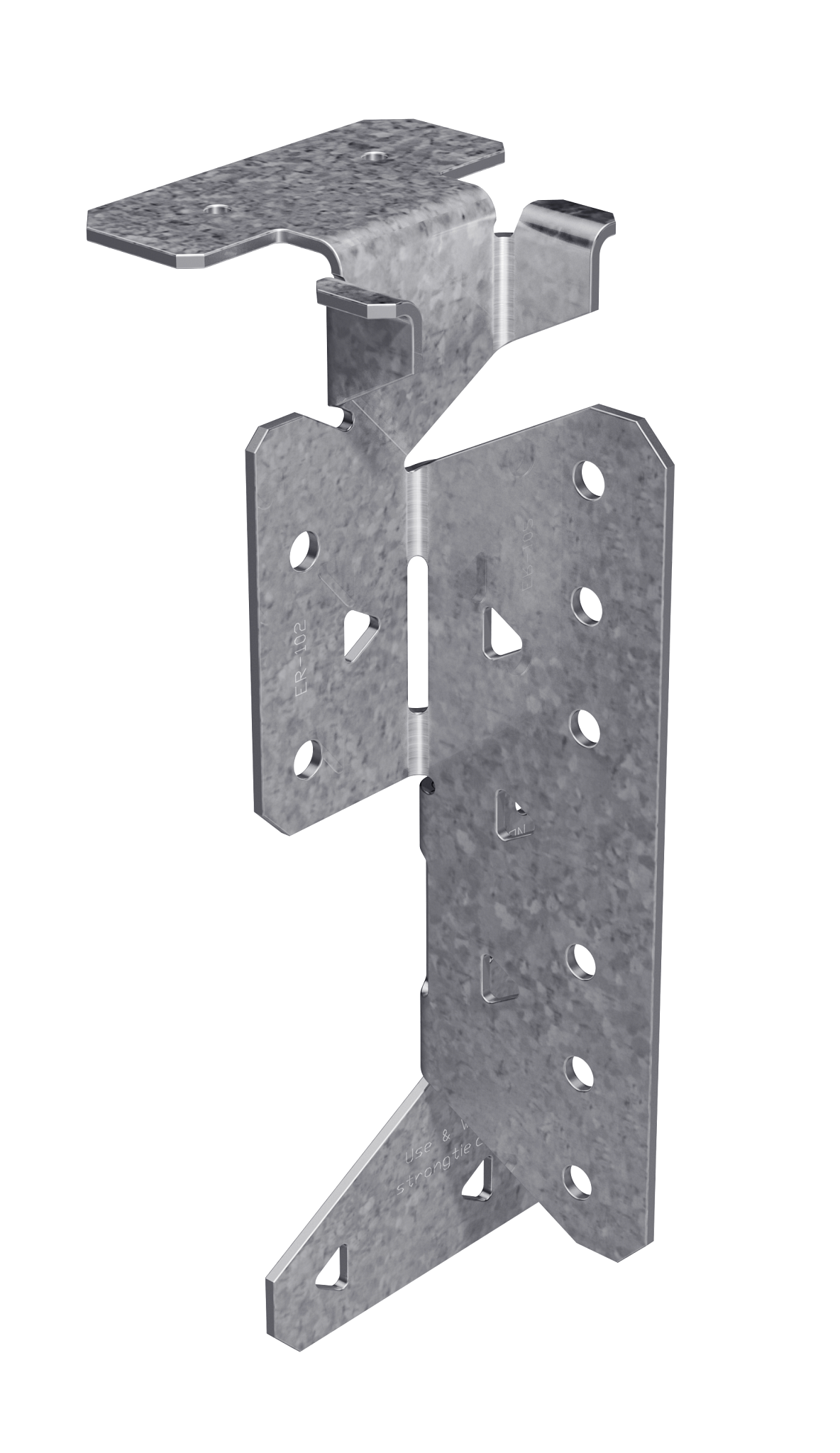

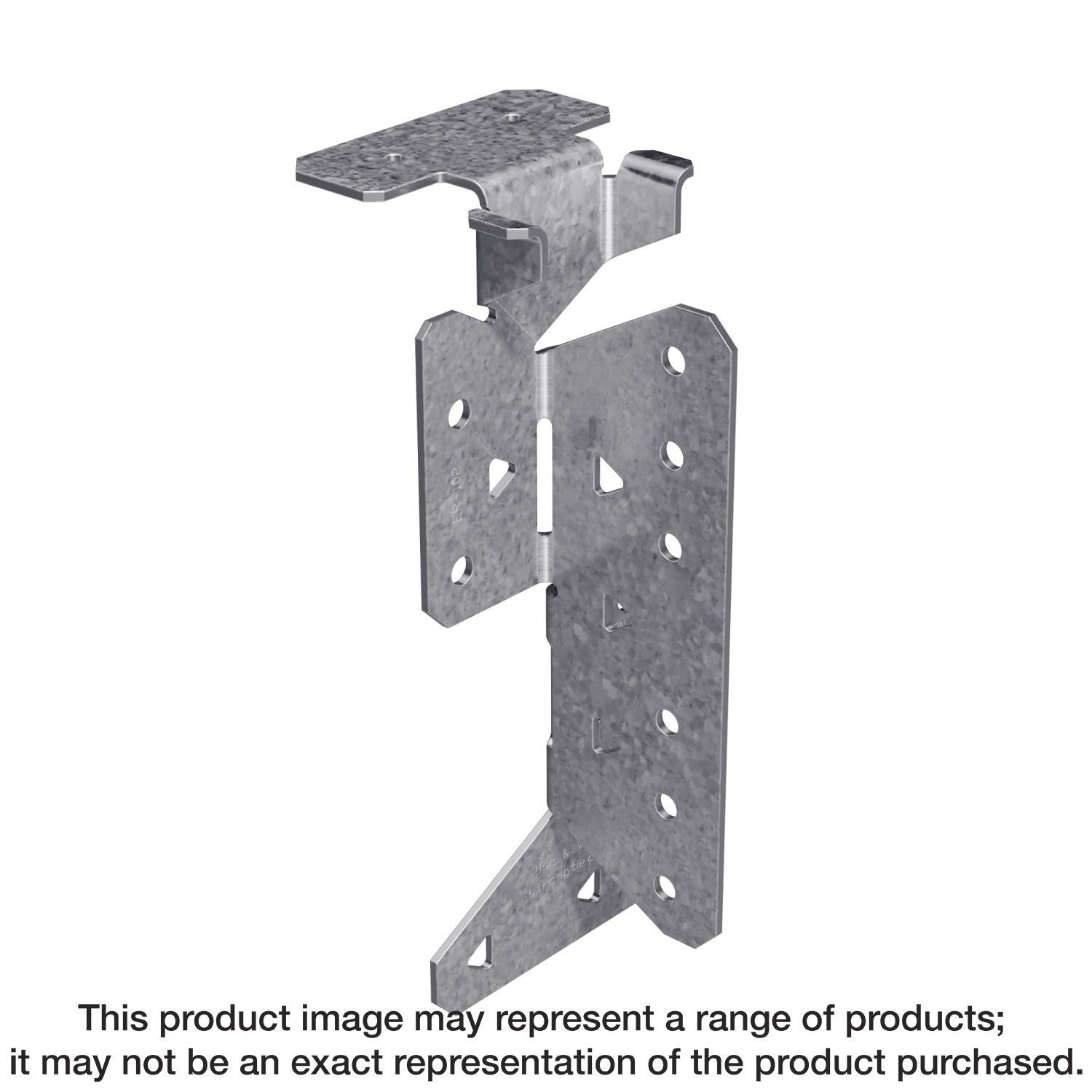

Simpson Strong-Tie S/HJCT-KT S/HJCT 97-mil Heavy Steel-Joist Hanger w/ Screws (Qty-5) (Pack of 144)

The Simpson Strong-Tie® S/HJCT is a heavy-duty skewable steel-joist framing connector that combines strength, versatility and reduced installed cost. The hanger can be used with CFS headers, wood headers, steel I-beams (with welds or PAT fasteners) and masonry walls. Installed cost is minimized since these products are designed for shear loads rather than bearing, eliminating the need for web stiffeners. Framing is unidirectional and the joist can be attached from either the left or the right side.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Min./max. fill hole options for load capacity options
• Field skewable up to 45° left or right
• Horizontal tabs facilitate top-flange alignment and joist support during screw installation
• One size fits joists 8-in. through 14-in. deep
• Made from 97-mil (12-gauge) steel
• Galvanized (G90) for corrosion resistance
• Quantity: 5

Specifications

• ERP Part Number: S/HJCT-KT
• UPC: 10707392408007
• GTIN: 10707392408007
• Feature 01: Min./max. fill hole options for load capacity options
• Feature 02: Field skewable up to 45° left or right
• Feature 03: Horizontal tabs facilitate top-flange alignment and joist support during screw installation
• Feature 04: One size fits joists 8-in. through 14-in. deep
• Feature 05: Made from 97-mil (12-gauge) steel
• Feature 06: Galvanized (G90) for corrosion resistance
• Feature 07: Quantity: 5
• Assembled Depth - Imperial: 3.75
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 8
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.125
• Assembled Width UOM - Imperial: in.
• Base Product ID: S/HJCT_Hanger
• Base Product Name: S/HJCT
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Joist Hangers > Hanger
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 320492915375673547321764986836022946996
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Product Class: Hanger
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 144
• Shipping Weight: 820.656
• Short Product Name: HEAVY JOIST HANGER 5-PACK WITH SCREWS
• Strongtie.com URL: https://www.strongtie.com/joistframingconnectors_coldformedsteelconstruction/s.hjct_hanger/p/s.hjct
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 707392408000
