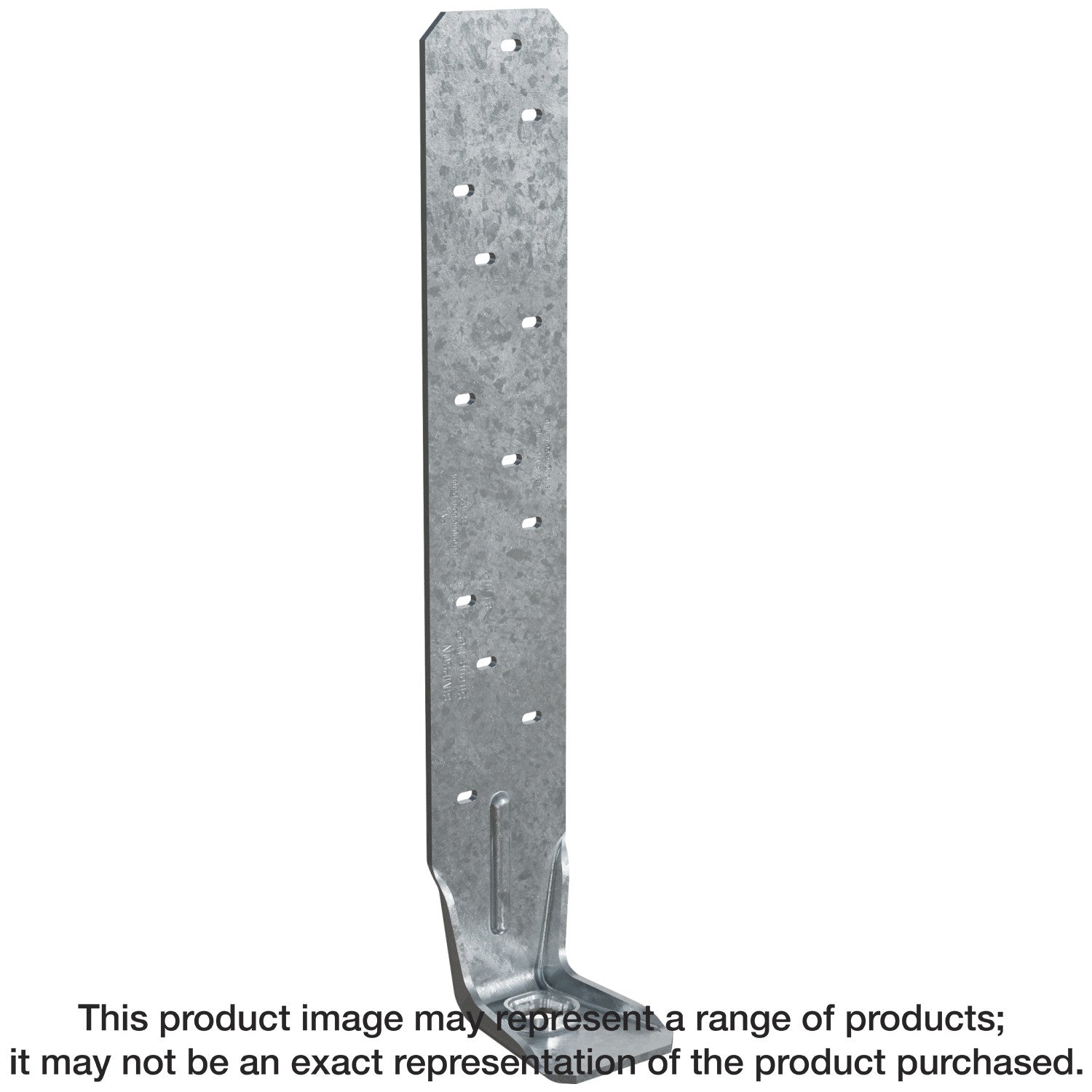

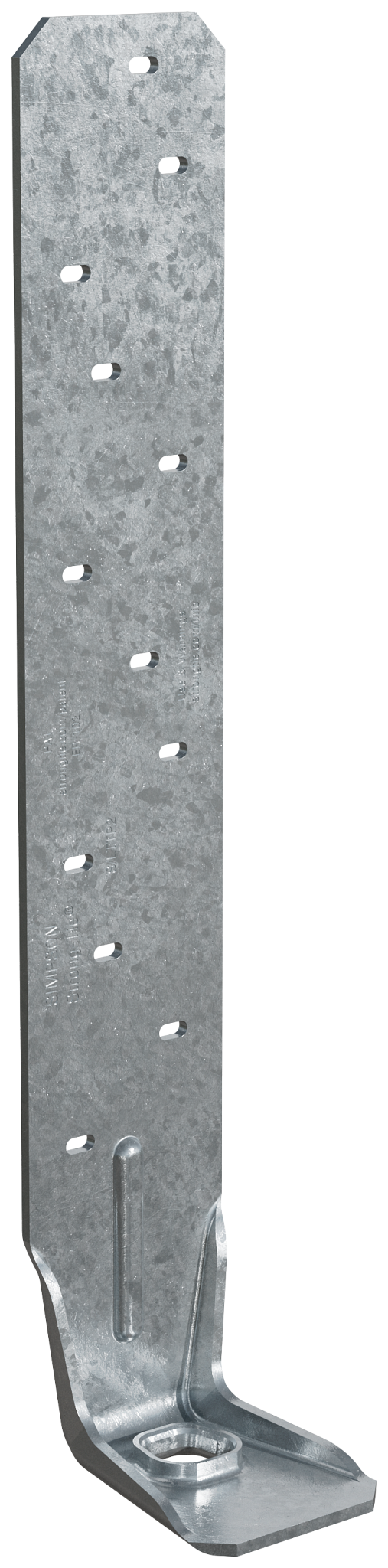

Simpson Strong-Tie S/LTTP2 S/LTTP2 Galvanized Tension Tie for Cold-Formed Steel (Pack of 600)

The Simpson Strong-Tie® S/LTTP2 tension tie is ideal for retrofit or new construction. It is designed for easy installation for attachment with a 1/2-in. diameter post-installed or cast-in-place anchor to concrete and #10 screws to a CFS stud. The S/LTTP2 has flanges rolled into the bend and an extruded anchor bolt hole that provide increased strength and limit deflection.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Ideal for retrofit or new construction

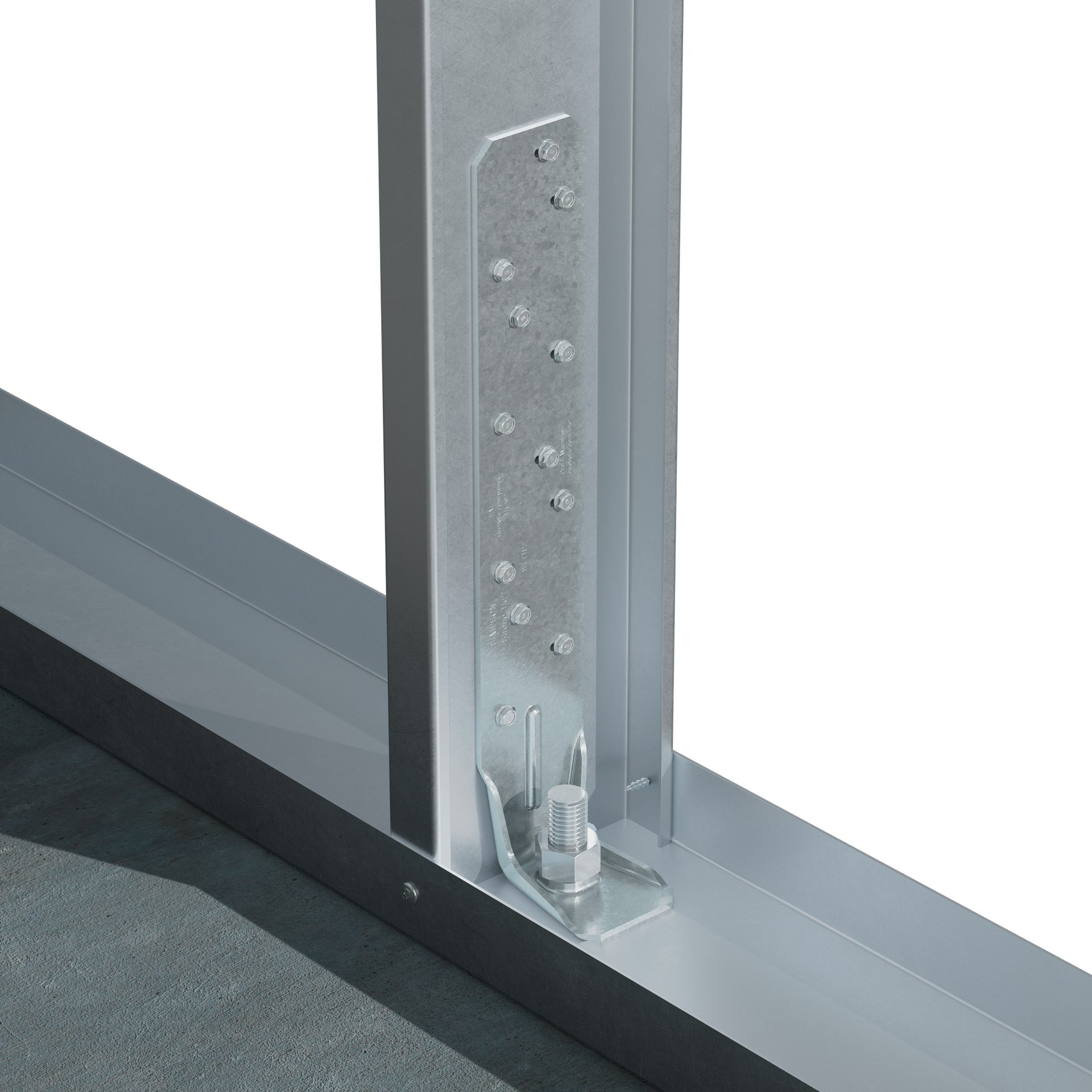

• Easy installation for attachment of 1/2-in. diameter post-installed or cast-in-place anchors to concrete and #10 screws to CFS studs
• Flanges rolled into bend and extruded anchor bolt hole provide increased strength and limit deflection
• Length: 14-15/16 in.
• Width: 2-9/16 in.
• Made from 129-mil (10-gauge) steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: S/LTTP2
• UPC: 50707392024168
• GTIN: 50707392024168
• Feature 01: Ideal for retrofit or new construction
• Feature 02: Easy installation for attachment of 1/2-in. diameter post-installed or cast-in-place anchors to concrete and #10 screws to CFS studs
• Feature 03: Flanges rolled into bend and extruded anchor bolt hole provide increased strength and limit deflection
• Feature 04: Length: 14-15/16 in.
• Feature 05: Width: 2-9/16 in.
• Feature 06: Made from 129-mil (10-gauge) steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Assembled Depth - Imperial: 2.9375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 14.9375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.5625
• Assembled Width UOM - Imperial: in.
• Base Product ID: S/LTTP2_Tie
• Base Product Name: S/LTTP2
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Holdowns and Tension Ties > Tie
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 302117705827721711738842360779782466726
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Tie
• Prop 65 Warning: No
• Quantity: 600
• Shipping Weight: 990
• Short Product Name: Light-Duty Tension Tie
• Strongtie.com URL: https://www.strongtie.com/holdownsandtensionties_coldformedsteelconstruction/s.lttp2_tie/p/s.lttp2
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392024160
• EA Reference: 707392024163
