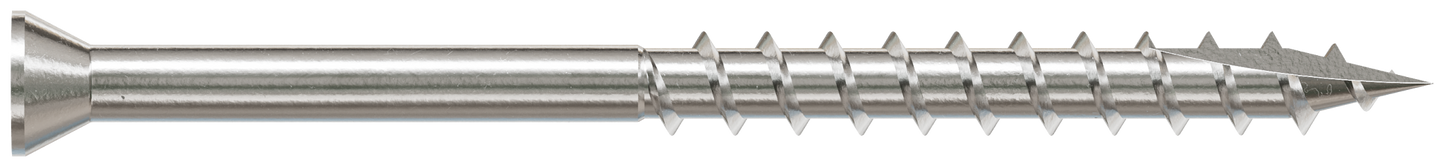

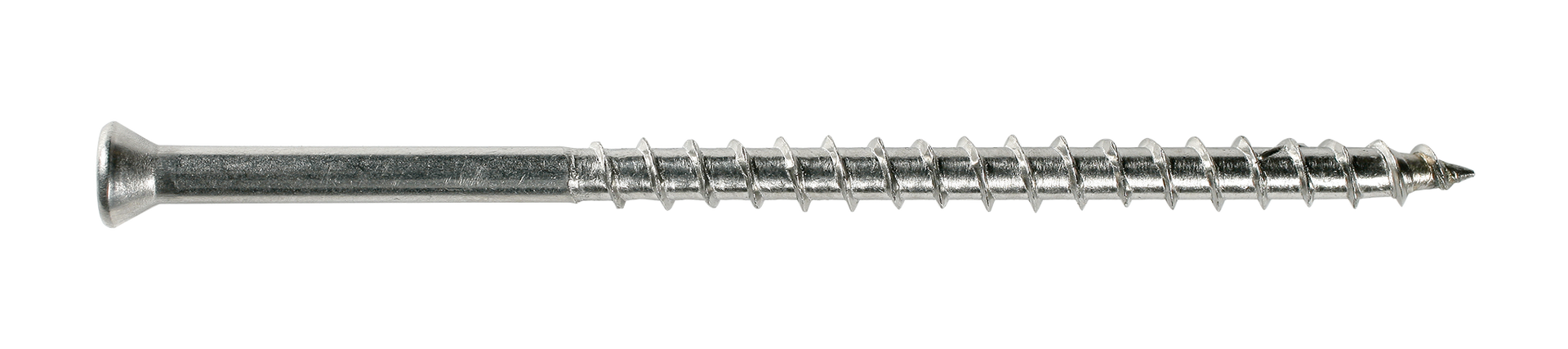

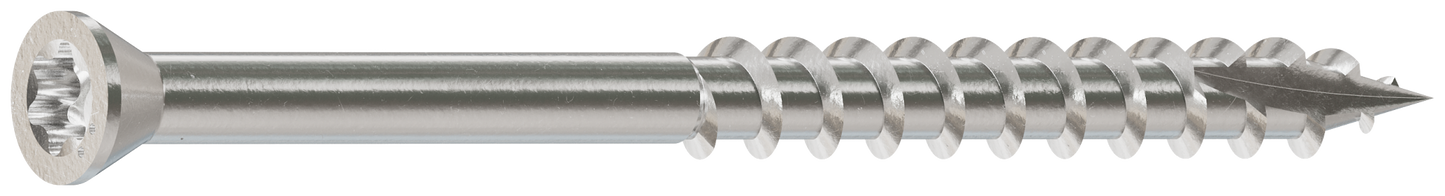

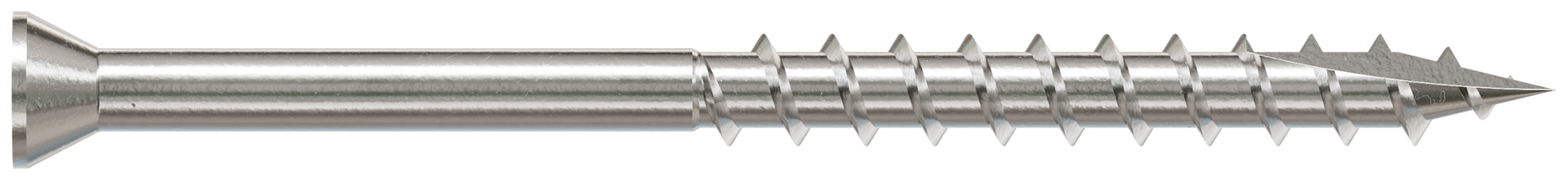

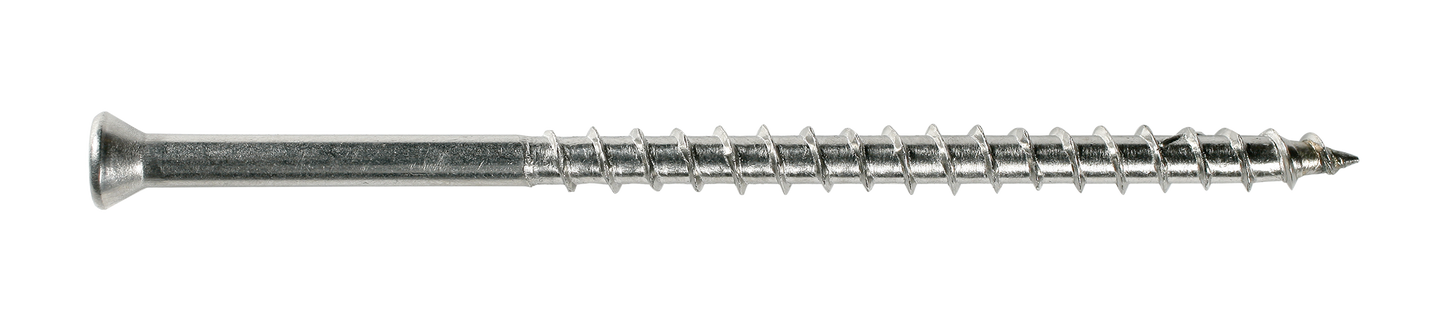

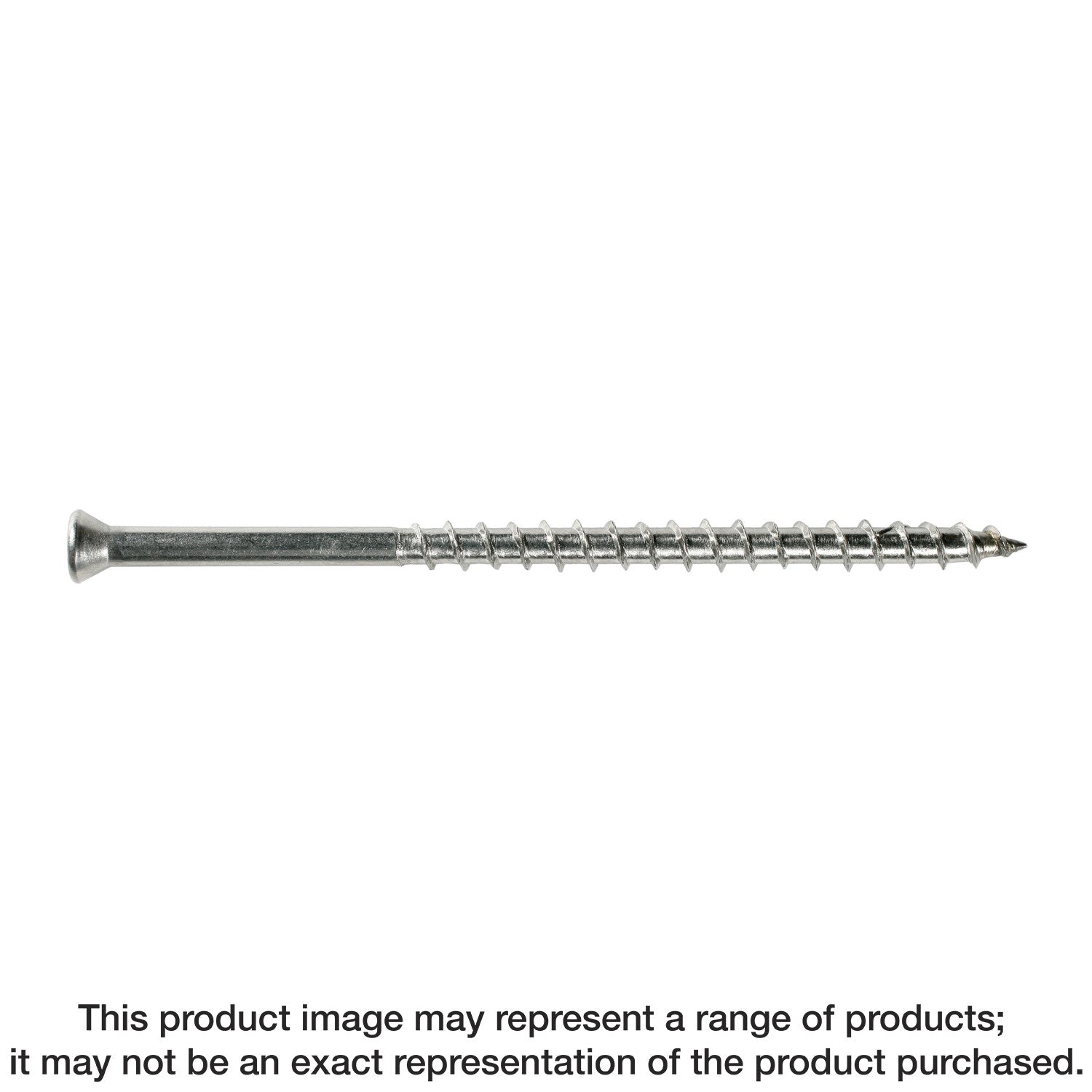

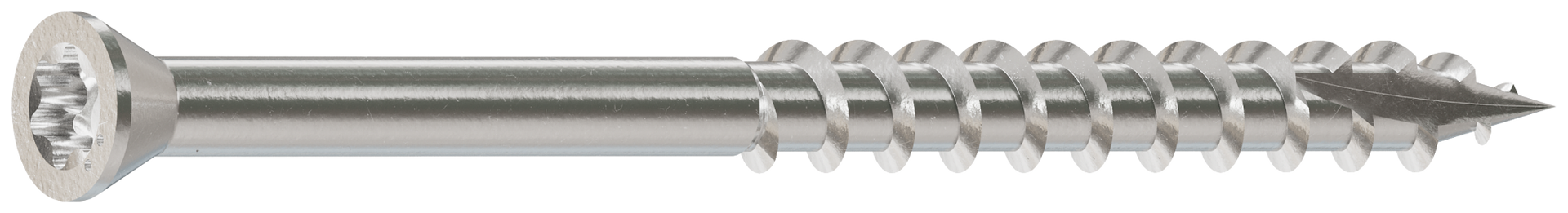

Simpson Strong-Tie S07225FT5 Trim-Head Screw, 6-Lobe Drive — #7 x 2-1/4 in. T-15 Type 305 (5 lb.)

Trim-Head decking screws are available in stainless steel for superior corrosion resistance in marine or high-exposure environments where PVC or composite decks are installed. Trim-Head screws provide a clean finish because of their special head design and are available with painted heads in 13 colors, matched to blend with most major PVC and composite decking manufacturers.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Trim-style head is less noticeable on the decking surface
• Type-17 point for fast starts
• Coarse threads on approximately 2/3 of the shank draw the decking and other material tightly to the framing
• 6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and longer bit life
• T15 6-lobe driver bit included (replacement bit model BIT15T-2)
• Predrilling recommended near board ends to prevent splitting
• Length: 2-1/4 in.
• Head diameter: 0.230
• Made from Type 305 stainless steel for long-lasting durability
• Quantity: 5 lb.

Application

• Decks — Deck Boards Composite
• Decks — Deck Boards Wood
• Dock and Boardwalk

Specifications

• ERP Part Number: S07225FT5
• UPC: 744039610686
• GTIN: 744039610686
• Feature 01: Trim-style head is less noticeable on the decking surface
• Feature 02: Type-17 point for fast starts
• Feature 03: Coarse threads on approximately 2/3 of the shank draw the decking and other material tightly to the framing
• Feature 04: 6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and longer bit life
• Feature 05: T15 6-lobe driver bit included (replacement bit model BIT15T-2)
• Feature 06: Predrilling recommended near board ends to prevent splitting
• Feature 07: Length: 2-1/4 in.
• Feature 08: Head diameter: 0.230
• Feature 09: Made from Type 305 stainless steel for long-lasting durability
• Feature 10: Quantity: 5 lb.
• Applications List: Decks — Deck Boards Composite
• Applications List.1: Decks — Deck Boards Wood
• Applications List.2: Dock and Boardwalk
• Appx Count Per Lb: 138
• Assembled Depth - Imperial: 0.230
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.230
• Assembled Width UOM - Imperial: in.
• Base Product ID: THD6L_Screw
• Base Product Name: Trim-Head Screw — 6-Lobe Drive
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Exterior Wood Screws > Hand-Drive Screw
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T15 6-Lobe
• EAN category: UC
• Finish: Type 305 Stainless Steel
• GUID: 277492459609955462392562078850825221095
• Head Diameter (in.): 0.230
• Head Type: Trim Head
• Length (in.): 2 1/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 305 Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 6.00
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.88
• Package Width UOM - Imperial: in.
• Packaging Quantity: 5 lb.
• Packaging Type: Tub
• Point Type: Type-17 Point
• Product Class: Hand-Drive Screw
• Product Includes: (1) T15 driver bit included (replacement bit model BIT15T-2-R2)
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #7
• Shipping Weight: 5.93
• Short Product Name: #7 2-1/4IN 305SS T-15 6 LOBE DR 5#
• Strongtie.com URL: https://www.strongtie.com/exteriorwoodscrews_screwsandnails/thd6l_screw/p/trim-head-screw--6-lobe-drive
• Subcategory: Fasteners
• Subcategory 2: Exterior Wood Screws
• Thread Type: Coarse Threads
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10744039610683
• PAL Reference: 50744039610681
