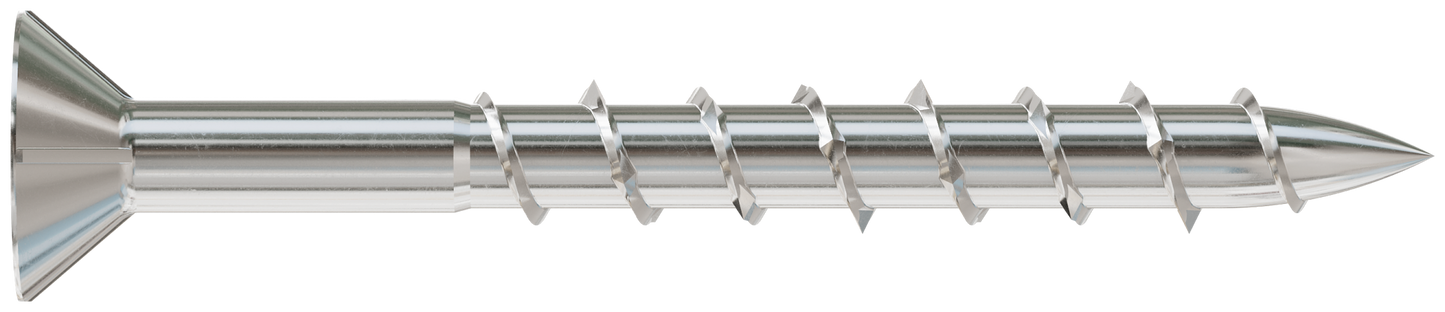

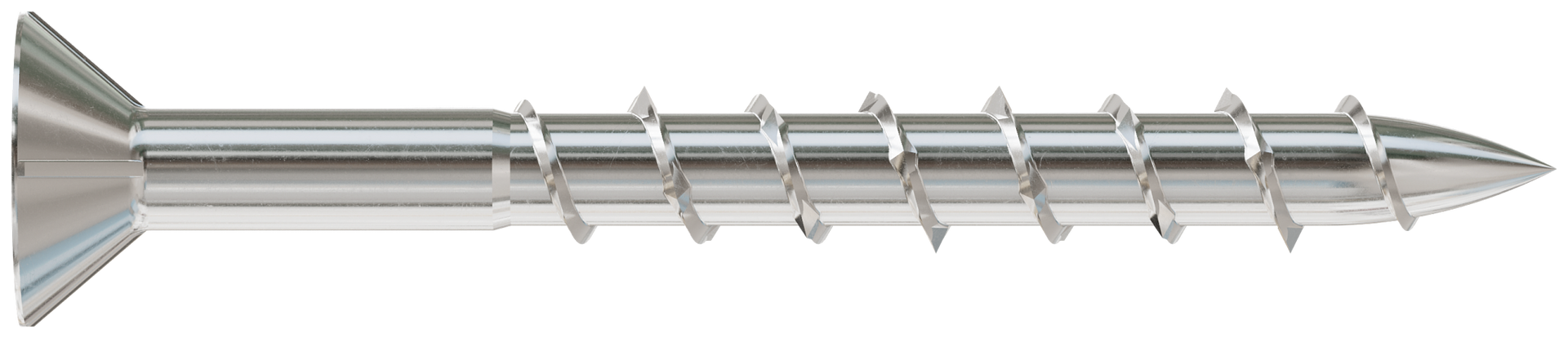

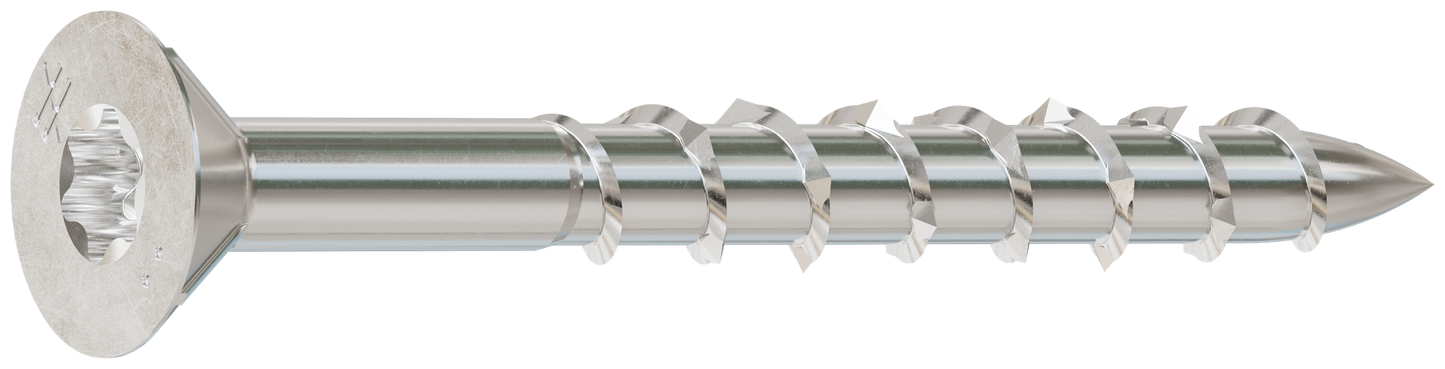

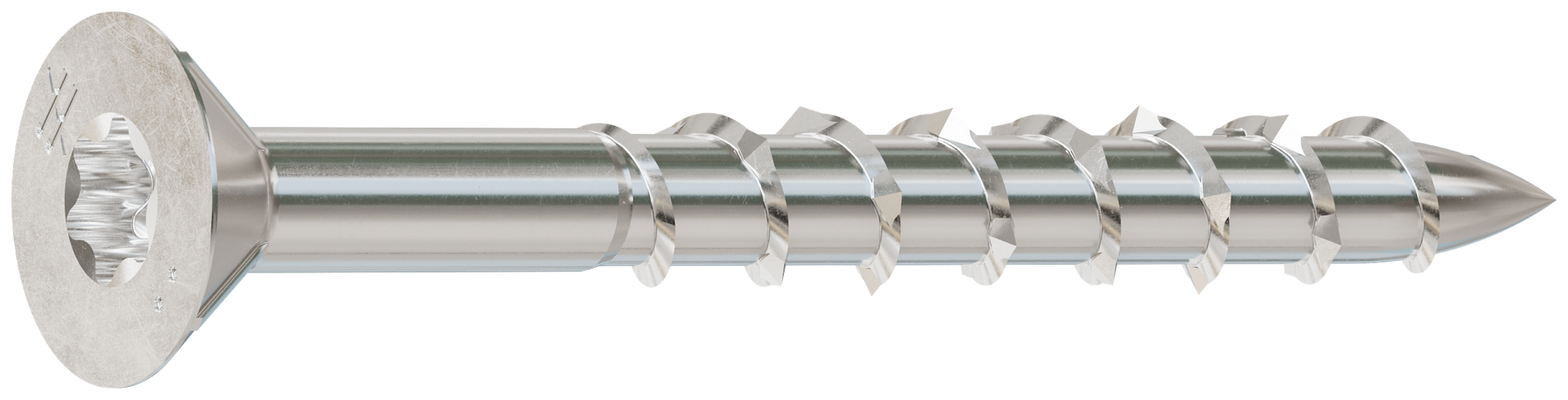

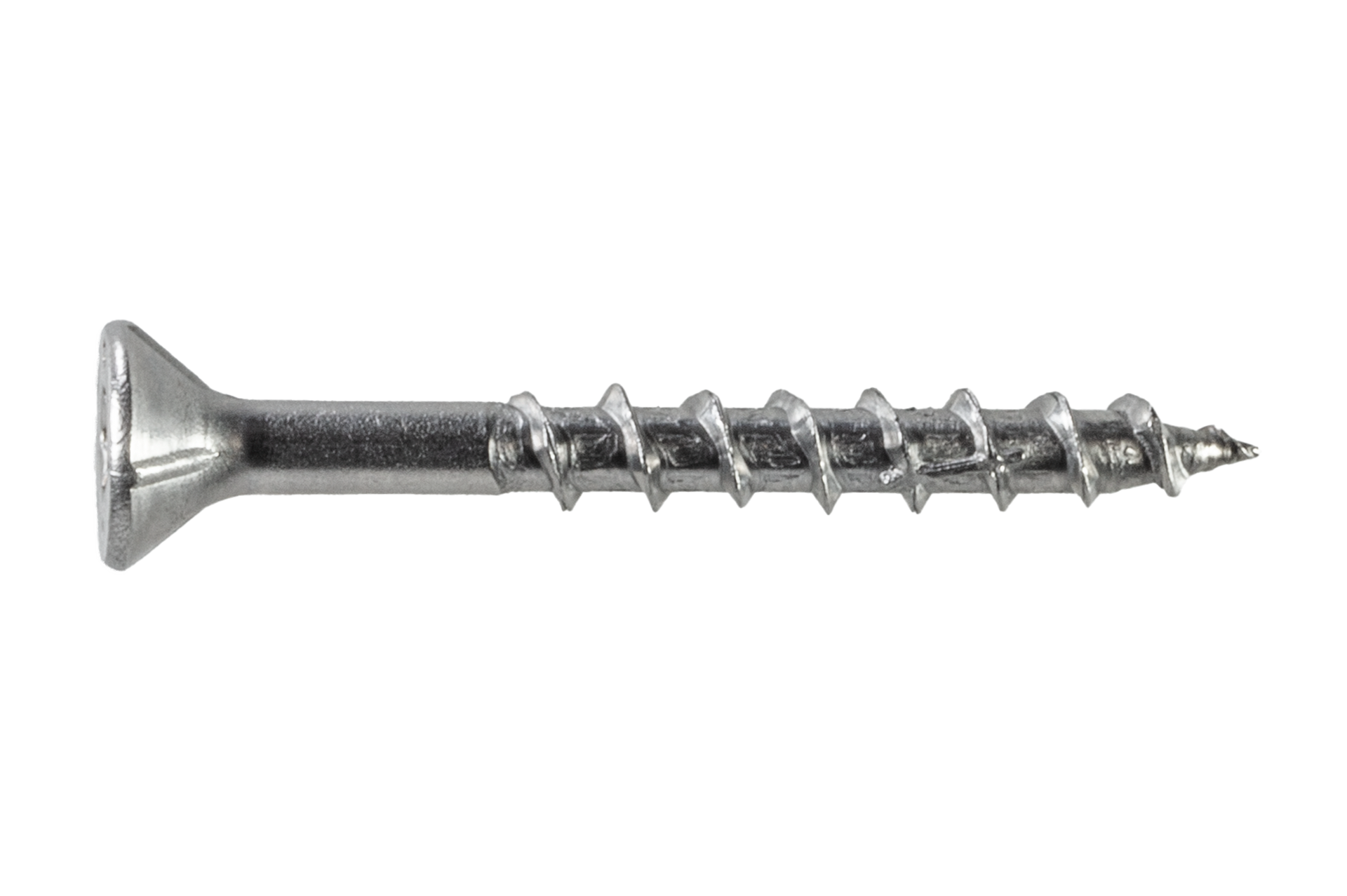

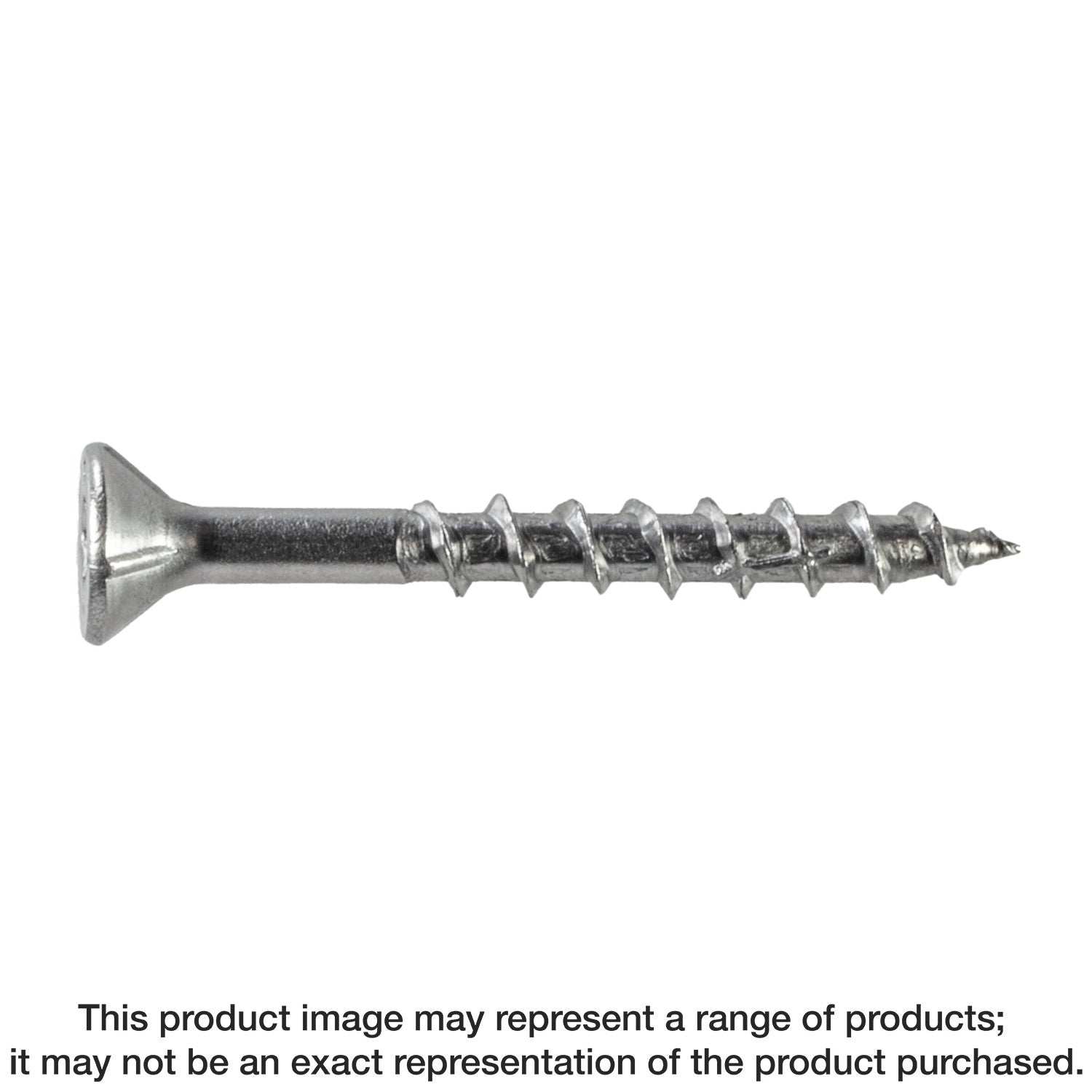

Simpson Strong-Tie S08162WP5 Deck-Drive™ DWP WOOD SS Screw — #8 x 1-5/8 in. T-20, Flat Head, Type 305 (5 lb.)

The Deck-Drive DWP Wood SS screw is a powerful fastening solution for deck, dock and general exterior applications where extra corrosion protection is needed. With its specially designed sharp-point and unique box-threads, the DWP is ideally suited for the majority of wood used in today’s deck boards. DWP screws are also offered in a variety of sizes to fasten fascia and trim.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Flat head; also available in trim-head version
• Unique "box" thread design with raised-ridge technology greatly reduces driving torque, which allows you to drive more screws on a single battery charge
• Specially designed sharp point penetrates hard wood products with ease

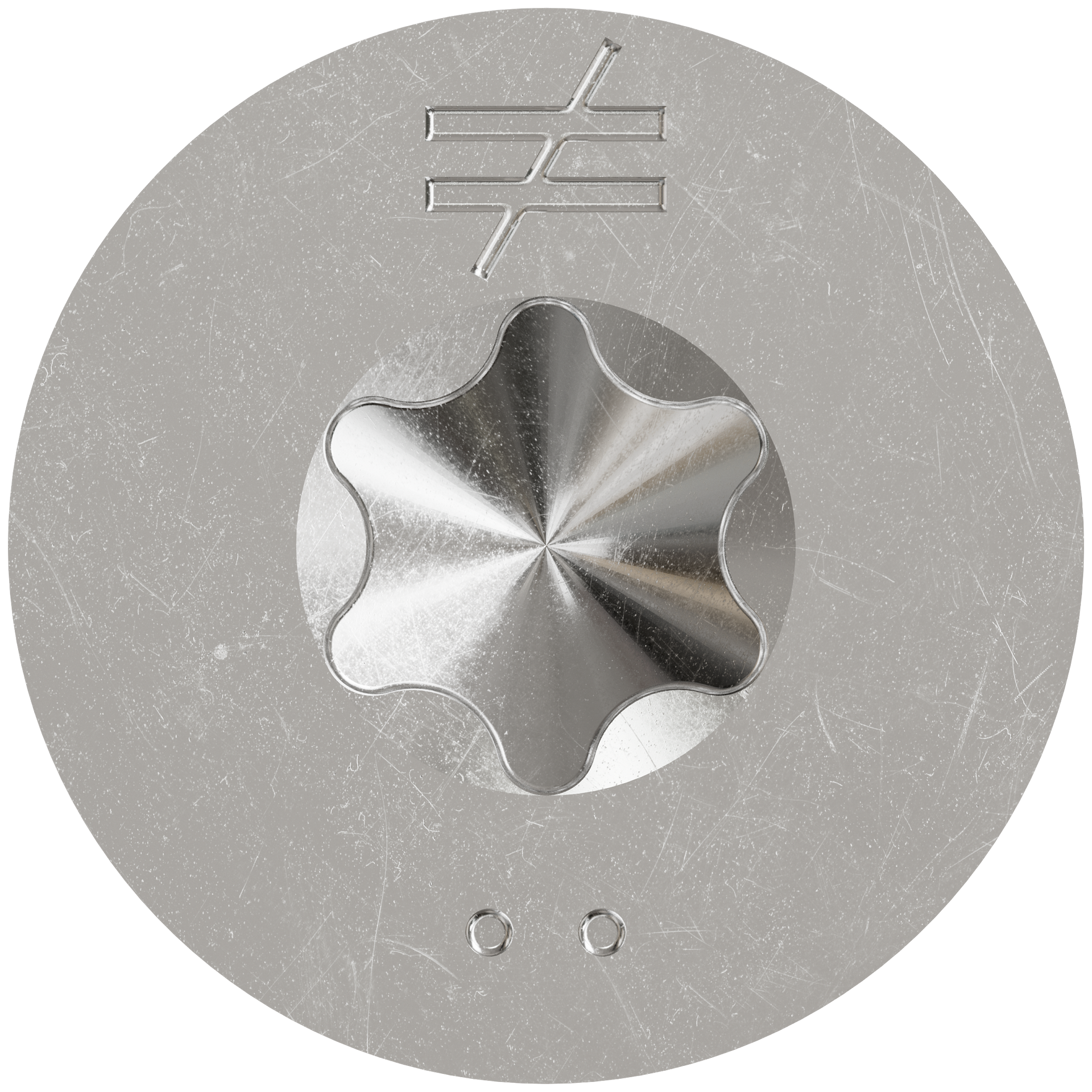

• 6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and longer bit life
• T20 6-lobe bit included (replacement bit model BIT20T-2-R2)
• Length: 1-5/8 in.
• Made from Type 305 stainless steel for long-lasting durability
• Quantity: 5 lb.

Application

• Dock and Boardwalk
• Marine
• Decks — Deck Boards Wood
• Fastening Wood-to-Wood

Specifications

• ERP Part Number: S08162WP5
• UPC: 707392646808
• GTIN: 707392646808
• Feature 01: Flat head; also available in trim-head version
• Feature 02: Unique "box" thread design with raised-ridge technology greatly reduces driving torque, which allows you to drive more screws on a single battery charge
• Feature 03: Specially designed sharp point penetrates hard wood products with ease
• Feature 04: 6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and longer bit life
• Feature 05: T20 6-lobe bit included (replacement bit model BIT20T-2-R2)
• Feature 06: Length: 1-5/8 in.
• Feature 07: Made from Type 305 stainless steel for long-lasting durability
• Feature 08: Quantity: 5 lb.
• Applications List: Dock and Boardwalk
• Applications List.1: Marine
• Applications List.2: Decks — Deck Boards Wood
• Applications List.3: Fastening Wood-to-Wood
• Appx Count Per Lb: 150
• Assembled Depth - Imperial: 0.335
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.335
• Assembled Width UOM - Imperial: in.
• Base Product ID: DWP_Screw
• Base Product Name: Deck-Drive™ DWP WOOD SS Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Exterior Wood Screws > Hand-Drive Screw
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T20 6-Lobe
• EAN category: UC
• Finish: Type 305 Stainless Steel
• GUID: 112481772202156917469644897077750496132
• Head Diameter (in.): 0.335
• Head Type: Flat Head
• Length (in.): 1 5/8
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 305 Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 6.00
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.88
• Package Width UOM - Imperial: in.
• Packaging Quantity: 5 lb.
• Packaging Type: Tub
• Point Type: Sharp Point
• Product Class: Hand-Drive Screw
• Product Includes: (1) T20 6-lobe driver bit
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #8
• Shipping Weight: 5
• Short Product Name: DWP #8 1-5/8IN 305SS FLAT T20 5#
• Strongtie.com URL: https://www.strongtie.com/deckdrive_exteriorwoodscrews/dwp_screw/p/deck-drive-dwp-wood-ss-screw
• Subcategory: Fasteners
• Subcategory 2: Exterior Wood Screws
• Thread Type: Box Threads
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392646805
• PAL Reference: 50707392646803
