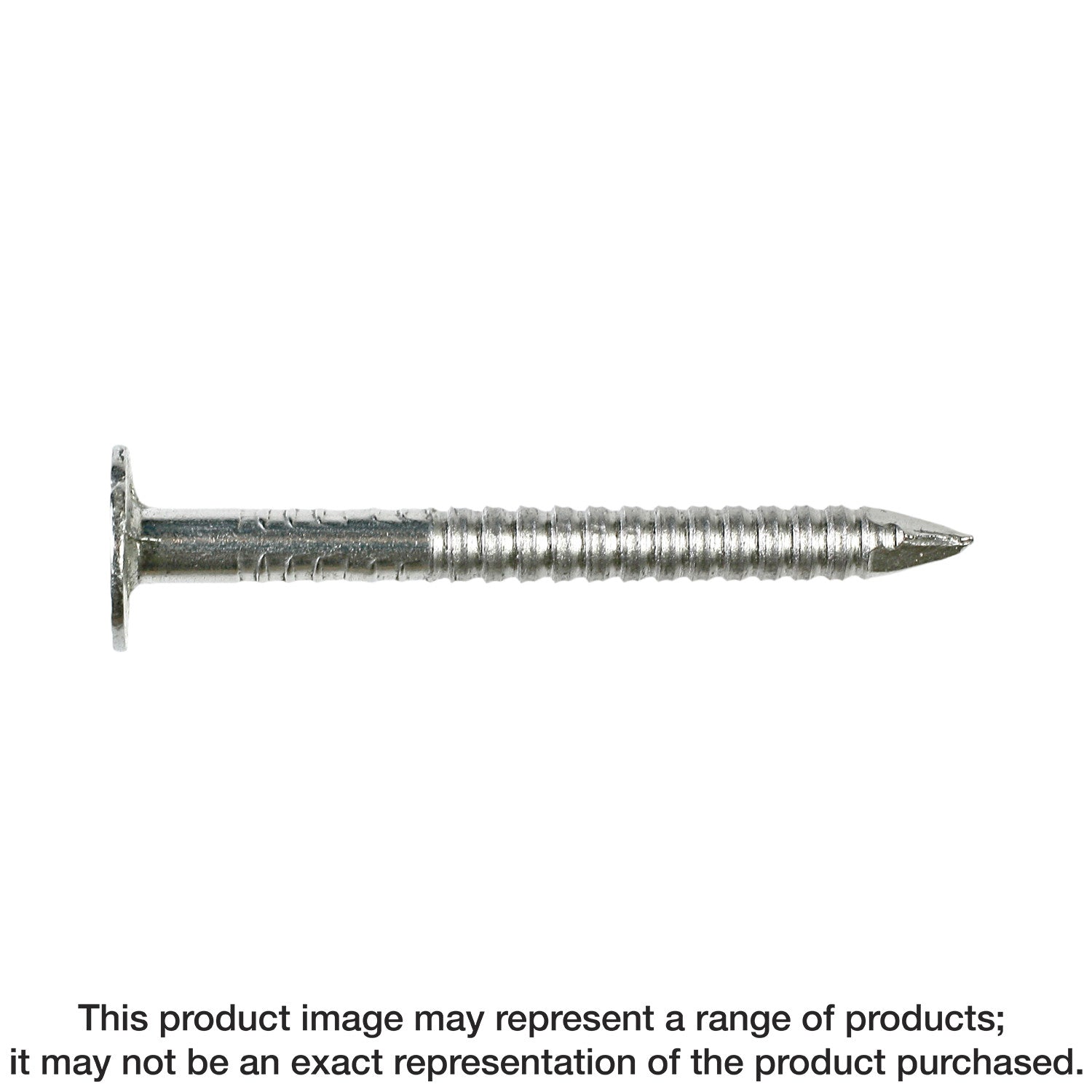

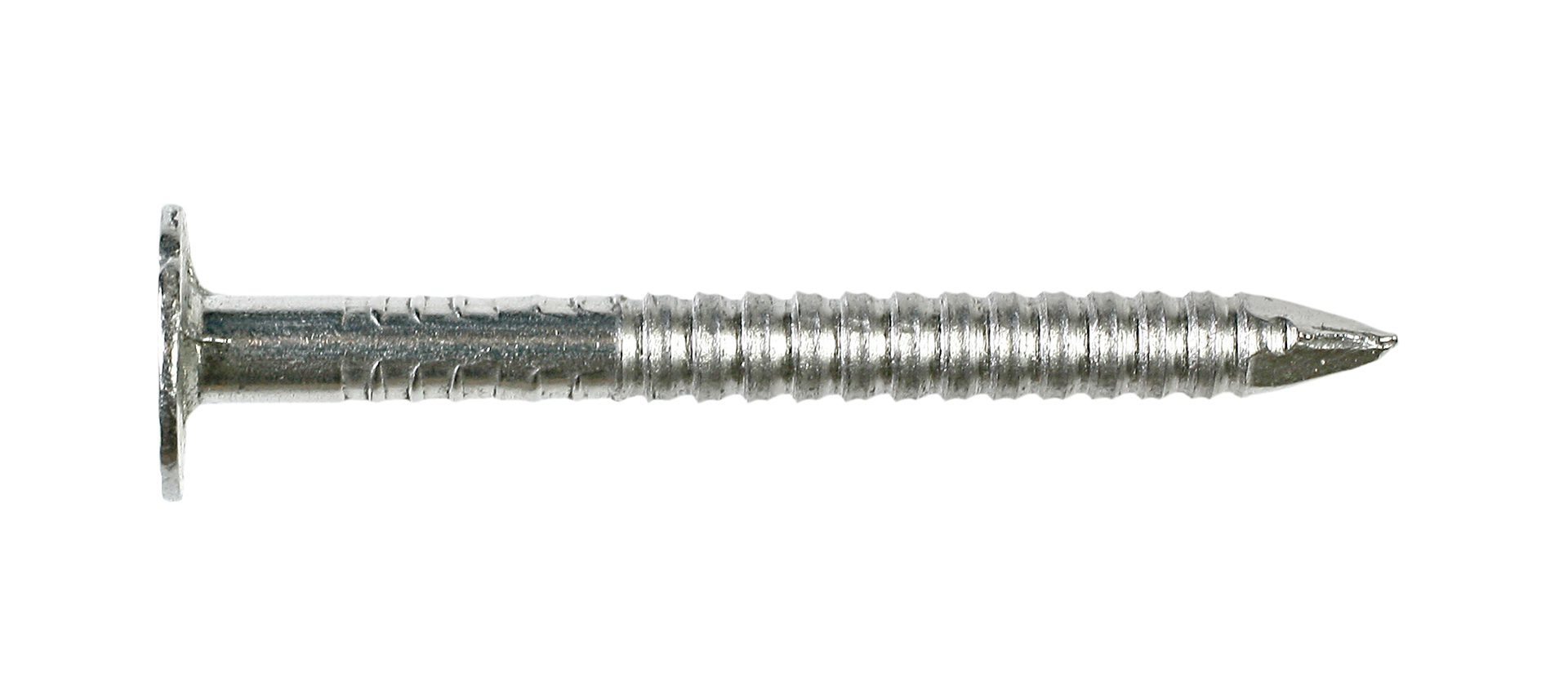

Simpson Strong-Tie S510ARNB Roofing Nail, Annular Ring Shank — 1-3/4-in. x .131-in. Type 304 Stainless Steel (25 lb.)

The Simpson Strong-Tie® Roofing Nail – Annular Ring Shank was designed to optimize holding power, while incorporating higher levels of corrosion resistance. Its large flat head provides extra bearing surface to firmly secure roofing material and its annular ring shank increases withdrawal resistance. A variety of sizes are available in Type 316 and Type 304 stainless steel.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Large, flat head provides extra bearing surface to firmly secure roofing material
• Annular ring shank increases withdrawal resistance to provide a secure attachment to wood members and plywood roof decks
• For slate roofs, determine the correct nail length by doubling the slate thickness and adding one inch
• Length: 1-3/4 inches
• Shank diameter: 0.131 inches
• Nail penny size: 5d
• Type 304 stainless steel provides high-level corrosion resistance
• Quantity: 25-lb. bucket (appx 126 per lb.)

Application

• Roofing

Specifications

• ERP Part Number: S510ARNB
• UPC: 744039164714
• GTIN: 744039164714
• Feature 01: Large, flat head provides extra bearing surface to firmly secure roofing material
• Feature 02: Annular ring shank increases withdrawal resistance to provide a secure attachment to wood members and plywood roof decks
• Feature 03: For slate roofs, determine the correct nail length by doubling the slate thickness and adding one inch
• Feature 04: Length: 1-3/4 inches
• Feature 05: Shank diameter: 0.131 inches
• Feature 06: Nail penny size: 5d
• Feature 07: Type 304 stainless steel provides high-level corrosion resistance
• Feature 08: Quantity: 25-lb. bucket (appx 126 per lb.)
• Applications List: Roofing
• Appx Count Per Lb: 126
• Assembled Depth - Imperial: 0.375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.375
• Assembled Width UOM - Imperial: in.
• Base Product ID: RNA_Nail
• Base Product Name: Roofing Nail — Annular Ring Shank
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Exterior Nails > Hand-Drive Nail
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Type 304 Stainless Steel
• Gauge: 10
• GUID: 312805533815318841073844862601150998003
• Head Diameter (in.): 3/8
• Head Pattern: Smooth Head
• Head Type: Full Round Head
• Length (in.): 1 3/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 304 Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.00
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 7.70
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 10.00
• Package Width UOM - Imperial: in.
• Packaging Quantity: 25 lb.
• Packaging Type: Bucket
• Penny Size: 5d
• Point Type: Diamond Point
• Product Class: Hand-Drive Nail
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.131
• Shank Type: Annular-Ring Shank
• Shipping Weight: 26.2
• Short Product Name: 5d 1-3/4IN 10GA 304SS RNG ROOF NL 25#BKT
• Strongtie.com URL: https://www.strongtie.com/roofingnails_exteriornails/rna_nail/p/roofing-nail--annular-ring-shank
• Subcategory: Fasteners
• Subcategory 2: Exterior Nails
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50744039164719
