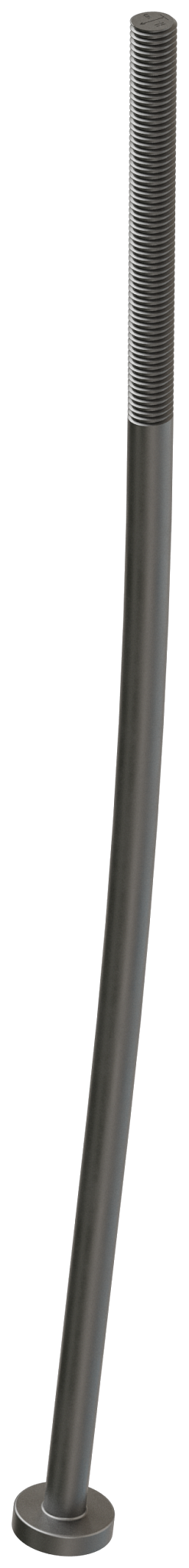

Simpson Strong-Tie SABR5/8X24 SABR™ 5/8 in. x 24 in. Anchor Bolt (Pack of 1000)

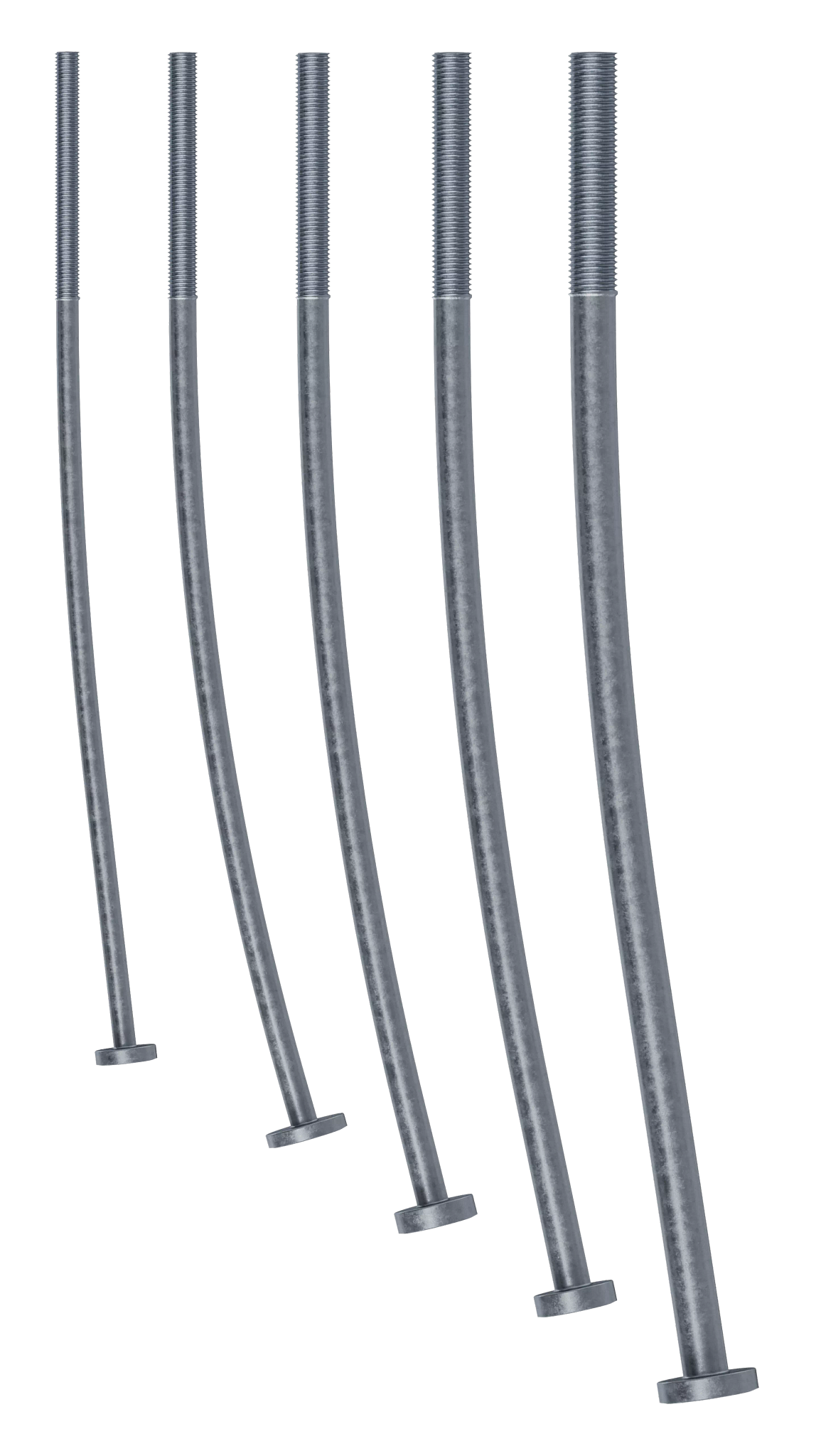

The Simpson Strong-Tie® SABR™ anchor bolt is a cast-in-place anchor that comes in a wide range of diameters. With a 6 in. threaded section, this anchor bolt accommodates a variety of holdown seat heights, including all Simpson Strong-Tie holdowns, when installed on a 2x or 3x sill plate. The one-piece sweep design maximizes its position in the concrete, providing increased tension capacity.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Single anchor solution for all foundation types
• Stamped model and alignment information on the head makes it easy to identify and align for installation
• Sweep design allows placement near the edge of concrete while increasing tension capacity
• One-piece design eliminates potential loss of components
• Diameter: 5/8 in.
• Bolt length: 24 in.
• Material: ASTM F1554, Grade 55 (uncoated steel)

Specifications

• ERP Part Number: SABR5/8X24
• UPC: 50707392032781
• GTIN: 50707392032781
• Feature 01: Single anchor solution for all foundation types
• Feature 02: Stamped model and alignment information on the head makes it easy to identify and align for installation
• Feature 03: Sweep design allows placement near the edge of concrete while increasing tension capacity
• Feature 04: One-piece design eliminates potential loss of components
• Feature 05: Diameter: 5/8 in.
• Feature 06: Bolt length: 24 in.
• Feature 07: Material: ASTM F1554, Grade 55 (uncoated steel)
• Assembled Depth - Imperial: 1.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 24.4457
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.4597
• Assembled Width UOM - Imperial: in.
• Base Product ID: SABR_Bolt
• Base Product Name: SABR™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Anchor Bolts > Anchor Bolt
• Country of Origin: ZZ
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 217932573328878404117447709775357543468
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Anchor Bolt
• Prop 65 Warning: No
• Quantity: 1000
• Shipping Weight: 1850
• Short Product Name: 5/8IN DIA 24IN ANCHOR BOLT
• Strongtie.com URL: https://www.strongtie.com/bolts_anchorbolts/sabr_bolt/p/sabr
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Anchor Bolts
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392032783
• EA Reference: 707392032786
