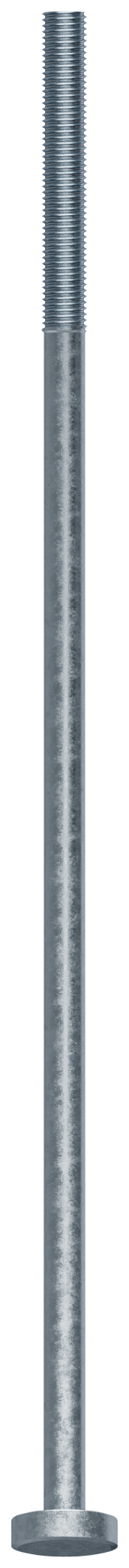

Simpson Strong-Tie SABR7/8X28HDG SABR™ 7/8 in. x 28 in. Hot-Dip Galvanized Anchor Bolt

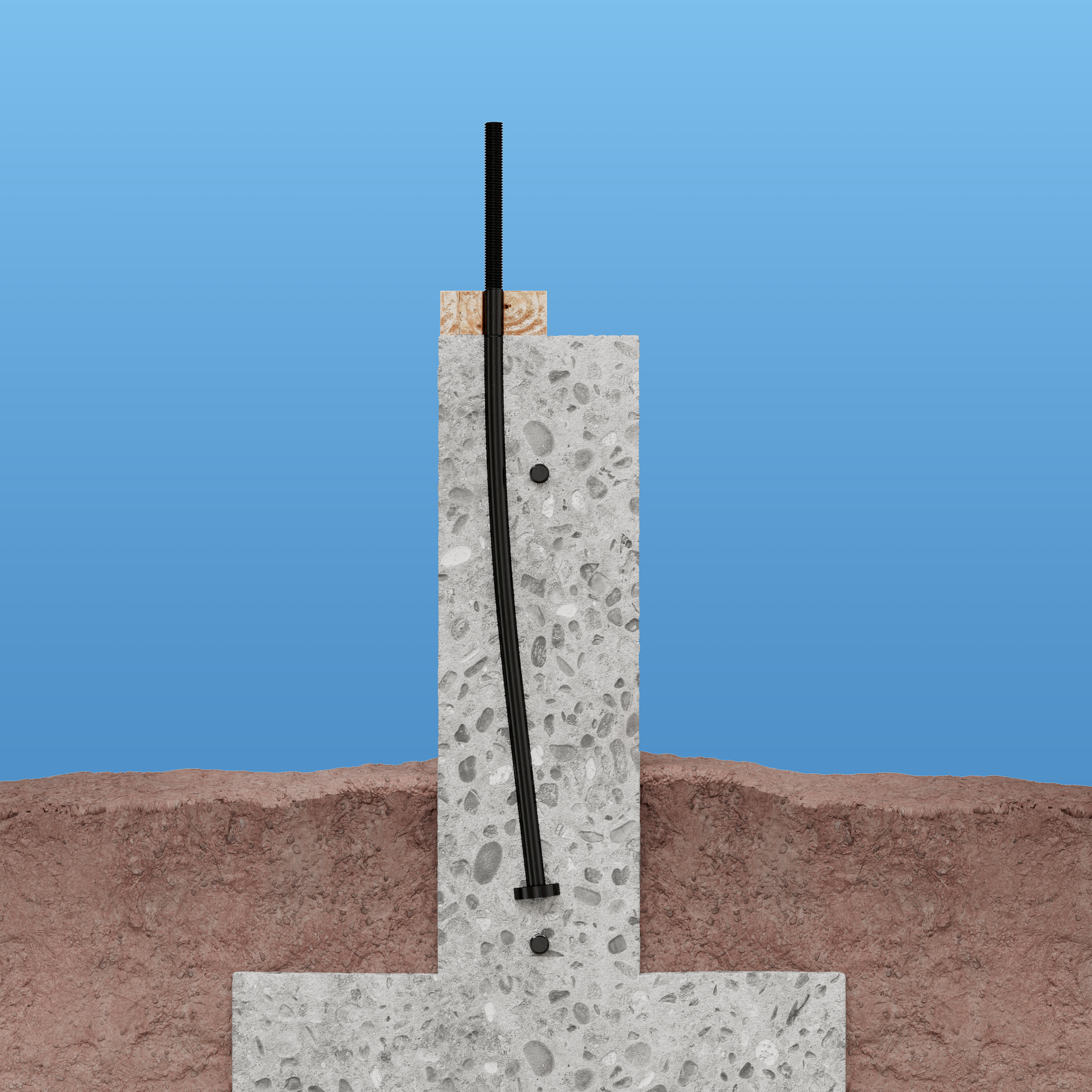

The Simpson Strong-Tie® SABR™ anchor bolt is a cast-in-place anchor that comes in a wide range of diameters. With a 6 in. threaded section, this anchor bolt accommodates a variety of holdown seat heights, including all Simpson Strong-Tie holdowns, when installed on a 2x or 3x sill plate. The one-piece sweep design maximizes its position in the concrete, providing increased tension capacity.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Single anchor solution for all foundation types

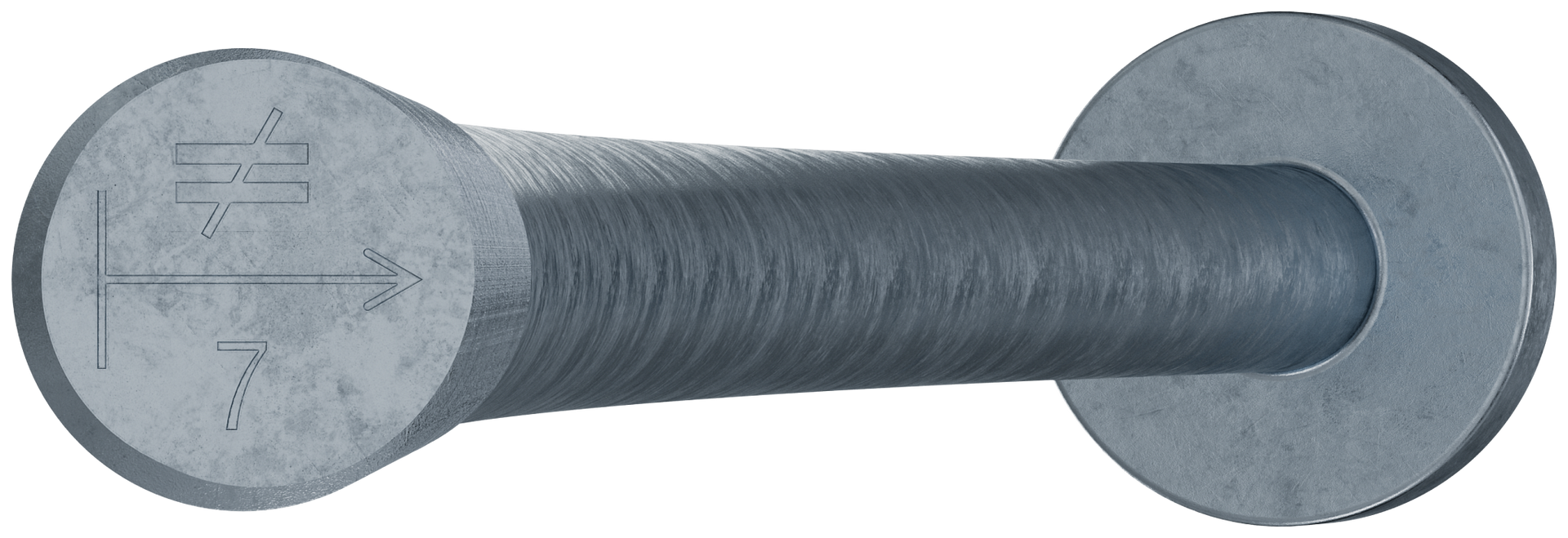

• Stamped model and alignment information on the head makes it easy to identify and align for installation

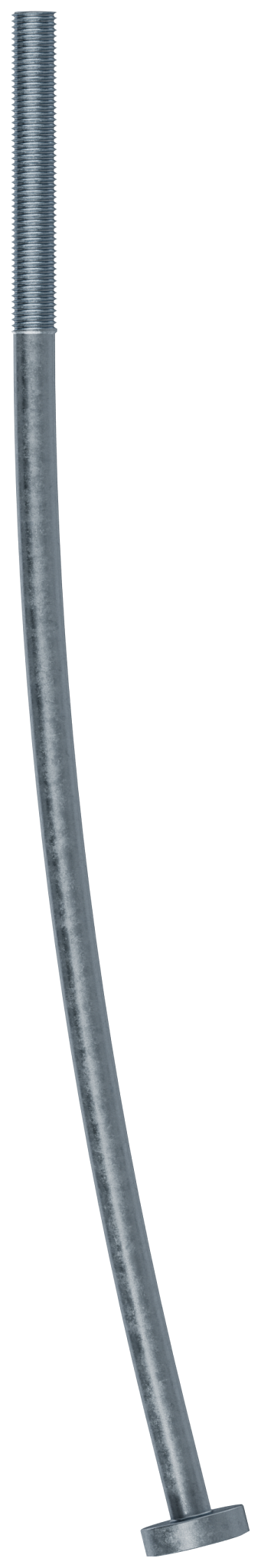

• Sweep design allows placement near the edge of concrete while increasing tension capacity
• One-piece design eliminates potential loss of components
• Diameter: 7/8 in.
• Bolt length: 28 in.
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: SABR7/8X28HDG
• UPC: 707392033172
• GTIN: 707392033172
• Feature 01: Single anchor solution for all foundation types
• Feature 02: Stamped model and alignment information on the head makes it easy to identify and align for installation
• Feature 03: Sweep design allows placement near the edge of concrete while increasing tension capacity
• Feature 04: One-piece design eliminates potential loss of components
• Feature 05: Diameter: 7/8 in.
• Feature 06: Bolt length: 28 in.
• Feature 07: Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Top nuts and washers for holdown attachment are not supplied with the SABR; on HDG SABR anchors, chase the threads to use standard nuts or couplers or use overtapped products in accordance with ASTM A563
• Assembled Depth - Imperial: 2
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 28.7537
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4.4227
• Assembled Width UOM - Imperial: in.
• Base Product ID: SABR_Bolt
• Base Product Name: SABR™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Anchor Bolts > Anchor Bolt
• Coating: Hot-Dip Galvanized
• Country of Origin: CN
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Hot-Dip Galvanized
• GUID: 246502551830158887509215083969651847771
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Anchor Bolt
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 4.84
• Short Product Name: 7/8IN DIA 28IN ANCHOR BOLT HDG
• Strongtie.com URL: https://www.strongtie.com/bolts_anchorbolts/sabr_bolt/p/sabr
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Anchor Bolts
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392033179
• PAL Reference: 50707392033177
