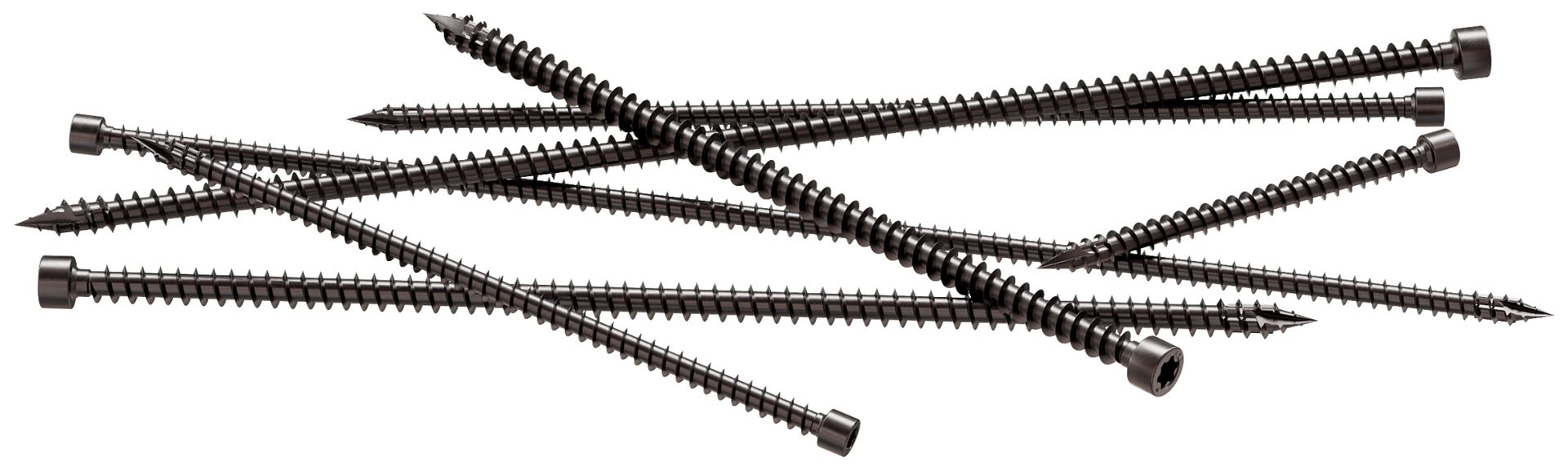

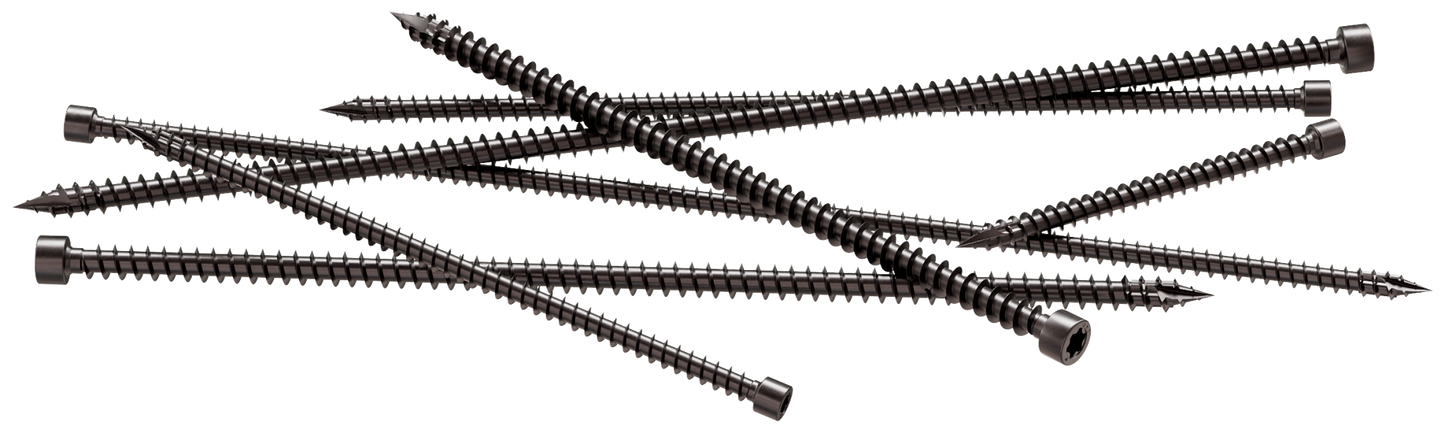

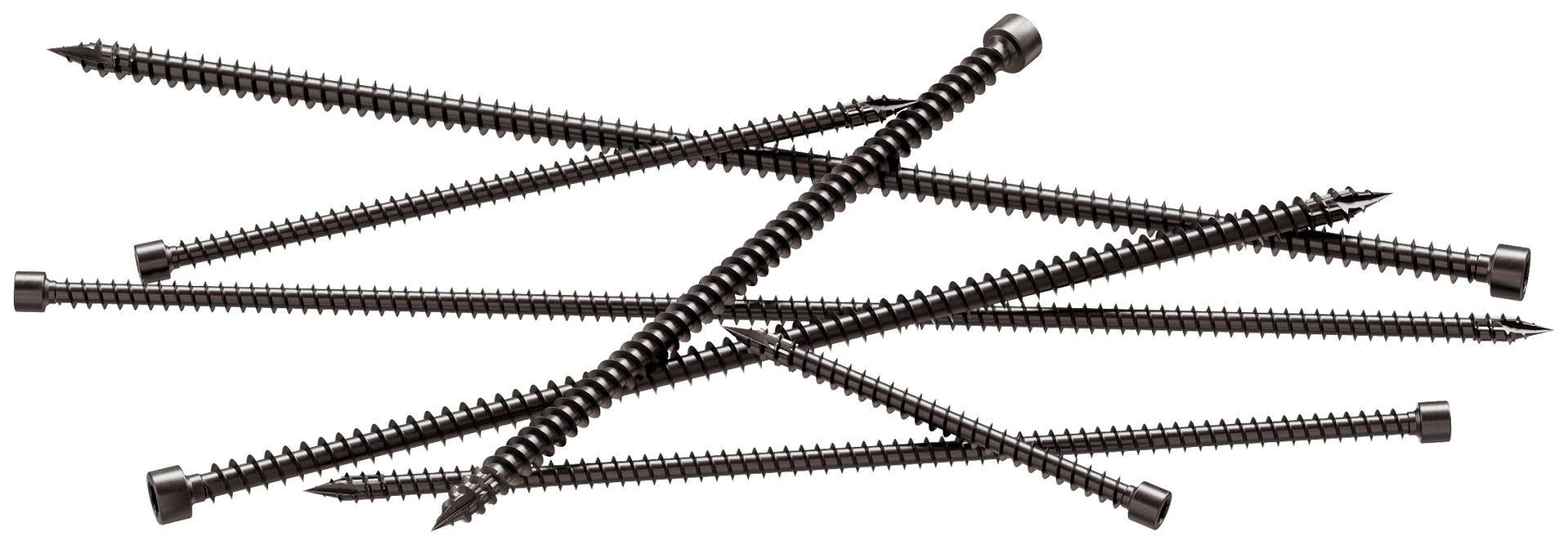

Simpson Strong-Tie SDCFC10X320 Strong-Drive® SDCFC TIMBER-CFC Screw — 0.390 in. x 12-1/2 in. T50, E-Coat® (150-Qty)

The redesigned Simpson Strong-Tie® Strong-Drive® SDCFC Timber-CFC screw is a robust structural fastener for demanding applications involving large members such as mass. A fully threaded shank provides withdrawal resistance, and the compact cylinder head creates a clean finish when left exposed, or a concealed finish when countersunk. The SawTooth® point ensures fast starts, reducing installation torque and eliminating the need for predrilling in most applications. The black e-coat finish enhances aesthetics and, along with the optimized hardness profile, helps mitigate risk of brittle fracture for reliable, long-term performance.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Compact cylinder head helps countersink the screw for a clean finish
• Heavy-duty, fully-threaded shank provides strength, with superb withdrawal resistance
• SawTooth point for fast start and easy driving
• Black e-coat finish provides a construction-durable nonmetallic coating for corrosion resistance in interior dry-service applications
• Deep 6-lobe recess for a secure drive
• Compliant with CSA O86:24 hydrogen embrittlement requirements
• Length: 12-1/2 in. (320 mm)
• Quantity: 150 per package

Application

• Engineered Wood
• Fastening Wood-to-Wood
• Timber Framing
• Beam Reinforcement
• Fastening Wall-to-Wall
• Fastening Support Beams
• Heavy Timber
• Glulam
• Fastening Butt Joists
• Mass Timber / Cross-Laminated Timber
• Engineered Wood — Multi-Ply Fastening
• Fastening Simpson Strong-Tie Connectors

Specifications

• ERP Part Number: SDCFC10X320
• UPC: 707392029243
• GTIN: 707392029243
• Feature 01: Compact cylinder head helps countersink the screw for a clean finish
• Feature 02: Heavy-duty, fully-threaded shank provides strength, with superb withdrawal resistance
• Feature 03: SawTooth point for fast start and easy driving
• Feature 04: Black e-coat finish provides a construction-durable nonmetallic coating for corrosion resistance in interior dry-service applications
• Feature 05: Deep 6-lobe recess for a secure drive
• Feature 06: Compliant with CSA O86:24 hydrogen embrittlement requirements
• Feature 07: Length: 12-1/2 in. (320 mm)
• Feature 08: Quantity: 150 per package
• Applications List: Engineered Wood
• Applications List.1: Fastening Wood-to-Wood
• Applications List.2: Timber Framing
• Applications List.3: Beam Reinforcement
• Applications List.4: Fastening Wall-to-Wall
• Applications List.5: Fastening Support Beams
• Applications List.6: Heavy Timber
• Applications List.7: Glulam
• Applications List.8: Fastening Butt Joists
• Applications List.9: Mass Timber / Cross-Laminated Timber
• Applications List.10: Engineered Wood — Multi-Ply Fastening
• Applications List.11: Fastening Simpson Strong-Tie Connectors
• Assembled Depth - Imperial: 0.528
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 12.5
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.528
• Assembled Width UOM - Imperial: in.
• Base Product ID: SDCFC-E_Screw
• Base Product Name: Strong-Drive® SDCFC TIMBER-CFC Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Interior Wood Screws > Hand-Drive Screw
• Coating: E-coat® Electrocoating
• Color: Black
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T50 6-Lobe
• Finish: E-coat Electrocoating
• GUID: 186097516022721065926327253410126627741
• Head Diameter (in.): 0.528
• Head Type: Cylinder Head
• Length (in.): 12 1/2
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 14.19
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8.94
• Package Width UOM - Imperial: in.
• Packaging Quantity: 150
• Packaging Type: Box
• Point Type: SawTooth® Point
• Product Class: Hand-Drive Screw
• Product Includes: T50, 6-lobe driver bit (replacement bit: BIT50T-2-R1)
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.290
• Shipping Weight: 38.4
• Short Product Name: SDCFC 10 X 320 T50 BLACK CYL HD 150/BOX
• Strongtie.com URL: https://www.strongtie.com/strongdrive_interiorwoodscrews/sdcfc-e_screw/p/strong-drive-sdcfc-timber-cfc-screw
• Subcategory: Fasteners
• Subcategory 2: Interior Wood Screws
• Thread Length (in.): 12 1/8
