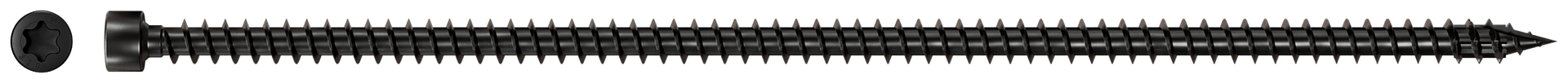

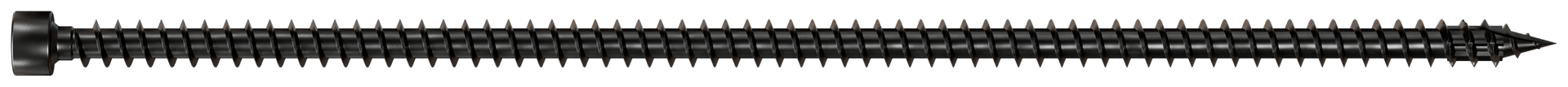

Simpson Strong-Tie SDCFC10X320-R25 Strong-Drive® SDCFC TIMBER-CFC Screw — 0.390 in. x 12-1/2 in. T50, E-Coat® (25-Qty) (Pack of 144)

The redesigned Simpson Strong-Tie® Strong-Drive® SDCFC Timber-CFC screw is a robust structural fastener for demanding applications involving large members such as mass. A fully threaded shank provides withdrawal resistance, and the compact cylinder head creates a clean finish when left exposed, or a concealed finish when countersunk. The SawTooth® point ensures fast starts, reducing installation torque and eliminating the need for predrilling in most applications. The black e-coat finish enhances aesthetics and, along with the optimized hardness profile, helps mitigate risk of brittle fracture for reliable, long-term performance.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Compact cylinder head helps countersink the screw for a clean finish
• Heavy-duty, fully-threaded shank provides strength, with superb withdrawal resistance
• SawTooth point for fast start and easy driving
• Black e-coat finish provides a construction-durable nonmetallic coating for corrosion resistance in interior dry-service applications
• Deep 6-lobe recess for a secure drive
• Compliant with CSA O86:24 hydrogen embrittlement requirements
• Length: 12-1/2 in. (320 mm)
• Quantity: 25 per package

Specifications

• ERP Part Number: SDCFC10X320-R25
• UPC: 50707392029255
• GTIN: 50707392029255
• Feature 01: Compact cylinder head helps countersink the screw for a clean finish
• Feature 02: Heavy-duty, fully-threaded shank provides strength, with superb withdrawal resistance
• Feature 03: SawTooth point for fast start and easy driving
• Feature 04: Black e-coat finish provides a construction-durable nonmetallic coating for corrosion resistance in interior dry-service applications
• Feature 05: Deep 6-lobe recess for a secure drive
• Feature 06: Compliant with CSA O86:24 hydrogen embrittlement requirements
• Feature 07: Length: 12-1/2 in. (320 mm)
• Feature 08: Quantity: 25 per package
• Assembled Depth - Imperial: 0.528
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 12.5
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.528
• Assembled Width UOM - Imperial: in.
• Base Product ID: SDCFC-E_Screw
• Base Product Name: Strong-Drive® SDCFC TIMBER-CFC Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Interior Wood Screws > Hand-Drive Screw
• Country of Origin: TW
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 186097516022721065926327253410126627741
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Hand-Drive Screw
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 144
• Shipping Weight: 940.32
• Short Product Name: SDCFC 10 X 320 T50 BLACK CYL HD 25/BOX
• Strongtie.com URL: https://www.strongtie.com/strongdrive_interiorwoodscrews/sdcfc-e_screw/p/strong-drive-sdcfc-timber-cfc-screw
• Subcategory: Fasteners
• Subcategory 2: Interior Wood Screws
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392029257
• EA Reference: 707392029250
