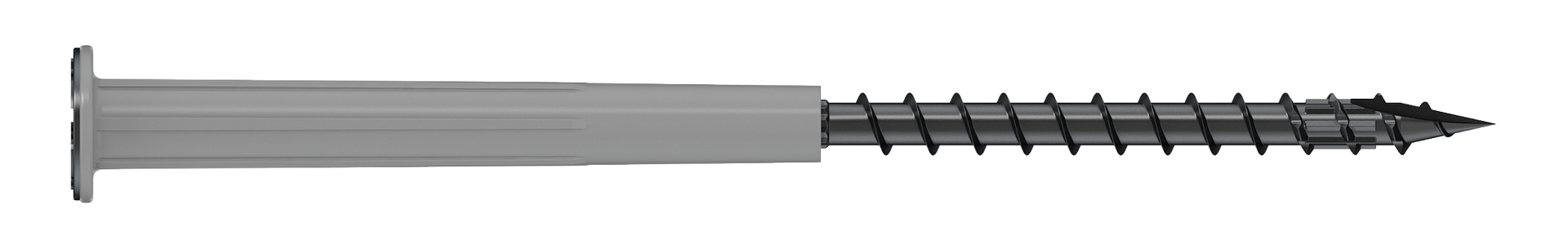

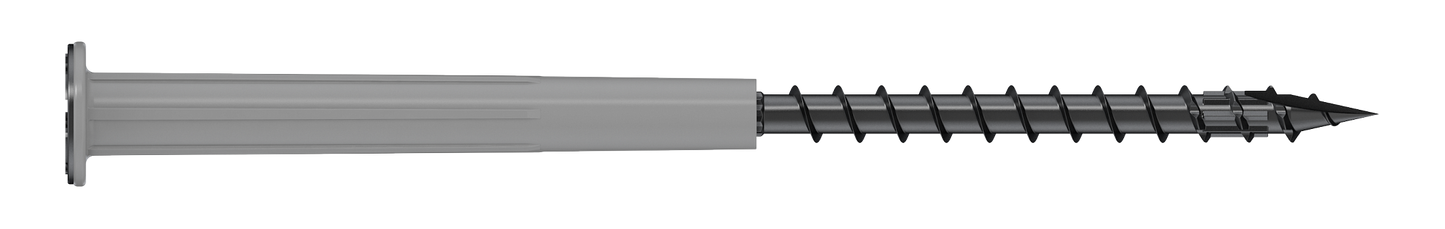

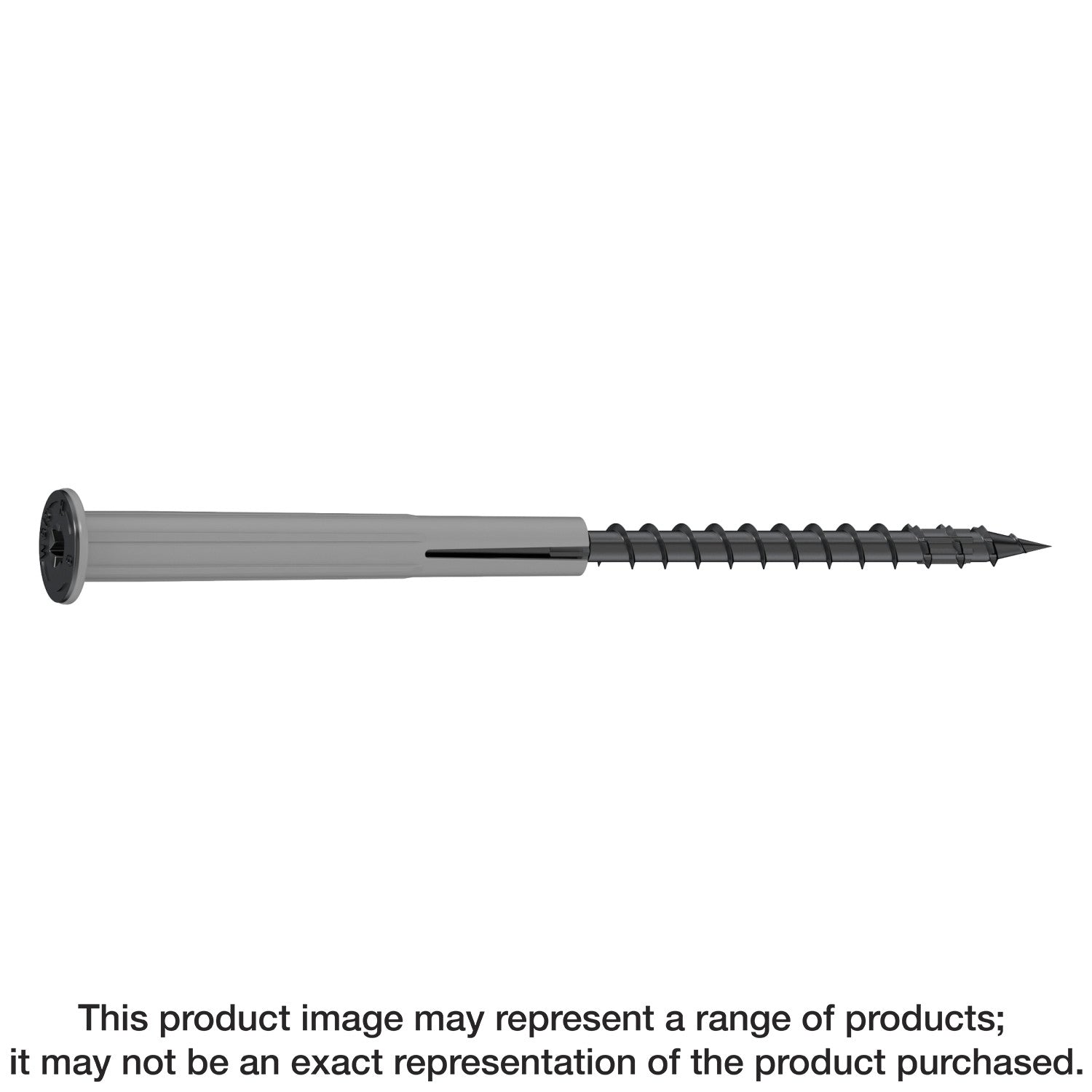

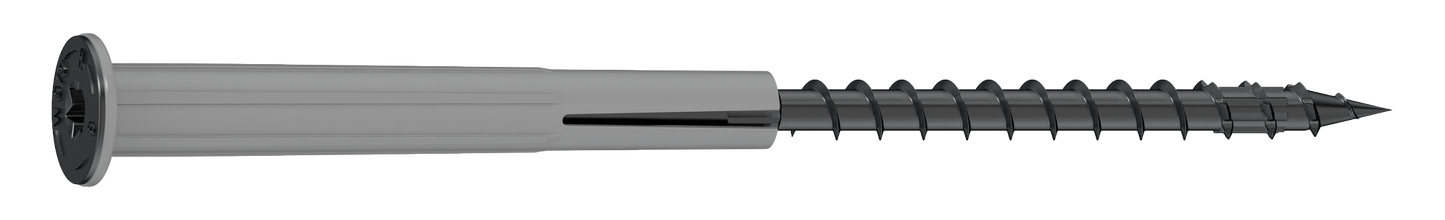

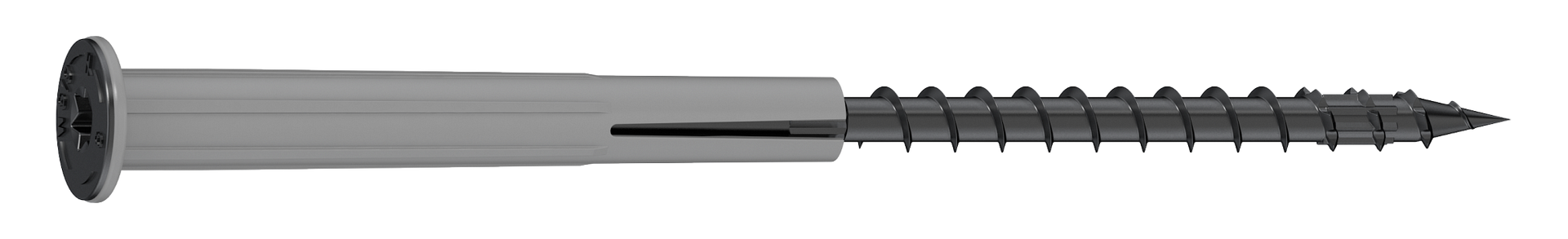

Simpson Strong-Tie SDPW19600-R50 Strong-Drive® SDPW™ DEFLECTOR Screw — 0.195 in. x 6 in. T40, 6-Lobe, E-Coat® (50-Qty)

The Strong-Drive® SDPW™ Deflector Screw from Simpson Strong-Tie — a premium structural fastening solution for connecting non-load-bearing walls to trusses and joists. With tested lateral-load ratings that meet building code requirements, the SDPW screw is value engineered for strength, installation speed and safety. Offset driver bits and a driver extension maximize installation speed and safety while minimizing installed cost. The SDPW’s polymer sleeve allows for sliding during deflection, preventing squeaks. The SDPW is designed for superior performance, and it’s backed by the best service and product support in the industry.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Deep 6-lobe recess for secure driving
• Polymer sleeve allows for deflection without squeaks
• Interior-grade E-coat for dry service applications
• Offset driver bit (6-lobe) drives SDPW Deflector screw to predetermined screw depth
• Sleeve length: 3.10 in.
• Drive type: T40
• Size: 0.275 in. x 6 in.
• Sleeve color: Gray
• Quantity: 50 per package

Application

• Fastening Wood-to-Wood
• Deflection
• Fastening Truss/Rafter-to-Plate

Specifications

• ERP Part Number: SDPW19600-R50
• UPC: 707392014461
• GTIN: 707392014461
• Feature 01: Deep 6-lobe recess for secure driving
• Feature 02: Polymer sleeve allows for deflection without squeaks
• Feature 03: Interior-grade E-coat for dry service applications
• Feature 04: Offset driver bit (6-lobe) drives SDPW Deflector screw to predetermined screw depth
• Feature 05: Sleeve length: 3.10 in.
• Feature 06: Drive type: T40
• Feature 07: Size: 0.275 in. x 6 in.
• Feature 08: Sleeve color: Gray
• Feature 09: Quantity: 50 per package
• Install With: T40 offset driver bit and 3/8 in. quick release predrill bit (included)
• Applications List: Fastening Wood-to-Wood
• Applications List.1: Deflection
• Applications List.2: Fastening Truss/Rafter-to-Plate
• Assembled Depth - Imperial: 0.650
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.065
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.650
• Assembled Width UOM - Imperial: in.
• Base Product ID: SDPW_Screw
• Base Product Name: Strong-Drive® SDPW™ DEFLECTOR Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Interior Wood Screws > Hand-Drive Screw
• Coating: E-coat® Electrocoating
• Color: Gray
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T40 6-Lobe
• EAN category: UC
• Finish: E-coat Electrocoating
• GUID: 90566685924687045508816074584220792344
• Head Diameter (in.): 0.650
• Head Type: Washer Head
• Length (in.): 6
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 3.75
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 3.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 9.75
• Package Width UOM - Imperial: in.
• Packaging Quantity: 50
• Packaging Type: Box
• Point Type: SawTooth® Point
• Product Class: Hand-Drive Screw
• Product Includes: Includes T40 offset driver bit and 3/8 in. quick release predrill bit
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.195
• Shipping Weight: 3.4
• Short Product Name: DEFLECTOR SCREWS 6" RETAIL PACK, 50 CT
• Strongtie.com URL: https://www.strongtie.com/strongdrive_interiorwoodscrews/sdpw_screw/p/strong-drive-sdpw-deflector-screw
• Subcategory: Fasteners
• Subcategory 2: Interior Wood Screws
• Thread Length (in.): 3
• Thread Type: Serrated Threads
• US Patents: 8,458,972
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392014468
• PAL Reference: 50707392014466
