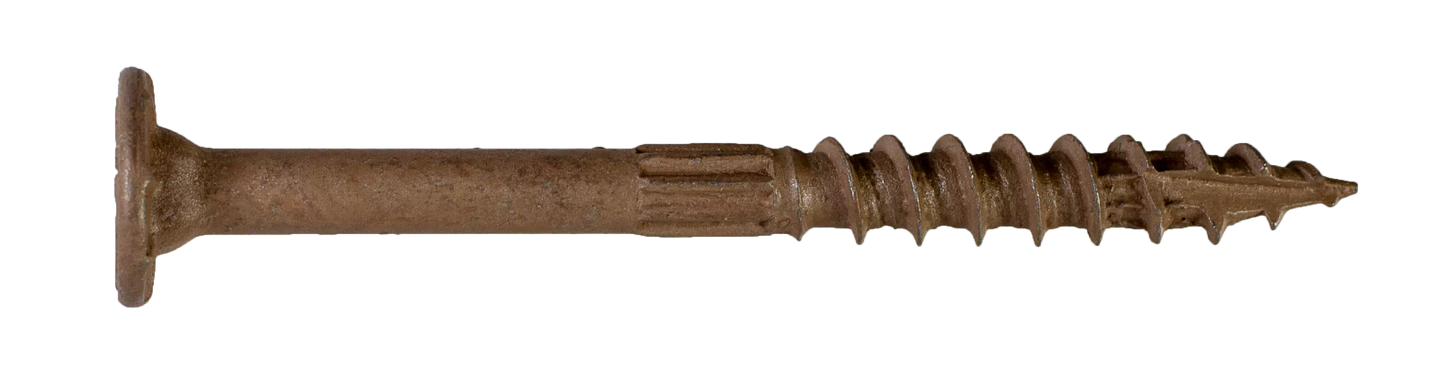

Simpson Strong-Tie SDWS16212QMB Strong-Drive® SDWS™ FRAMING Screw — 0.160 in. x 2-1/2 in. T25, Quik Guard®, Tan (250-Qty)

The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160 in. in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for several common wood framing applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Large head with underhead box-nibs provides increased bearing in structural applications and provides clean and easy countersinking (0.450-in. head dia.)

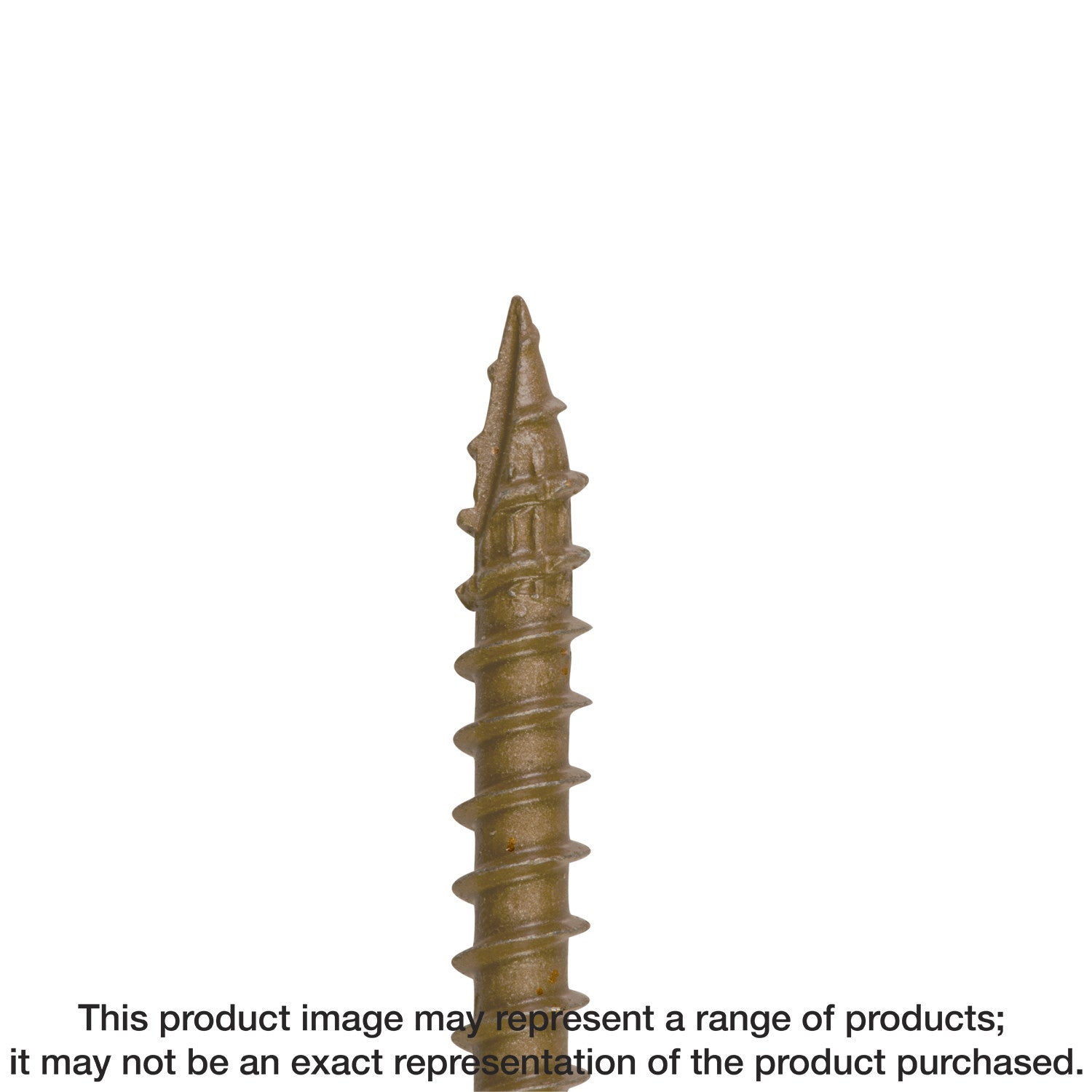

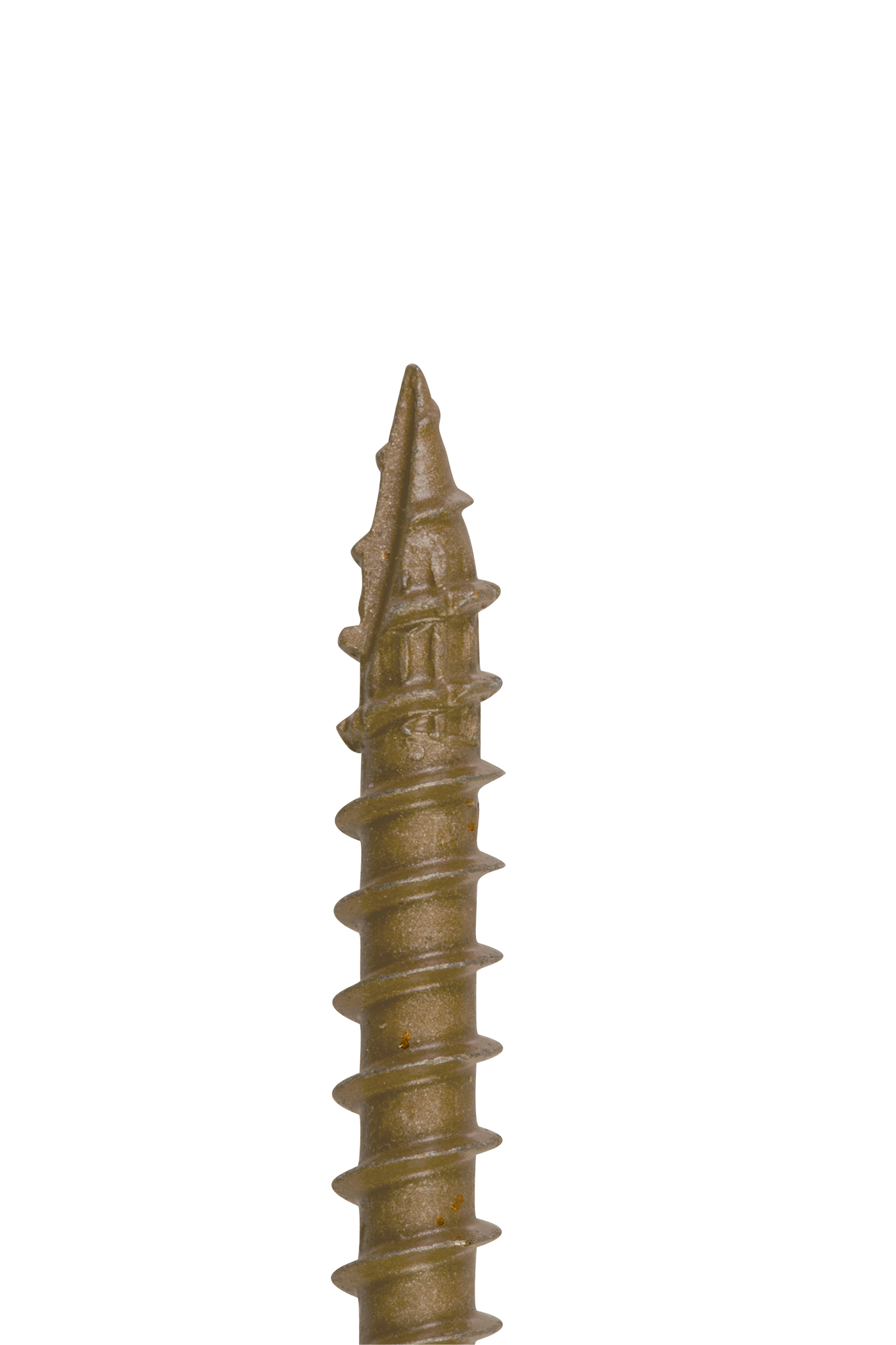

• SawTooth® Type-17 tip for quick starts with no predrilling
• Serrated threads reduce installation torque for easier driving
• The 6-lobe drive reduces driver-bit cam-outs, resulting in easier installations and longer bit life
• Driver bit included (BIT25T-2-R2)
• Length: 2-1/2 in.
• Quik Guard coating provides protection in indoor and outdoor applications
• Color: Tan
• Quantity: 250

Application

• Fastening Wood-to-Wood
• Framing — Wood
• Fencing
• Crating

Specifications

• ERP Part Number: SDWS16212QMB
• UPC: 707392954125
• GTIN: 707392954125
• Feature 01: Large head with underhead box-nibs provides increased bearing in structural applications and provides clean and easy countersinking (0.450-in. head dia.)
• Feature 02: SawTooth® Type-17 tip for quick starts with no predrilling
• Feature 03: Serrated threads reduce installation torque for easier driving
• Feature 04: The 6-lobe drive reduces driver-bit cam-outs, resulting in easier installations and longer bit life
• Feature 05: Driver bit included (BIT25T-2-R2)
• Feature 06: Length: 2-1/2 in.
• Feature 07: Quik Guard coating provides protection in indoor and outdoor applications
• Feature 08: Color: Tan
• Feature 09: Quantity: 250
• Applications List: Fastening Wood-to-Wood
• Applications List.1: Framing — Wood
• Applications List.2: Fencing
• Applications List.3: Crating
• Assembled Depth - Imperial: 0.450
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.5
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.450
• Assembled Width UOM - Imperial: in.
• Base Product ID: SDWS-Q_Screw
• Base Product Name: Strong-Drive® SDWS™ FRAMING Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Exterior Wood Screws > Hand-Drive Screw
• Coating: Quik Guard® Coating
• Color: Tan
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T25 6-Lobe
• EAN category: UC
• Finish: Quik Guard® Coating
• GUID: 87879893750786122641219107160258401622
• Head Diameter (in.): 0.450
• Head Type: Low Profile Head
• Length (in.): 2 1/2
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 4.50
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 5.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 5.88
• Package Width UOM - Imperial: in.
• Packaging Quantity: 250
• Packaging Type: Tub
• Point Type: SawTooth® Type-17 Point
• Product Class: Hand-Drive Screw
• Product Includes: (1) T25 6-lobe driver bit
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.160
• Shipping Weight: 3.96
• Short Product Name: .160 2-1/2IN SDWS QUIKGRD FRAMING 250CT
• Strongtie.com URL: https://www.strongtie.com/strongdrive_exteriorwoodscrews/sdws-q_screw/p/strong-drive-sdws-framing-screw
• Subcategory: Fasteners
• Subcategory 2: Exterior Wood Screws
• Thread Length (in.): 1 1/8
• Thread Type: Serrated Threads
• TPI: 8 1/2
• US Patents: 11,181,138
• US Patents.1: 9,523,383
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392954122
• PAL Reference: 50707392954120
