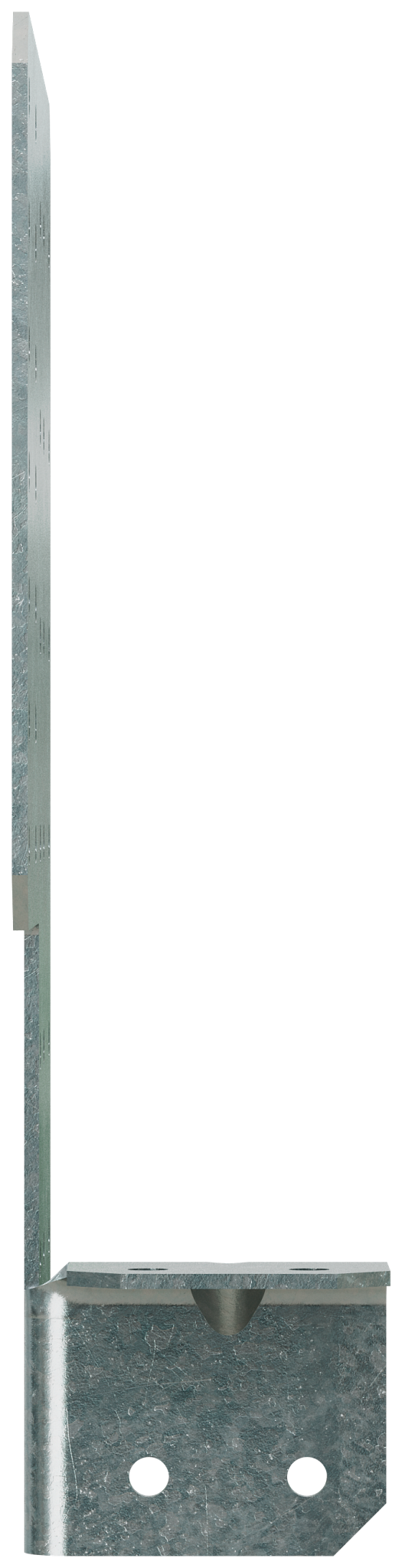

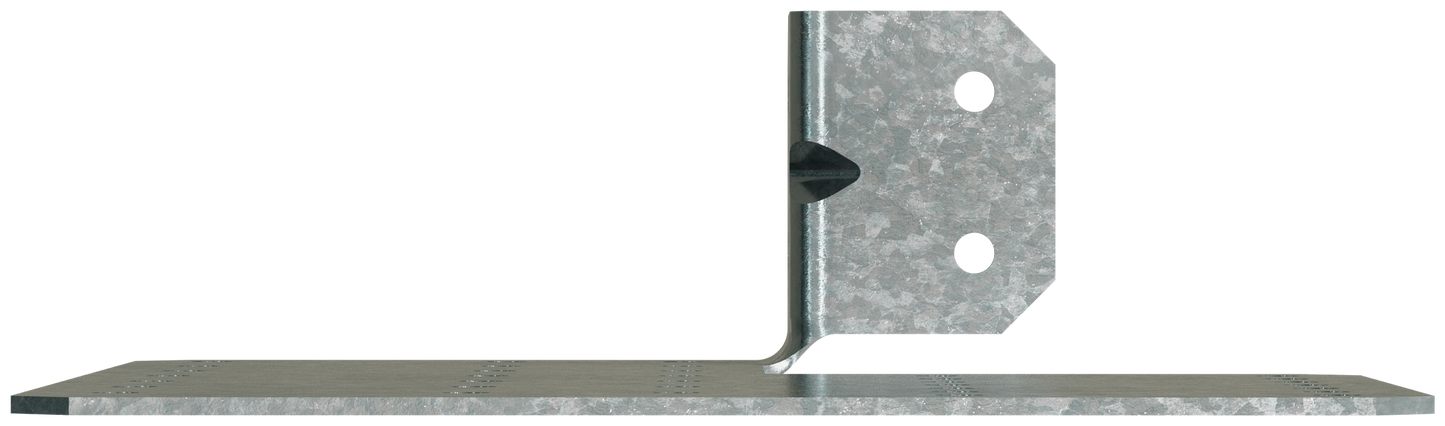

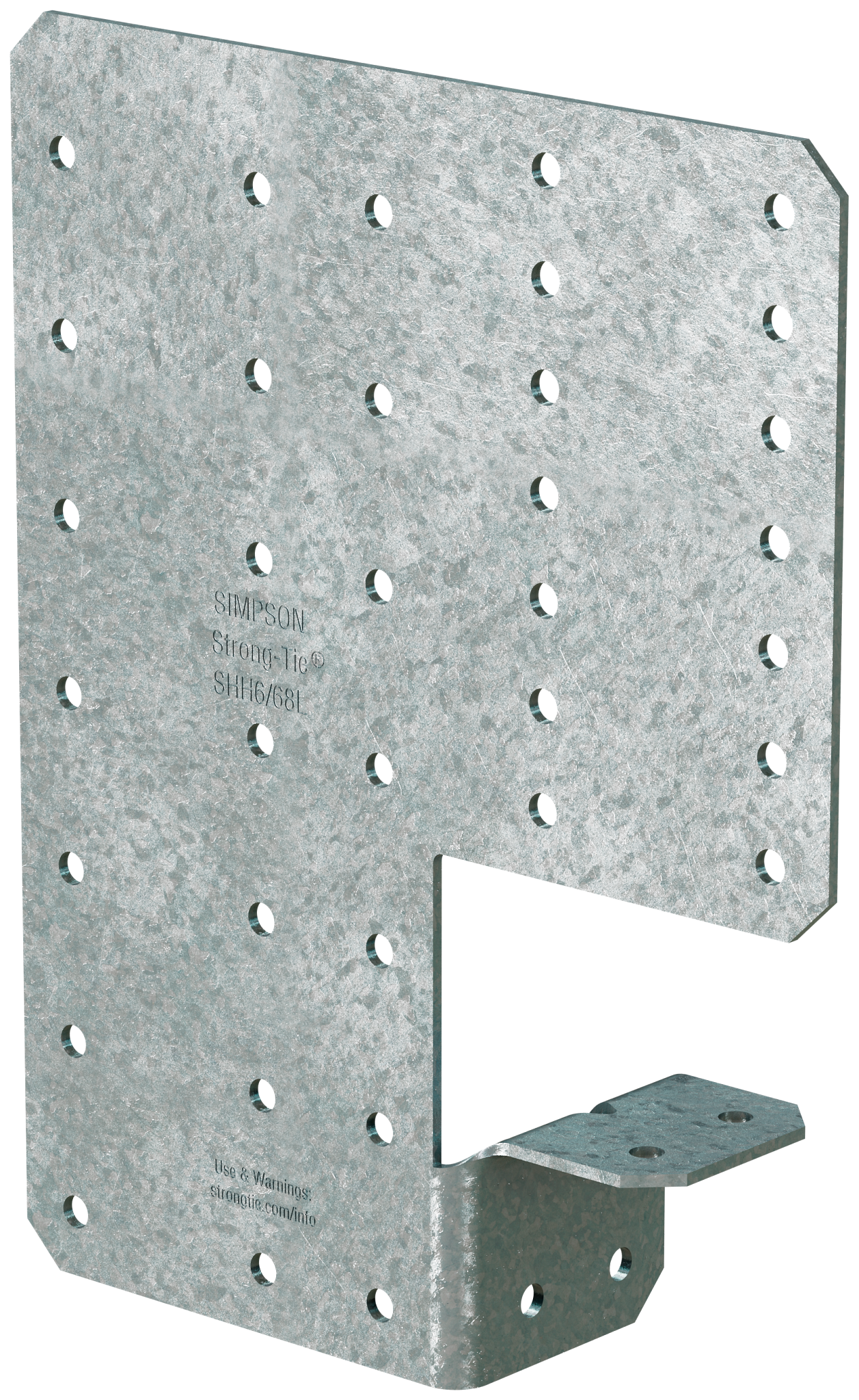

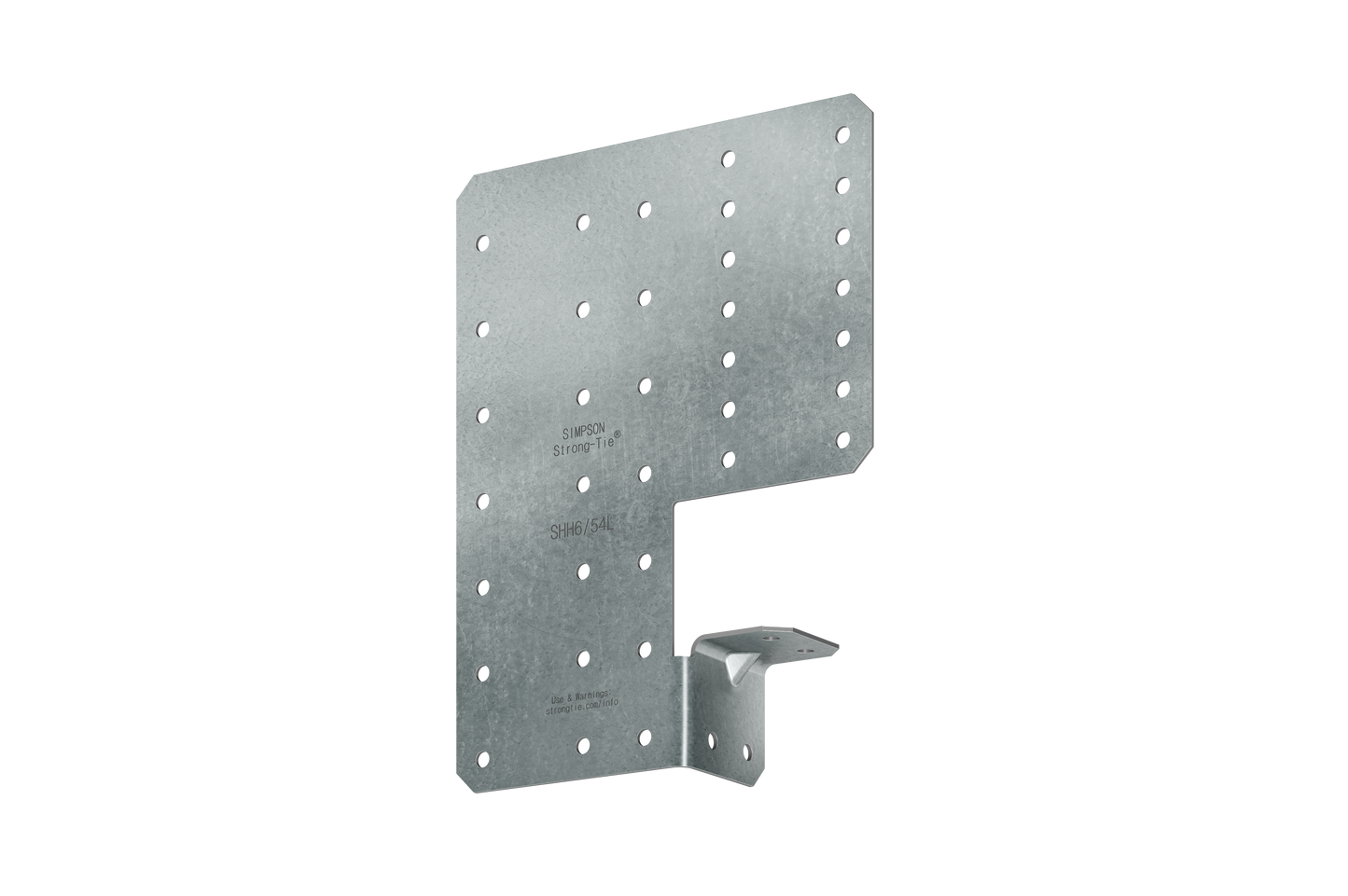

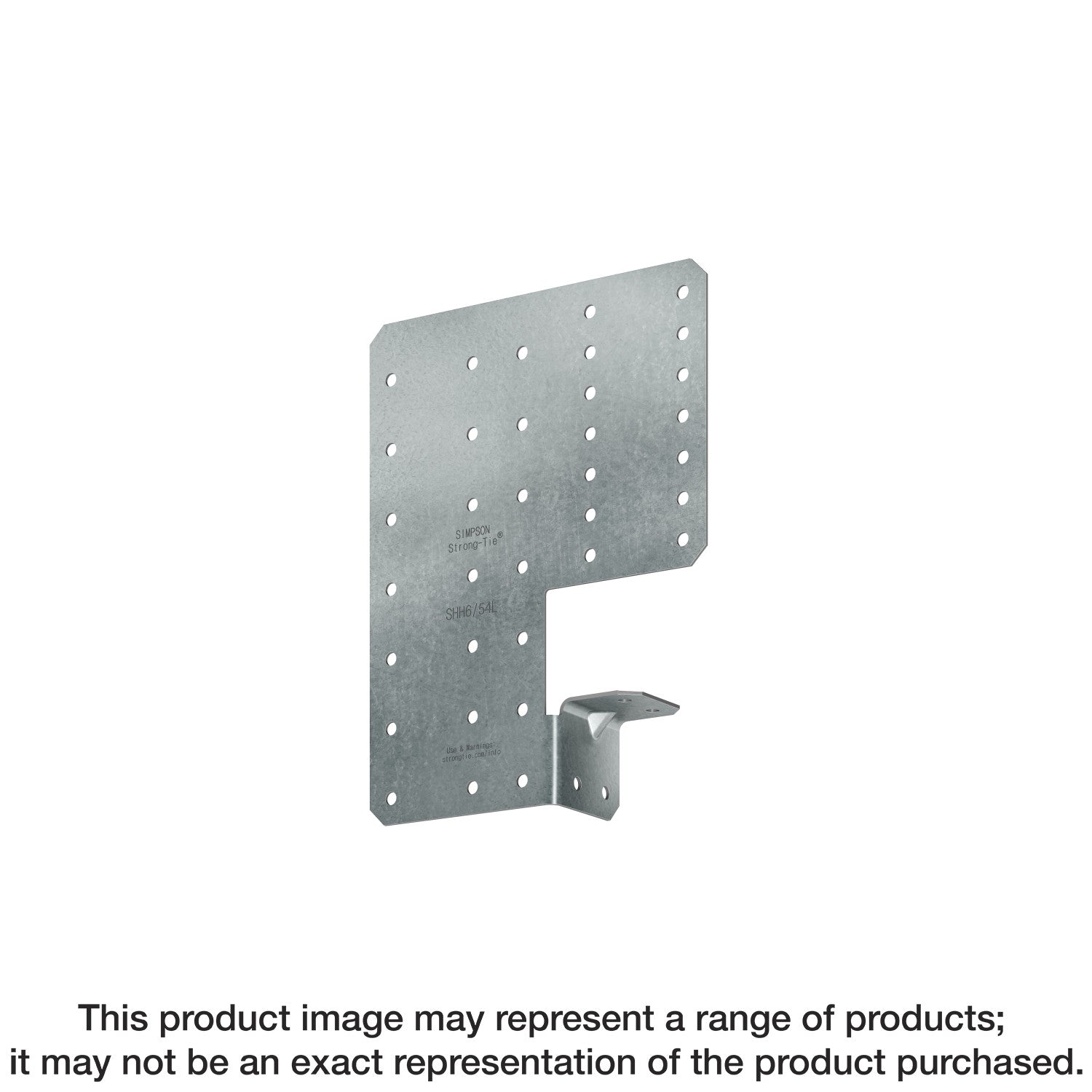

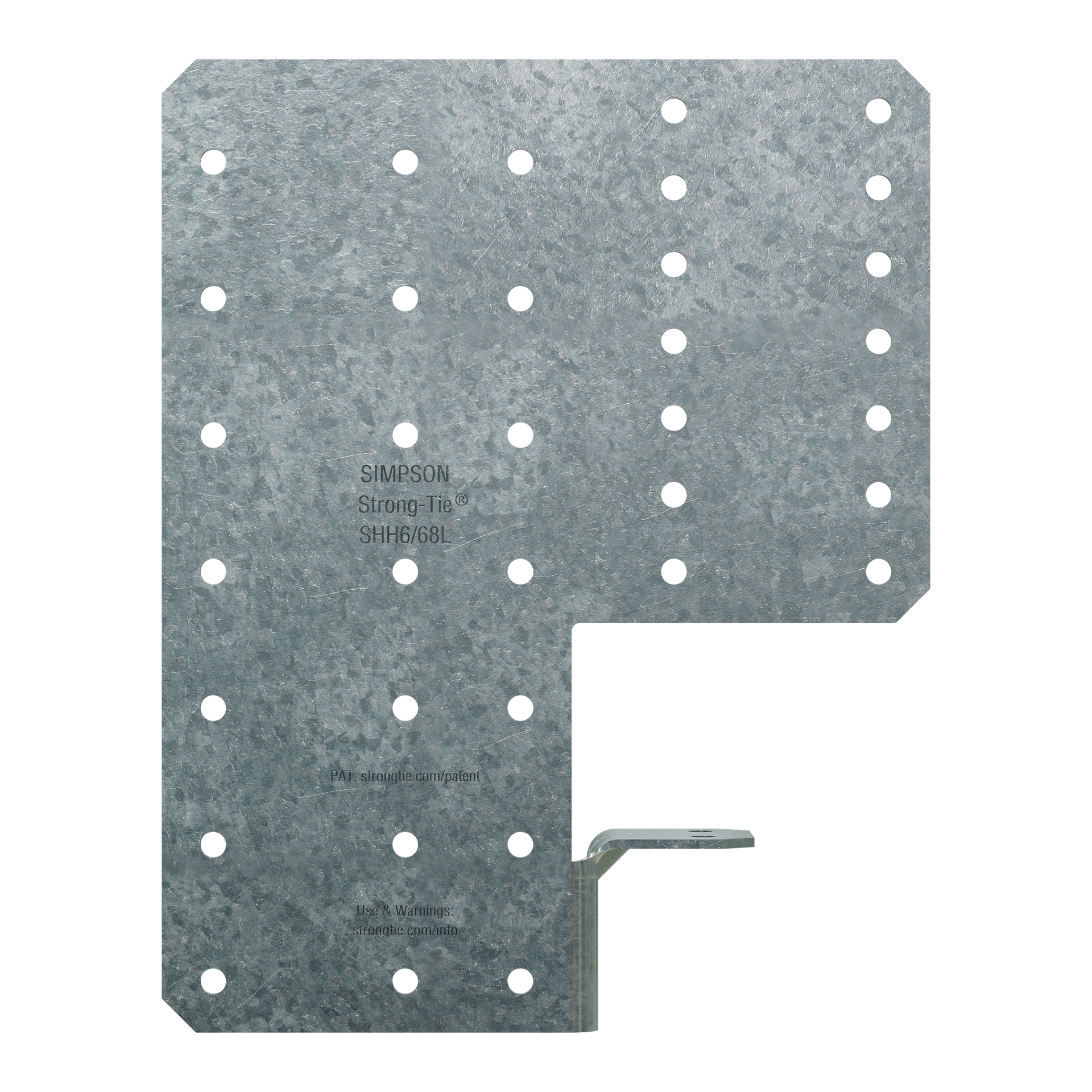

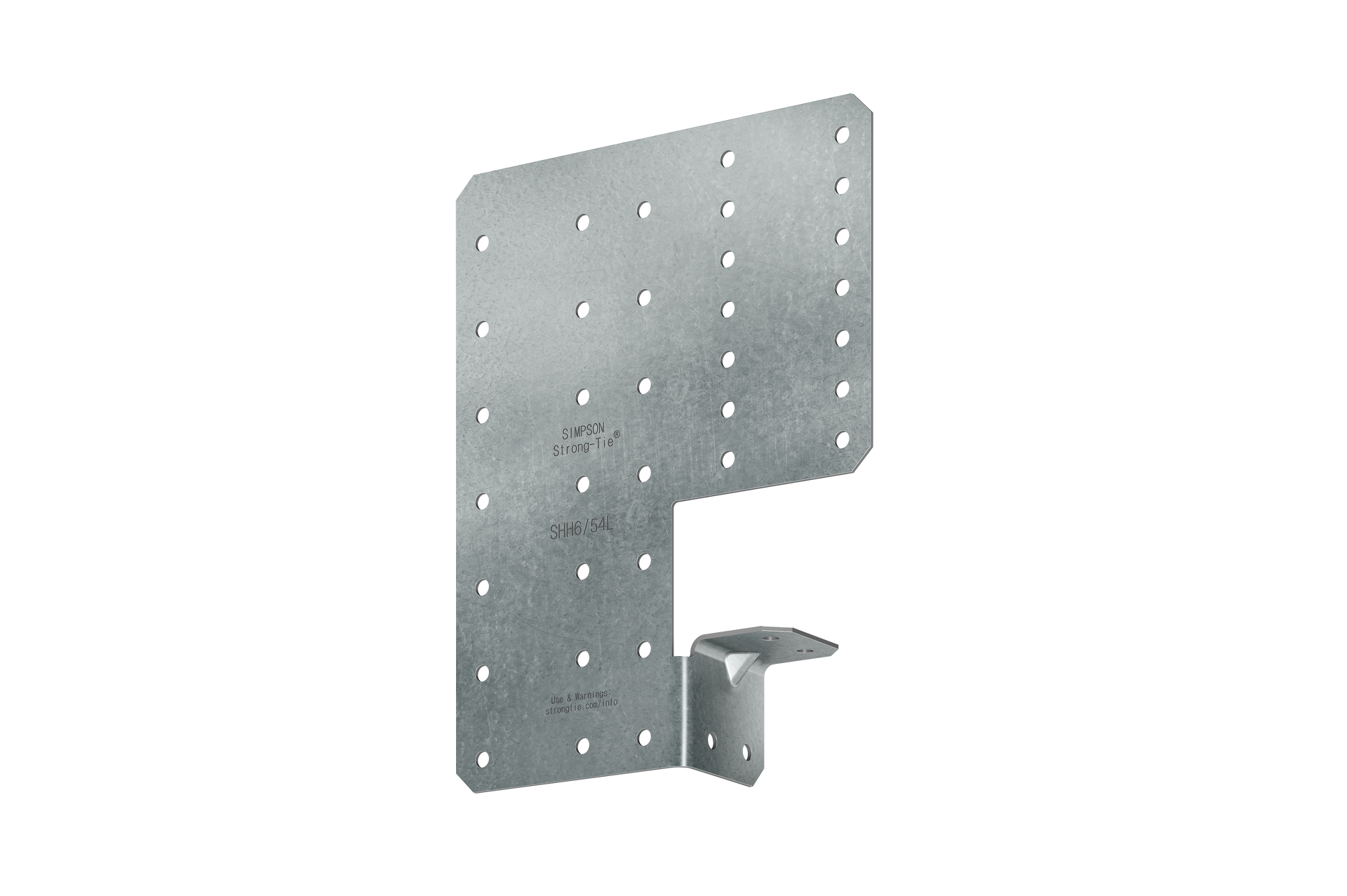

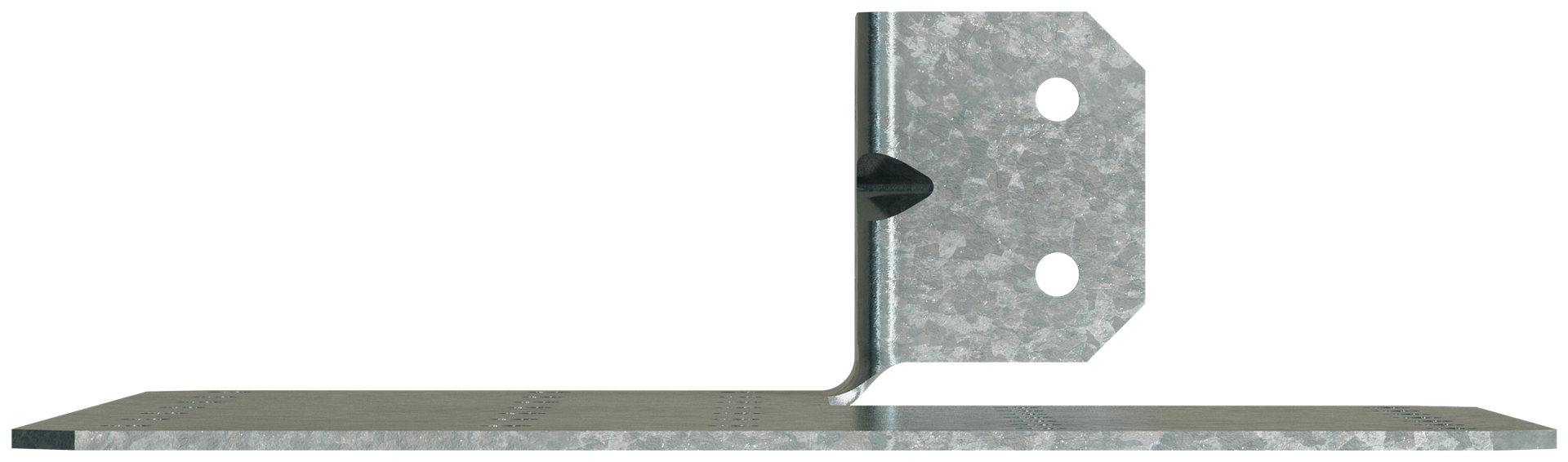

Simpson Strong-Tie SHH6/68-KT24 SHH 7-3/16 in. x 5-5/8 in. 68-mil Galvanized Steel Header Hanger (24-Qty) (Pack of 24)

The Simpson Strong-Tie SHH steel header hanger is used to support traditional CFS box headers that are fabricated with top and bottom tracks, as well as large-flange lay-in headers that are common in curtain-wall construction. The connector geometry minimizes drywall buildup, and the screw count has been minimized through extensive testing. A wide array of value-engineered hole patterns are available that will accommodate different load levels while minimizing installed cost.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The bottom tabs transfer wind load from the horizontal window header to the jamb studs and help support the header assembly during installation
• Tabulated loads are based on component assembly testing, which assists to mitigate design risk
• To enable easier drywall installation, the gusset portion of the SHH is coped to avoid 1 1/2" (max.) track legs
• The screw-hole layout at the jamb studs accommodates flange sizes of 1-5/8 in., 2 in., 2-1/2 in., 3 in. and 3-1/2 in. – this versatility allows the load to be evenly distributed along two lines of fasteners so that each jamb stud carries equal axial load with minimum eccentricity
• Made from 68-mil/14-gauge steel intended for use with 6-in.-deep (min.) box headers
• Galvanized (G90) for extra corrosion resistance
• Packaged as a box of 12 right-handed connectors and 12 left-handed connectors

Specifications

• ERP Part Number: SHH6/68-KT24
• UPC: 50707392405158
• GTIN: 50707392405158
• Feature 01: The bottom tabs transfer wind load from the horizontal window header to the jamb studs and help support the header assembly during installation
• Feature 02: Tabulated loads are based on component assembly testing, which assists to mitigate design risk
• Feature 03: To enable easier drywall installation, the gusset portion of the SHH is coped to avoid 1 1/2" (max.) track legs
• Feature 04: The screw-hole layout at the jamb studs accommodates flange sizes of 1-5/8 in., 2 in., 2-1/2 in., 3 in. and 3-1/2 in. – this versatility allows the load to be evenly distributed along two lines of fasteners so that each jamb stud carries equal axial load with minimum eccentricity
• Feature 05: Made from 68-mil/14-gauge steel intended for use with 6-in.-deep (min.) box headers
• Feature 06: Galvanized (G90) for extra corrosion resistance
• Feature 07: Packaged as a box of 12 right-handed connectors and 12 left-handed connectors
• Assembled Depth - Imperial: 1.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.1875
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.625
• Assembled Width UOM - Imperial: in.
• Base Product ID: SHH_Hanger
• Base Product Name: SHH
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Rigid Connectors > Hanger
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 79751290157110918775384728620435797759
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 24
• Shipping Weight: 451.68
• Short Product Name: HEADER HANGER 7.1875 X 5.625 14GA 24PAK
• Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/shh_hanger/p/shh
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Rigid Connectors
• US Patents: 11,078,665
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392405153
