Simpson Strong-Tie SP4 SP 3-9/16 in. x 7-1/4 in. Galvanized Stud Plate Tie

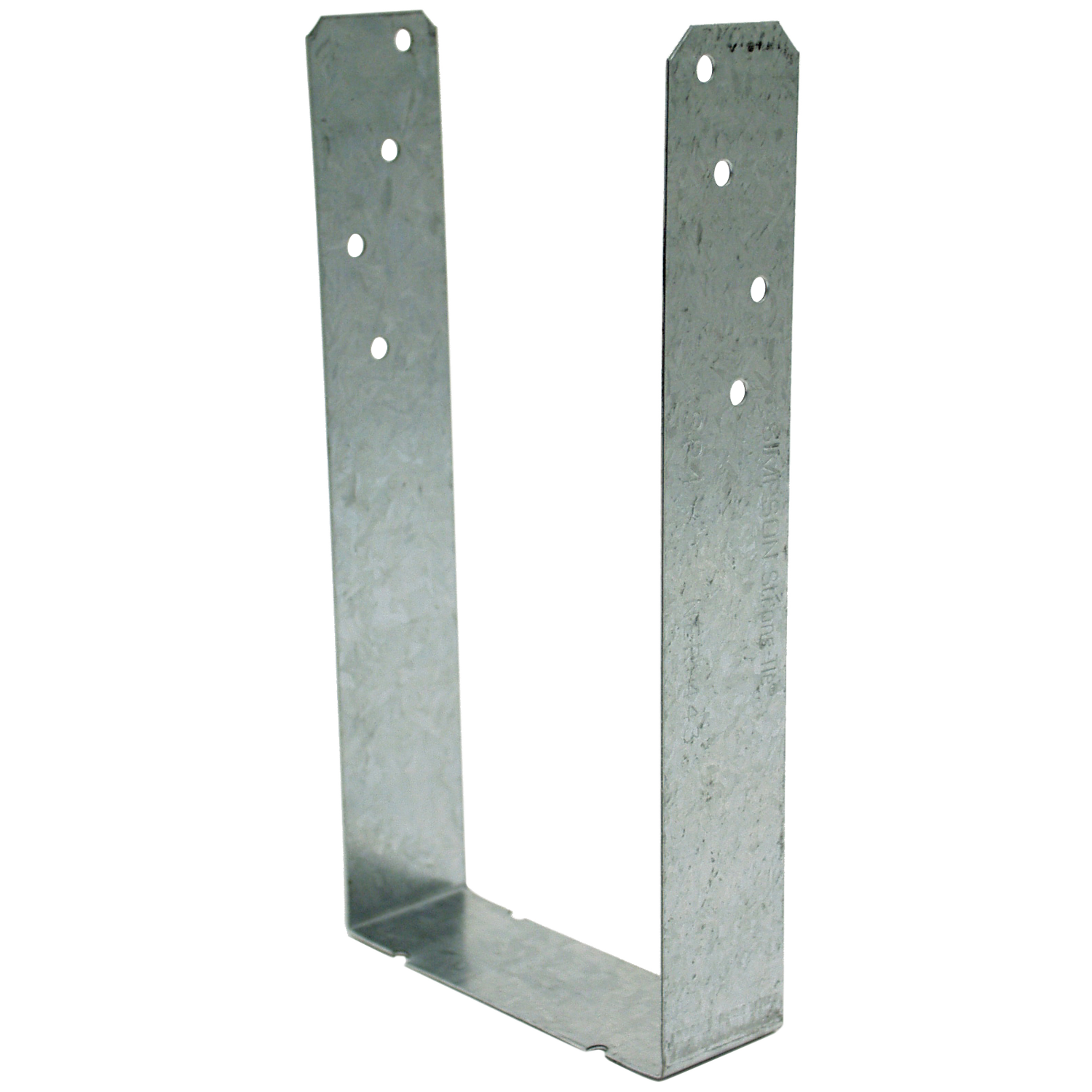

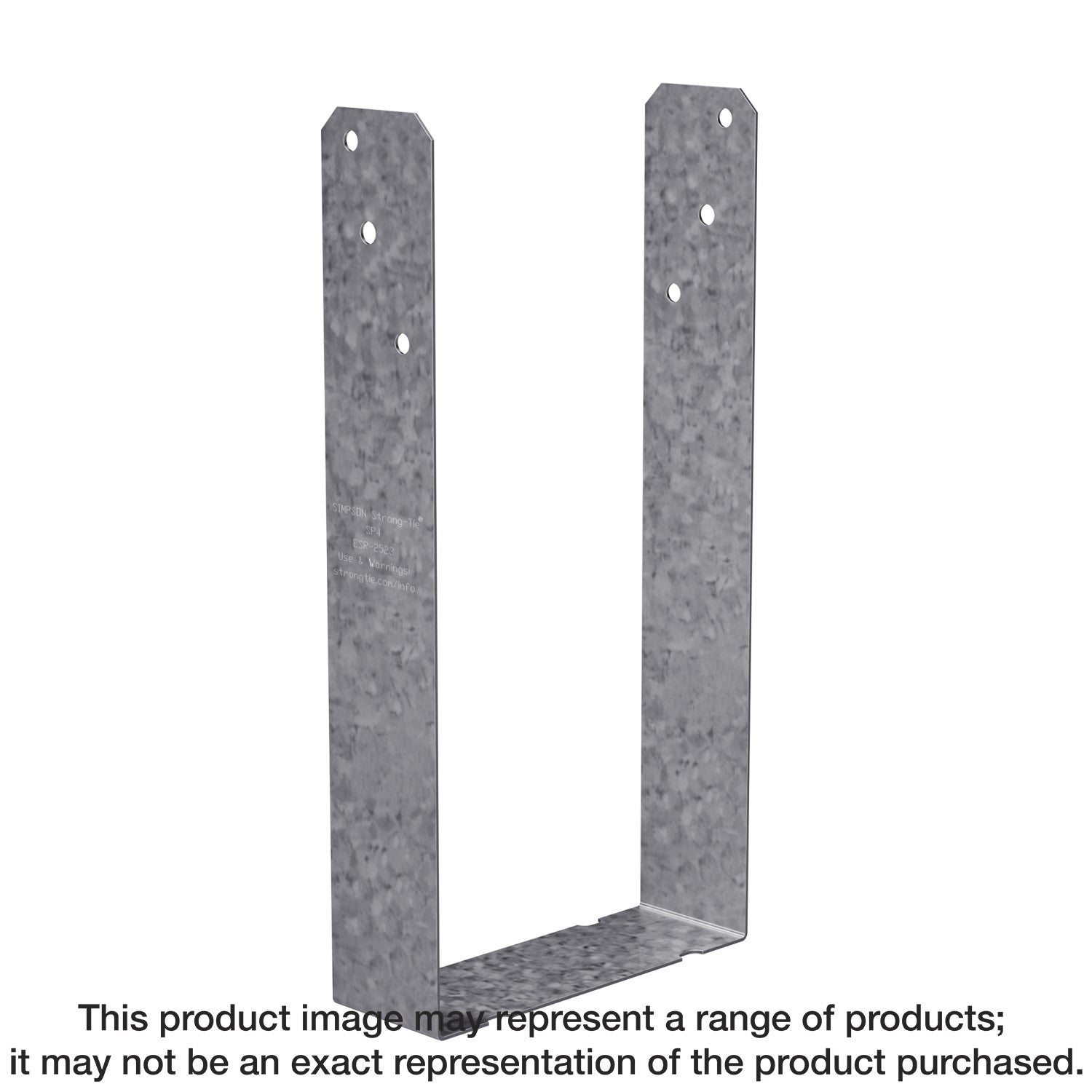

The stud-plate tie series offers various solutions for connecting the stud to the top and bottom plates. The SP is designed as a stud-to-plate connection to resist uplift. This U-shaped strap has a horizontal portion that bears against the wood-wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. These ties are a cost-effective option when properly installed before the placement of the wall.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Load rated
• Designed to resist wind and seismic forces
• Does not require top or bottom track attachment
• Nominal stud size: 2x
• Nominal plate width: 4x
• Made from 20-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: SP4
• UPC: 44315094903
• GTIN: 44315094903
• Feature 01: Load rated
• Feature 02: Designed to resist wind and seismic forces
• Feature 03: Does not require top or bottom track attachment
• Feature 04: Nominal stud size: 2x
• Feature 05: Nominal plate width: 4x
• Feature 06: Made from 20-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: (6) 0.148 in. x 1-1/2 in. nails
• Assembled Depth - Imperial: 1.25
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.25375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.6325
• Assembled Width UOM - Imperial: in.
• Base Product ID: SP_UTie
• Base Product Name: SP4/6/8
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Stud-Plate Tie
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 20
