Simpson Strong-Tie SP6 SP 5-9/16 in. x 7-3/4 in. Galvanized Stud Plate Tie (Pack of 4800)

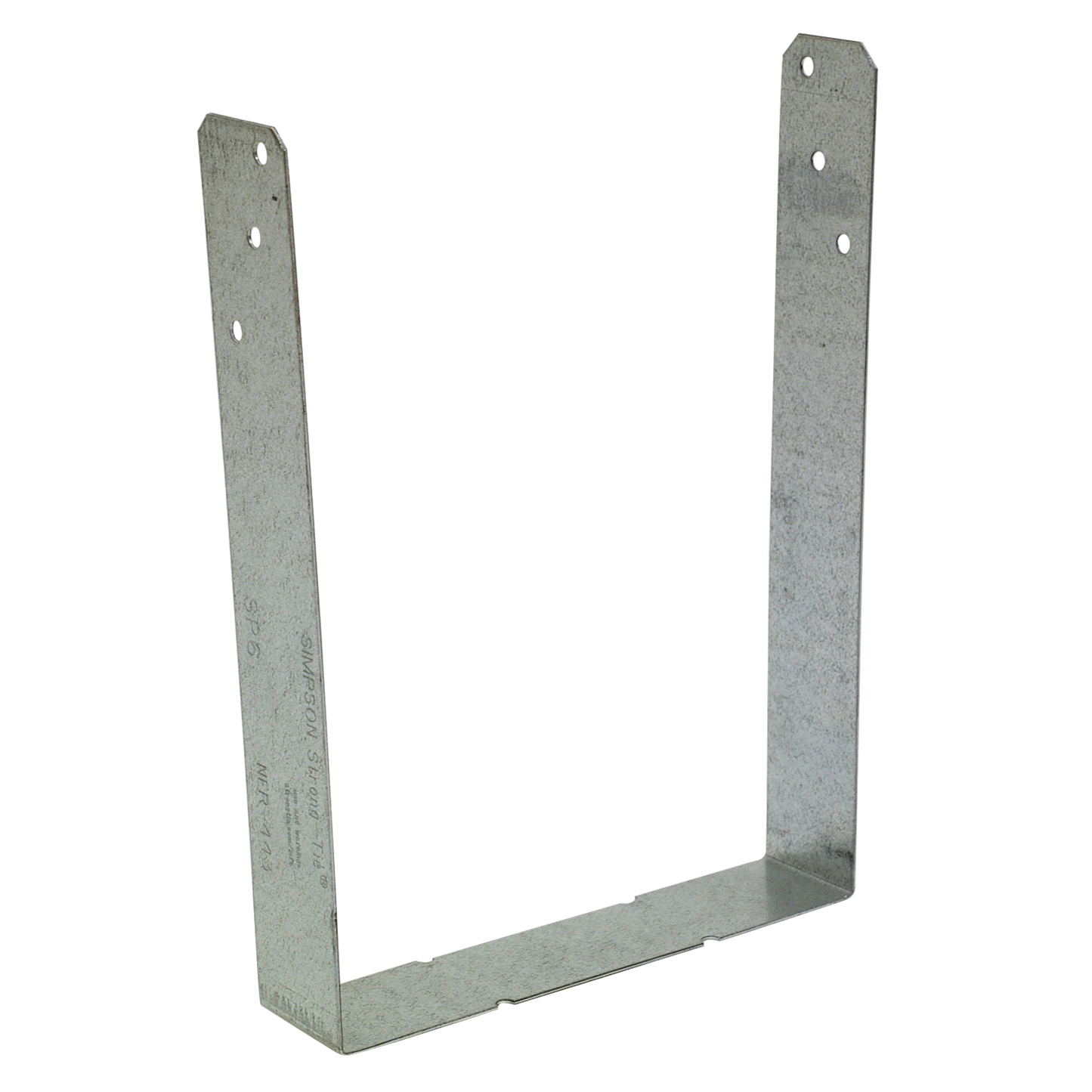

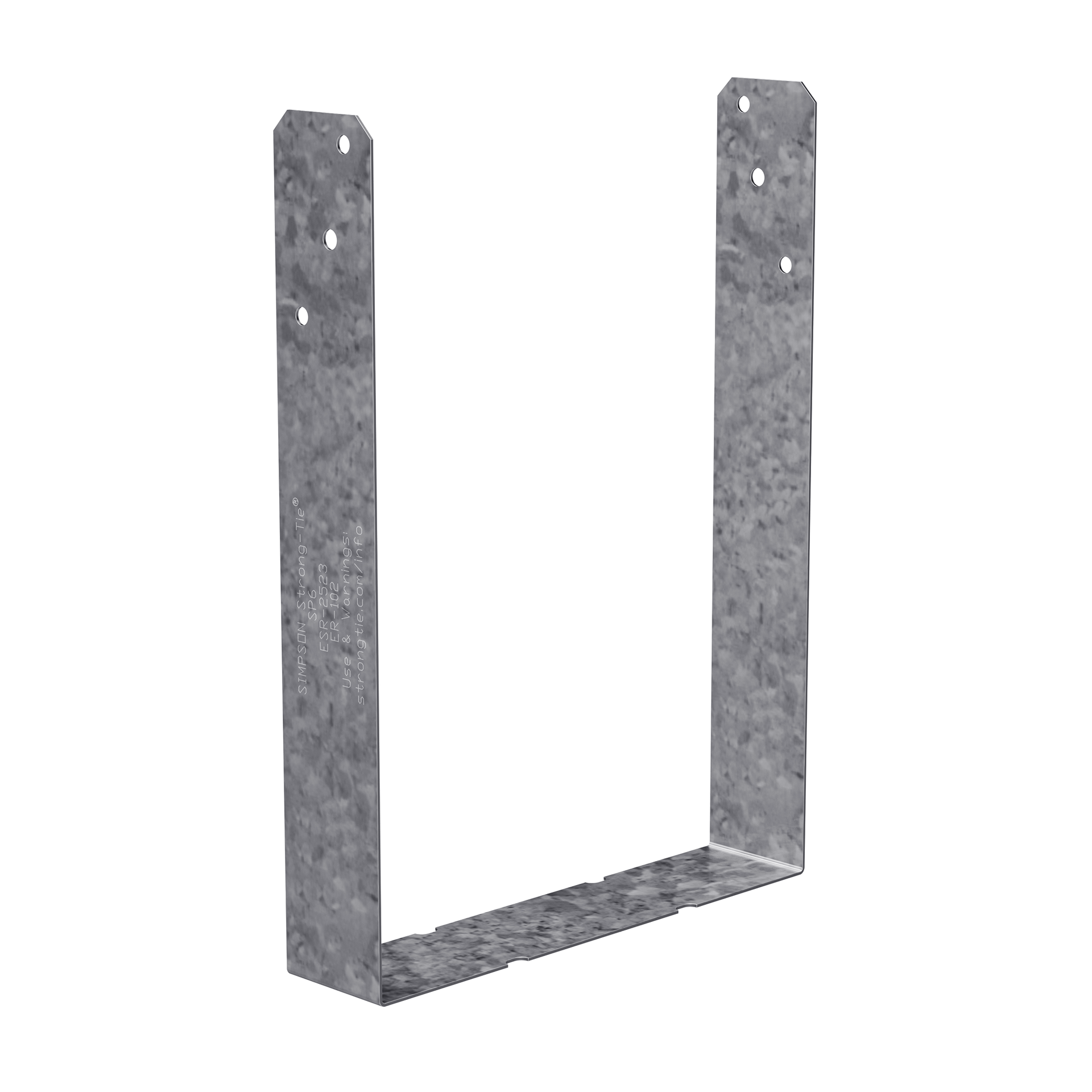

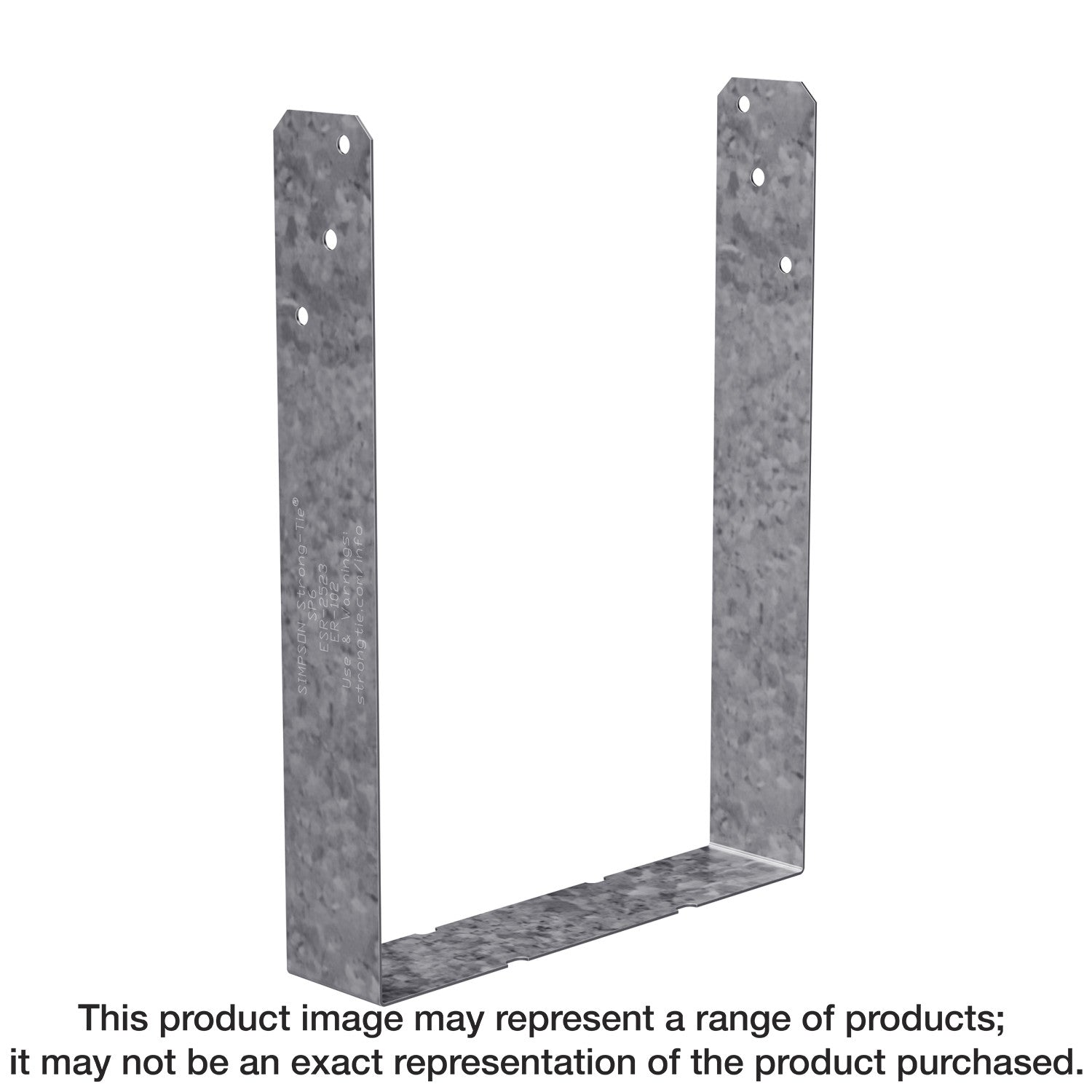

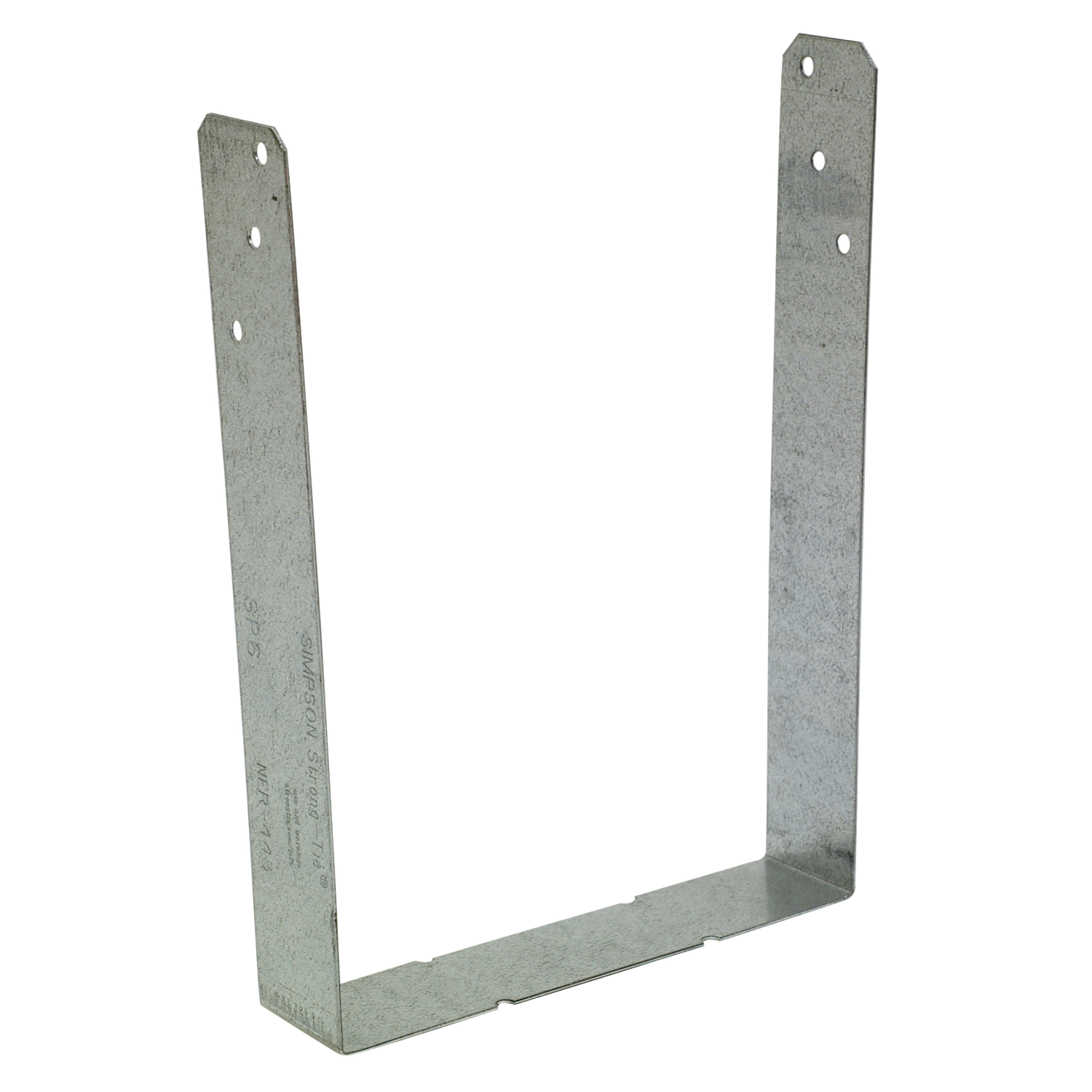

The stud-plate tie series offers various solutions for connecting the stud to the top and bottom plates. The SP is designed as a stud-to-plate connection to resist uplift. This U-shaped strap has a horizontal portion that bears against the wood-wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. These ties are a cost-effective option when properly installed before the placement of the wall.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Load rated
• Designed to resist wind and seismic forces
• Does not require top or bottom track attachment
• Nominal stud size: 2x
• Nominal plate width: 6x
• Made from 20-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: SP6
• UPC: 50044315822709
• GTIN: 50044315822709
• Feature 01: Load rated
• Feature 02: Designed to resist wind and seismic forces
• Feature 03: Does not require top or bottom track attachment
• Feature 04: Nominal stud size: 2x
• Feature 05: Nominal plate width: 6x
• Feature 06: Made from 20-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Assembled Depth - Imperial: 1.25
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.75375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.6325
• Assembled Width UOM - Imperial: in.
• Base Product ID: SP_UTie
• Base Product Name: SP4/6/8
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Stud-Plate Tie
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 224886364264251972606790723492779532601
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Stud-Plate Tie
• Prop 65 Warning: No
• Quantity: 4800
• Shipping Weight: 1296
• Short Product Name: STUD PLATE
