Description
Simpson Strong-Tie SPH4Z SPH 3-9/16 in. x 8-3/4 in. ZMAX® Galvanized Heavy-Duty Stud Plate Tie (Pack of 100)

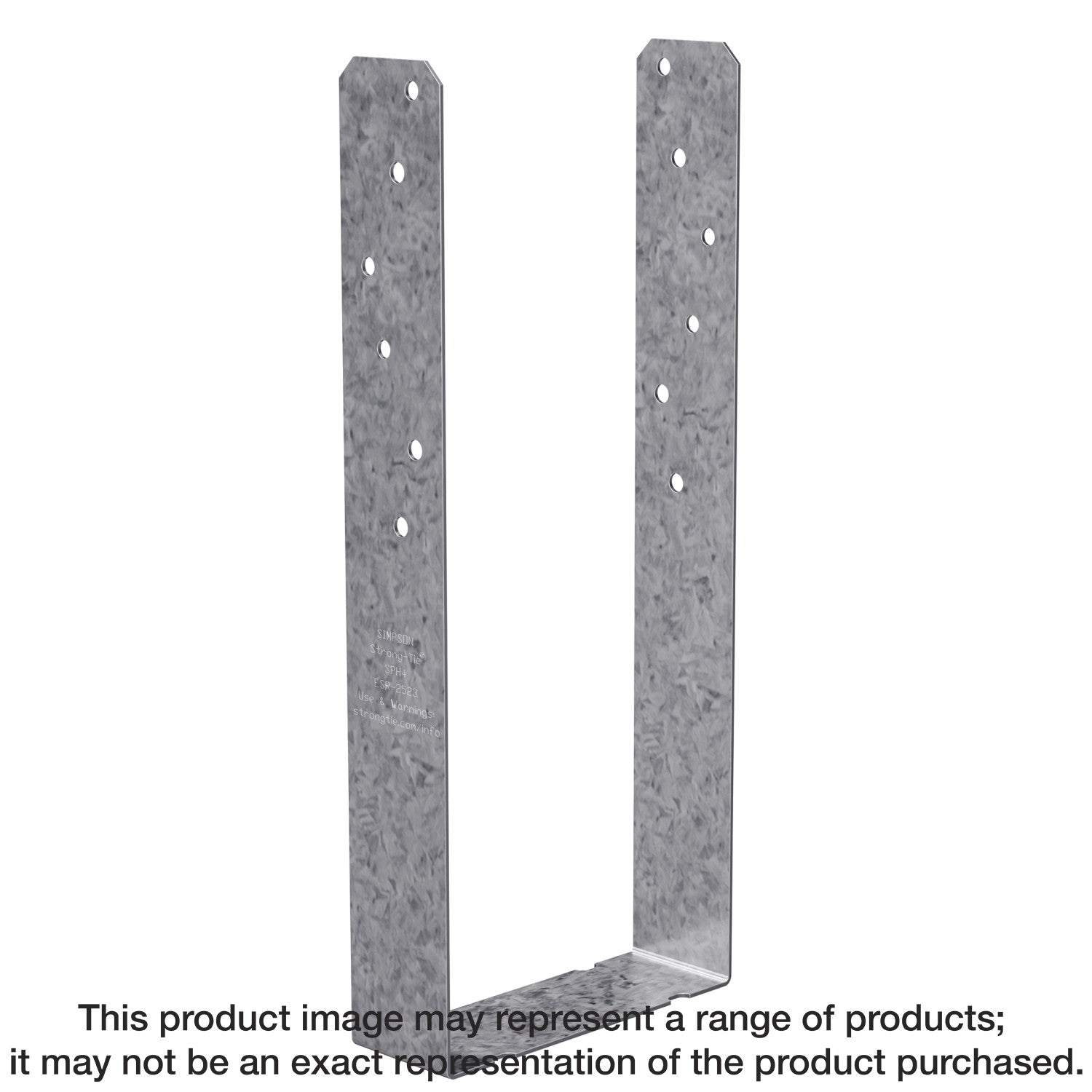

The SPH is a heavy U-shaped strap designed as a stud-to-plate connection to resist roof uplift. This heavy U-shaped strap has a horizontal portion that bears against the wood wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. This tie is a cost-effective option when properly installed before the placement of the wall.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Load rated
- Designed to resist wind and seismic forces
- Does not require top or bottom track attachment
- Nominal stud size: 2x
- Nominal plate width: 4x
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- ERP Part Number: SPH4Z
- UPC: 10707392550003
- GTIN: 10707392550003
- Feature 01: Load rated
- Feature 02: Designed to resist wind and seismic forces
- Feature 03: Does not require top or bottom track attachment
- Feature 04: Nominal stud size: 2x
- Feature 05: Nominal plate width: 4x
- Feature 06: Made from 18-gauge steel
- Feature 07: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Assembled Depth - Imperial: 1.25
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 8.76675
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 3.6585
- Assembled Width UOM - Imperial: in.
- Base Product ID: SPH_Tie
- Base Product Name: SPH
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Stud-Plate Tie
- Country of Origin: US
- Customer Unit: No
- Display Unit/Measure: CAR
- EAN category: IC
- GUID: 299087912981293810027291283336900557258
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: Carton
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Package Depth - Imperial: 20.625
- Package Depth UOM - Imperial: in.
- Package Height - Imperial: 8
- Package Height UOM - Imperial: in.
- Package Width - Imperial: 8
- Package Width UOM - Imperial: in.
- Product Class: Stud-Plate Tie
- Prop 65 Warning: No
- Quantity: 100
- Shipping Weight: 35
- Short Product Name: HEAVY DUTY STUD TO PLATE TIE
- Strongtie.com URL: https://www.strongtie.com/studplateties_strapsandties/sph_tie/p/sph
- Subcategory: Wood Construction Connectors
- Subcategory 2: Straps and Ties
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- EA Reference: 707392550006
- PAL Reference: 50707392550001
- Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
