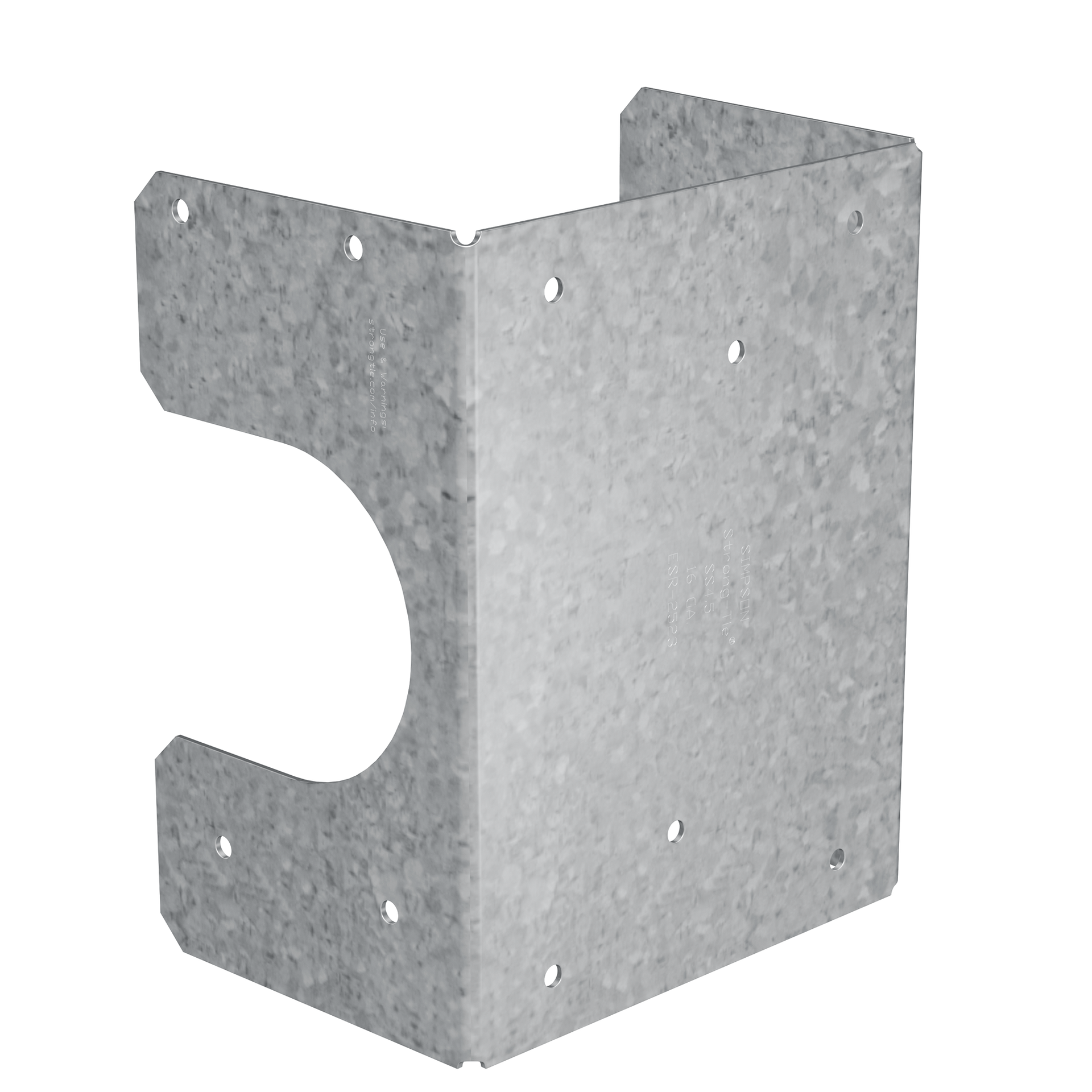

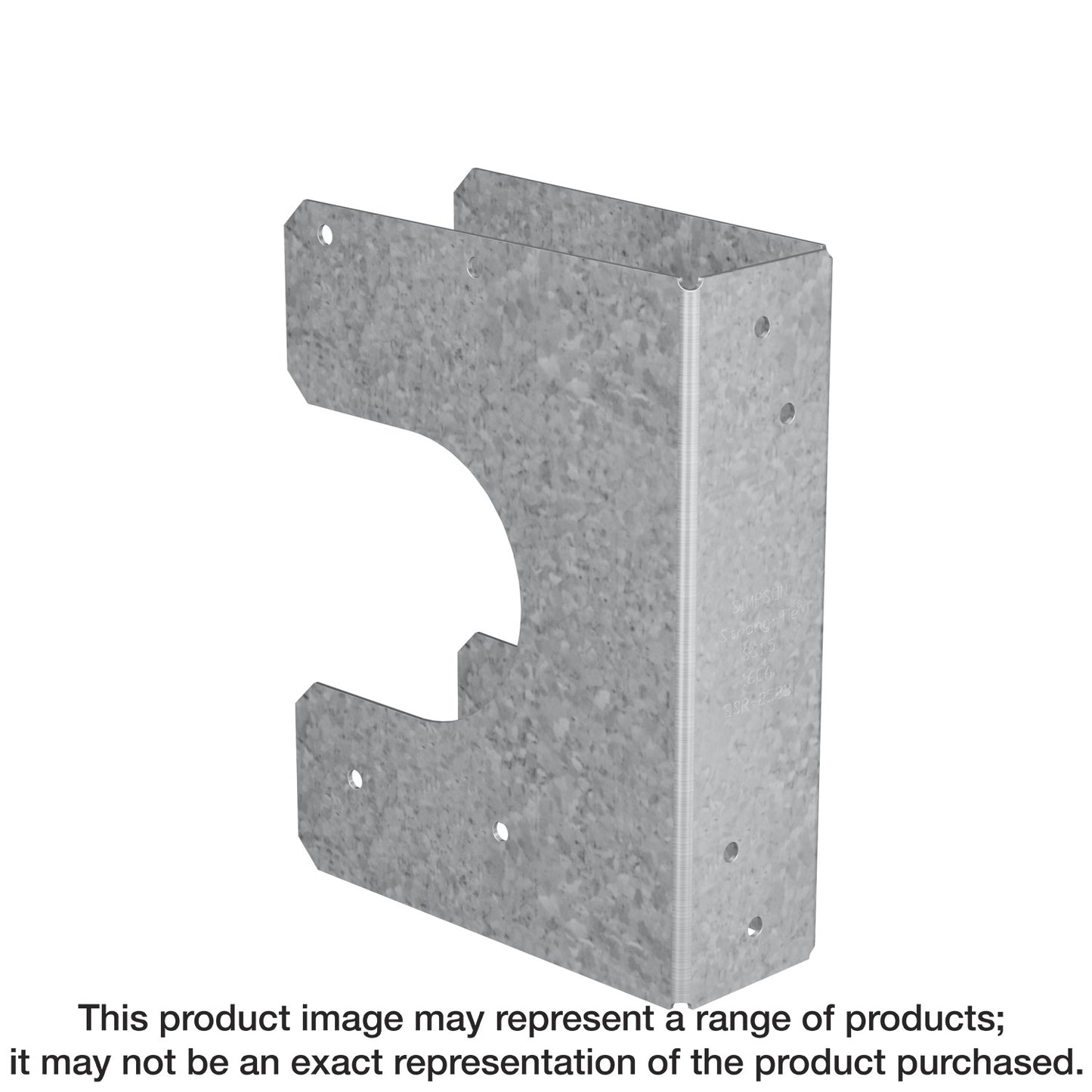

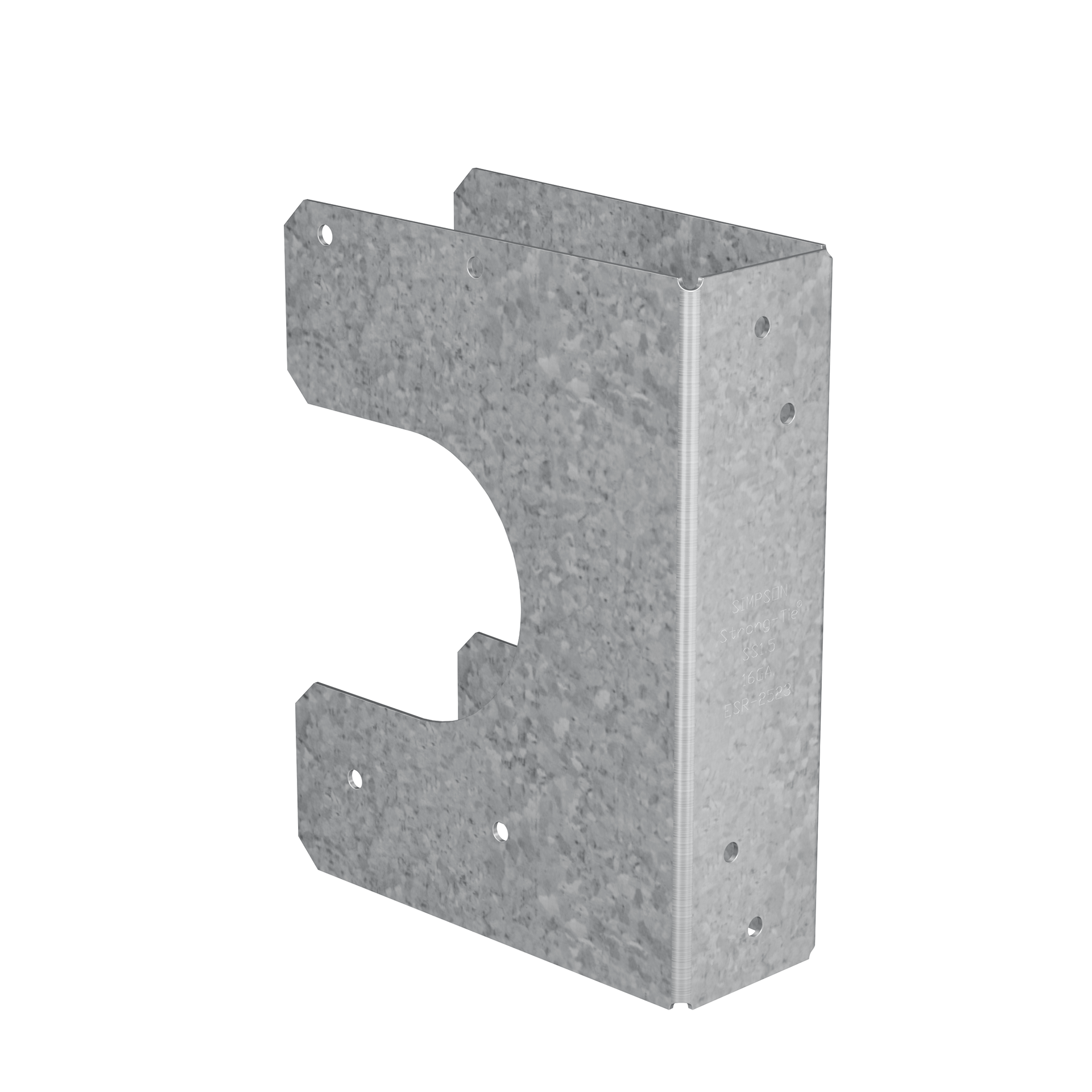

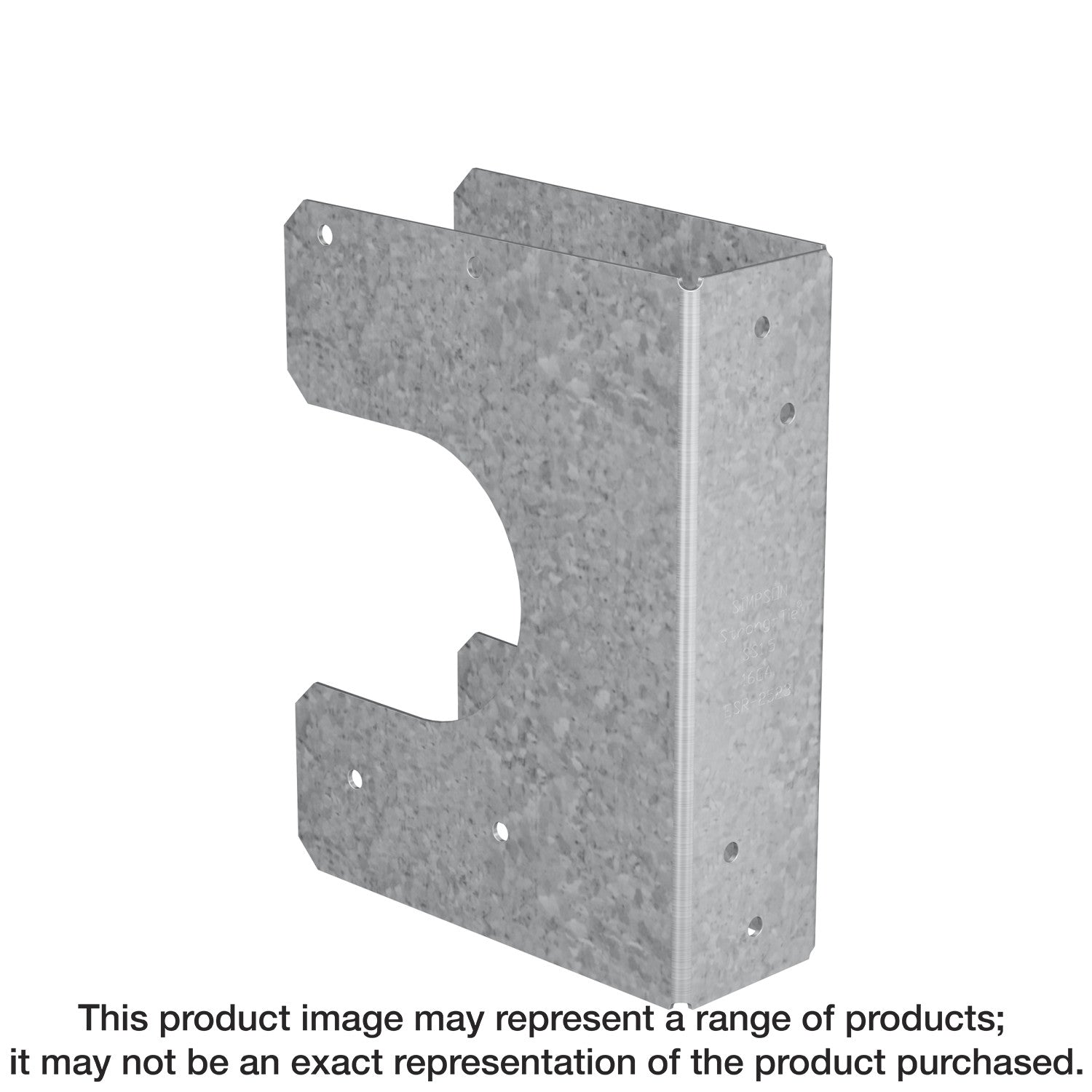

Simpson Strong-Tie SS4.5 SS 16-Gauge Galvanized Stud Shoe for Triple 2x Stud

The Simpson Strong-Tie® SS stud shoe is designed to reinforce notched, vertical studs in construction. This stud shoe is used to strengthen a wall stud that has a large hole drilled through it, typically to accommodate a plumbing waste line. The SS installs over the outside diameter of the pipe and is used as part of a total member replacement in structural applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Installs over pipe up to 2-3/8 in. outside diameter
• Code listed for both building and plumbing codes
• Reinforces studs which have been drilled or notched during construction
• Designed to resist tension loads only
• Sized for triple nominal 2x stud
• Width: 4-9/16 in.
• Made from 16-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: SS4.5
• UPC: 44315566202
• GTIN: 44315566202
• Feature 01: Installs over pipe up to 2-3/8 in. outside diameter
• Feature 02: Code listed for both building and plumbing codes
• Feature 03: Reinforces studs which have been drilled or notched during construction
• Feature 04: Designed to resist tension loads only
• Feature 05: Sized for triple nominal 2x stud
• Feature 06: Width: 4-9/16 in.
• Feature 07: Made from 16-gauge steel
• Feature 08: Galvanized (G90) for corrosion resistance
• Install With: (14) 0.148 in. x 3 in. nails
• Assembled Depth - Imperial: 3.307
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4.989
• Assembled Width UOM - Imperial: in.
• Base Product ID: SS_StudShoe
• Base Product Name: SS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Stud Shoes > Stud Shoe
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 84711538055029321521685775206851098302
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: (3) 2x
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Stud Shoe
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.68
• Short Product Name: STUD SHOE
• Strongtie.com URL: https://www.strongtie.com/miscellaneousconnectors_woodconnectors/ss_studshoe/p/ss
• Subcategory: Wood Construction Connectors
• Subcategory 2: Stud Shoes
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315566209
• PAL Reference: 50044315566207
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
