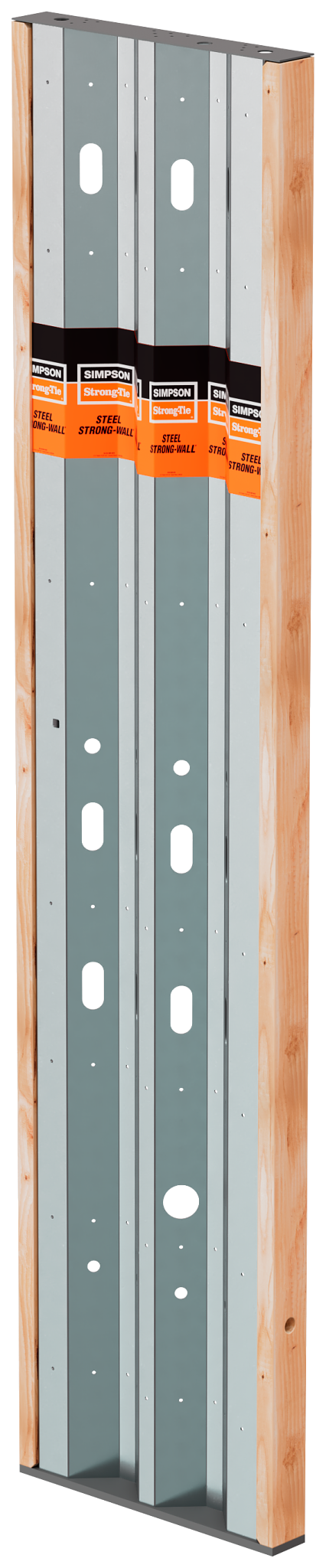

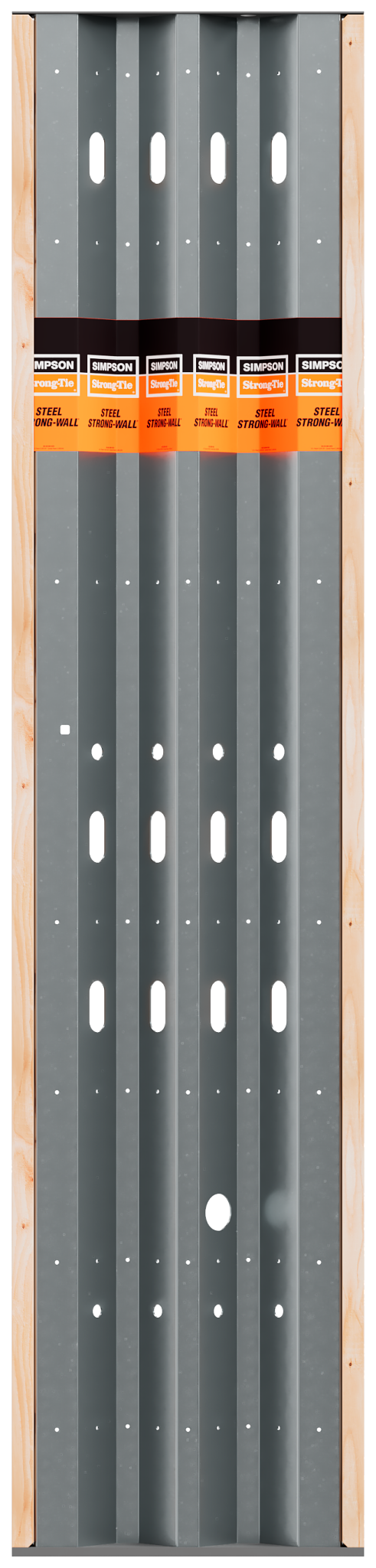

Simpson Strong-Tie SSW24X9 24 in. x Nominal 9 ft. Steel Strong-Wall® Shearwall

The Steel Strong-Wall shearwall is a prefabricated, steel panel that helps structures resist lateral forces such as those created by earthquakes and high winds. Designed with easy installation in mind, the Steel Strong-Wall features some of the highest allowable loads in the industry. This code-listed shearwall is suitable for residential construction.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Fewer anchor bolts and fasteners coupled with easy access to the top and bottom of the wall result in more efficient installation
• An easy-to-use anchor-bolt template for concrete contractors
• Preattached wood studs and predrilled holes where framers and electricians need them for wiring
• Wall size: 24 in. x 105-1/4 in.
• Vertical panel made from 10-gauge steel
• Vertical panel — galvanized; top and base plates — Simpson Strong-Tie gray paint

Application

• Standard Wall on Concrete Foundation
• Seismic (New Construction)
• Wood / Residential Construction

Specifications

• ERP Part Number: SSW24X9
• UPC: 707392355205
• GTIN: 707392355205
• Feature 01: Fewer anchor bolts and fasteners coupled with easy access to the top and bottom of the wall result in more efficient installation
• Feature 02: An easy-to-use anchor-bolt template for concrete contractors
• Feature 03: Preattached wood studs and predrilled holes where framers and electricians need them for wiring
• Feature 04: Wall size: 24 in. x 105-1/4 in.
• Feature 05: Vertical panel made from 10-gauge steel
• Feature 06: Vertical panel — galvanized; top and base plates — Simpson Strong-Tie gray paint
• Install With: Install with (2) 1 in. diameter anchor bolts (not included), (2) heavy hex nuts (included) and (14) 1/4 in. x 3-1/2 in. SDS screws (included)
• Applications List: Standard Wall on Concrete Foundation
• Applications List.1: Seismic (New Construction)
• Applications List.2: Wood / Residential Construction
• Assembled Depth - Imperial: 3.5
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 105.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 24
• Assembled Width UOM - Imperial: in.
• Base Product ID: SSW_Shearwall
• Base Product Name: Steel Strong-Wall®
• Bolt/Rod Diameter (in.): 1
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Strong-Wall® Shearwalls > Shearwalls > Steel Shearwall
• Color: Combination
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Gauge: 10
• GUID: 257909066080674062049160636238027891305
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Combination
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Box
• Product Class: Steel Shearwall
• Product Includes: Includes (2) heavy hex nuts and (14) 1/4 in. x 3-1/2 in. SDS screws
• Quantity: 1
• Shipping Weight: 160
• Short Product Name: STEEL STRONG-WALL 24 X 9
• Strongtie.com URL: https://www.strongtie.com/ssw_steelstrongwallshearwalls/ssw_shearwall/p/steel-strong-wall
• Subcategory: Strong-Wall® Shearwalls
• Subcategory 2: Shearwalls
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392355200
