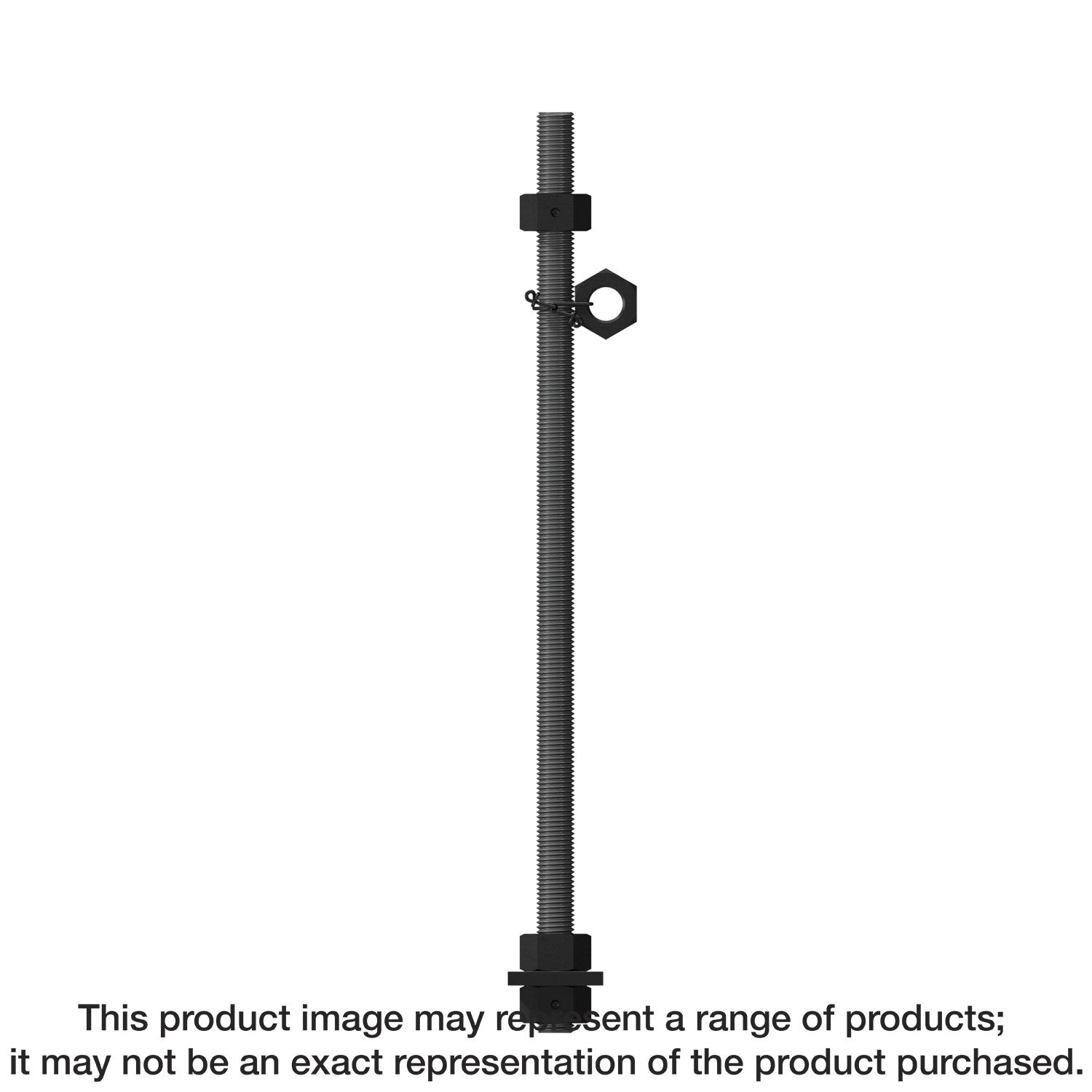

Simpson Strong-Tie SSWAB1X36HS-U SSWAB 1 in. x 36 in. Steel Strong-Wall® Anchor Bolt with Un-peened Compression Nut

The Simpson Strong-Tie® SSWAB is a heavy-duty, preassembled anchor bolt used to attach Steel Strong-Wall shearwalls to concrete foundations. With a variety of length and diameter options, these anchor bolts offer flexibility for meeting specific project demands. A stamped head makes inspection and identification easy with a No-Equal® symbol, bolt length, bolt diameter and optional “HS” for high strength, if specified.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Fixed-in-place compression nut to improve performance
• Head stamp for easy identification and inspection
• Supplied with extra nut for attachment to anchor template
• Made from high-strength (HS) ASTM A449 steel
• Un-peened nut allows the installer to adjust the height of the compression nut for field conditions
• Bolt dimensions: 1 in. x 36 in.

Application

• Anchorage Solutions
• Seismic (New Construction)

Specifications

• ERP Part Number: SSWAB1X36HS-U
• UPC: 707392251804
• GTIN: 707392251804
• Feature 01: Fixed-in-place compression nut to improve performance
• Feature 02: Head stamp for easy identification and inspection
• Feature 03: Supplied with extra nut for attachment to anchor template
• Feature 04: Made from high-strength (HS) ASTM A449 steel
• Feature 05: Un-peened nut allows the installer to adjust the height of the compression nut for field conditions
• Feature 06: Bolt dimensions: 1 in. x 36 in.
• Applications List: Anchorage Solutions
• Applications List.1: Seismic (New Construction)
• Assembled Depth - Imperial: 2.75
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 36
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3
• Assembled Width UOM - Imperial: in.
• Base Product ID: SSWAB_Bolt
• Base Product Name: SSWAB
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Strong-Wall® Shearwalls > Shearwall Kits and Anchorage > Anchor Bolt
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Uncoated Steel
• GUID: 144313087062164051279481606174133503770
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Uncoated Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Anchor Bolt
• Product Includes: An additional nut for template installation is provided with each SSWAB; it may also be used for Steel Strong-Wall installation
• Prop 65 - Cancer: Crystalline SIlica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 8.8
• Short Product Name: 1 X 36 SSWAB, UN-PEENED COMPRESSION NUT
• Strongtie.com URL: https://www.strongtie.com/sswbolts_steelstrongwallanchorage/sswab_bolt/p/sswab
• Subcategory: Strong-Wall® Shearwalls
• Subcategory 2: Shearwall Kits and Anchorage
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
