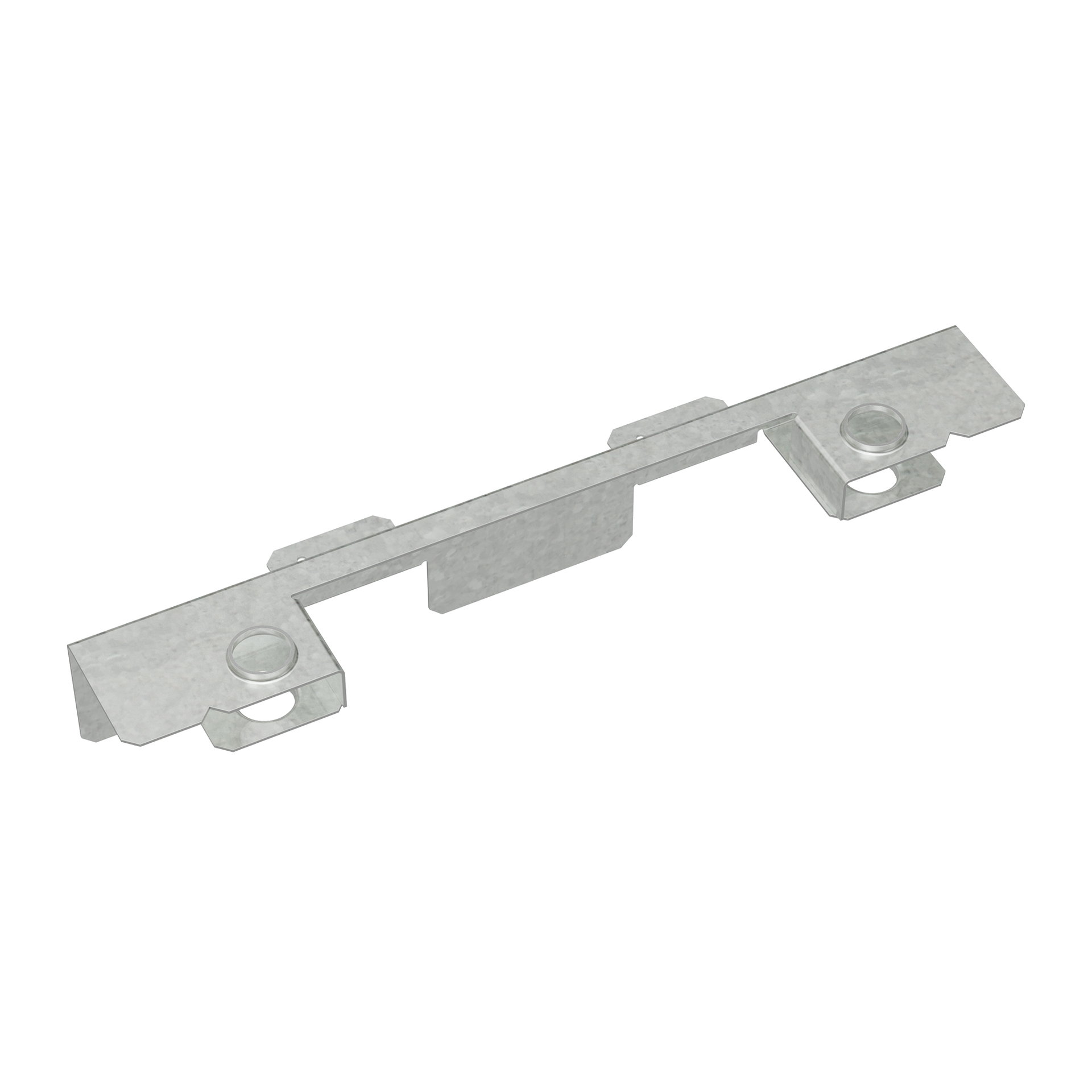

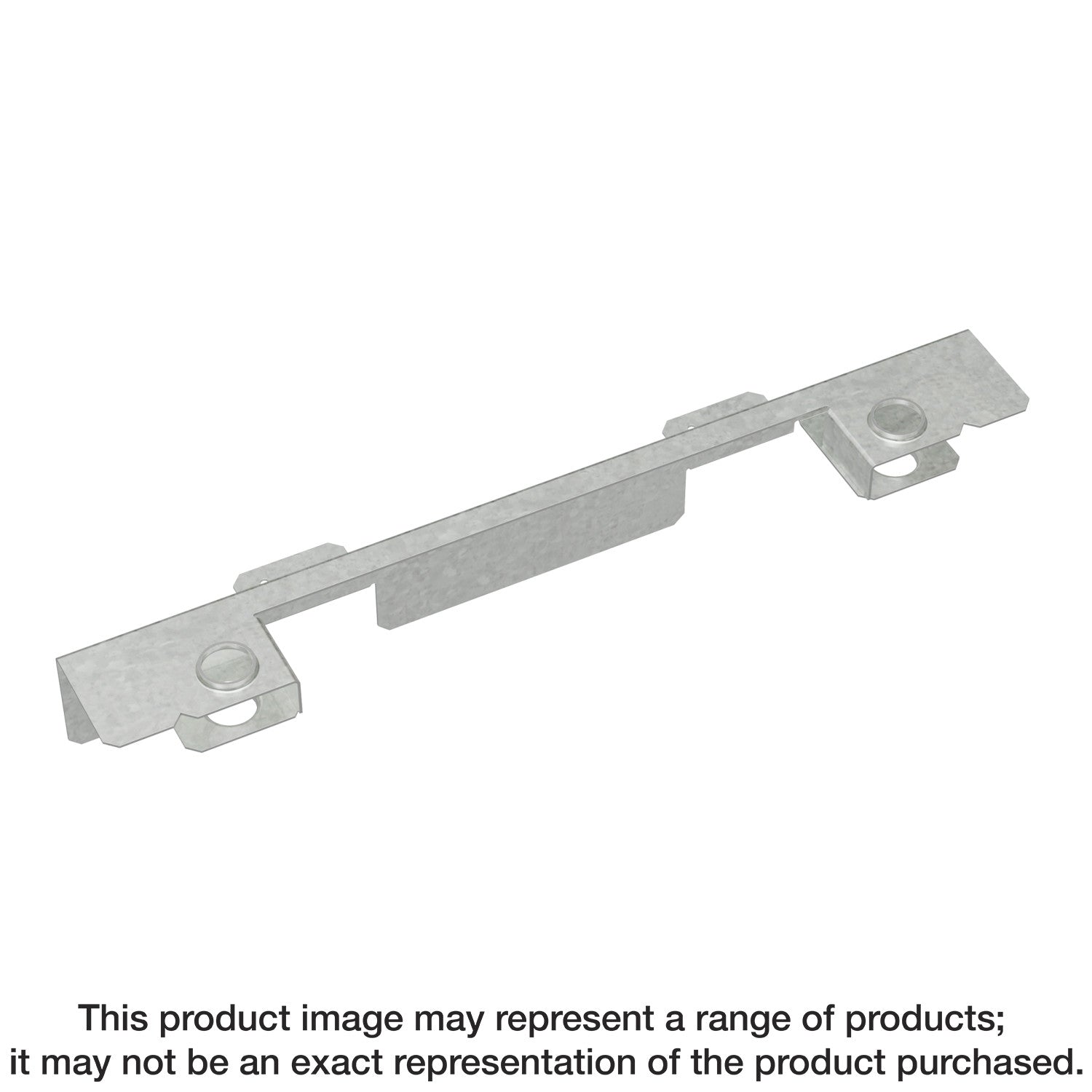

Simpson Strong-Tie SSWT18 Reversible Anchor Bolt Template for 18-in. Steel Strong-Wall® Shearwall

Simpson Strong-Tie® Steel Strong-Wall anchor bolt templates are designed to help accurately locate SSWAB preassembled anchor bolts. These anchor bolt templates simplify installation and greatly reduce the likelihood of voids in the concrete. The Steel Strong-Wall anchor bolt templates are reusable and designed to work with the common foundation types used for Steel Strong-Wall shearwalls.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Accurately locates anchor bolts for Steel Strong-Wall shearwalls
• Templates can be used with various anchor bolt models
• Standard templates are reversible and can be used for interior or exterior applications
• Made from 14-gauge steel
• Galvanized, G90
• For use with 18-in. width Steel Strong-Wall shearwall

Application

• Seismic (New Construction)
• Anchor Bolt Templates

Specifications

• ERP Part Number: SSWT18
• UPC: 707392927501
• GTIN: 707392927501
• Feature 01: Accurately locates anchor bolts for Steel Strong-Wall shearwalls
• Feature 02: Templates can be used with various anchor bolt models
• Feature 03: Standard templates are reversible and can be used for interior or exterior applications
• Feature 04: Made from 14-gauge steel
• Feature 05: Galvanized, G90
• Feature 06: For use with 18-in. width Steel Strong-Wall shearwall
• Applications List: Seismic (New Construction)
• Applications List.1: Anchor Bolt Templates
• Assembled Depth - Imperial: 4.2575
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.7575
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 18
• Assembled Width UOM - Imperial: in.
• Base Product ID: SSW_Template
• Base Product Name: Steel Strong-Wall® Anchor Bolt Templates
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Strong-Wall® Shearwalls > Shearwall Kits and Anchorage > Anchor Bolt Template
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 59648558798658117788816916777661844260
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Anchor Bolt Template
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.61
• Short Product Name: STEEL STRONG WALL TEMPLATE 18IN
• Strongtie.com URL: https://www.strongtie.com/sswanchorage_steelstrongwallshearwalls/ssw_template/p/steel-strong-wall-anchor-bolt-templates
• Subcategory: Strong-Wall® Shearwalls
• Subcategory 2: Shearwall Kits and Anchorage
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
