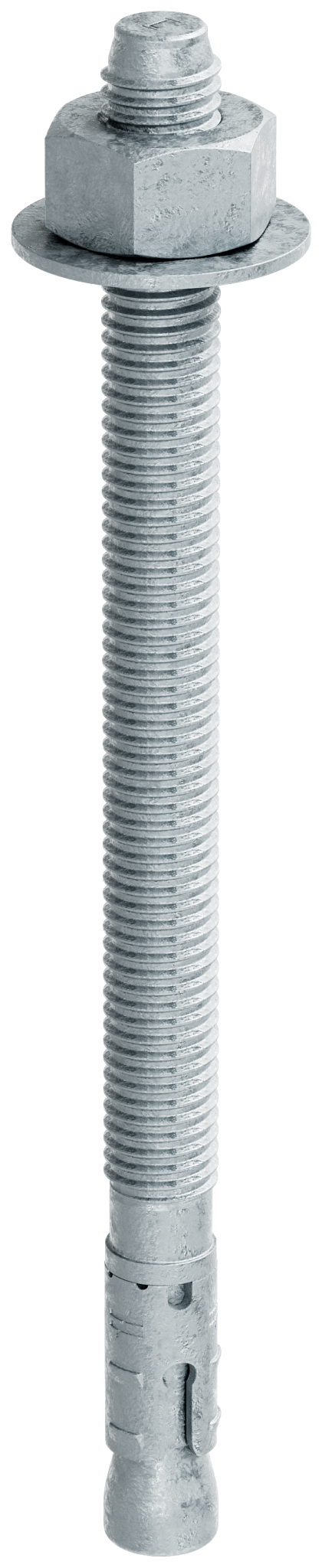

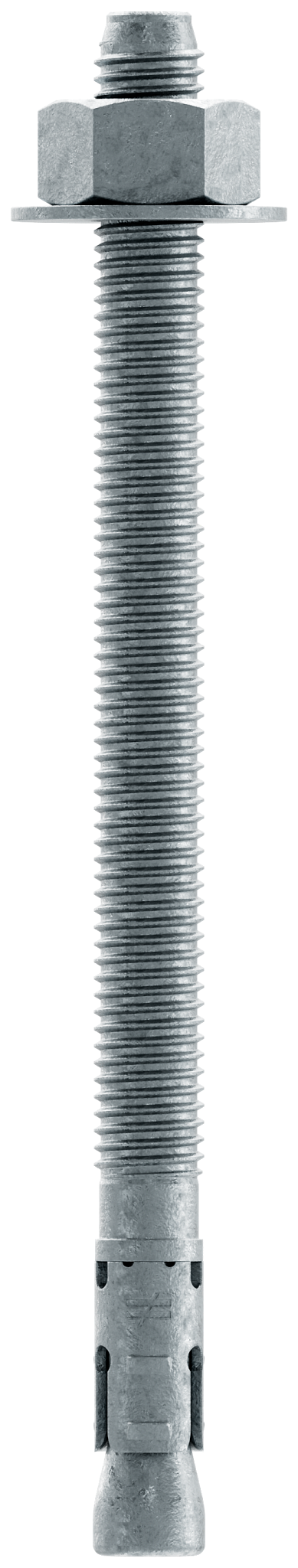

Simpson Strong-Tie STB2-50700MGF25 Strong-Bolt® 2 — 1/2 in. x 7 in. Mechanically Galvanized Wedge Anchor, Fully Assembled (25-Qty)

The Simpson Strong-Tie® Strong-Bolt® 2 wedge-type expansion anchor in a mechanically galvanized finish can be used where a high-load-resisting anchor is needed for exterior applications. It has the same dual undercutting embossments on each clip segment as the zinc-electroplated version. Suitable for horizontal, vertical and overhead applications, the STB2-MG anchor is tested in uncracked concrete in accordance with AC193 and also in uncracked masonry in accordance with AC01.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Chamfered top designed to prevent mushrooming during installation
• Suitable for horizontal, vertical and overhead applications
• Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
• Tested per ACI355.2 and AC193
• Size: 1/2 in. x 7 in.
• Mechanically galvanized carbon steel
• Quantity: 25 per package

Specifications

• ERP Part Number: STB2-50700MGF25
• UPC: 707392030393
• GTIN: 707392030393
• Feature 01: Chamfered top designed to prevent mushrooming during installation
• Feature 02: Suitable for horizontal, vertical and overhead applications
• Feature 03: Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
• Feature 04: Tested per ACI355.2 and AC193
• Feature 05: Size: 1/2 in. x 7 in.
• Feature 06: Mechanically galvanized carbon steel
• Feature 07: Quantity: 25 per package
• Install With: Installs with 1/2 in. drill bit and 3/4 in. wrench size
• Assembled Depth - Imperial: 1.062
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.06
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.062
• Assembled Width UOM - Imperial: in.
• Base Product ID: STB2-MG_Anchor
• Base Product Name: Strong-Bolt® 2
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Wedge Anchor
• Coating: Mechanically Galvanized
• Country of Origin: CN
• Customer Unit: Yes
• Diameter (in.): 1/2
• Display Unit/Measure: EA
• Drill Bit Diameter (in.): 1/2
• Finish: Mechanically Galvanized
• GUID: 9386148044958632291676230701149837294
• Length (in.): 7
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 12.57
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 3.63
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.60
• Package Width UOM - Imperial: in.
• Packaging Quantity: 25
• Packaging Type: Box
• Product Class: Wedge Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 9.711
• Short Product Name: Strong-Bolt2 1/2x7 MECH GALV PAK 25
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/stb2-mg_anchor/p/strong-bolt-2
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Thread Length (in.): 5 5/16
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392030390
• PAL Reference: 50707392030398
