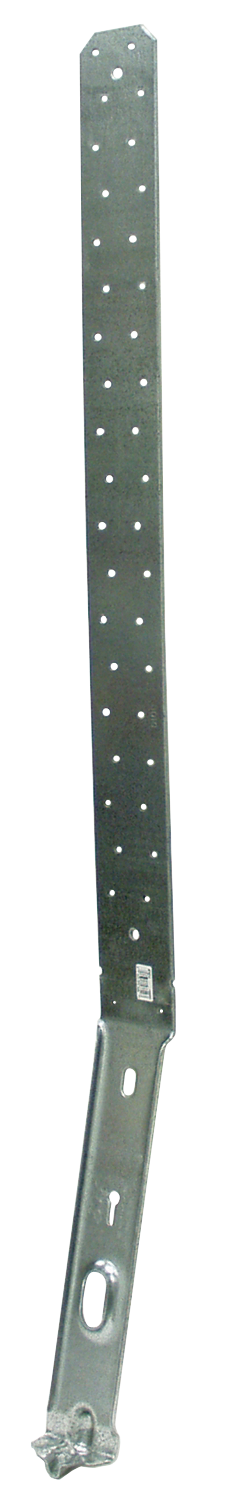

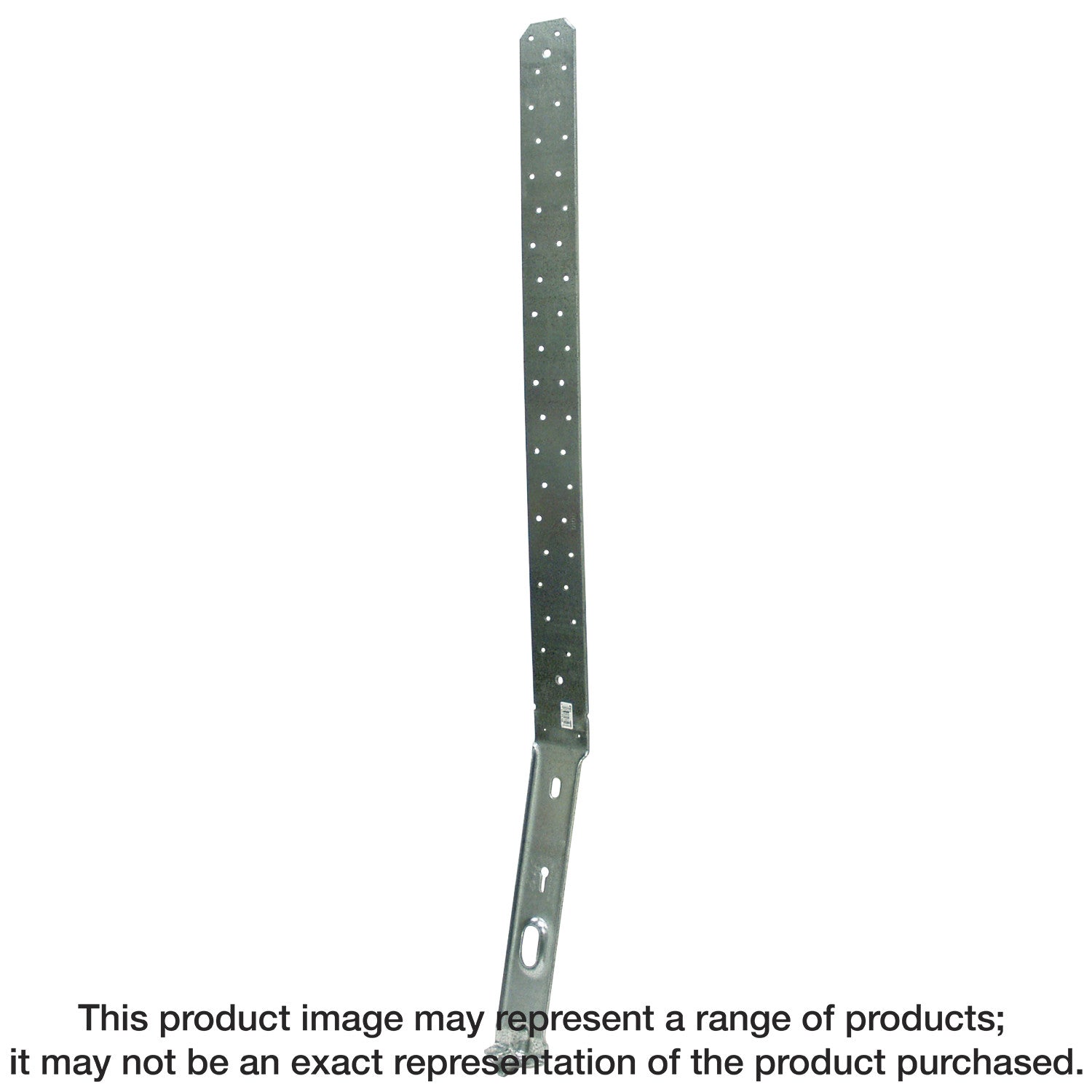

Simpson Strong-Tie STHD14RJ STHD 39-5/8 in. 12-Gauge Galvanized Rim-Joist Strap-Tie Holdown (Pack of 250)

The STHD is an embedded strap-tie holdown offering high load capacity and a staggered nail pattern to help minimize splitting. The STHD incorporates many features that aid correct installation and improve performance. When installed on the forms with the StrapMate® strap holder the unique design of the STHD delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The nailing pattern allows for nailing to the edges of double 2x's
• Strap nail slots are countersunk to provide a lower nail head profile
• The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
• Rim joist models accommodate up to a 17 in. clear span without any loss of strap nailing
• Rim-joist strap length: 39-5/8 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: STHD14RJ
• UPC: 50044315289502
• GTIN: 50044315289502
• Feature 01: The nailing pattern allows for nailing to the edges of double 2x's
• Feature 02: Strap nail slots are countersunk to provide a lower nail head profile
• Feature 03: The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
• Feature 04: Rim joist models accommodate up to a 17 in. clear span without any loss of strap nailing
• Feature 05: Rim-joist strap length: 39-5/8 in.
• Feature 06: Made from 12-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Assembled Depth - Imperial: 4.98708
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 53.9927
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3
• Assembled Width UOM - Imperial: in.
• Base Product ID: STHD_Holdown
• Base Product Name: STHD
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Holdown
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 310809840653023929212338905933526501440
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Holdown
• Prop 65 Warning: No
• Quantity: 250
• Shipping Weight: 1154
• Short Product Name: STRAP TIE HOLDOWN
• Strongtie.com URL: https://www.strongtie.com/straptieholdowns_holdownsandtensionties/sthd_holdown/p/sthd
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 44315289507
